Product Introduction

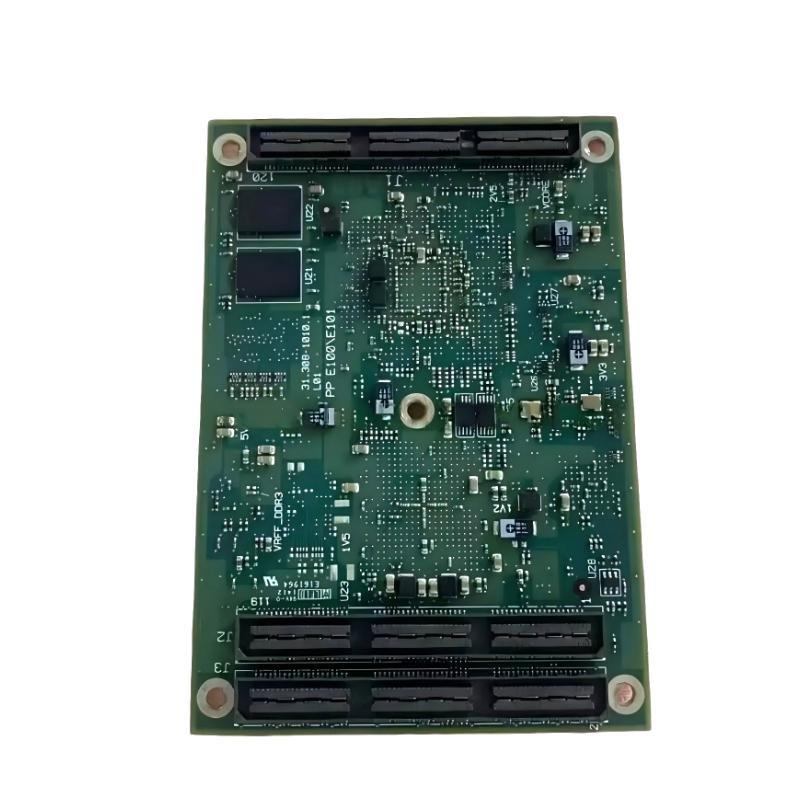

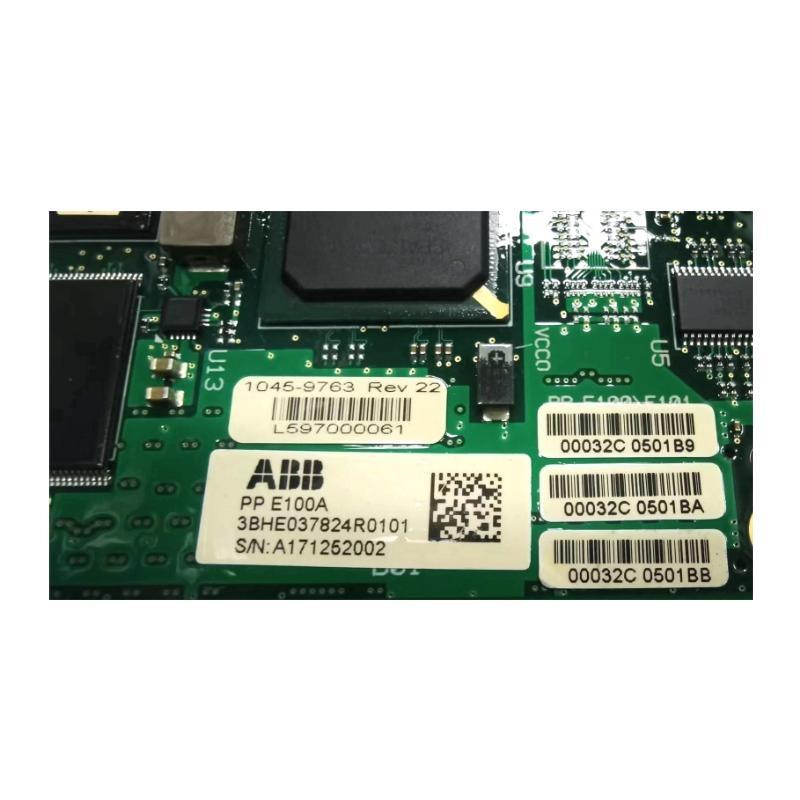

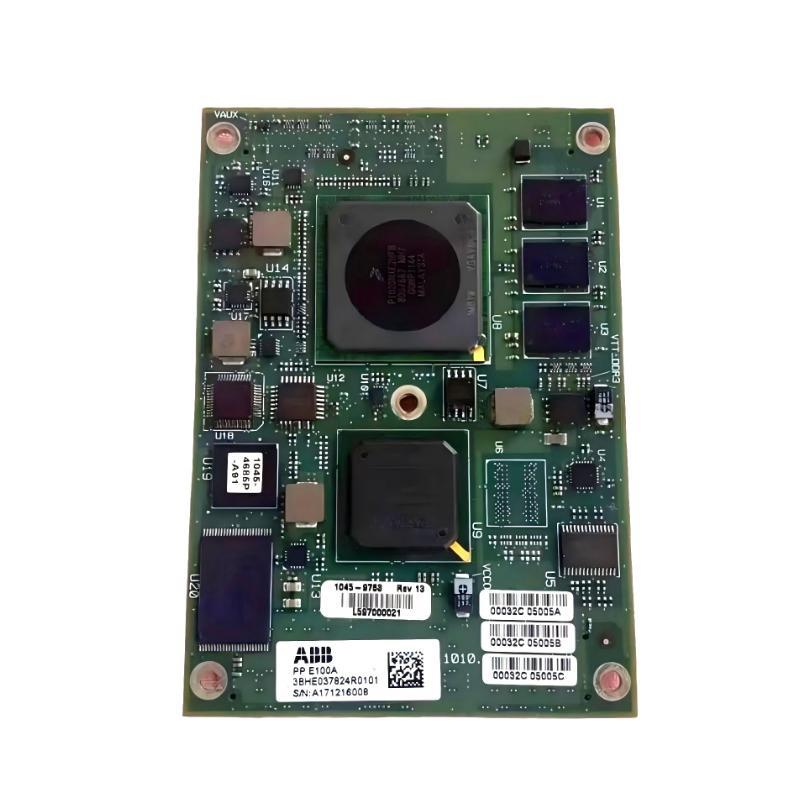

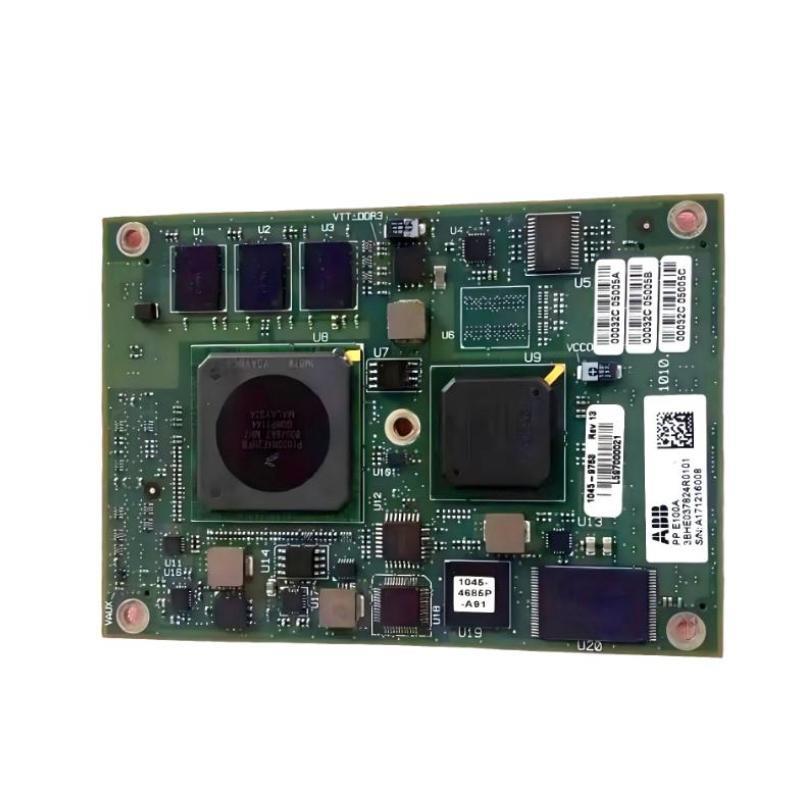

The ABB PP E100A 3BHE037824R0101 Control Board is a high-performance industrial control module designed for precise signal management, process control, and communication within ABB automation systems. It serves as a centralized processing unit capable of managing multiple input/output channels, enabling fast and reliable operation in complex industrial environments.
Built with industrial-grade 32-bit microcontrollers and a multi-layer PCB design, the PP E100A provides low-noise signal processing, high-speed communication, and consistent reliability under harsh operating conditions. Its conformal-coated PCB protects the board from dust, humidity, and minor chemical exposure, ensuring stable operation in demanding industrial environments.
The module is widely used in power generation, process automation, drive control, and heavy industry, where high-speed data processing, redundancy, and fault-resilient performance are essential. Its modular design allows for easy integration and maintenance, making it a critical component in ABB’s distributed control architecture.
Technical Specifications
| Parameter | Description |
|---|---|
| Manufacturer | ABB |
| Model Number | PP E100A 3BHE037824R0101 |
| Product Type | Control Board |
| System Compatibility | ABB DCS, drive systems, and process automation modules |
| Primary Function | Signal processing, control logic execution, and system communication |
| Processor Type | 32-bit industrial microcontroller |
| Clock Frequency | 66 MHz |
| Memory Capacity | 2 MB Flash, 256 KB RAM |
| Analog Inputs | 16 channels, voltage/current configurable |
| Analog Outputs | 12 channels, 12-bit resolution |
| Digital I/O | 32 isolated channels |
| Power Supply Voltage | +5 VDC ±5% |
| Power Consumption | Approx. 14 W |
| Communication Interfaces | RS-485, ABB proprietary bus, optional CAN bus |
| Isolation Voltage | 1500 VDC between logic and I/O |
| Protection Features | ESD, overvoltage, short-circuit, reverse polarity protection |
| PCB Coating | Acrylic conformal coating (MIL-I-46058C compliant) |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5%–95%, non-condensing |
| Vibration Resistance | 2 g, 10–500 Hz |
| Shock Resistance | 15 g, 11 ms half-sine |
| Mounting Type | Rack-mounted plug-in card |
| Indicators | LED indicators for power, communication, and fault |
| Material | FR4 multilayer PCB |
| Compliance | CE, UL, RoHS, ISO 9001 certified |
| Dimensions | 200 × 150 × 30 mm |
| Weight | 0.5 kg |
Product Applications
The ABB PP E100A Control Board is designed for industrial environments requiring reliable control, precise signal management, and high-speed communication. Its modular design and robust functionality make it suitable for various automation and process control applications.
Typical application areas include:
-
Power Generation: Generator control, excitation regulation, and monitoring of auxiliary equipment.
-
Industrial Automation: Signal processing, loop control, and communication for chemical, steel, and pulp plants.
-
Drive Systems: Management of AC/DC motor drives, including speed, torque, and position control.
-
Oil & Gas Industry: Reliable control and monitoring in harsh field conditions.
-
Heavy Manufacturing: Coordination of complex machinery and control loops in large-scale plants.
-
Marine & Offshore Automation: Robust operation under vibration, temperature, and humidity variations.
The module ensures continuous operation, low-latency response, and fault-tolerant performance, providing operators with reliable data and control feedback for critical processes.
Product Advantages
-
High-Performance Processing: 32-bit CPU delivers fast, reliable control logic execution.
-
Flexible Communication: Supports RS-485, ABB proprietary bus, and optional CAN bus.
-
Mixed-Signal Capability: Handles both analog and digital I/O for versatile applications.
-
Environmental Protection: Conformal-coated PCB protects against dust, moisture, and minor contaminants.
-
Comprehensive Safety: Includes ESD, overvoltage, short-circuit, and reverse polarity protection.
-
Diagnostic Feedback: LED indicators provide immediate information about power, communication, and fault.
-
Modular Design: Plug-in card facilitates easy replacement and system upgrades.
-
Wide Operating Range: Operates reliably from -25°C to +70°C and withstands vibration conditions.
-
ABB Quality Assurance: Built to strict ABB industrial standards.
-
Long-Term Stability: Designed for continuous operation with minimal maintenance requirements.
FAQ
-
What is the main function of the ABB PP E100A module?
It serves as a central control board, managing signal processing, communication, and control logic execution. -
Which ABB systems is this board compatible with?
It integrates with ABB DCS, drive systems, and process automation platforms. -
Does it support both analog and digital I/O?
Yes, it has multiple analog channels and 32 isolated digital I/O channels. -
Which communication protocols are supported?
RS-485, ABB proprietary bus, and optional CAN bus for reliable data exchange. -
What protection features are included?
ESD, overvoltage, short-circuit, and reverse polarity protection. -
Is the board protected against dust and moisture?
Yes, it features a conformal-coated PCB to resist dust, humidity, and minor contaminants. -
How does the board indicate operational status?
LED indicators display power, communication activity, and fault conditions. -
Can it be used in redundant configurations?
Yes, it supports redundancy for high-availability systems. -
What is the operating temperature range?
The board operates reliably from -25°C to +70°C. -
Is the module configurable for different applications?
Yes, input/output channels and communication settings can be adjusted according to system requirements.
Related or Equivalent Models (Same Series)
| Model Number | Description | Key Feature |
|---|---|---|
| PP E100B 3BHE037825R0101 | Control Board | Extended analog channels and additional diagnostics |
| PP E101A 3BHE037830R0101 | Signal Processing Module | Optimized for mixed-signal applications |
| PP E102A 3BHE037835R0101 | Logic Control Board | Enhanced control logic and redundancy features |
| PP E103A 3BHE037840R0101 | Communication Module | Dual-bus communication for critical systems |
| PP E104A 3BHE037845R0101 | Feedback Controller | Closed-loop control for drives and motors |
| PP E105A 3BHE037850R0101 | Process Controller | High-speed control for industrial automation loops |
Popular ABB Models (Same Brand)
| Model Number | Product Type | Main Function |
|---|---|---|
| PM864AK01 3BSE018161R1 | CPU Controller | Central processing for AC800M systems |
| DI810 3BSE008508R1 | Digital Input Module | Captures digital signals from sensors and field devices |
| DO810 3BSE008510R1 | Digital Output Module | Drives actuators and relays |
| AI810 3BSE008516R1 | Analog Input Module | Measures process variables in control loops |
| CI854AK01 3BSE030220R1 | Communication Interface | PROFIBUS DP adapter for ABB DCS systems |
| SDCS-PIN-51 3BSE004939R1 | Control Interface Board | Connects drive modules with external control systems |
