Product Introduction

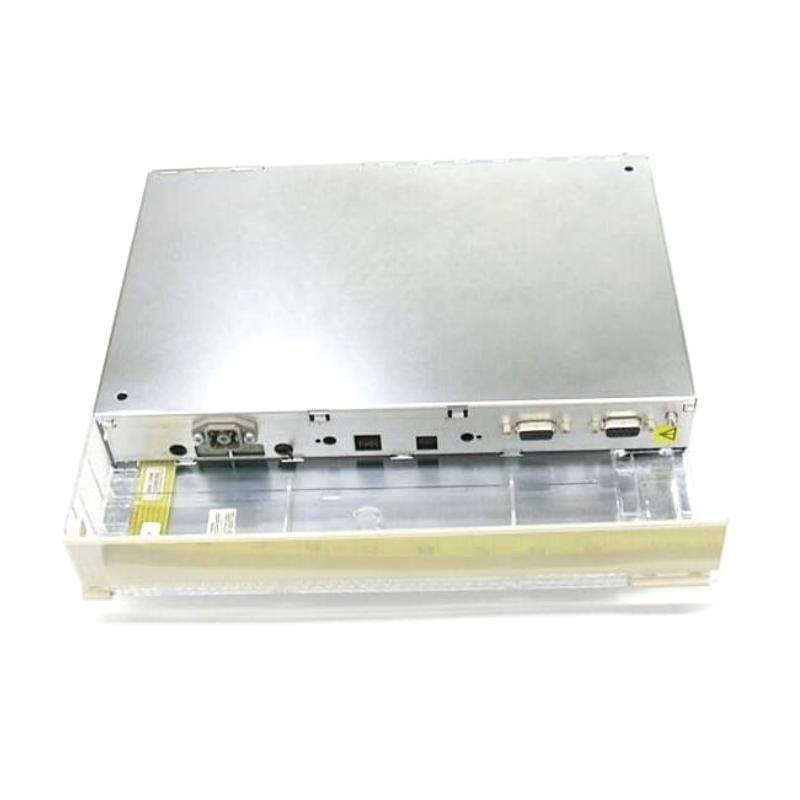

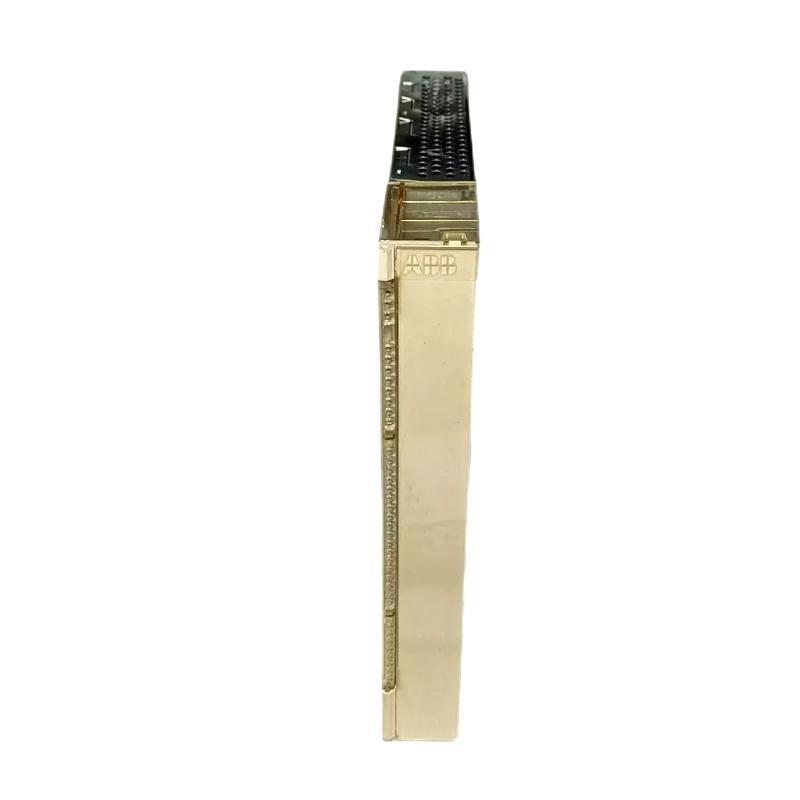

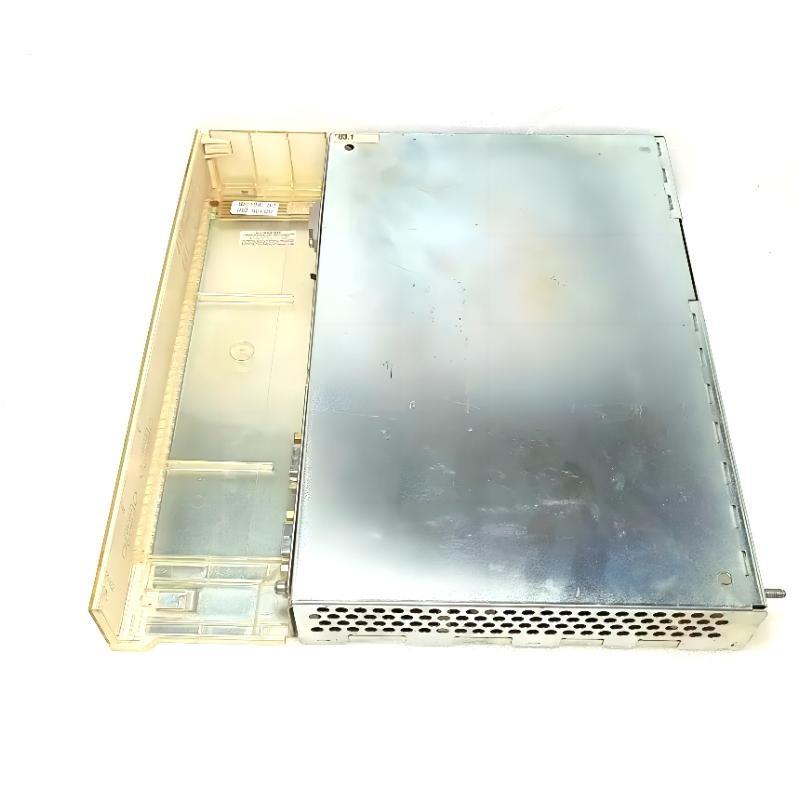

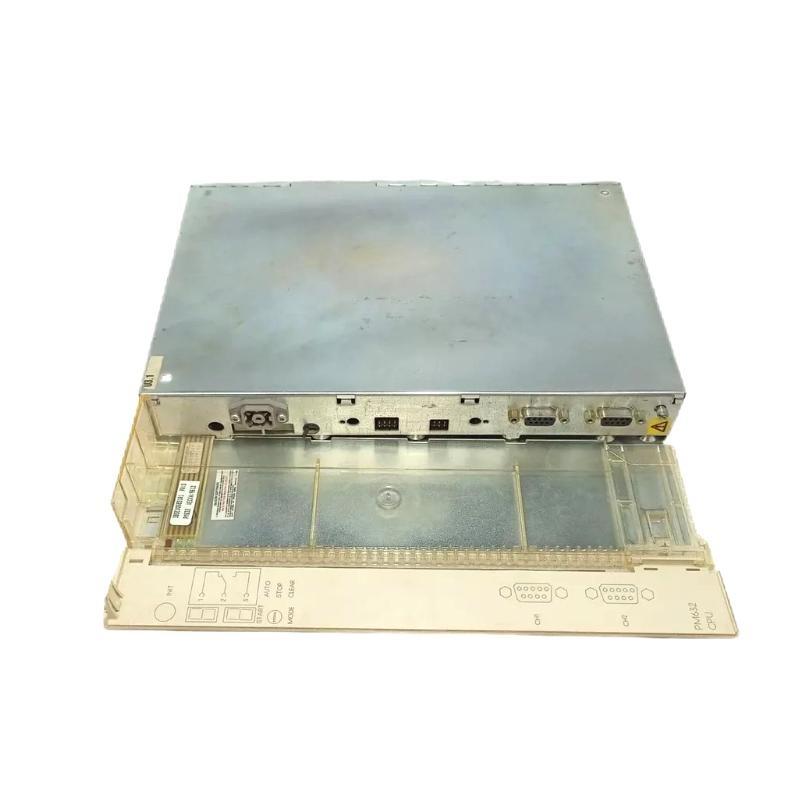

The ABB PM632 3BSE005831R1 is a high-performance CPU module designed for use within ABB’s advanced automation systems, particularly within the AC 800M series. As an essential part of ABB’s process control systems, the PM632 module serves as the central processing unit for the entire control system. It handles complex operations, performs calculations, and manages communication between the field devices, I/O systems, and the higher-level control systems.
With an innovative design and high computational power, the PM632 module is capable of supporting advanced process control applications that require high reliability, speed, and flexibility. It provides a robust solution for industries such as oil and gas, power generation, chemical processing, and water treatment.
The PM632 is engineered for easy integration and can be easily configured with other ABB I/O and communication modules. With a compact size of 310.5 x 38.7 x 238.5 mm and a weight of 1.2 kg, it is well-suited for installations with limited space. This CPU module offers long-term performance, ensuring continuous operation in critical systems.
Product Specifications
| Parameter | Details |
|---|---|
| Model | PM632 |
| Product Code | 3BSE005831R1 |
| Processor Type | 32-bit processor with multi-core technology |
| Memory Size | 1 GB RAM |
| Storage Capacity | 2 GB Flash memory |
| Operating Temperature | -20°C to +60°C |
| Dimensions (W x H x D) | 310.5 x 38.7 x 238.5 mm |
| Weight | 1.2 kg |
| Redundant Configuration | Yes |
| I/O Capacity | High-capacity I/O support for process control |
| Hot Swap Capability | Yes |
| Power Supply | 24 V DC ±20% |
| Communication Ports | Ethernet, PROFIBUS, Modbus |
| Certification | CE, cULus, RoHS compliant |
| Mounting Type | DIN rail |
| Protection Class | IP20 |
Product Applications
-
Industrial Process Control: The PM632 CPU is ideal for controlling complex industrial processes, such as those in the oil and gas, chemical, and power generation sectors.
-
Automation Systems: It acts as the backbone of automation systems, processing and managing signals from various input/output devices, sensors, and actuators.
-
Energy Management: The module provides real-time data processing for critical power distribution and energy management systems.
-
Manufacturing & Assembly Lines: It supports automation in manufacturing processes, such as conveyor systems, robotics, and material handling.
-
Water Treatment Plants: Monitors and controls equipment such as pumps, motors, and chemical dosing systems in water treatment facilities.
-
Building Management Systems: Manages HVAC systems, lighting, and security within large buildings or facilities.
Product Advantages
-
High Processing Power: Equipped with a 32-bit processor and multi-core technology, the PM632 ensures fast execution of complex tasks and algorithms.
-
Reliable Performance: Designed for industrial environments, the PM632 offers exceptional durability and stability, ensuring continuous operation in demanding conditions.
-
Advanced I/O Support: The module supports high-density input and output channels, making it versatile for a wide range of applications.
-
Redundancy Ready: The PM632 can be integrated into redundant configurations to ensure system availability in critical applications.
-
Easy Integration: Seamlessly integrates with other ABB I/O and communication modules, simplifying system design and setup.
-
Hot Swap Capability: The module can be replaced without interrupting system operation, providing flexibility during maintenance.
-
Compact and Lightweight: Despite its high processing power, the PM632 features a compact size and lightweight design, making it easy to install in tight spaces.
-
Wide Temperature Range: It can operate in extreme temperatures ranging from -20°C to +60°C, making it suitable for use in harsh environments.
-
Flexible Communication: The module supports Ethernet, PROFIBUS, and Modbus, allowing for easy communication with a variety of devices and networks.
Frequently Asked Questions (FAQ)
-
What type of processor does the PM632 use?
The PM632 uses a 32-bit processor with multi-core technology for enhanced performance. -
What is the memory capacity of the PM632?
The module has 1 GB of RAM and 2 GB of Flash memory for storage. -
What is the operating temperature range for the PM632?
The PM632 operates in temperatures ranging from -20°C to +60°C. -
How many communication ports are available on the PM632?
The module features Ethernet, PROFIBUS, and Modbus communication ports. -
Is the PM632 suitable for use in redundant systems?
Yes, the PM632 supports redundancy configurations for critical applications. -
What is the weight of the PM632?
The PM632 weighs approximately 1.2 kg. -
Can the PM632 be replaced while the system is running?
Yes, the module supports hot swapping, allowing replacement without shutting down the system. -
What is the power supply requirement for the PM632?
The PM632 operates on a 24 V DC power supply with a ±20% tolerance. -
Is the PM632 compliant with international standards?
Yes, the PM632 is CE, cULus, and RoHS compliant. -
What is the mounting type for the PM632?
The module is designed for DIN rail mounting.
Recommended Related or Similar Models
| Model | Description |
|---|---|
| PM863 | High-performance CPU for AC 800M system |
| PM864 | Advanced CPU with support for large-scale systems |
| PM856 | Compact CPU with high-speed processing capability |
| PM865 | Redundant CPU module for mission-critical systems |
| PM800 | Basic CPU for simple control applications |
| PM861 | High-end CPU with expanded memory capacity |
Popular ABB Modules (Same Brand)
| Model | Description |
|---|---|
| DO840 | 16-channel digital output module |
| DI825 | 16-channel digital input module |
| AI810 | 8-channel analog input module |
| AO810 | 8-channel analog output module |
| CI854A | Communication interface for PROFIBUS networks |
| DO810 | 16-channel digital output module |
