Product Introduction

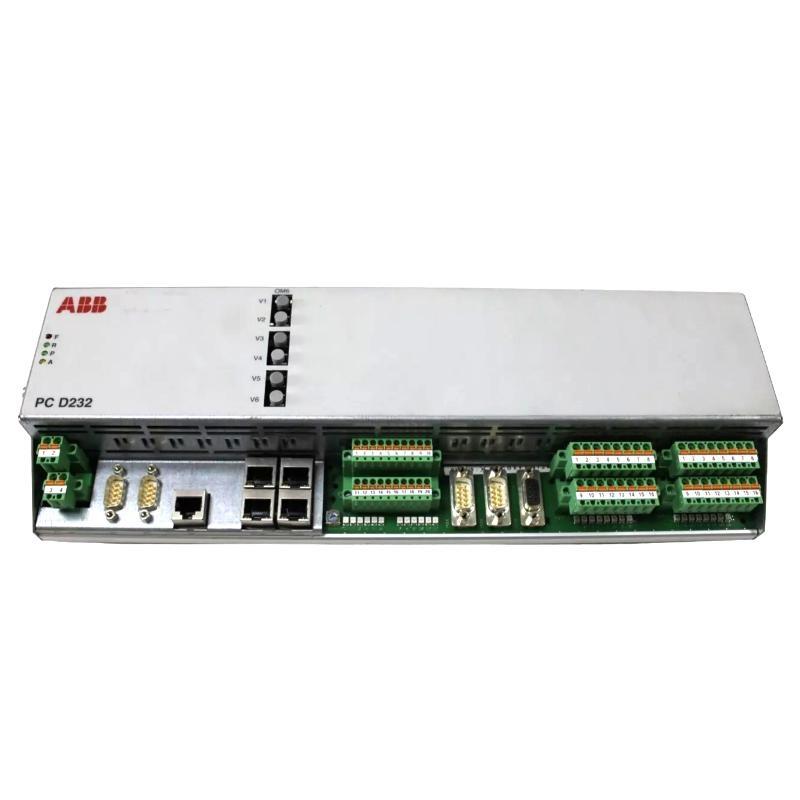

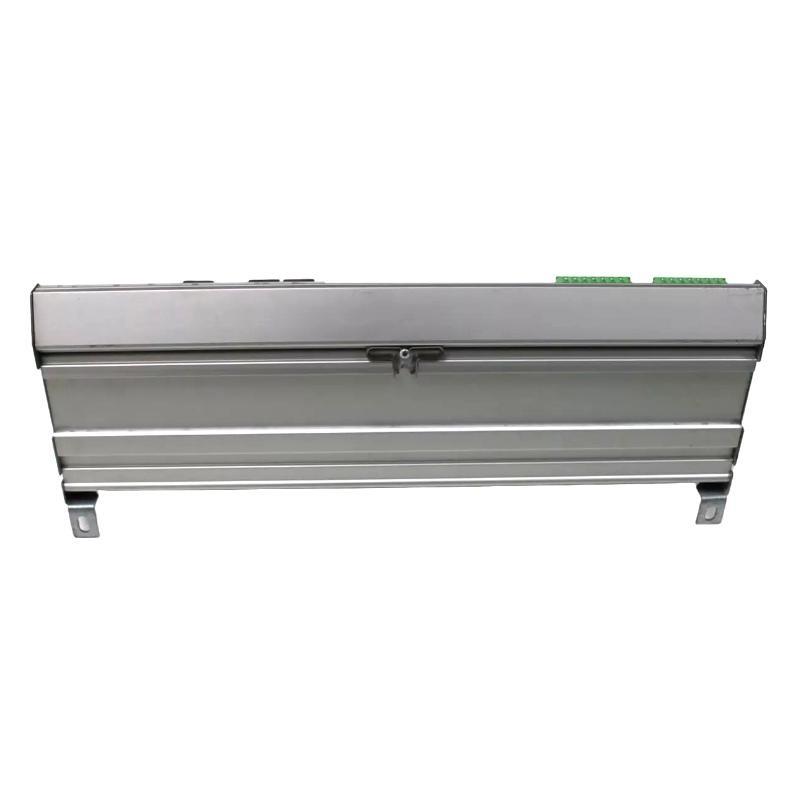

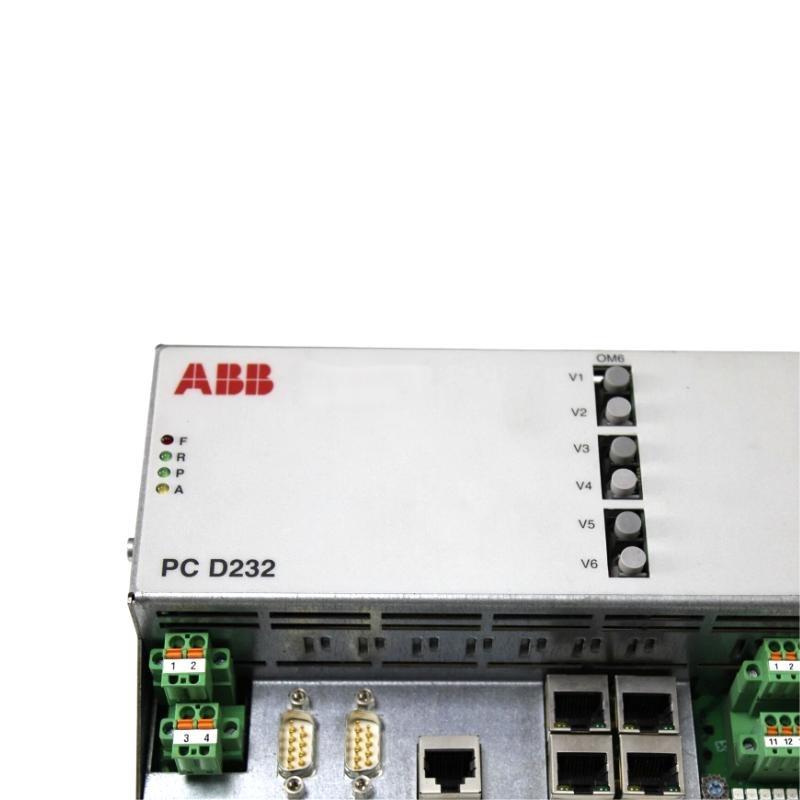

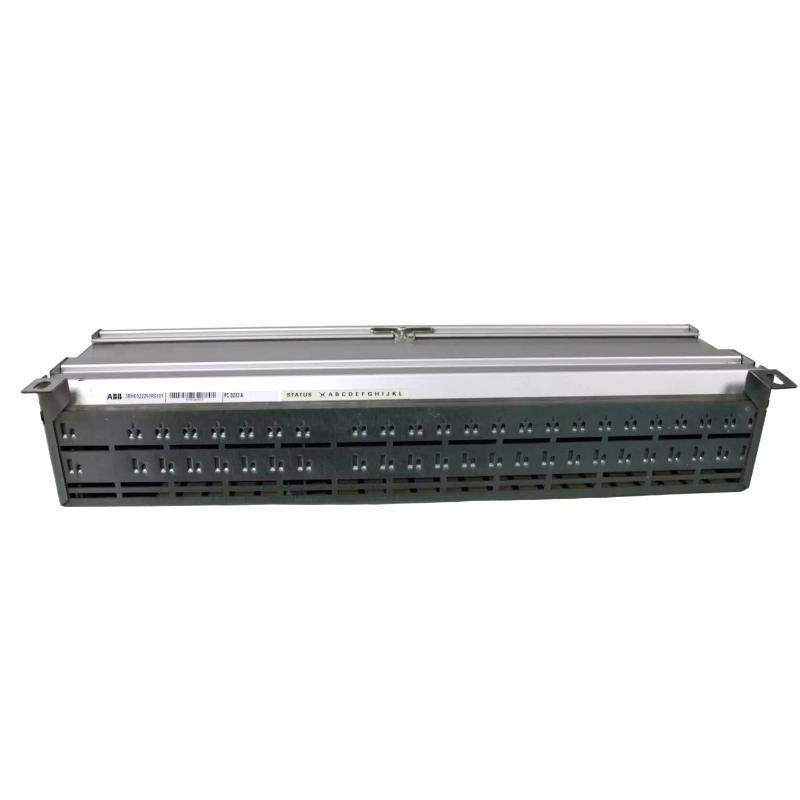

The ABB PC D232 A PEC80-CIO PC D232 A101 3BHE022293R0101 Communications I/O Module is a specialized interface module designed for high-speed communication and seamless integration within ABB’s industrial automation and control systems. This module serves as a bridge between controllers, field devices, and I/O subsystems, ensuring reliable data exchange and process synchronization.
Engineered to handle complex industrial communication protocols, the PC D232 A module supports high-performance I/O operations while maintaining low latency and robust noise immunity. It is optimized for ABB’s Symphony and drive control platforms and is widely used in process industries where uninterrupted communication is critical to safety and productivity.
Product Specifications
| Parameter | Description |
|---|---|
| Model Number | PC D232 A PEC80-CIO |
| Alternate Part | PC D232 A101 |
| Part Number | 3BHE022293R0101 |
| Manufacturer | ABB |
| Series | Symphony / Industrial Communication Modules |
| Function | Communications I/O Module |
| Supported Protocols | Ethernet, Fieldbus, Serial, ABB proprietary protocols |
| I/O Capacity | Supports multiple digital and analog I/O channels via expansion |
| Data Rate | High-speed, real-time communication |
| Processor | Embedded industrial-grade controller |
| Redundancy | Hot-swappable with redundancy support |
| Diagnostics | Integrated communication and I/O health monitoring |
| Operating Voltage | 24V DC nominal |
| Power Consumption | <12W typical |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| Mounting Type | Rack or cabinet mounted |
| Compliance | CE, UL, RoHS |
| Dimensions (H×W×D) | 120 × 80 × 147 mm |
| Weight | 2.47 kg |
Product Applications
-
Industrial Control Systems: Facilitates data exchange between controllers and field devices in process plants.
-
Drive and Motor Coordination: Ensures synchronized communication for motor drives in automation systems.
-
Power Generation: Manages communication for turbine, generator, and auxiliary control systems.
-
Oil & Gas Industry: Provides robust I/O communications in drilling, refining, and distribution networks.
-
Chemical Processing: Handles complex I/O and communication tasks in hazardous environments.
-
Water Treatment Plants: Ensures reliable control and monitoring through high-integrity communications.
Product Advantages
-
High-Speed Communication: Designed for low-latency, real-time data transfer.
-
Protocol Flexibility: Supports multiple industrial communication standards for easy integration.
-
Robust Diagnostics: Built-in monitoring of communication and I/O health ensures system reliability.
-
Redundancy Support: Enables hot-swappable redundant configurations to minimize downtime.
-
Industrial-Grade Design: Withstands harsh environmental conditions with strong electrical isolation.
-
Seamless ABB Integration: Optimized for use with ABB Symphony and control platforms.
FAQ
-
What communication protocols are supported by the PC D232 A module?
It supports Ethernet, Fieldbus, serial interfaces, and ABB-specific industrial communication protocols. -
How does the module integrate with ABB controllers?
The module serves as a communication interface, linking ABB controllers with field I/O and other subsystems. -
Can the module handle redundant communication configurations?
Yes, it supports hot-swappable redundancy to ensure continuous operation in mission-critical applications. -
What kind of I/O channels are compatible with this module?
It supports both digital and analog I/O modules through expansion connections. -
How does the module ensure data integrity during transmission?
It uses error-checking algorithms and galvanic isolation to maintain reliable and noise-free communication. -
What is the typical operating voltage for the module?
The module operates at a nominal 24V DC power supply. -
Does the PC D232 A module provide built-in diagnostics?
Yes, it includes communication status monitoring, I/O health checks, and self-diagnostics for proactive maintenance. -
Is the module suitable for real-time process control?
Yes, its high-speed processing and low-latency communication make it ideal for real-time industrial applications. -
Can the module be integrated into ABB Symphony Plus systems?
It is fully compatible with ABB Symphony Plus and legacy control architectures. -
How does the module handle electrical noise in industrial environments?
It employs robust isolation and shielding techniques to minimize interference and maintain stable communication.
