Product Overview

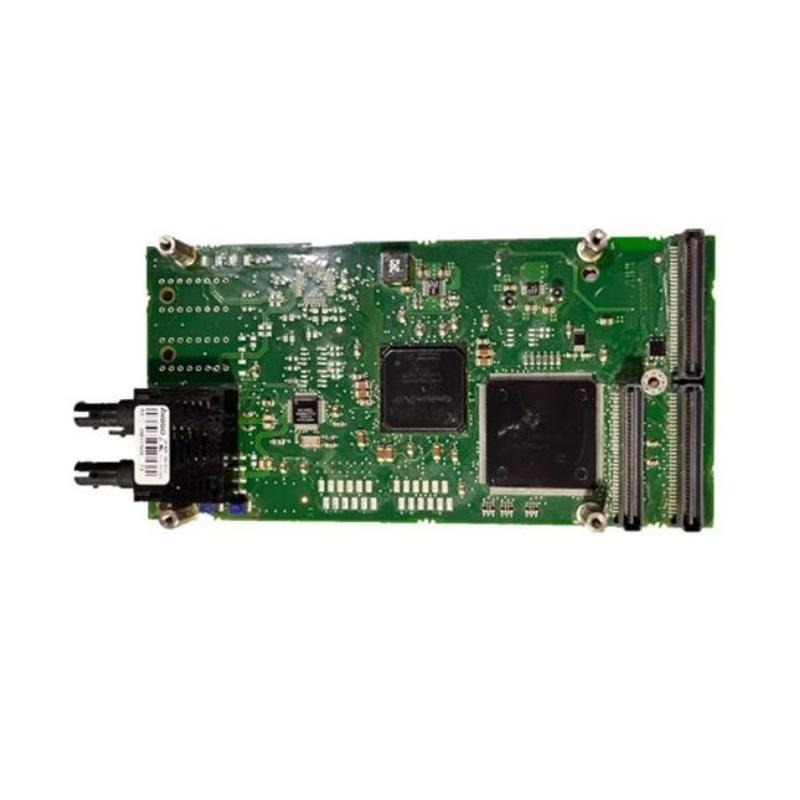

The ABB P13AC8 (1MRK000007-51) is a robust binary input/output (I/O) module designed for industrial and utility automation applications. This module integrates multiple binary inputs and outputs, providing reliable interfacing between field devices and control systems such as PLCs, RTUs, and protection relays.
Built to meet the high standards of substation automation and process control, the P13AC8 supports fast switching, electrical isolation, and clear diagnostic capabilities. Its compact size and flexible mounting options make it ideal for integration in control panels where space efficiency is crucial.
The module’s proven reliability in harsh industrial environments, combined with its ease of configuration and operation, positions it as an excellent choice for critical infrastructure control and monitoring tasks.
Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | P13AC8 (1MRK000007-51) |
| Brand | ABB |
| Product Type | Binary Input/Output Module |
| Input Channels | 8 Binary Inputs |
| Output Channels | 8 Binary Outputs |
| Input Voltage Range | 24 VDC / 48 VDC |
| Input Type | Dry contact or voltage inputs |
| Output Type | Mechanical relay outputs (Form A contacts) |
| Output Current Rating | 2 A @ 250 VAC / 2 A @ 30 VDC |
| Isolation Voltage | 2 kV RMS |
| Response Time | < 5 ms |
| Communication Support | IEC 61850, Modbus, IEC 60870-5-103 |
| Diagnostics | Channel status LEDs, self-diagnostics |
| Mounting | DIN Rail or panel mounting |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Ingress Protection | IP20 |
| Certifications | CE, RoHS, UL, IEC |
| Housing Material | Flame-retardant plastic |
| Dimensions (L × W × H) | 230 x 130 x 30 mm |
| Weight | 0.208 kg |
Applications
-
Substation Automation
Used for control and monitoring of breakers, disconnectors, and alarms within high and medium voltage substations. -
Industrial Automation
Interfaces with PLCs and SCADA systems to handle discrete input/output signals in manufacturing and processing plants. -
Renewable Energy Systems
Controls and monitors auxiliary equipment in solar, wind, and hydro power plants. -
Power Generation Facilities
Provides reliable binary I/O for turbine control systems, excitation panels, and generator protection. -
Transportation Infrastructure
Used in railway signaling, tunnel lighting, and airport power distribution control. -
Oil & Gas Sector
Supports critical safety functions and process control in hazardous area control systems.
Advantages
-
Compact Design
Fits into space-constrained control cabinets without compromising channel count. -
High Reliability
ABB’s proven quality ensures long-term, maintenance-free operation in demanding environments. -
Fast Response Time
Enables rapid switching (<5 ms) critical for protective relaying and interlocking. -
Multi-Protocol Support
Compatible with IEC 61850, Modbus, and IEC 60870-5-103 for seamless system integration. -
Diagnostic Feedback
Built-in LEDs and self-tests provide immediate indication of operational status and faults. -
Flexible Mounting
Supports both DIN rail and panel mounting to adapt to various control cabinet layouts.
FAQs (Frequently Asked Questions)
Q1: What is the function of the ABB P13AC8 module?
A1: It acts as a binary input/output interface for monitoring and controlling field devices.
Q2: How many inputs and outputs does it support?
A2: It has 8 binary inputs and 8 binary outputs.
Q3: What types of input signals does it accept?
A3: Dry contact and DC voltage inputs.
Q4: What kind of outputs does it provide?
A4: Mechanical relay outputs (Form A), suitable for AC and DC loads.
Q5: Is the module suitable for harsh environments?
A5: Yes, it is designed to operate reliably from -25°C to +70°C.
Q6: What communication protocols does it support?
A6: IEC 61850, Modbus, and IEC 60870-5-103.
Q7: How is device status monitored?
A7: Through individual channel LEDs and built-in self-diagnostic functions.
Q8: What is the typical response time?
A8: Less than 5 milliseconds.
Q9: Can the module be mounted on a DIN rail?
A9: Yes, it supports both DIN rail and panel mounting.
Q10: What is the module’s weight and size?
A10: Dimensions are 230 x 130 x 30 mm and weight is approximately 0.208 kg.
Related Models (Same Series or Function)
| Model | Description | Input Channels | Output Channels | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| 1MRK002246-BB | Binary I/O Module with 8 inputs/outputs | 8 | 8 | 310 x 250 x 30 | 0.5 |
| 1MRK002245-BA | Binary I/O Module with LED diagnostics | 6 | 6 | 310 x 250 x 30 | 0.48 |
| 1MRK001984-AA | Binary Input Module with monitoring features | 12 | 0 | 310 x 250 x 30 | 0.5 |
| 1MRK002250-AA | Galvanically isolated binary I/O module | 8 | 8 | 310 x 250 x 30 | 0.52 |
| 1MRK002235-AA | Binary output module with mechanical relays | 0 | 8 | 310 x 250 x 30 | 0.5 |
| 1MRK002261-AA | High-speed binary input module | 16 | 0 | 310 x 250 x 30 | 0.48 |
Popular ABB Modules (Same Brand)
| Model | Description | Type | Key Feature | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| CI854AK01 | PROFIBUS DP Communication Interface | Communication Module | GSD/GSDML profile support | 185 x 150 x 40 | 0.25 |
| AI810 | 8-channel Analog Input Module | Analog Input | Voltage & current inputs | 185 x 120 x 50 | 0.2 |
| AO820 | 4-channel Analog Output Module | Analog Output | High accuracy outputs | 185 x 120 x 50 | 0.22 |
| DI825 | 16-channel Digital Input Module | Digital Input | Source/sink compatibility | 185 x 120 x 50 | 0.24 |
| DO840 | 16-channel Digital Output Module | Digital Output | Solid-state outputs | 185 x 120 x 50 | 0.23 |
| PM865K02 | High-performance redundant CPU control module | CPU Module | Redundant CPU and Ethernet | 280 x 210 x 65 | 0.6 |
