Product Introduction

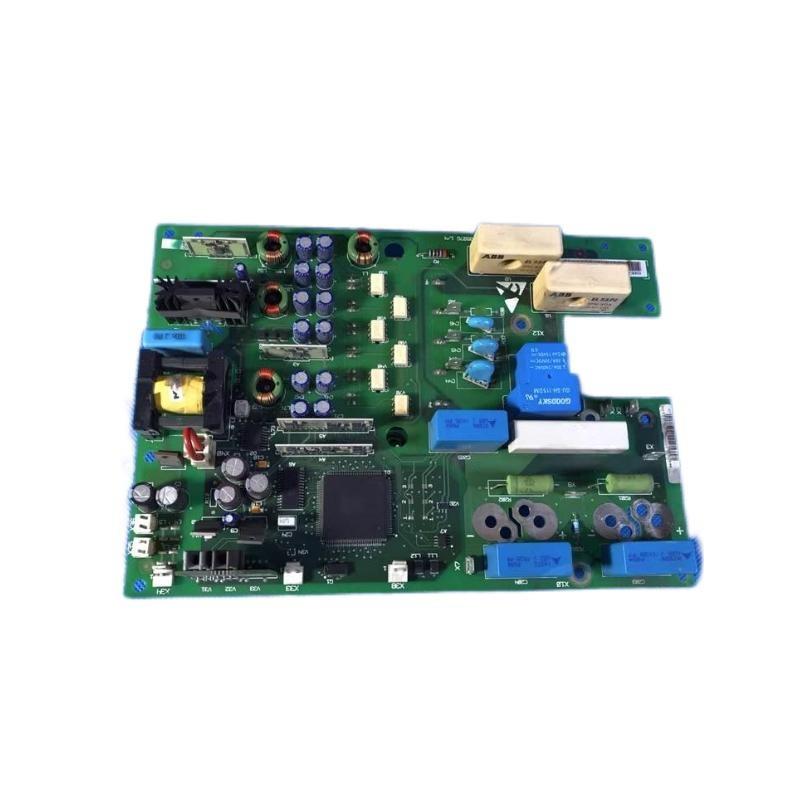

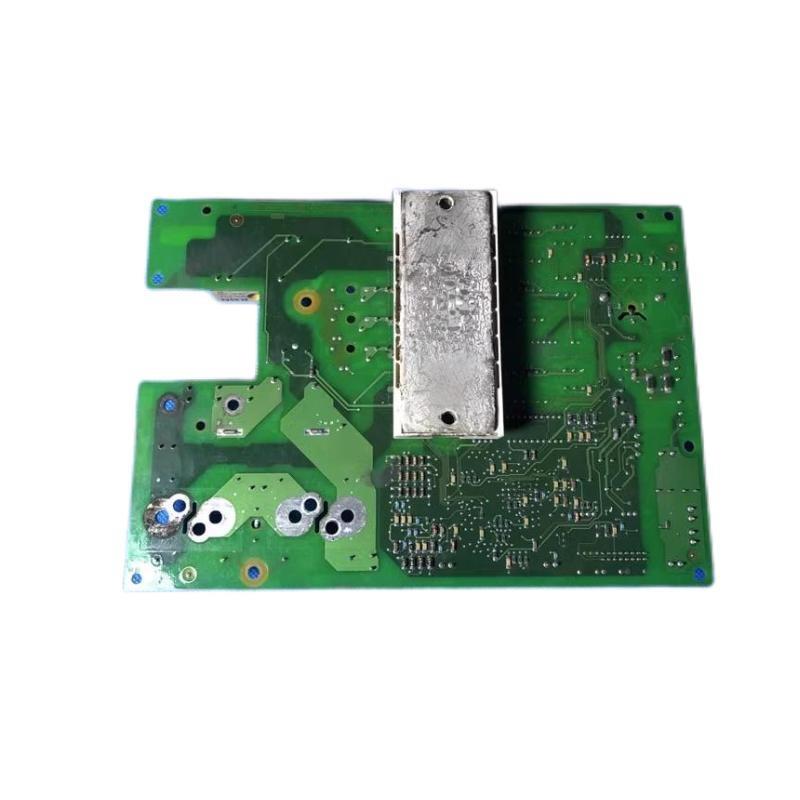

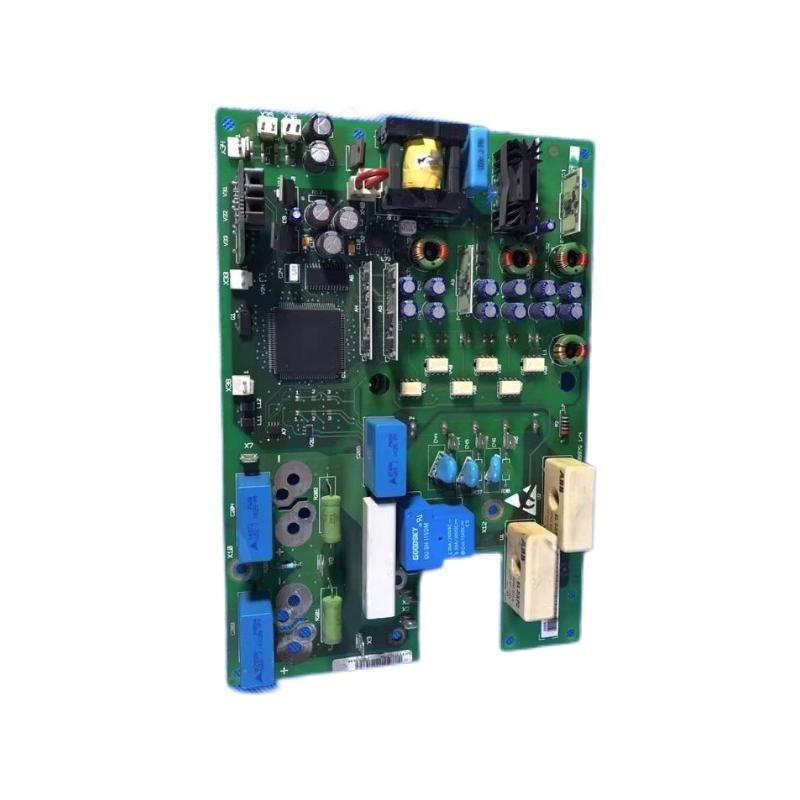

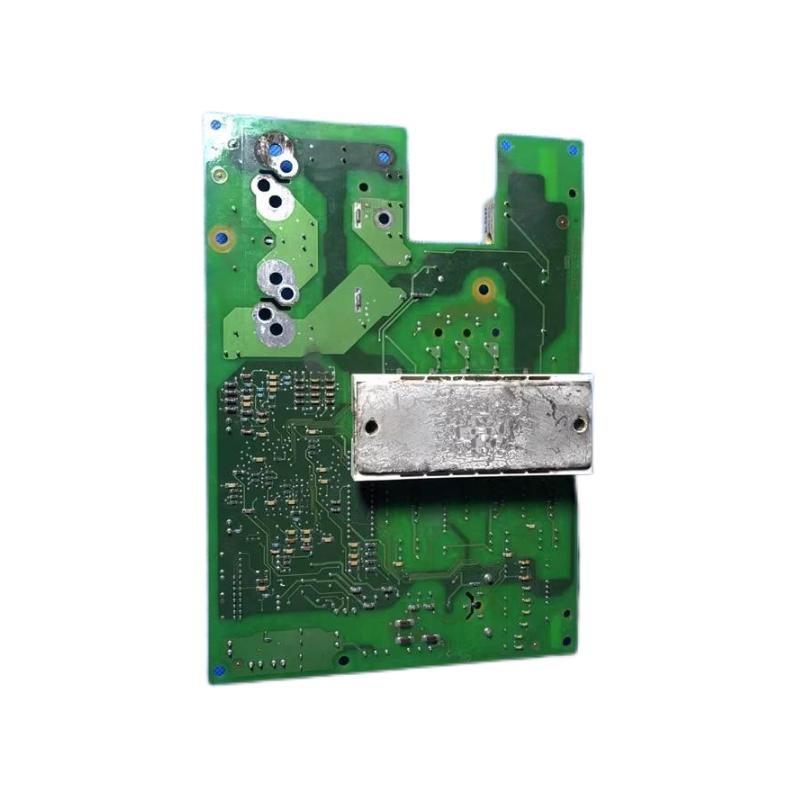

The ABB NINT-45C 58921441J Variable Frequency Drive (VFD) Board is an advanced power electronic component designed to optimize the performance of industrial motor control systems. This VFD board is integral to controlling the speed, torque, and overall efficiency of motors by adjusting the frequency and voltage supplied to the motor. The NINT-45C is particularly well-suited for applications where precision control and energy efficiency are essential.
As part of ABB’s innovative automation solutions, the NINT-45C VFD board helps reduce energy consumption, minimize motor wear, and improve system performance by ensuring that motors operate at the most efficient speeds. This technology is crucial for industries that rely on motors for critical processes, such as manufacturing, HVAC, and water treatment.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | NINT-45C 58921441J |
| Dimensions (L × W × H) | 180 × 150 × 40 mm |
| Weight | 0.3 kg |
| Voltage Range | 220V to 480V AC |
| Current Rating | 5 A |
| Control Type | V/Hz Control, Vector Control |
| Power Consumption | 15 W |
| Frequency Range | 0-60 Hz |
| Environmental Conditions | IP20 |
| Mounting Type | DIN Rail Mounting |
| Temperature Range | -10°C to +50°C |
| Compliance | CE, UL |
Product Applications
The ABB NINT-45C 58921441J VFD board is widely used in various industries that require precise control over motor speed and performance. Common applications include:
-
Manufacturing Plants: Provides precise motor control for conveyors, pumps, compressors, and other machinery.
-
HVAC Systems: Ensures efficient operation of fans, blowers, and pumps by adjusting motor speed according to load conditions.
-
Water Treatment Plants: Regulates the speed of pumps and motors to optimize water flow and energy usage.
-
Pumping Systems: Ideal for controlling water, slurry, or chemical pumps in industries like agriculture, mining, and oil & gas.
-
Crane and Hoist Applications: Controls the motor speed for smooth and precise lifting operations.
Product Advantages
-
Energy Efficiency: The NINT-45C optimizes motor operation by adjusting the voltage and frequency, leading to significant energy savings and reduced operating costs.
-
Precise Motor Control: With its V/Hz and vector control options, the VFD board ensures smooth and accurate motor control, enhancing overall system performance.
-
Compact Design: Its small size (180 × 150 × 40 mm) and lightweight (0.3 kg) make it easy to install in compact spaces, ideal for tight control panels.
-
Durable Performance: Designed to operate effectively in temperatures ranging from -10°C to +50°C, the NINT-45C can withstand a variety of industrial environments.
-
Wide Voltage Range: The NINT-45C can handle a voltage range of 220V to 480V AC, making it suitable for a wide range of motor types and applications.
-
Enhanced Protection: With an IP20 protection rating, the board is well-suited for environments where dust and dirt are minimal, providing additional reliability.
Frequently Asked Questions (FAQs)
Q1: What is the voltage range for the ABB NINT-45C VFD board?
A1: The board operates within a voltage range of 220V to 480V AC, making it versatile for different motor types.
Q2: How many amps can the NINT-45C VFD board handle?
A2: The NINT-45C board is rated for a current of up to 5 A.
Q3: What control methods are available with the NINT-45C VFD board?
A3: The NINT-45C supports both V/Hz control and vector control, allowing for precise motor speed and torque control.
Q4: What is the operating temperature range for the NINT-45C VFD board?
A4: The board can operate effectively in temperatures ranging from -10°C to +50°C.
Q5: What is the power consumption of the NINT-45C board?
A5: The board consumes 15 W of power.
Q6: How is the NINT-45C mounted?
A6: The NINT-45C board is designed for DIN rail mounting, making it easy to integrate into control panels.
Q7: What type of protection rating does the NINT-45C have?
A7: The board has an IP20 protection rating, offering protection against dust and debris in non-harsh environments.
Q8: What is the frequency range of the NINT-45C?
A8: The frequency range is 0-60 Hz, suitable for most motor control applications.
Q9: Is the NINT-45C compliant with international standards?
A9: Yes, the NINT-45C is CE and UL certified, ensuring it meets global safety and performance standards.
Q10: What industries can benefit from the NINT-45C VFD board?
A10: Industries such as manufacturing, HVAC, water treatment, pumping systems, and material handling (e.g., cranes and hoists) can greatly benefit from the NINT-45C board’s motor control capabilities.
Recommended Models
| Model | Description | Current Rating |
|---|---|---|
| NINT-50C | Enhanced VFD board with advanced features | 7 A |
| NINT-40C | Compact VFD board for smaller motors | 4 A |
| NINT-45D | High-performance VFD board with dynamic torque control | 5 A |
| NINT-60C | Industrial-grade VFD board with extended temperature range | 10 A |
| NINT-35C | Basic VFD board for simple motor control applications | 3 A |
| NINT-55C | VFD board with integrated harmonic filter | 6 A |
