Product Introduction

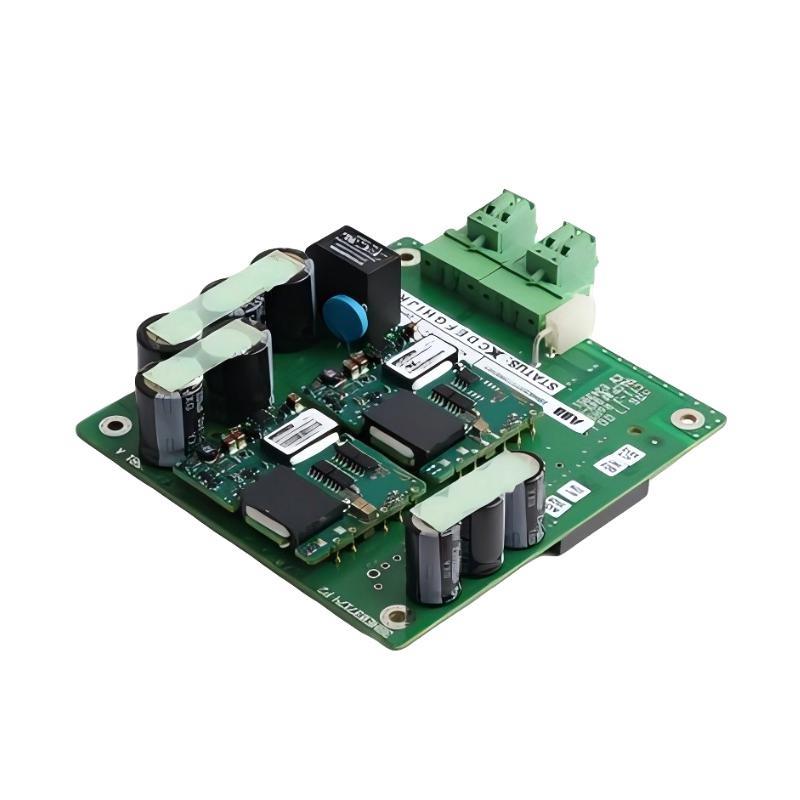

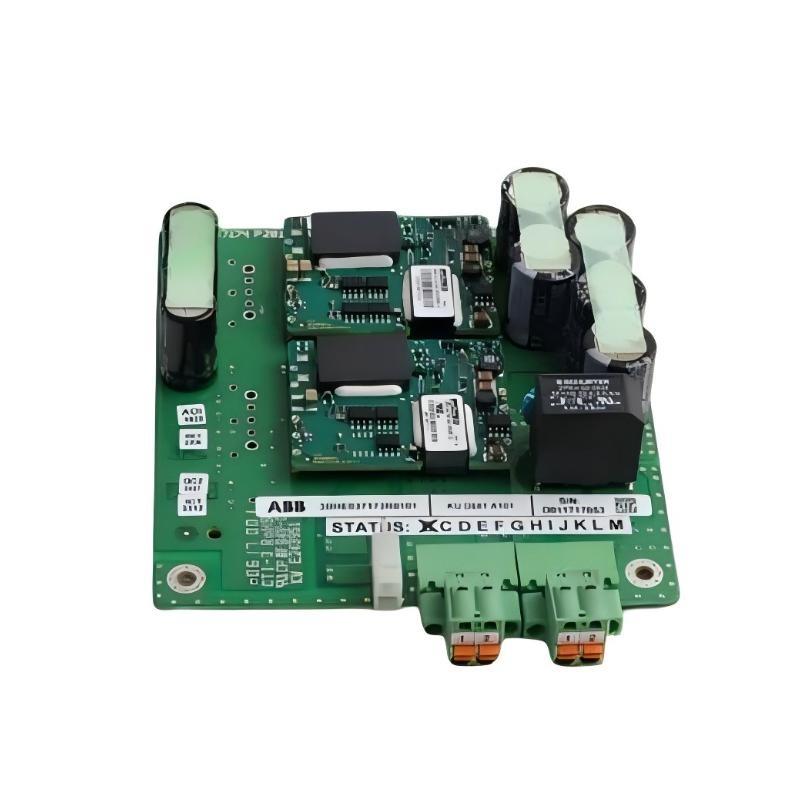

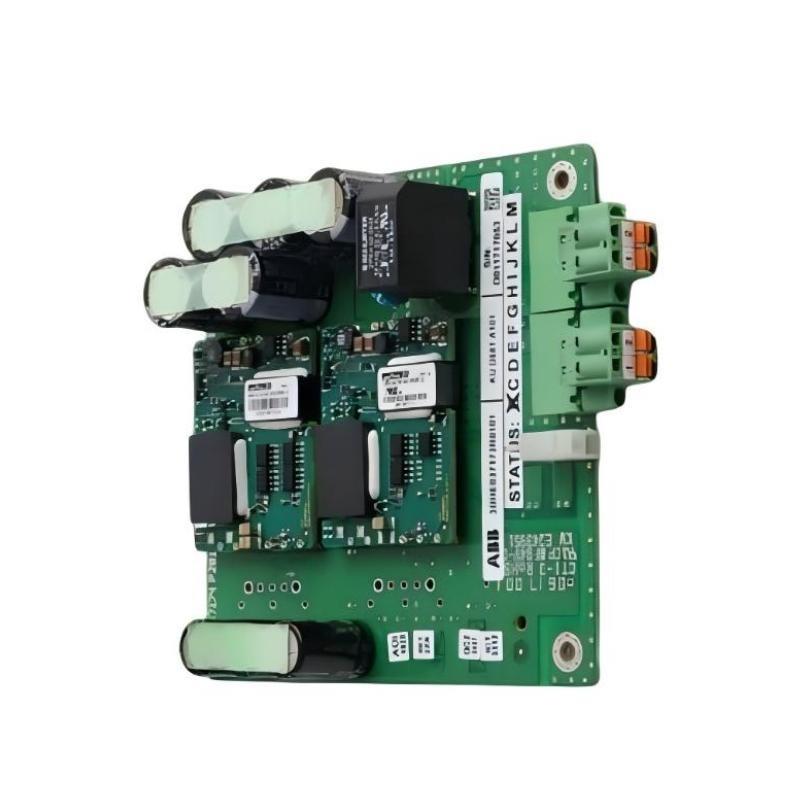

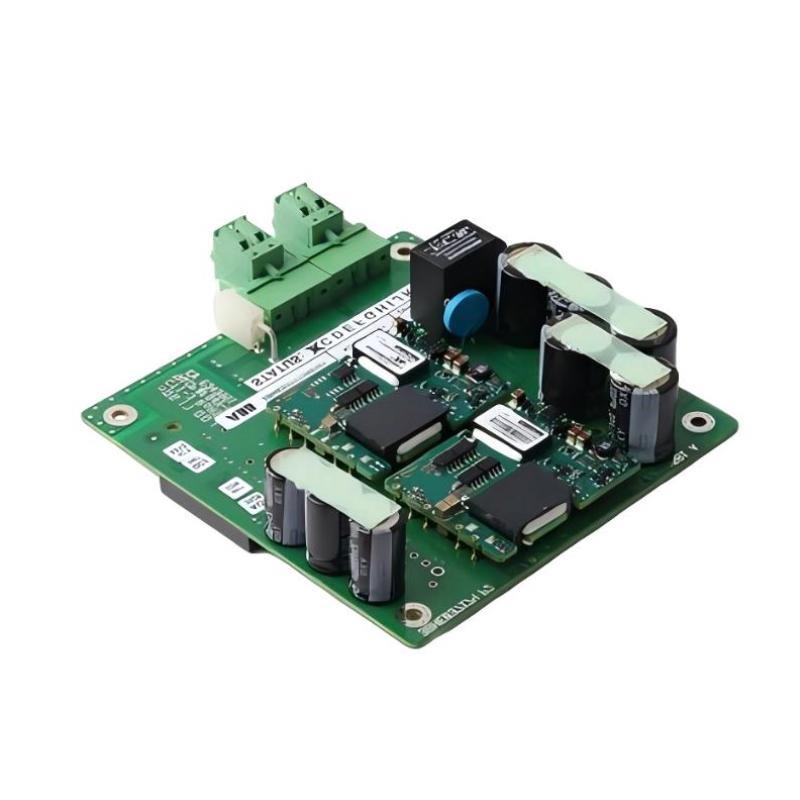

The ABB KU D581 A101 Controller Board is a high-performance industrial control board designed to provide reliable and precise control for complex power and automation systems. This module is a core component in ABB’s KU series control and protection systems, ensuring seamless integration with associated industrial equipment.
It is engineered for high-speed signal processing, accurate logic execution, and robust interfacing with peripheral modules. The board can manage both digital and analog inputs/outputs, making it suitable for applications that require high precision, real-time monitoring, and dependable system control.
The KU D581 A101 Controller Board supports advanced diagnostics and fault detection, enabling operators to maintain system stability, reduce downtime, and optimize operational efficiency. Its design emphasizes thermal reliability, electrical isolation, and modular integration, making it a durable solution for demanding industrial environments.
Product Parameters
| Parameter | Specification |
|---|---|
| Series | KU D581 A101 |
| Part Number | 3BHE037173R0101 |
| Module Type | Controller Board |
| Input Voltage | 24 VDC |
| Input Logic Levels | Compatible with ABB KU series logic |
| Digital I/O Channels | 32 Points |
| Analog Input Channels | Up to 16 Channels |
| Processing Speed | High-speed microcontroller-based |
| Isolation | Galvanic isolation for all I/O |
| Communication Interfaces | RS485, Fieldbus optional |
| Diagnostic Features | Fault detection, signal monitoring |
| Operating Temperature Range | -20°C to +70°C |
| Dimensions (L × W × H) | 150 × 100 × 35 mm |
| Weight | 0.6 kg |
| Mounting Type | DIN rail or chassis-mounted |
| Power Consumption | 18 W |
| Protective Features | Overvoltage and short-circuit protection |
Product Applications
The KU D581 A101 Controller Board is suitable for a broad range of industrial control applications:
-
Industrial Automation: Controls complex industrial machinery including conveyor systems, robotic assemblies, and production lines.
-
Power Systems Management: Interfaces with IGCT modules, rectifiers, and inverter modules for precise control in medium- and high-voltage systems.
-
Motor Drives: Provides real-time control for high-power AC and DC motor drive systems.
-
Energy Management: Integrates into energy conversion and storage systems, including renewable energy and grid management solutions.
-
Process Control Systems: Manages chemical, cement, steel, and paper production lines, enabling precise digital and analog process control.
-
Safety and Protection: Works alongside protective relays and gate driver boards for monitoring system parameters and responding to faults.
Product Advantages
-
High Reliability: Designed to operate in industrial environments with electrical noise, vibrations, and temperature fluctuations.
-
Integrated Diagnostics: Provides real-time fault detection, signaling potential system issues before they become critical.
-
Modular Design: Compatible with ABB KU series modules, allowing easy replacement and upgrades.
-
High Processing Speed: Executes control algorithms rapidly, ensuring accurate response to inputs.
-
Versatile I/O Support: Supports multiple digital and analog channels for flexible system integration.
-
Electrical Isolation: Protects sensitive components from voltage spikes and cross-interference.
-
Scalable System Integration: Works seamlessly with ABB gate driver, IGCT, and other control modules.
-
Energy Efficiency: Low power consumption without sacrificing performance.
Frequently Asked Questions (FAQ)
-
What is the main function of the KU D581 A101 Controller Board?
The board manages real-time control and monitoring of connected modules, executing logic and control functions in industrial systems. -
Which communication protocols are supported by this controller board?
The board supports RS485 interfaces, with optional Fieldbus protocols for integration into advanced automation networks. -
How many digital and analog channels can this board handle?
It supports 32 digital points and up to 16 analog channels, allowing versatile control and monitoring. -
Is the board compatible with ABB KU series power modules?
Yes, it is designed to integrate seamlessly with ABB KU series I/O, IGCT modules, and gate driver boards. -
What diagnostic features does this board provide?
It offers real-time fault detection, signal monitoring, and overvoltage/short-circuit protection, allowing operators to respond quickly to system anomalies. -
Can this board operate in high-noise industrial environments?
Yes, it includes galvanic isolation for I/O signals and is designed for environments with electrical interference and industrial noise. -
What is the typical power consumption of this board?
The board operates efficiently, consuming approximately 18 W, minimizing heat generation while maintaining high performance. -
What mounting options are available for this controller board?
It can be mounted on a DIN rail or directly onto a chassis, offering flexible installation options. -
Does the board support safety-critical applications?
Yes, the integrated diagnostics and protection features make it suitable for safety-critical industrial processes, including motor and power system controls. -
What operating temperature range is supported?
The board is designed to operate reliably within -20°C to +70°C, suitable for a variety of industrial environments.
Related / Same Series Models
| Model Number | Function | Digital Points | Analog Channels |
|---|---|---|---|
| KU D580 A101 | Controller Board | 24 | 8 |
| KU D582 A101 | Controller Board | 32 | 16 |
| KU D583 A101 | High-Speed Controller | 40 | 16 |
| KU D584 A101 | I/O Controller Board | 32 | 24 |
| KU D585 A101 | Advanced Control Board | 48 | 32 |
| KU D586 A101 | Integrated Controller | 32 | 16 |
Popular ABB Controller Boards
| Model Number | Function | Digital Points | Analog Channels |
|---|---|---|---|
| KU D570 A101 | Basic Controller Board | 16 | 8 |
| KU D571 A101 | Medium I/O Controller | 24 | 12 |
| KU D580 A101 | Controller Board | 24 | 8 |
| KU D582 A101 | Controller Board | 32 | 16 |
| KU D584 A101 | I/O Controller Board | 32 | 24 |
| KU D587 A101 | Advanced Controller Board | 48 | 32 |
