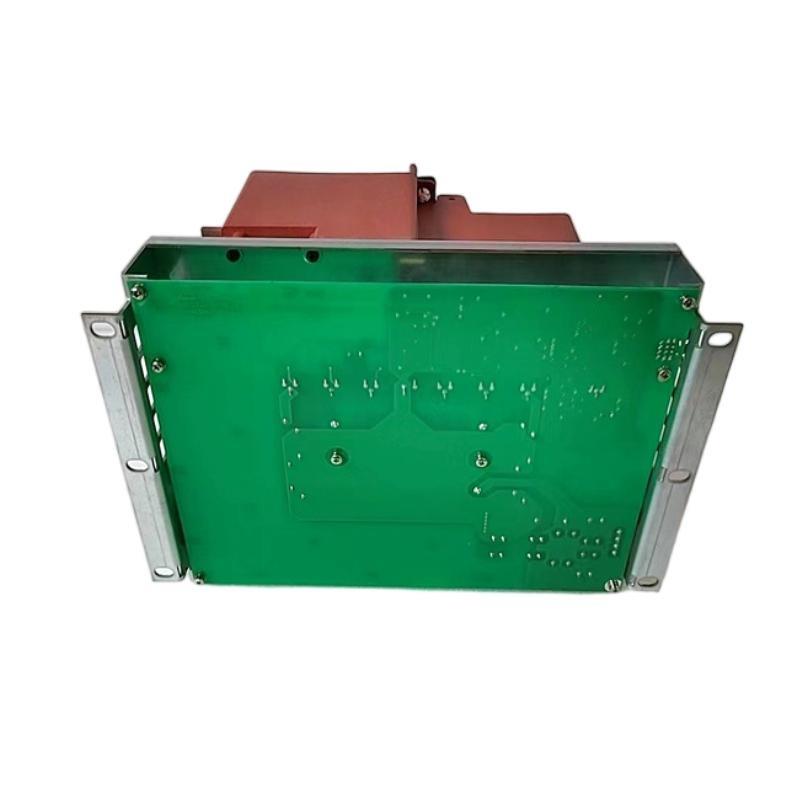

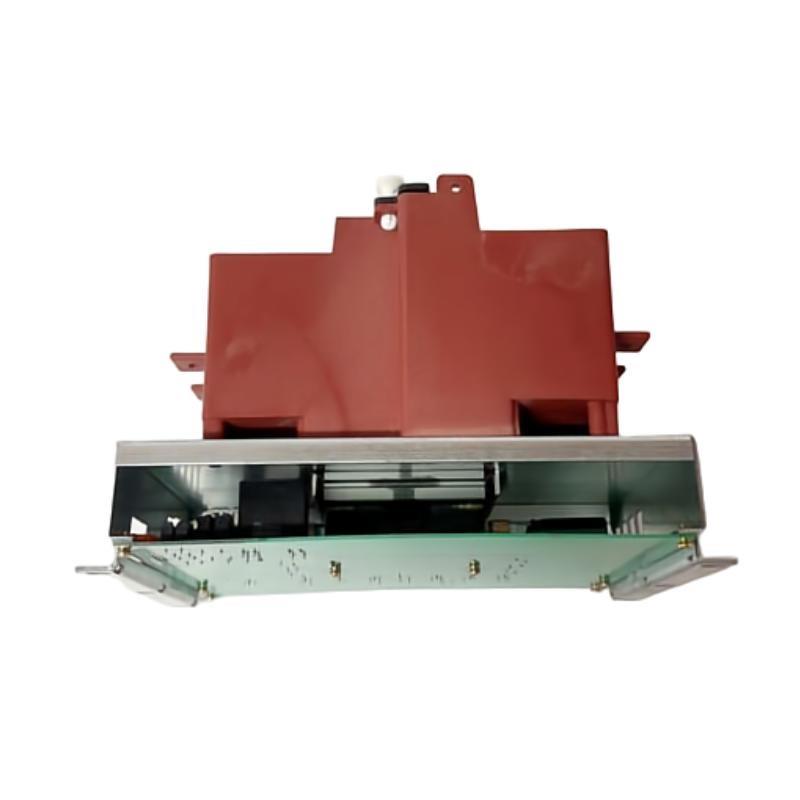

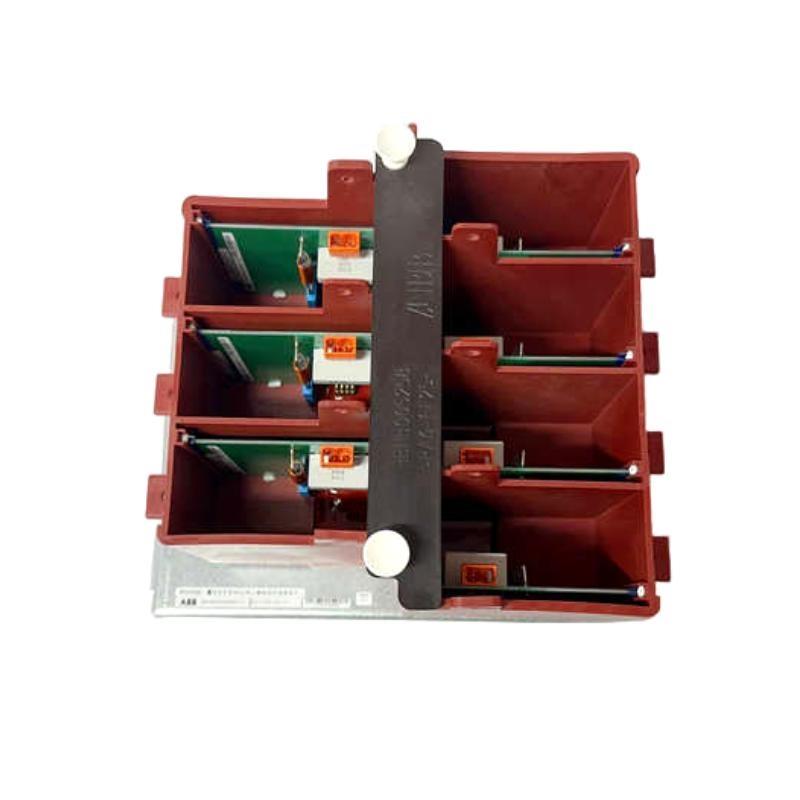

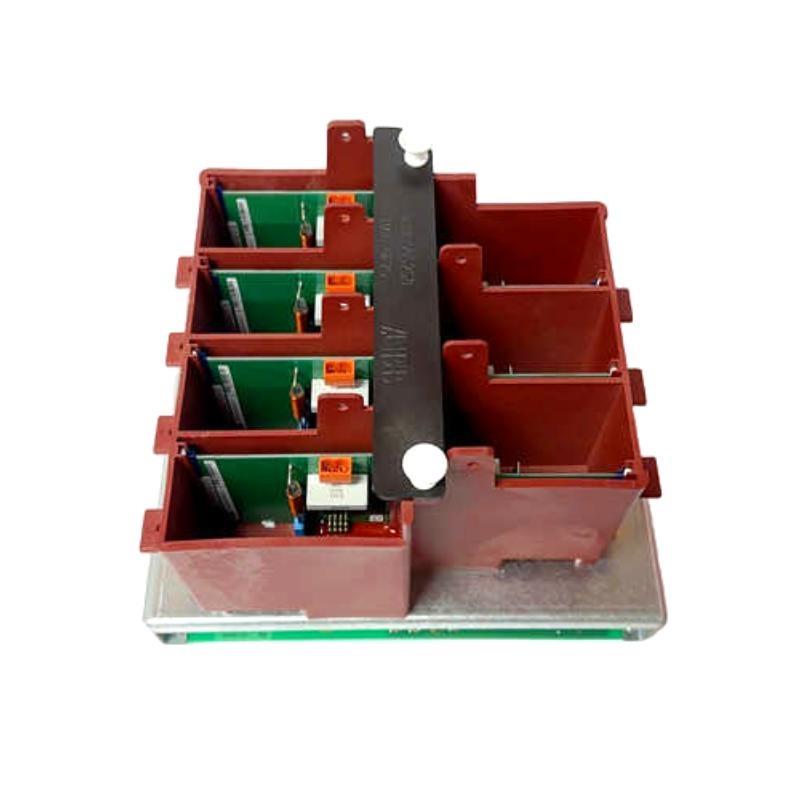

ABB KU C755 AE117 3BHB005243R0117 Gate Unit Power

Product Introduction

The ABB KU C755 AE117 3BHB005243R0117 gate unit power supply is a high-performance power supply and control module designed to provide reliable gate drive functionality for ABB’s industrial drive and converter systems. This gate unit precisely controls IGBT and thyristor switching devices, enabling efficient power conversion and protecting semiconductor components. Designed for integration with ABB’s advanced drive technology, it provides stable gate power, high-speed signal transmission, and reliable isolation between the control and power stages.

Designed for operation in harsh industrial environments, the KU C755 AE117 features advanced thermal management and electrical noise immunity, ensuring stable operation even under demanding load and temperature conditions. The module provides a secure interface between the main control board and the power semiconductors, making it a critical component in maintaining drive system efficiency, reliability, and long-term operational stability.

With its rugged construction, compact form factor, and comprehensive protection mechanisms, the ABB KU C755 AE117 3BHB005243R0117 Gate Unit Power is widely used in variable speed drives, industrial converters, and high-power motor control applications. It meets international safety and performance standards, making it a trusted choice for heavy-duty automation and energy management systems worldwide.

Product Specifications

Applications

• Variable Speed Drives (VSD): Provides stable and isolated gate drive power for IGBT modules and thyristors in high-power drives.

• Industrial Converters: Ensures accurate and safe control of power semiconductors in AC/DC and DC/AC conversion systems.

• Motor Control Systems: Supplies gate drive voltage for high-torque motor applications, ensuring smooth and efficient operation.

• Renewable Energy Systems: Integrates into wind and solar inverters to maintain reliable semiconductor switching.

• Heavy-Duty Automation Equipment: Offers robust gate control for large industrial machinery and process control systems.

• Power Generation: Ensures safe and efficient gate drive control in generator excitation and turbine control applications.

Product Advantages

• High Isolation Performance: 3.5 kV AC isolation between control and power stages protects sensitive electronics.

• Fast and Accurate Switching: Low propagation delay enables precise control of IGBTs and thyristors.

• Robust Protection Mechanisms: Built-in overcurrent, overvoltage, and thermal protections enhance system reliability.

• Industrial-Grade Design: Designed to perform under high electrical noise and extreme temperature variations.

• Compact and Modular: Easy to integrate into ABB drive systems with minimal panel space requirements.

• Stable Gate Power Output: Maintains consistent voltage and current for reliable semiconductor triggering.

• Global Compliance: Certified to meet international industrial safety and quality standards.

FAQ

1. What is the maximum peak gate current supported by the KU C755 AE117 gate unit?
   It supports peak gate currents up to 15A for reliable IGBT and thyristor switching.

2. What level of isolation is provided between the control section and the power section?
   The device provides 3.5 kV AC galvanic isolation to protect the control circuits from high voltage transients.

3. Is the KU C755 AE117 compatible with the ABB ACS and DCS drive range?
   Yes, it is designed to integrate seamlessly with ABB ACS and DCS high power drive systems.

4. What type of gate drive voltage does this module provide?
   It provides ±15V DC gate drive voltage, optimized for IGBT and thyristor operation.

5. Does the door unit support fiber optic signal communication?
   Yes, it supports fiber optic and differential signal interfaces for fast, noise-resistant control transmission.

6. Can this module operate in high-vibration environments?
   Yes, it has been tested to industrial vibration and shock standards, ensuring reliability in harsh conditions.

7. What protection features does the KU C755 AE117 have built in?
   These include overvoltage, overcurrent, short circuit, and thermal shutdown protection.

8. What is the typical propagation delay for gate signal transmission?
   Signal propagation delay is typically less than 500 nanoseconds, enabling precise switching control.

9. Are gate cells suitable for renewable energy converter applications?
   Yes, they are widely used in wind, solar and other renewable energy inverter systems.

10. Can the KU C755 AE117 be used in multilevel inverter topologies?
    Yes, it is designed to support multilevel converter configurations with synchronous gate control.
