Product Introduction

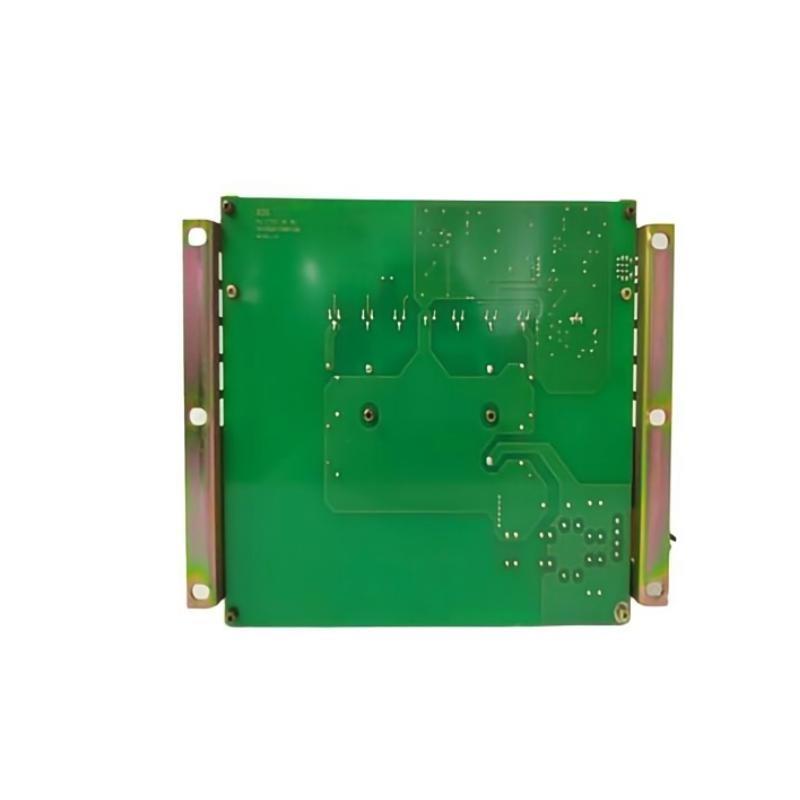

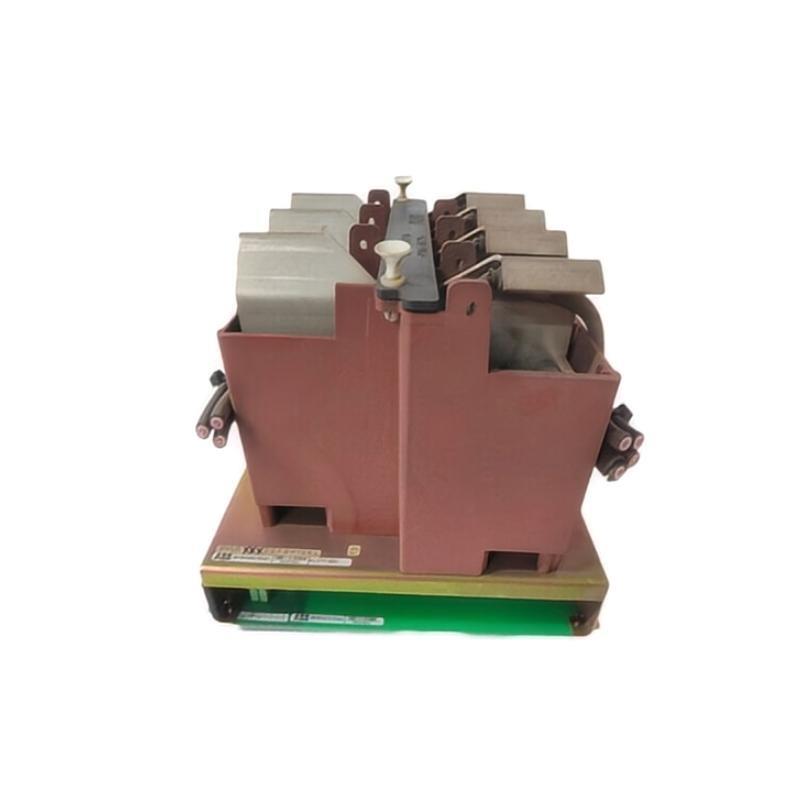

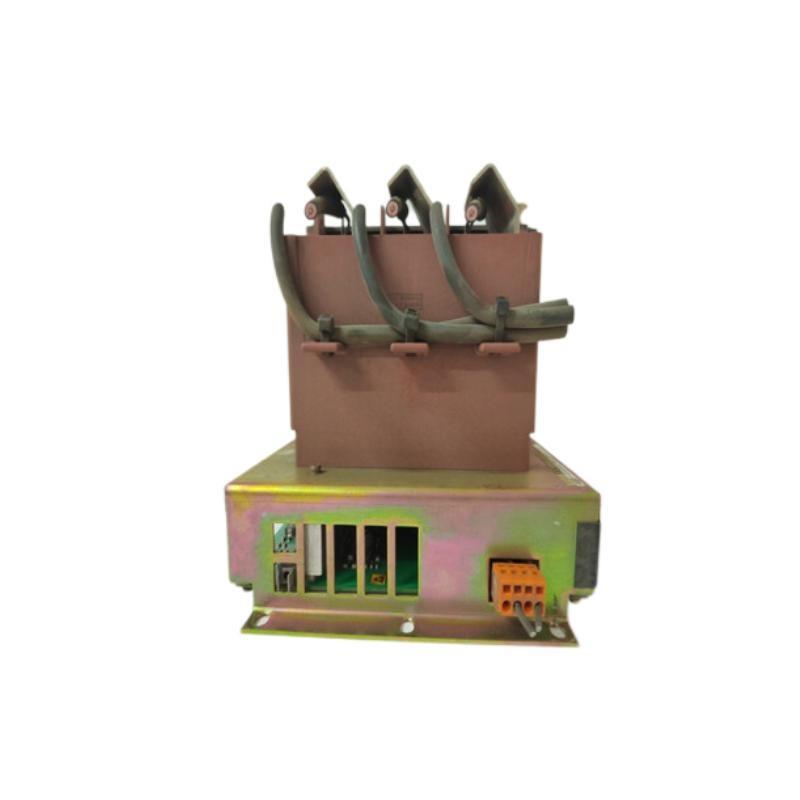

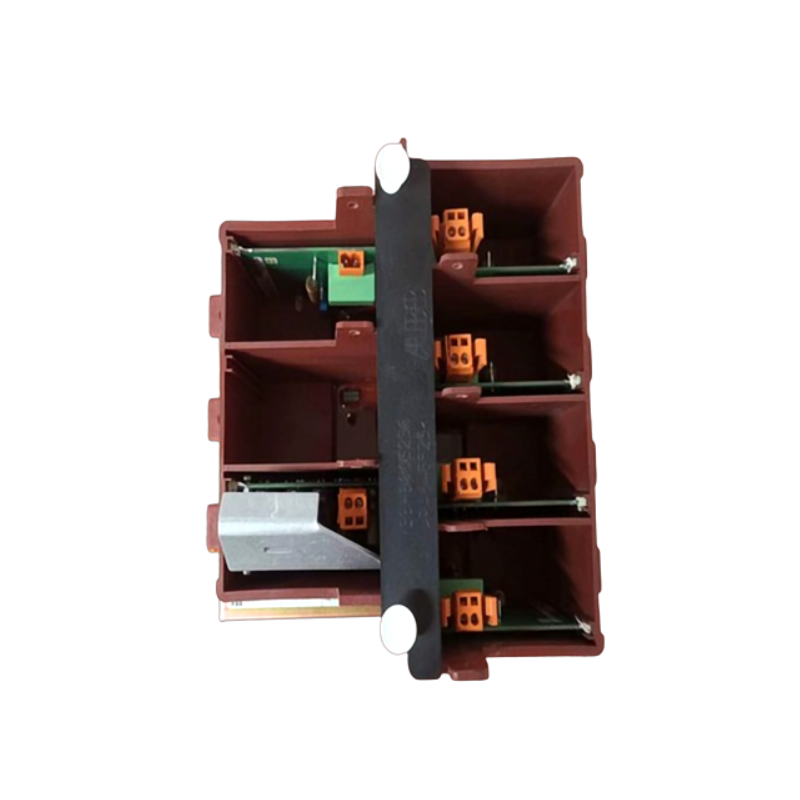

The ABB KU C711AE (KUC711AE01) Control Module, part number 3BHB004661R0001, is a core component in ABB’s family of high-performance industrial control systems. It serves as the central logic and coordination unit in power electronics applications such as drive systems, converters, and advanced automation environments.
Designed for robust performance and seamless integration, this module orchestrates the precise control of connected equipment, ensuring optimal operation, fault handling, and diagnostic feedback. It is commonly used in conjunction with other ABB control and drive modules, playing a pivotal role in system reliability, real-time communication, and safety.
Engineered for harsh industrial environments, the KUC711AE01 is equipped with a rugged enclosure and advanced heat dissipation features. It supports ABB’s modular platform strategy, allowing easy replacement or upgrading without extensive rewiring or reconfiguration.
Technical Specifications
| Parameter | Details |
|---|---|
| Product Name | KU C711AE / KUC711AE01 Control Module |
| Part Number | 3BHB004661R0001 |
| Manufacturer | ABB |
| Function | Central control and coordination for power systems |
| Supported Systems | ABB PCS/Drive Systems, ACS Series, Converter Systems |
| Power Supply | Supplied through ABB drive system (typ. 24V DC) |
| Input Type | Digital and Analog |
| Interface Ports | Fiber optic, serial, internal bus |
| Cooling | Passive / air cooled |
| Mounting | Panel-mounted or integrated into drive cabinet |
| Operating Temperature | -25°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions (W x H x D) | 360 x 190 x 100 mm |
| Weight | 1.96 kg |
| Protection Class | IP20 |
| Certifications | CE, RoHS, UL |
Product Applications
The KU C711AE control module is highly versatile and used in critical control applications across a wide range of industries:
-
High-Voltage Drive Systems
Ensures safe, real-time control and coordination of motor drives in high-power applications. -
Industrial Automation
Acts as the brain of complex process control systems where precision and reliability are key. -
Converter and Inverter Systems
Manages power conversion processes and synchronizes control with other modules. -
Turbine Control Systems
Deployed in energy production units for turbine and generator automation. -
Oil & Gas and Chemical Industries
Integrated into DCS environments for process-critical operations. -
Smart Grid Systems
Provides control and diagnostic interfaces for power distribution equipment.
Product Advantages
-
Integrated System Intelligence
Offers high-speed logic and real-time decision-making capabilities. -
Modular Architecture
Easily replaced or upgraded without system-wide shutdowns. -
Strong Communication Interfaces
Includes fiber optics, serial connections, and ABB internal bus for fast, reliable data exchange. -
Robust Environmental Tolerance
Designed to operate in demanding environments with wide temperature support. -
Easy Maintenance
Diagnostic LEDs, modular design, and ABB configuration tools support quick servicing. -
Long Lifecycle Support
Part of ABB’s long-term support strategy with replacement compatibility and upgrade paths.
Frequently Asked Questions (FAQ)
-
Q: What is the main role of the KU C711AE control module in ABB systems?
A: It serves as the core control and coordination unit for drives and power electronics systems, managing real-time control logic. -
Q: Can the module operate independently?
A: No, it functions as part of a complete ABB system such as a drive or converter and requires other modules to function. -
Q: Is the KU C711AE hot-swappable?
A: While it is modular, replacing it requires system shutdown to prevent electrical hazards or control faults. -
Q: What kind of communication interfaces does it support?
A: It includes fiber optic links, serial ports, and ABB internal communication bus support. -
Q: How is the module typically mounted?
A: It can be panel-mounted or installed inside ABB drive system cabinets. -
Q: What voltage powers this module?
A: It is typically powered by a 24 V DC line provided by the ABB drive system or controller rack. -
Q: What happens if the module fails?
A: The system enters a safe state or fault condition, and ABB diagnostic tools can identify the failure for rapid replacement. -
Q: Can this module be upgraded with newer firmware?
A: Yes, firmware upgrades are supported using ABB’s engineering tools. -
Q: What safety certifications does the module have?
A: It complies with CE, UL, and RoHS standards. -
Q: Is the KU C711AE compatible with modern ABB systems?
A: Yes, it is compatible with many ABB current-generation drive and control platforms, though compatibility should be verified per system.
Related or Compatible Models
| Model Number | Description | Function | Compatibility |
|---|---|---|---|
| KU C731AE | Control Module with advanced communication | Real-time control | Compatible with converter systems |
| KU C715AE01 | ABB Control Module | Power system coordination | High-power automation environments |
| 3BHB004662R0001 | KUC711AE02 – Next Gen Variant | Same base features | Replacement for KUC711AE01 |
| KU C721 AE | Multi-port ABB Control Module | Control + Extended I/O | Designed for larger systems |
| KSD211A101 | ABB Control Drive Board | Signal processing module | Works with KU series |
| KUD711A101 | System Interface Module | Bus communication controller | Used in ABB drive systems |
Popular ABB Models in Control and Automation
| Model Number | Description | Category | Typical Use Case |
|---|---|---|---|
| AC500 PM573 | Programmable Logic Controller | PLC Controller | Industrial automation |
| REF615 | Feeder Protection Relay | Power Protection | Electrical substations |
| CP600 | Human-Machine Interface Panel | Operator Interface | Factory and field operations |
| ACS880-01-07A6-3 | High-Performance Motor Drive | Motor Control Drive | Motors in manufacturing plants |
| S803B-C32 | Industrial Circuit Breaker | Electrical Protection | Low-voltage switchgear systems |
| ABB PM860 | CPU Module for 800xA DCS | Distributed Control | Complex automation environments |
