Product Introduction

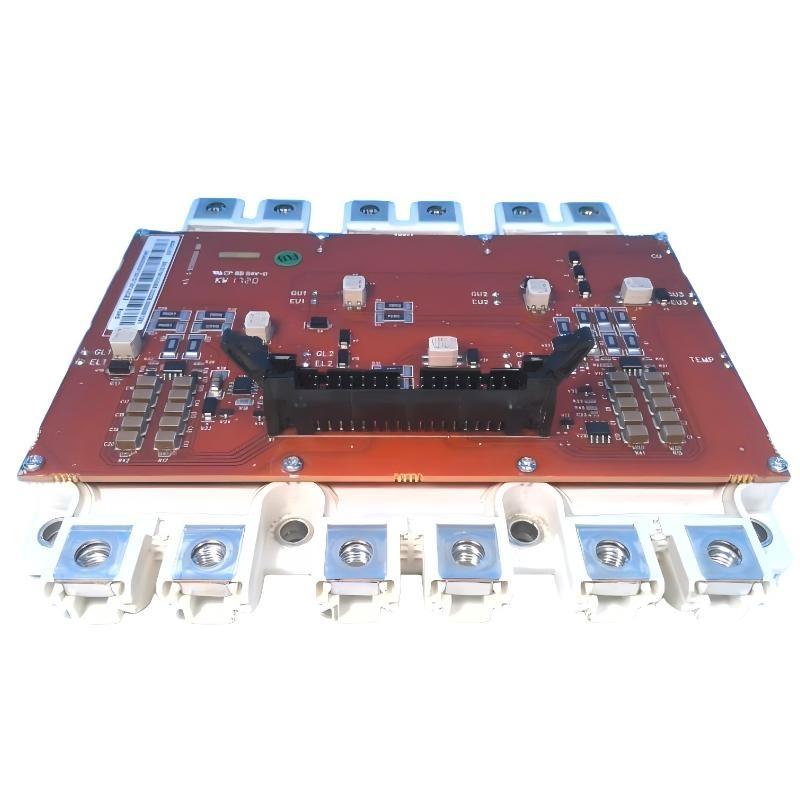

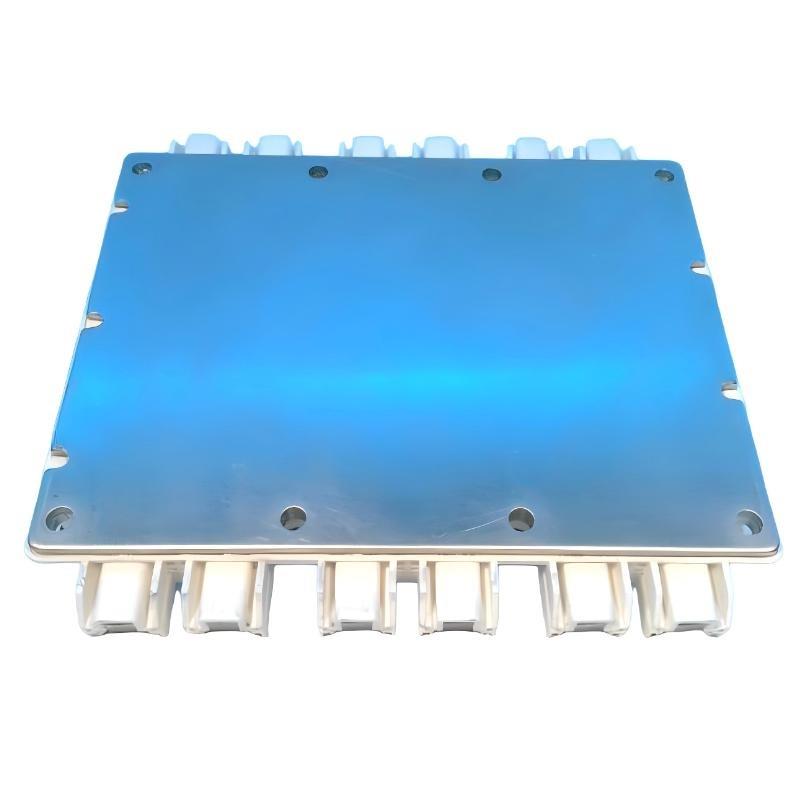

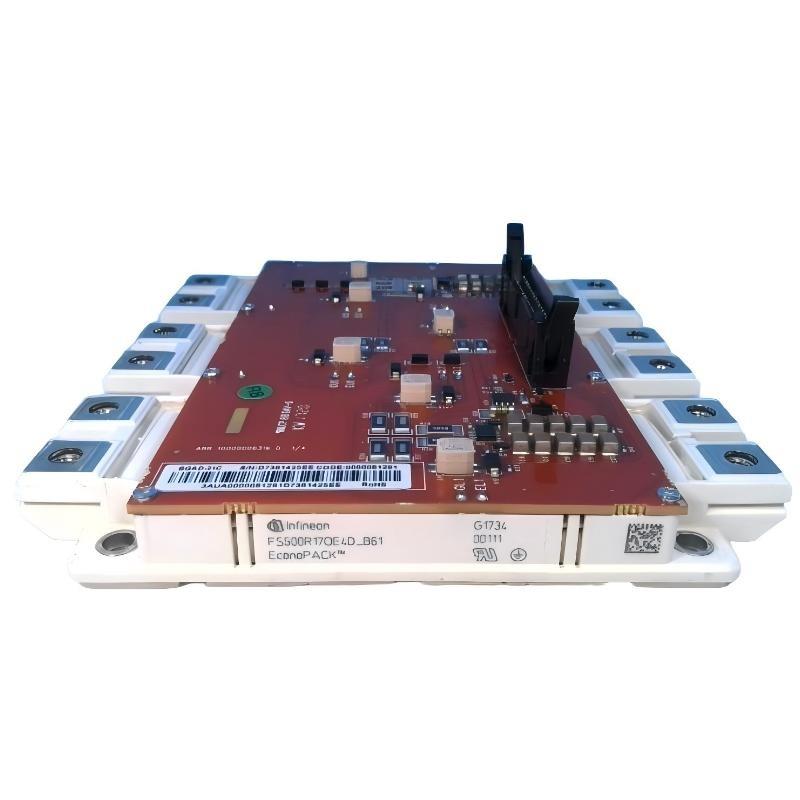

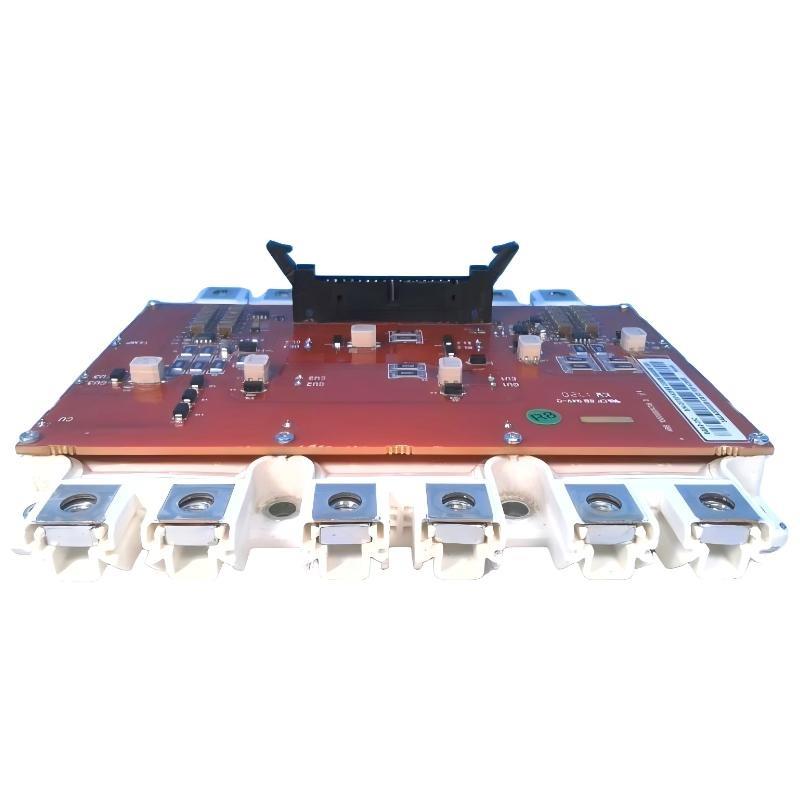

The ABB FS500R17OE4D-B61/BGAD-21C (Part Number: N/A) is an IGBT module designed for high-power industrial drive applications. It provides reliable switching of IGBT devices, ensuring efficient power conversion and precise control of inverter stages.
The module functions as a core component in ABB drives, translating control signals into conditioned gate outputs while maintaining stable operation under varying load and electrical conditions. Its design emphasizes robustness, thermal stability, and electrical isolation for long-term industrial performance.
Product Specifications
| Parameter | Description |
|---|---|
| Product Type | IGBT Module |
| Model | FS500R17OE4D-B61/BGAD-21C |
| Manufacturer | ABB |
| Primary Function | High-power switching for industrial inverters |
| Compatible Devices | FS500R17OE4D IGBT module series |
| Control Signal Input | Digital gate signals from drive control electronics |
| Signal Isolation | Galvanic isolation between control and power stages |
| Protection Coordination | Supports fault and protection signal handling |
| Installation | Internal mounting in drive cabinet or inverter assembly |
| Operating Environment | Industrial electrical control systems |
| Cooling Method | Conduction and natural convection |
| Dimensions | 164.6 × 152 × 20.55 mm |
| Weight | 0.924 kg |
Applications
• Used in high-power ABB inverter systems for precise IGBT switching
• Integrated in industrial motor control cabinets requiring stable gate drive performance
• Applied in power conversion systems for pumps, compressors, fans, and conveyors
• Suitable for process automation in power generation, chemical, and metallurgical industries
• Employed in system maintenance, retrofit, and spare replacement for ABB high-power modules
Advantages
• Stable gate signal output, ensuring reliable IGBT switching
• Galvanic isolation, protecting control electronics from high-voltage disturbances
• High electrical noise immunity, suitable for harsh industrial environments
• Compact and robust design, facilitating integration into drive assemblies
• Optimized for ABB drive systems, guaranteeing compatibility and performance
• Supports continuous-duty industrial operation, improving uptime and system reliability
