Product Overview

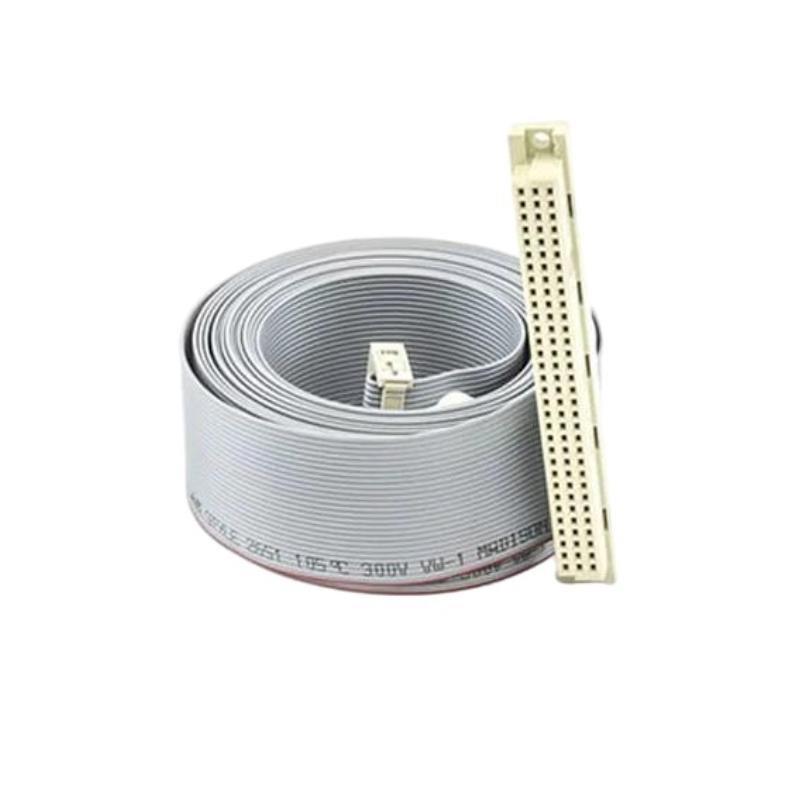

The ABB DSTK 165 26390603-AN Ribbon Cable is a high-quality, industrial-grade flat ribbon cable designed for reliable internal wiring in ABB control systems, particularly within Distributed Control Systems (DCS) and other automation infrastructure. This cable is engineered to provide safe, organized, and interference-resistant connections between modules, terminal blocks, or boards inside control panels and enclosures.
Its flat, compact design simplifies routing in confined spaces, while the durable materials ensure consistent performance, even in harsh industrial environments. The DSTK165 is widely used across industries such as power generation, oil & gas, manufacturing, and process control where reliable signal integrity is essential.
Key Features
-
Flat Ribbon Design: Allows easy routing and space-efficient cable management inside control cabinets.
-
Multi-Conductor Configuration: Ensures organized, parallel signal transmission with minimal crosstalk.
-
High-Quality Insulation: Provides excellent electrical insulation and mechanical protection.
-
Flexible Construction: Offers reliable performance with easy installation, even in tight spaces.
-
Standardized Connectors: Pre-terminated with connectors for quick and secure connections.
-
Industrial Durability: Resistant to wear, vibration, and environmental factors common in control environments.
-
Optimized for ABB Systems: Designed to integrate seamlessly with ABB modules and terminal blocks.
-
Stable Signal Transmission: Maintains signal integrity across multiple connections.
-
Wide Temperature Range: Suitable for various industrial settings.
-
Complies with International Standards: CE and RoHS compliant for safe, global application.
Technical Specifications
| Parameter | Description |
|---|---|
| Model | DSTK 165 |
| Part Number | 26390603-AN |
| Cable Type | Flat Ribbon Cable |
| Number of Conductors | Typically 16 to 40 (varies by configuration) |
| Conductor Material | Tinned Copper |
| Insulation Material | PVC or Equivalent Industrial Insulation |
| Color Code | Standardized for easy identification |
| Voltage Rating | Up to 300 V |
| Current Rating | Approx. 1–2 A per conductor |
| Operating Temperature Range | -20°C to +80°C |
| Flammability Rating | UL VW-1 Flame Retardant |
| Cable Length | 3 meters |
| Weight | 0.24 kg |
| Connectors | Pre-installed IDC or custom connectors (varies by system) |
| Certifications | CE, RoHS compliant |
Industry Applications
-
Power Generation: Internal cabling for control panels in power plants, including thermal, hydro, and renewable energy.
-
Oil & Gas: Reliable interconnection for control modules in offshore platforms and refineries.
-
Water & Wastewater Treatment: Internal wiring for automation and monitoring equipment.
-
Chemical & Petrochemical: Secure connections for critical control systems in hazardous environments.
-
Manufacturing & Automation: Facilitates organized wiring in assembly lines, robotics, and machinery control.
-
Building Automation: Compact cabling for centralized control systems and panel wiring.
Product Advantages
-
Space-Efficient Routing: Flat design reduces bulk and simplifies cable management in tight enclosures.
-
Consistent Signal Quality: Multi-conductor, parallel arrangement minimizes interference and signal degradation.
-
Durable Materials: Insulation and conductor materials provide long-term reliability under industrial conditions.
-
Quick Installation: Pre-terminated connectors enable rapid, secure connections, reducing downtime.
-
Versatile Application: Suitable for use in a wide range of ABB control system configurations.
-
Improved System Reliability: Reduces wiring complexity and potential connection failures.
-
Standards Compliance: Certified to CE and RoHS for safe, environmentally conscious use.
-
Cost-Effective Maintenance: Simplifies replacement or reconfiguration during system upgrades.
-
Industrial Resilience: Withstands vibration, temperature fluctuations, and physical stress.
-
ABB System Integration: Fully compatible with ABB’s automation infrastructure, ensuring seamless performance.
Frequently Asked Questions (FAQ)
-
What is the primary use of the DSTK165 Ribbon Cable?
It provides organized, reliable internal wiring for ABB control panels and automation systems. -
How many conductors are included in this ribbon cable?
It typically ranges from 16 to 40 conductors, depending on the configuration. -
What materials are used for the conductors?
The conductors are made of tinned copper for excellent conductivity and corrosion resistance. -
What is the voltage rating of the DSTK165 cable?
It is rated for operation up to 300 V. -
Does the cable come with pre-installed connectors?
Yes, the cable is supplied with IDC or system-specific connectors for easy installation. -
Is the cable flame retardant?
Yes, it meets the UL VW-1 flame retardant standard. -
What is the temperature range for operation?
The cable operates reliably between -20°C and +80°C. -
Is the cable suitable for harsh industrial environments?
Yes, it is designed to withstand vibration, temperature fluctuations, and general industrial wear. -
What certifications does the DSTK165 carry?
It is CE and RoHS compliant, ensuring safety and environmental responsibility. -
Can this cable be used with non-ABB systems?
While optimized for ABB systems, it can be adapted for compatible control setups if the connectors and specifications match.
