Product Introduction

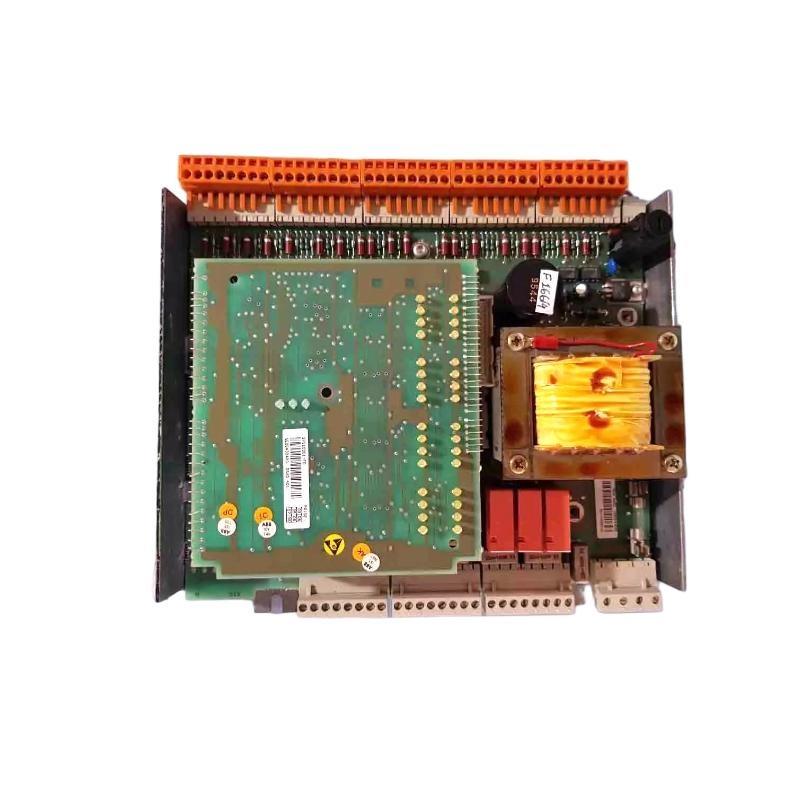

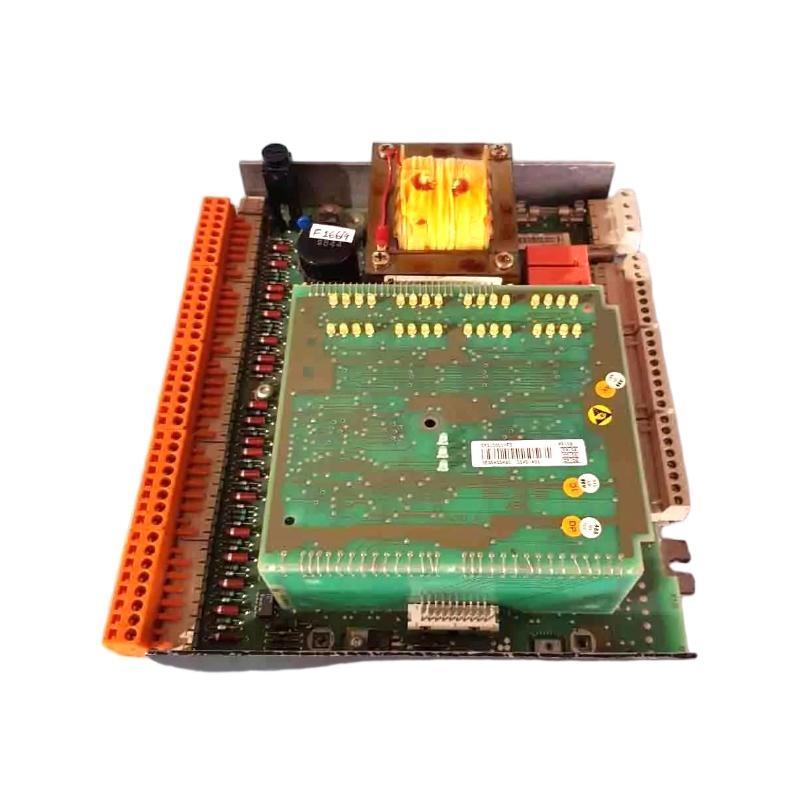

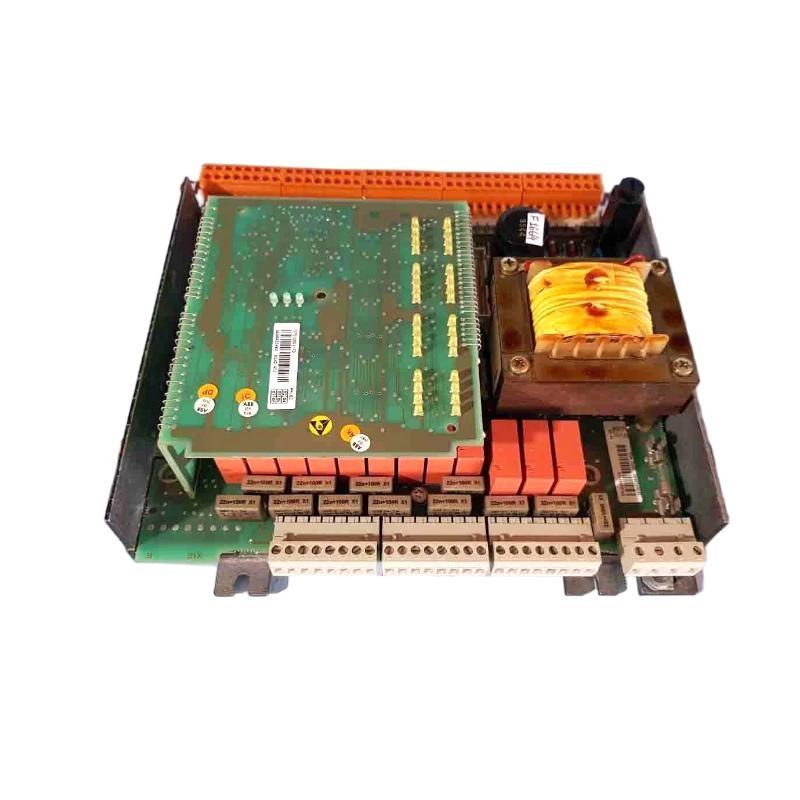

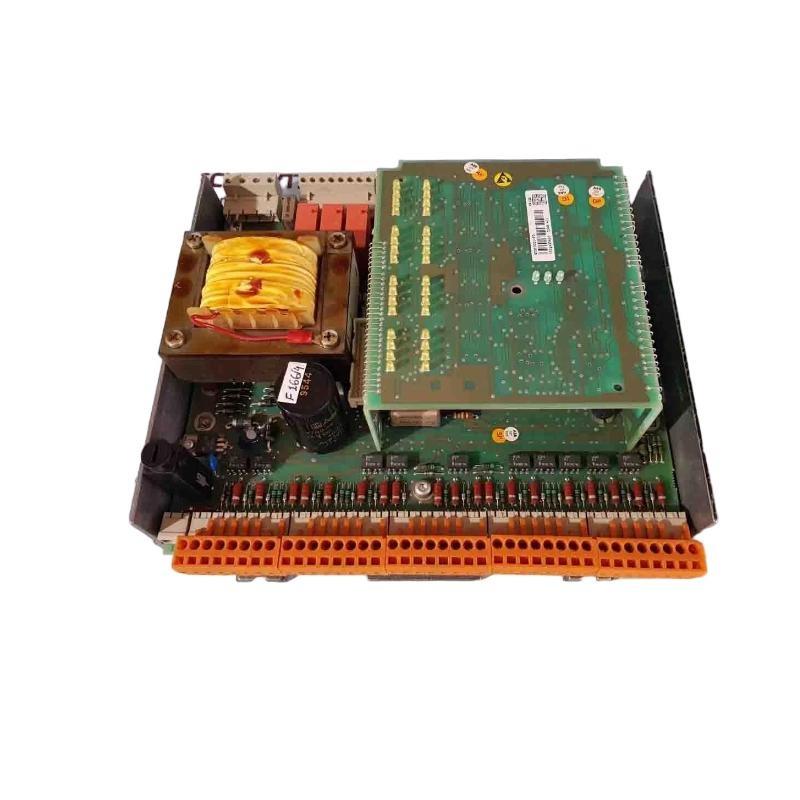

The ABB DSDX 451L 5716075-AH is a versatile digital input/output (I/O) module designed to interface discrete signals within ABB’s distributed control systems (DCS). As part of the ABB DS series, this module facilitates reliable and accurate processing of digital signals, enabling control and monitoring of industrial automation equipment. It supports both digital input and output functions, making it a flexible choice for integrating binary signals from sensors, switches, and actuators into a control environment.
Constructed for demanding industrial environments, the DSDX 451L module offers robust performance and straightforward installation. Its comprehensive diagnostic capabilities allow for fast fault detection and troubleshooting, reducing downtime and improving system reliability. With a sizable form factor accommodating advanced electronics and heat dissipation, the module is ideal for complex process control systems across various sectors including power, oil & gas, and manufacturing.
Product Parameters
| Parameter | Specification |
|---|---|
| Model Number | DSDX 451L 5716075-AH |
| Module Type | Digital Input/Output Module |
| Digital Inputs | 32 channels |
| Digital Outputs | 16 channels |
| Input Voltage | 24 V DC standard |
| Output Voltage | 24 V DC |
| Response Time | < 5 ms |
| Diagnostics | Built-in diagnostics for input/output status |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| Dimensions (L × W × H) | 250 × 220 × 100 mm |
| Weight | 2.8 kg |
| Mounting | Rack-mounted |
| Communication Interface | ABB proprietary DS communication bus |
| Certifications | CE, UL, CSA |
Product Applications
The DSDX 451L module finds broad application in various industrial automation systems requiring reliable digital signal processing:
-
Power Plants: For monitoring and controlling discrete events such as circuit breaker status, valve positions, and alarms.
-
Oil & Gas Industry: Integration of safety system signals, emergency shutdown logic, and monitoring equipment status.
-
Manufacturing Automation: Control of on/off devices such as motors, solenoids, and actuators in assembly lines.
-
Water Treatment: Digital monitoring of pump statuses, valve actuators, and alarm systems.
-
Chemical Plants: Monitoring digital sensors and enabling safety interlocks within hazardous environments.
-
Building Automation: Control of lighting, security alarms, and environmental control switches.
Product Advantages
-
High Channel Density: Supports up to 48 combined digital I/O channels (32 inputs, 16 outputs) in a single module, optimizing cabinet space.
-
Fast Response Time: Under 5 milliseconds response for time-critical automation tasks.
-
Robust Diagnostics: Continuous monitoring of channel status and self-diagnostics simplify maintenance and fault isolation.
-
Industrial-Grade Construction: Designed for harsh environments with extended temperature and humidity tolerance.
-
Easy Integration: Compatible with ABB’s DS communication bus and System 800xA, enabling seamless system integration.
-
Reliable Power Handling: Stable operation at standard 24 V DC, ensuring compatibility with common industrial devices.
-
Rack-Mounted Form Factor: Allows easy installation and replacement within standard control system racks.
-
Comprehensive Safety Compliance: Certified to major industrial standards (CE, UL, CSA) assuring operational safety and quality.
Frequently Asked Questions (FAQ)
Q1: How many digital input and output channels does the DSDX 451L support?
A1: It supports 32 digital inputs and 16 digital outputs.
Q2: What is the standard operating voltage for inputs and outputs?
A2: Both inputs and outputs operate at 24 V DC standard.
Q3: What is the response time of this module?
A3: The response time is less than 5 milliseconds.
Q4: Can the module diagnose faults automatically?
A4: Yes, it has built-in diagnostics for monitoring input and output status.
Q5: What are the dimensions and weight of the module?
A5: The module measures 250 × 220 × 100 mm and weighs 2.8 kg.
Q6: Is the module suitable for harsh industrial environments?
A6: Yes, it operates reliably between -20°C and +70°C and in humid conditions.
Q7: What type of mounting does the DSDX 451L use?
A7: It is rack-mounted for easy installation in standard control cabinets.
Q8: Which communication bus does this module use?
A8: It communicates via ABB’s proprietary DS communication bus.
Q9: Can this module be used in safety-related applications?
A9: It is often used in safety and emergency shutdown systems due to its reliability and diagnostics.
Q10: Is the DSDX 451L compatible with other ABB automation systems?
A10: Yes, it is fully compatible with ABB System 800xA and other DS-series modules.
Recommended Models – Same Series / Related
| Model | Description | Digital I/O Channels |
|---|---|---|
| DSDX 450 | Digital input/output module | 16 DI / 16 DO |
| DSDI 130 | Digital input module | 32 DI |
| DSDO 115 | Digital output module | 16 DO |
| DSDX 452 | Digital input/output module, high density | 64 DI / 32 DO |
| DSDX 453 | Extended digital I/O module | 48 DI / 24 DO |
| DSDX 460 | Digital I/O module with diagnostics | 32 DI / 32 DO |
Recommended Models – Same Brand (ABB Hot Sellers)
| Model | Description | Type / Channels |
|---|---|---|
| DI810 | Digital input module | 16 DI |
| DO810 | Digital output module | 16 DO |
| AI801-eA | Analog input module | 8 AI |
| AO810 | Analog output module | 8 AO |
| PM571 | Processor module | CPU |
| TU830V1 | Terminal unit | Terminal Interface |
