Product Overview

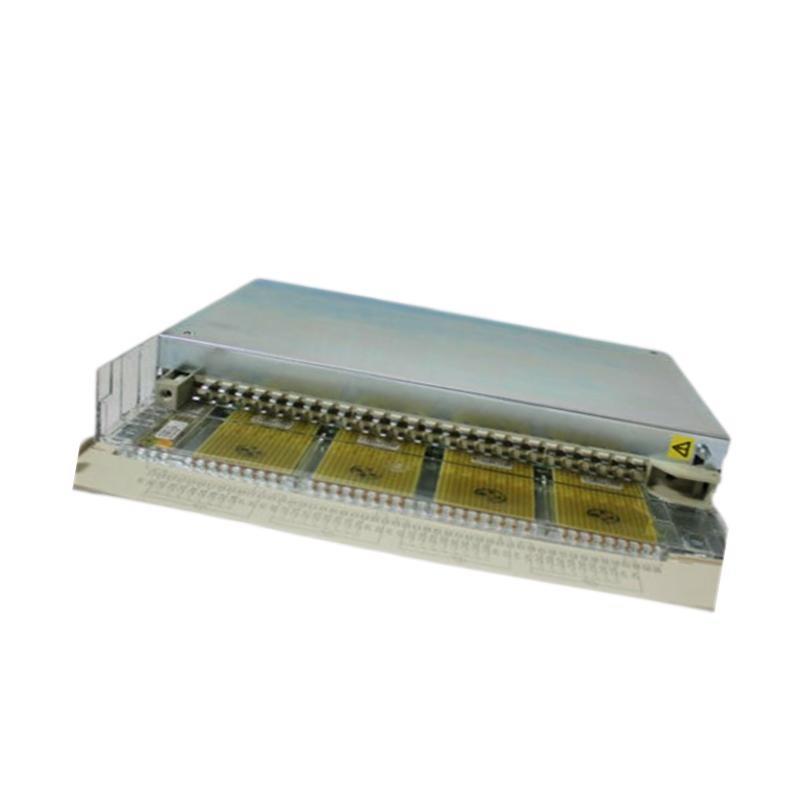

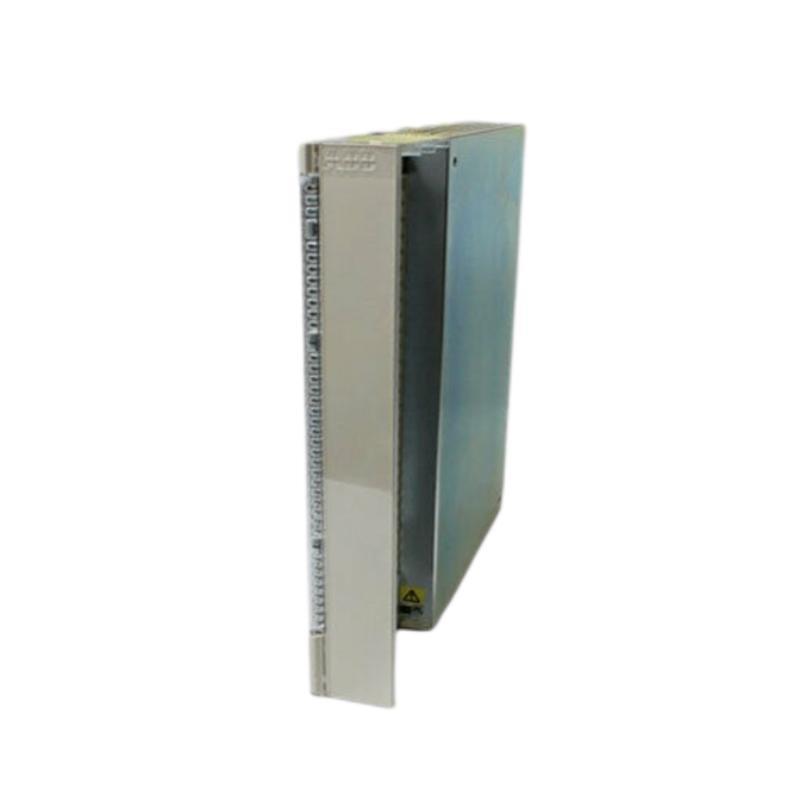

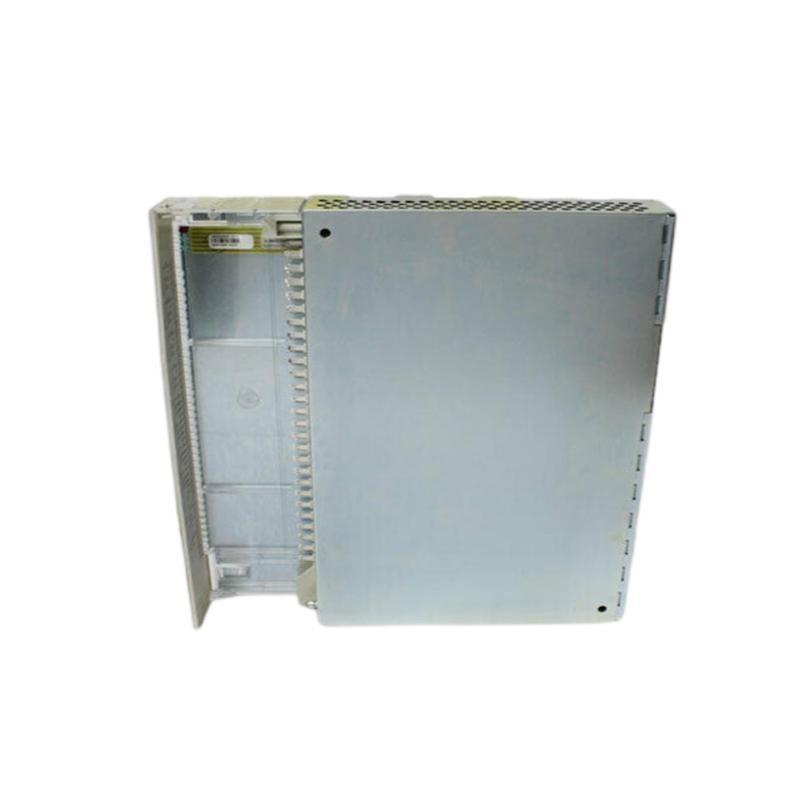

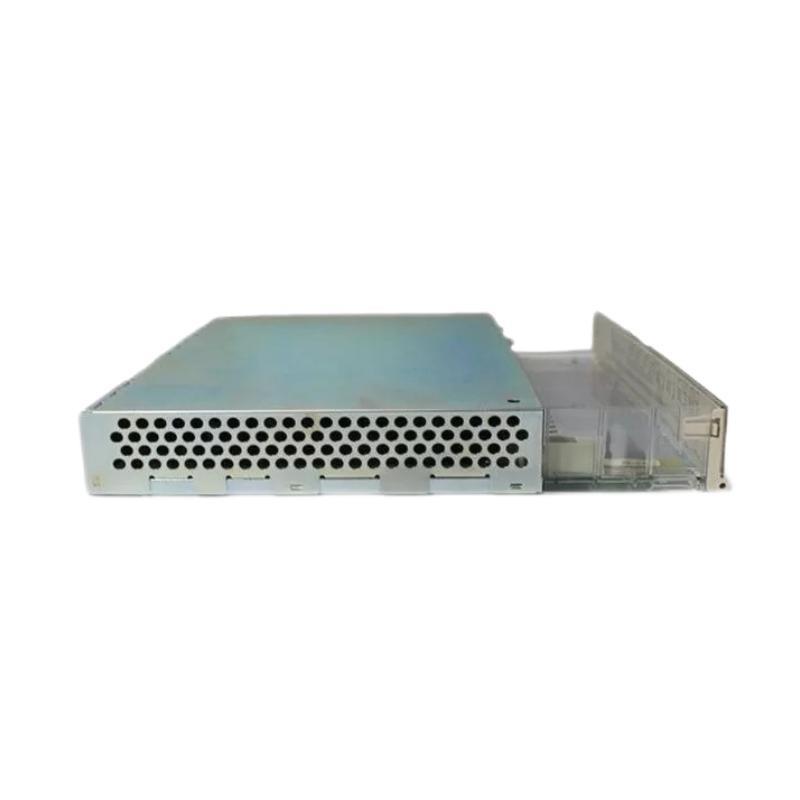

The ABB DI620 3BHT300002R1 is a digital input module designed for use in ABB Freelance DCS and compatible control systems. This module provides 32 channels of 24 V DC digital input capability, allowing seamless monitoring of field signals such as switch positions, sensor states, and binary process statuses. With its modular design and robust industrial-grade construction, the DI620 enables high-density digital signal acquisition and is ideal for applications demanding reliability, precision, and compact system architecture.
Key Features
-
32-channel 24 V DC digital input module
-
Fast signal scanning for time-critical applications
-
Status indication via channel-specific LEDs
-
Suitable for sink/source signal types
-
Integrated overvoltage protection for industrial use
-
Easy configuration using ABB Freelance engineering tools
-
Hot-swap support with controller power on
-
Compact form factor for high-density installations
Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | DI620 |
| Part Number | 3BHT300002R1 |
| Module Type | Digital Input Module |
| System Compatibility | ABB Freelance DCS, Symphony Plus |
| Number of Channels | 32 |
| Input Voltage | 24 V DC (nominal), 18–30 V DC (range) |
| Input Type | Sink or Source (configurable) |
| Input Current | Approx. 5 mA at 24 V DC |
| Isolation | Galvanic isolation from system bus and between channels |
| Status Indicators | LED per channel |
| Response Time | <5 ms typical |
| Wiring Interface | Pluggable terminal blocks |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -25°C to +70°C |
| Humidity Tolerance | 5%–95% RH (non-condensing) |
| Cooling Method | Passive convection |
| Dimensions | 252 x 273 x 40 mm |
| Weight | 1.17 kg |
| Installation | DIN rail or backplane mounted |
| Certifications | CE, RoHS, IEC 61131-2 compliant |
Industry Applications
The ABB DI620 module is suitable for various industrial sectors where reliable digital signal acquisition is essential:
-
Power Generation – Monitoring of breakers, relays, and interlocks
-
Water Treatment – Signal capture from pumps, valves, and switches
-
Oil & Gas – Remote signal interfacing in pipeline SCADA systems
-
Pharmaceuticals – Cleanroom automation and process interlock monitoring
-
Manufacturing – Conveyor control, robotic station feedback
-
Metals and Mining – Harsh environment digital signal monitoring
Product Advantages
-
High-density Input Capability – 32 channels reduce cabinet footprint
-
Reliable Input Capture – Fast response time ensures accurate state detection
-
Flexible Wiring Options – Supports both sourcing and sinking configurations
-
Rugged Design – Withstands industrial noise, voltage surges, and harsh conditions
-
Ease of Maintenance – Hot-swap capability reduces system downtime
-
Lifecycle Support – Backed by ABB’s long-term product service and supply chain
Frequently Asked Questions (FAQ)
-
What does the DI620 module do?
It reads 32 digital input signals from field devices and transfers them to the controller. -
What voltage does it support?
It supports a nominal 24 V DC input voltage, with a working range of 18–30 V DC. -
Is the module isolated?
Yes, channels are galvanically isolated from the system bus and each other. -
What systems is the DI620 compatible with?
It works with ABB Freelance DCS and Symphony Plus platforms. -
Can I use both sink and source inputs?
Yes, the module supports both wiring types depending on the external wiring configuration. -
Does the DI620 have LEDs for diagnostics?
Yes, each input channel has a dedicated LED to show signal status. -
Is hot-swapping supported?
Yes, the DI620 can be replaced without shutting down the system. -
What is the typical response time?
The input scanning response is typically under 5 milliseconds. -
What certifications does it carry?
It is CE marked and compliant with RoHS and IEC 61131-2. -
Where is the DI620 typically installed?
It is DIN rail or backplane mounted inside an automation cabinet.
Related Models in the Same Series or System
| Model Number | Description |
|---|---|
| DO620 3BHT300051R1 | 32-channel Digital Output Module (24 V DC) |
| AI620 3BHT300036R1 | Analog Input Module |
| AO620 3BHT300055R1 | Analog Output Module |
| DI621 3BHT300017R1 | 16-channel Digital Input Module (48 V DC) |
| DO621 3BHT300052R1 | 16-channel Digital Output Module (48 V DC) |
| PM861AK01 | CPU Module for Freelance Systems |
Popular ABB Automation Modules
| Model Number | Description |
|---|---|
| CI854AK01 | PROFIBUS DP Communication Interface for AC800M |
| PM865K01 | High-Performance CPU Module for System 800xA |
| TU810V1 | S800 I/O Terminal Unit |
| AI810 | Analog Input Module for S800 I/O |
| DO820 | Digital Output Module for S800 I/O |
| CI871K01 | Ethernet/IP Communication Interface Module |
