Product Introduction

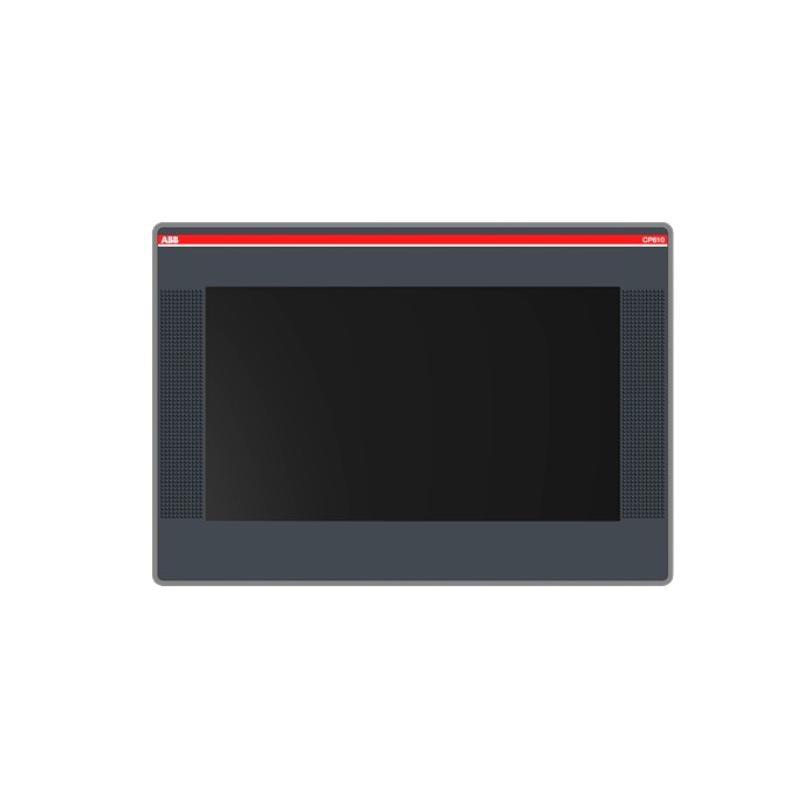

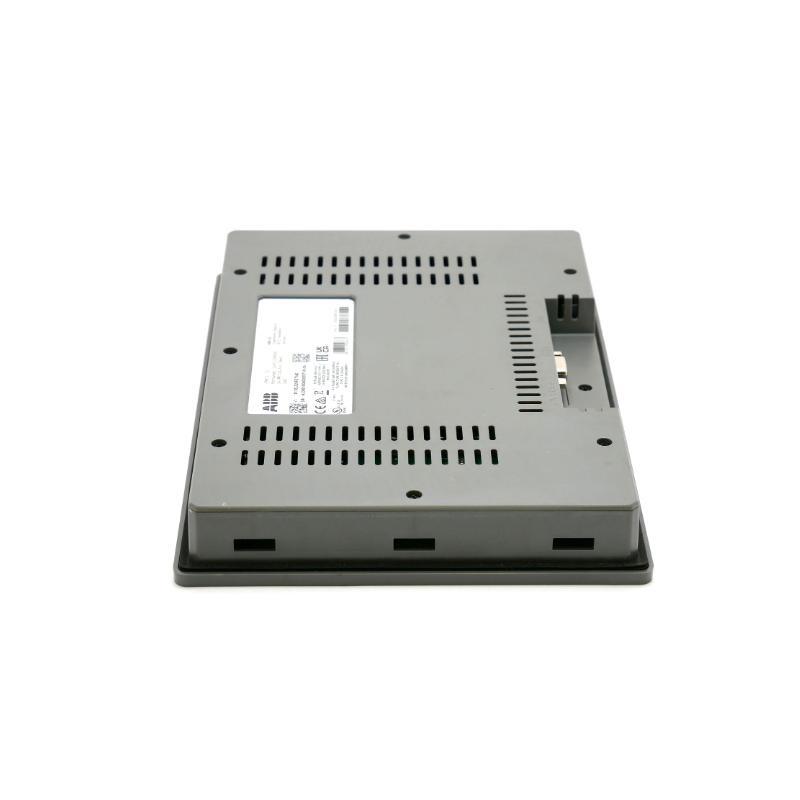

The ABB CP610 1SAP510100R0001 is a powerful and compact Human-Machine Interface (HMI) panel designed for industrial control applications. As part of ABB’s CP600 series, this touch screen terminal offers intuitive operation, enhanced visual display, and robust durability for automation environments. Featuring a high-resolution TFT display, multi-language support, and wide communication capability, the CP610 ensures seamless integration into PLC-based systems, particularly in ABB’s AC500 and other compatible systems.
Engineered for performance and resilience, the CP610 serves as a central access point for monitoring and controlling machinery, production lines, and processes in real-time. With its elegant front panel and IP65 protection rating, this model is ideal for both harsh factory floors and sophisticated control rooms.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ABB CP610 1SAP510100R0001 |
| Display Type | TFT Color Touchscreen |
| Screen Size | 10.4 inches |
| Resolution | 800 x 600 pixels (SVGA) |
| Touch Technology | Resistive Touch |
| Processor | ARM RISC CPU |
| Memory | 128 MB RAM, 128 MB Flash |
| Storage Expansion | SD Card Slot |

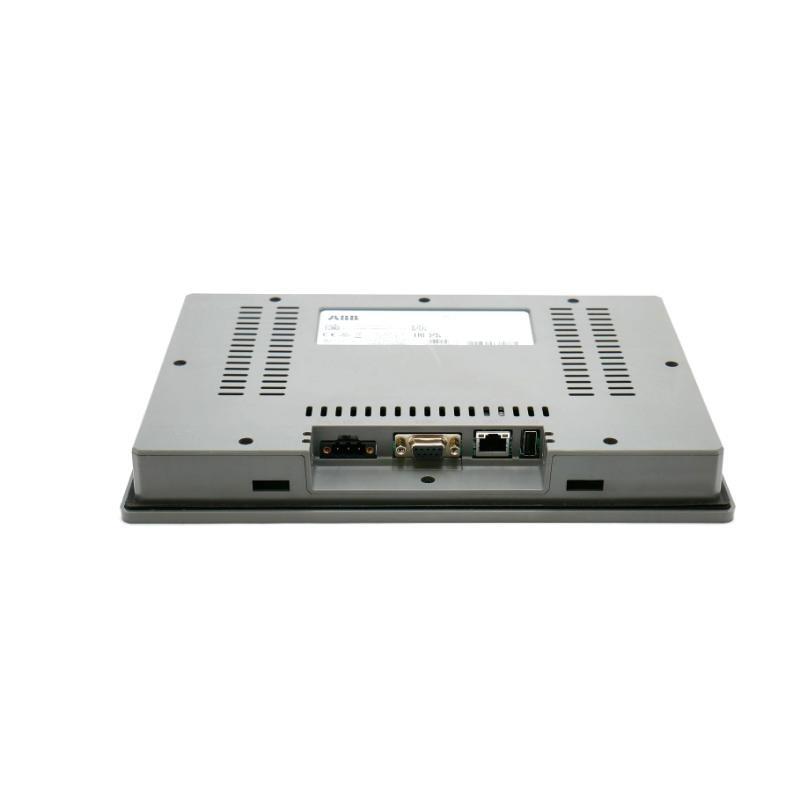

| Interfaces | 2x Ethernet ports, 1x USB host, 1x Serial port (RS232/RS485) |
| Operating System | Windows CE |
| Power Supply | 24V DC (18–30 V DC range) |
| Power Consumption | Max. 15 W |
| Operating Temperature | -20°C to +60°C |
| Protection Class (Front) | IP65 |
| Mounting Type | Panel Mount |
| Dimensions (W x H x D) | 197 x 282 x 35 mm |
| Weight | 0.82 kg |
| Certifications | CE, cULus, RoHS |
Applications
-
Industrial Automation: Interface for SCADA and PLC control systems in manufacturing plants.
-
Energy Management: Monitoring and controlling power distribution systems.
-
Water Treatment Plants: Visualization and diagnostics of water filtration systems.
-
Food & Beverage Industry: Operation panel for processing and packaging machinery.
-
Pharmaceutical Manufacturing: Control and data input for production environments requiring strict hygiene.
-
OEM Machine Builders: Integrated HMI solution for various types of specialized machinery.
Product Advantages
-
Robust Design: With IP65-rated front panel, it withstands dust, water, and harsh industrial conditions.
-
High Visual Clarity: Crisp 10.4″ TFT display with SVGA resolution ensures easy monitoring and readability.
-
Flexible Communication: Dual Ethernet and multiple serial interfaces for versatile connectivity with field devices.
-
Expandable Storage: SD card slot allows easy expansion and data transfer.
-
Compact and User-Friendly: Slim design with intuitive touch interface enhances usability in compact control panels.
-
Long Lifecycle: Built for longevity in industrial operations with minimal maintenance requirements.
-
Compatible Software: Easily programmable via ABB’s Panel Builder 600 software, optimizing engineering efficiency.
-
Wide Operating Temperature: Suitable for both cold and hot environments, extending deployment scenarios.
Frequently Asked Questions (FAQ)
-
What type of touch technology does the CP610 use?
The CP610 uses a resistive touch screen, ideal for use with gloves or stylus in industrial environments. -
Is the CP610 compatible with ABB AC500 PLCs?
Yes, it is fully compatible and optimized for use with ABB AC500 series PLCs. -
Can this device operate in outdoor or humid environments?
With an IP65-rated front panel, it can handle dusty and damp conditions, but not direct outdoor exposure. -
Does it support remote monitoring or remote configuration?
Yes, through Ethernet connections, remote diagnostics and configuration are possible. -
Which software is used to configure the CP610?
The device is programmed using ABB’s Panel Builder 600 software. -
Is firmware upgradable?
Yes, ABB provides firmware updates via USB or SD card for long-term support and improvements. -
What happens if there is a power outage?
The HMI will reboot upon power restoration; session recovery depends on the project settings. -
Can the screen brightness be adjusted?
Yes, brightness and screen saver settings can be configured via the HMI interface. -
Is it possible to connect USB devices such as flash drives?
Yes, the built-in USB Host port supports file transfer using USB flash drives. -
How do I mount the CP610 on a control panel?
It is designed for front-panel mounting with a dedicated cut-out and standard brackets.
Related Models (Same Series or Interface Compatible)
| Model | Screen Size | Resolution | Touch Type | Main Interfaces |
|---|---|---|---|---|
| ABB CP620 | 12.1″ | 1024×768 | Resistive | Ethernet, USB, RS232/485 |
| ABB CP630 | 15.0″ | 1024×768 | Resistive | Ethernet, USB, Serial |
| ABB CP635 | 15.6″ | 1366×768 | Capacitive | Ethernet, USB, CAN |
| ABB CP605 | 5.7″ | 320×240 | Resistive | Serial, USB |
| ABB CP620-eCo | 10.4″ | 800×600 | Resistive | Ethernet, RS485 |
| ABB CP610-E | 10.4″ | 800×600 | Capacitive | Ethernet, USB Host |
Popular ABB Models (Same Brand, High Demand)
| Model | Function | Category | Highlights |
|---|---|---|---|
| ABB AC500 PM592-ETH | CPU Module | PLC Controller | Advanced networking and high-speed I/O |
| ABB PM564-R-ETH | CPU with Ethernet | PLC Controller | Compact design with Ethernet |
| ABB CI854AK01 | Communication Interface | Communication Module | Profibus DP interface for AC500 systems |
| ABB AI523 | Analog Input Module | I/O Module | 8-channel analog input, high precision |
| ABB DO573 | Digital Output Module | I/O Module | 16 digital outputs with diagnostics |
| ABB CP400 HMI Panel | HMI Display Unit | HMI | Basic operation panel with monochrome display |
