Product Overview

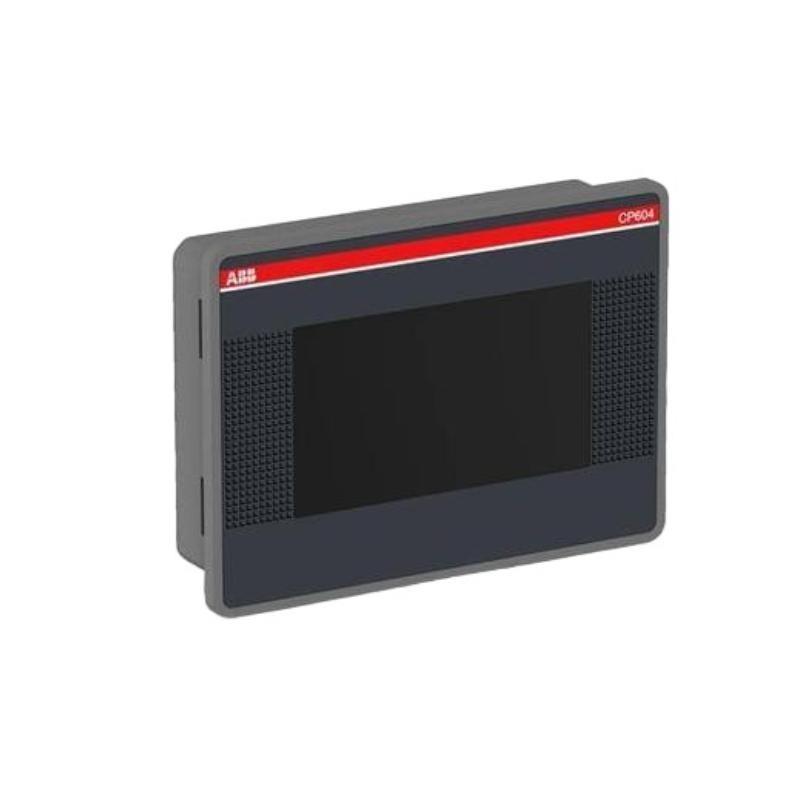

The ABB CP604 A0 1SAP504100R0001 Control Panel is a modern, high-performance operator interface panel designed to enhance the usability, monitoring, and configuration of ABB control systems and AC drives. As part of the ABB CP600 series, this panel delivers industrial-grade touch-screen functionality, advanced visualization, and connectivity features tailored to the needs of today’s automated environments.

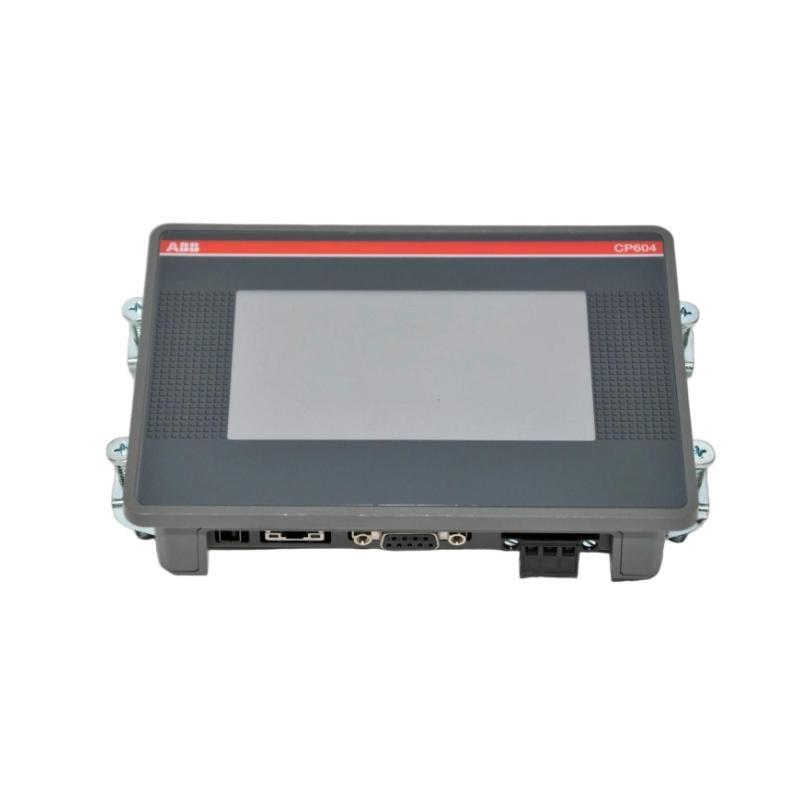

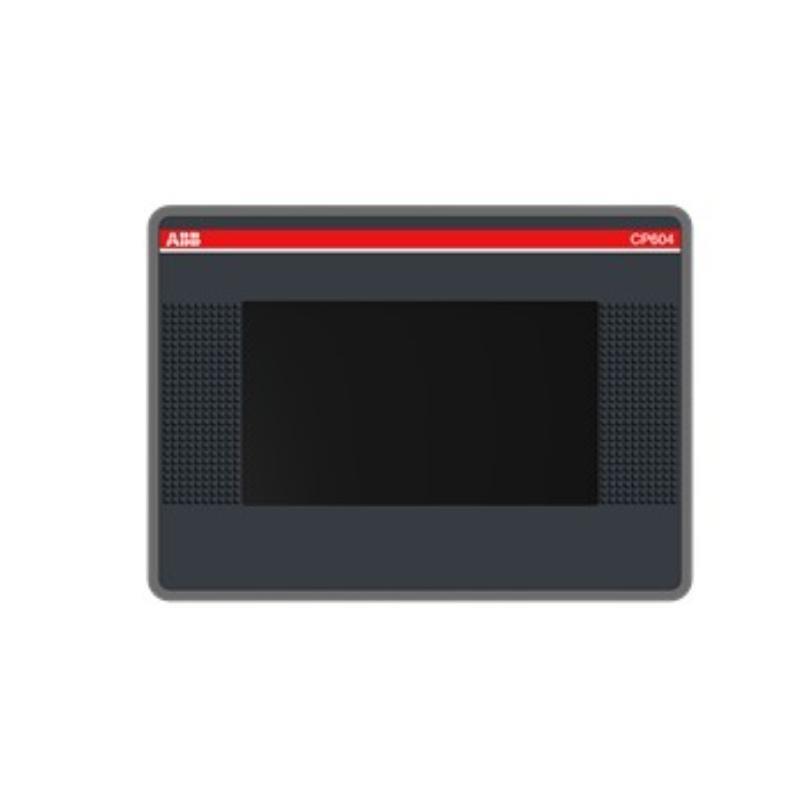

Featuring a 4.3-inch widescreen TFT display with LED backlighting and touchscreen operation, the CP604 A0 provides a clear, intuitive interface for managing processes, configuring equipment, and troubleshooting faults. It supports complex graphical representations such as trends, alarms, diagnostics, and status pages, making it a powerful HMI option for various industries.
Engineered to meet ABB’s high standards for reliability and safety, the CP604 A0 can withstand challenging environmental conditions and offers IP66 protection (front side) when panel-mounted. The compact footprint allows for flexible installation in space-constrained control cabinets, while broad protocol support ensures seamless integration with ABB drives, PLCs, and third-party automation systems.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | CP604 A0 |
| Ordering Code | 1SAP504100R0001 |
| Product Type | Industrial HMI / Control Panel |
| Display Type | 4.3″ TFT widescreen, 16:9 aspect ratio |
| Display Resolution | 480 × 272 pixels |
| Touchscreen | Resistive (single touch) |
| Display Colors | 64k colors |
| Processor | ARM Cortex-A8, 600 MHz |
| RAM | 128 MB |
| Flash Memory | 256 MB |
| Operating System | ABB CP600 embedded OS |

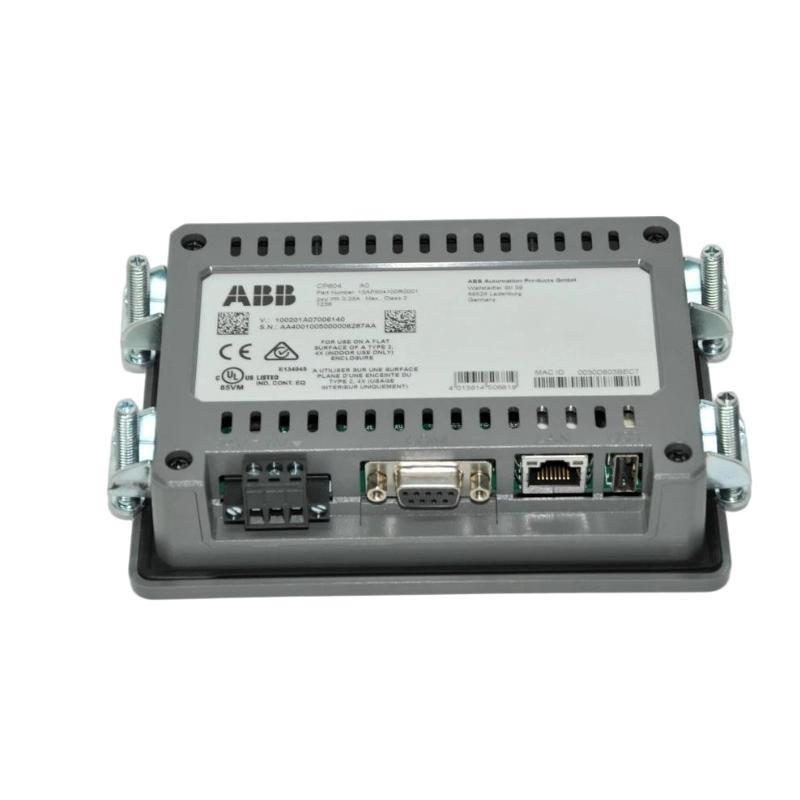

| Ethernet Interface | 1 × 10/100 Mbps Ethernet |
| Serial Ports | 1 × RS-232/485 (isolated) |
| USB Ports | 1 × USB Host 2.0 (front) |
| Expansion Slot | 1 SD card slot |
| Real-Time Clock | Integrated RTC with battery backup |
| IP Protection (Front) | IP66 |
| Certifications | CE, cULus, cUL Listed, RoHS compliant |
| Operating Temperature | -10 °C to +50 °C |
| Storage Temperature | -20 °C to +70 °C |
| Relative Humidity | 5% to 85% non-condensing |
| Power Supply | 24 VDC (18–30 VDC range), 5 W typical |
| Software | ABB Panel Builder 600 |
| Dimensions (W × H × D) | 34 × 107 × 147 mm |
| Weight | 0.29 kg |
| Mounting Options | Panel mounting |
| EMC Compliance | EN 61000-6-4, EN 61000-6-2 |
| Safety Standard | EN 61010-1 |
| Supported Protocols | Modbus RTU, Modbus TCP/IP, Ethernet/IP, OPC UA (via gateway), ABB proprietary protocols |
| Visualization | Alarms, trends, status screens, graphics |
| Data Logging | Supported |
Applications
The ABB CP604 A0 Control Panel is highly versatile and finds use in a wide variety of automation, monitoring, and control scenarios:
-
Industrial Automation
Monitoring and controlling production lines, packaging equipment, and machinery. -
Water Treatment & Wastewater Management
Operator interface for pump stations, treatment plants, and filtration systems. -
Building Automation
HVAC system control, air handling units, energy management systems. -
Energy & Utilities
Monitoring power generation, distribution, and renewable energy systems. -
OEM Machinery
Integrated HMI panel for machine builders delivering custom equipment. -
Process Industries
Batch processing, chemical plants, food & beverage production lines.
Product Advantages
-
High-Performance Display
Bright, full-color 4.3-inch TFT display with intuitive resistive touchscreen. -
Compact & Rugged Design
Small footprint fits space-constrained cabinets, IP66 protection ensures durability. -
Seamless ABB Integration
Designed for perfect compatibility with ABB drives and PLCs. -
Wide Protocol Support
Communicates with third-party systems through Modbus, Ethernet/IP, OPC UA. -
Advanced Visualization
Supports dynamic graphics, real-time trends, alarms, and diagnostics. -
Efficient Engineering
Fast project development with ABB Panel Builder 600 software. -
Flexible Connectivity
Ethernet, serial, USB, and SD card slots for extensive I/O. -
Battery-backed RTC
Ensures accurate time-stamping and alarm management. -
Energy-Efficient Operation
Low power consumption (5 W typical), optimized for modern automation. -
Global Certifications
CE, UL, RoHS compliance for worldwide use.
Frequently Asked Questions (FAQ)
-
What type of display does CP604 A0 use?
A 4.3-inch full-color TFT widescreen with 480×272 pixel resolution. -
Is this panel suitable for harsh environments?
Yes, when panel-mounted, it offers IP66 protection on the front face. -
What drives and PLCs does CP604 A0 support?
It supports ABB drives and PLCs, and can communicate with third-party devices via Modbus RTU/TCP, Ethernet/IP, OPC UA. -
Can I log data using this panel?
Yes, it supports data logging through internal memory and external SD card. -
What development software is required?
ABB’s Panel Builder 600 software. -
Does the panel support alarms and trends?
Yes, it offers advanced visualization including trends, alarms, and status displays. -
What is the mounting method for CP604 A0?
Panel-mounting is the standard installation method. -
What is the rated power supply for the panel?
24 VDC (range 18–30 VDC), typical power draw is 5 W. -
Is there a real-time clock?
Yes, the CP604 A0 has a built-in RTC with battery backup. -
Can the panel connect to Ethernet networks?
Yes, it includes one 10/100 Mbps Ethernet port.
Related Models from the Same Series or Category
| Model | Product Type | Display Size | Dimensions (W×H×D) | Weight |
|---|---|---|---|---|
| CP604 A0 1SAP504100R0001 | HMI / Control Panel | 4.3” TFT | 138×106×40 mm | 0.5 kg |
| CP610 A0 1SAP504200R0001 | HMI / Control Panel | 7” TFT | 200×146×50 mm | 1.0 kg |
| CP620 A0 1SAP504300R0001 | Advanced HMI Panel | 10” TFT | 300×210×55 mm | 1.6 kg |
| CP630 A0 1SAP504400R0001 | High-end HMI | 12” TFT | 360×260×55 mm | 2.1 kg |
| CP635 A0 1SAP504500R0001 | Advanced HMI | 15” TFT | 420×320×60 mm | 3.0 kg |
| CP650 A0 1SAP504600R0001 | Premium HMI Panel | 21” widescreen TFT | 530×350×65 mm | 4.5 kg |
Popular Models from ABB Product Line
| Model | Product Type | Application Area | Dimensions (W×H×D) | Weight |
|---|---|---|---|---|
| ACS880-01-045A-3 | Industrial Drive | Heavy industry, manufacturing | 300×500×300 mm | 25 kg |
| ACS580-01-075A-4 | General-Purpose Drive | HVAC, pumping, industrial | 350×450×280 mm | 35 kg |
| CP620 A0 1SAP504300R0001 | Advanced HMI | Process industry & OEM | 300×210×55 mm | 1.6 kg |
| RETA-01 | Ethernet Adapter | Networking interface for drives | 100×140×25 mm | 0.25 kg |
| RPBA-01 | PROFIBUS Adapter | PROFIBUS connectivity for drives | 100×140×25 mm | 0.25 kg |
| CP600-Pro (CP620) | Touchscreen HMI | Premium process visualization | 220×150×50 mm | 1.20 kg |
