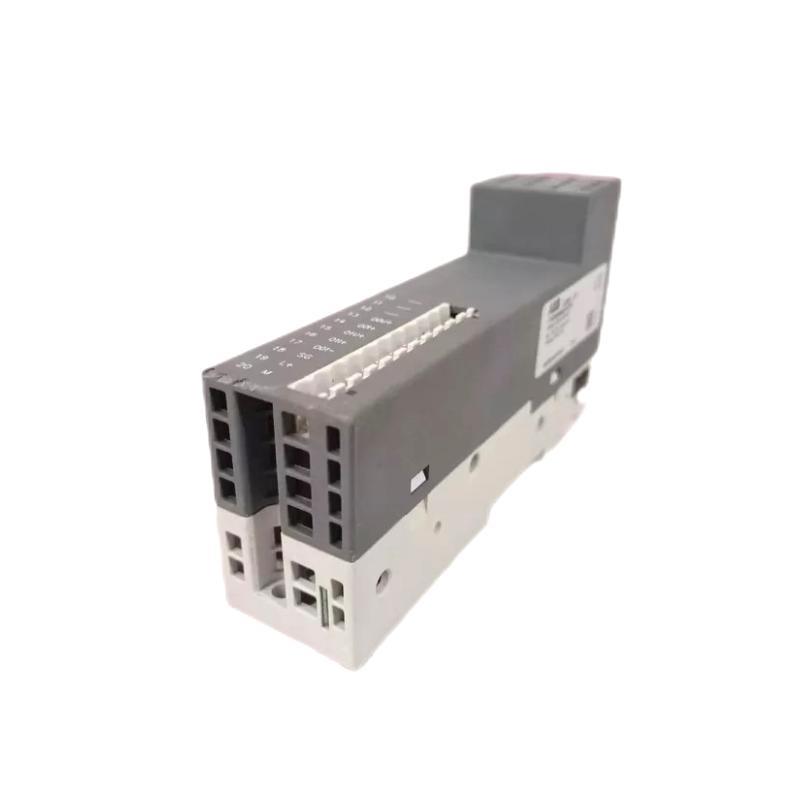

ABB AI630 3BHT300011R1 Analog Input Module

Product Introduction:

The ABB AI630 3BHT300011R1 Analog Input Module is a versatile and highly reliable industrial control component designed to manage and process analog input signals in automation systems. This module forms part of ABB’s comprehensive range of automation and control systems, offering enhanced functionality and performance for demanding industrial environments. The AI630 module is engineered to provide accurate, high-resolution measurement and conversion of analog signals, such as voltage, current, and temperature data, into usable information for advanced control processes.

Featuring 16 input channels, the ABB AI630 3BHT300011R1 provides superior performance in applications that require high-density I/O capabilities. It supports various types of input signals, including analog voltage, current, and resistance measurements, making it highly adaptable across a range of industries. Its design ensures efficient signal conversion with minimal noise interference, offering precision and accuracy in real-time data collection.

This module is ideal for use in industrial automation systems, power generation, process control, and other applications that require continuous monitoring of analog signals. The ABB AI630 is designed to integrate seamlessly with ABB’s modular control platforms, providing scalability, ease of integration, and enhanced system reliability.

Product Specifications:

Below is a detailed specification table for the ABB AI630 3BHT300011R1 Analog Input Module:

Applications of the ABB AI630 3BHT300011R1 Analog Input Module:

The ABB AI630 3BHT300011R1 Analog Input Module is highly versatile and used in a variety of industrial and automation applications. Its robust and scalable design ensures that it can be used in environments where accurate measurement and real-time monitoring are crucial. Some key application areas include:

• Industrial Automation: The module is widely used in industrial automation systems to monitor and control processes that require continuous analog signal measurements, such as temperature, pressure, flow, and level monitoring.

• Energy and Power Systems: In energy management and power generation, the AI630 module is used to monitor key parameters like voltage, current, and frequency, contributing to the reliable operation and control of energy systems.

• Process Control Systems: In manufacturing and chemical processing, the module allows operators to track critical variables, ensuring that production processes remain stable and within set tolerances.

• HVAC and Building Automation: The AI630 is an essential component in controlling heating, ventilation, and air conditioning systems by processing analog inputs from various environmental sensors.

• Water Treatment and Environmental Control: The module is deployed in water treatment plants and environmental monitoring systems to measure factors like pH, turbidity, and temperature, ensuring optimal process control.

• Renewable Energy Systems: The AI630 module is well-suited for renewable energy applications, such as solar power and wind farms, where it monitors and controls critical system variables to ensure energy generation efficiency.

Advantages of the ABB AI630 3BHT300011R1 Analog Input Module:

1. High Channel Density: With 16 input channels, the AI630 module supports high-density I/O configurations, reducing the need for multiple modules in larger systems and minimizing space requirements.

2. Exceptional Accuracy: The module provides a high level of accuracy (±0.1% FS), ensuring that the data received from sensors and transmitters is reliable and precise, which is critical for process control.

3. Versatility: The AI630 supports a variety of signal types, including voltage, current, RTD, and thermocouple inputs, making it adaptable for diverse industrial applications.

4. High Isolation: The 1500V isolation between input channels protects sensitive control systems from electrical interference and damage, ensuring stable operation in industrial environments.

5. Scalability and Flexibility: As part of ABB’s modular control systems, the AI630 can be easily integrated into larger control systems, offering scalability for expanding automation needs.

6. Easy Integration: The module supports common communication protocols such as Modbus RTU and Profibus, making it easy to integrate with existing industrial networks and control systems.

7. Robust Protection: The AI630 features overvoltage, overcurrent, and reverse polarity protection, safeguarding the system against electrical faults and enhancing its reliability.

8. Compact and Space-Efficient: The module’s compact dimensions (252 x 273 x 40 mm) allow for space-efficient installation in control panels and cabinets, ideal for environments with limited space.

9. Wide Temperature Range: The module operates effectively in environments with temperatures ranging from -20°C to 60°C, making it suitable for harsh industrial conditions.

10. Reliability and Durability: Designed for high reliability and durability, the AI630 ensures uninterrupted operation in critical applications, reducing downtime and maintenance costs.

Frequently Asked Questions (FAQ):

1. What types of input signals can the ABB AI630 process?

   • The AI630 supports voltage, current, RTD, and thermocouple inputs, making it highly adaptable for various sensor types.

2. How many input channels are available on the AI630 module?

   • The module offers 16 individual input channels, providing high-density I/O capabilities.

3. What is the accuracy of the ABB AI630 module?

   • The AI630 provides an accuracy of ±0.1% of full scale (FS), ensuring precise measurement.

4. What communication protocols does the AI630 support?

   • The AI630 supports Modbus RTU, Profibus, and ABB proprietary communication protocols.

5. How is the ABB AI630 mounted?

   • The AI630 module is designed for DIN rail mounting, ensuring easy and secure installation in control panels.

6. What is the operating temperature range of the AI630?

   • The module operates within a temperature range of -20°C to 60°C, making it suitable for use in various industrial environments.

7. What protection features are included in the AI630 module?

   • The AI630 includes overvoltage, overcurrent, and reverse polarity protection to ensure safe and reliable operation.

8. How much does the ABB AI630 module weigh?

   • The AI630 weighs 1.195 kg, making it relatively lightweight for its functionality.

9. Is the AI630 module suitable for use in high-humidity environments?

   • Yes, the AI630 is designed to operate in environments with humidity levels ranging from 5% to 95% (non-condensing).

10. What is the input voltage range for the AI630 module?

• The AI630 module can process signals with voltage ranges of ±10V, 0-20mA, and 4-20mA.
