Product Introduction:

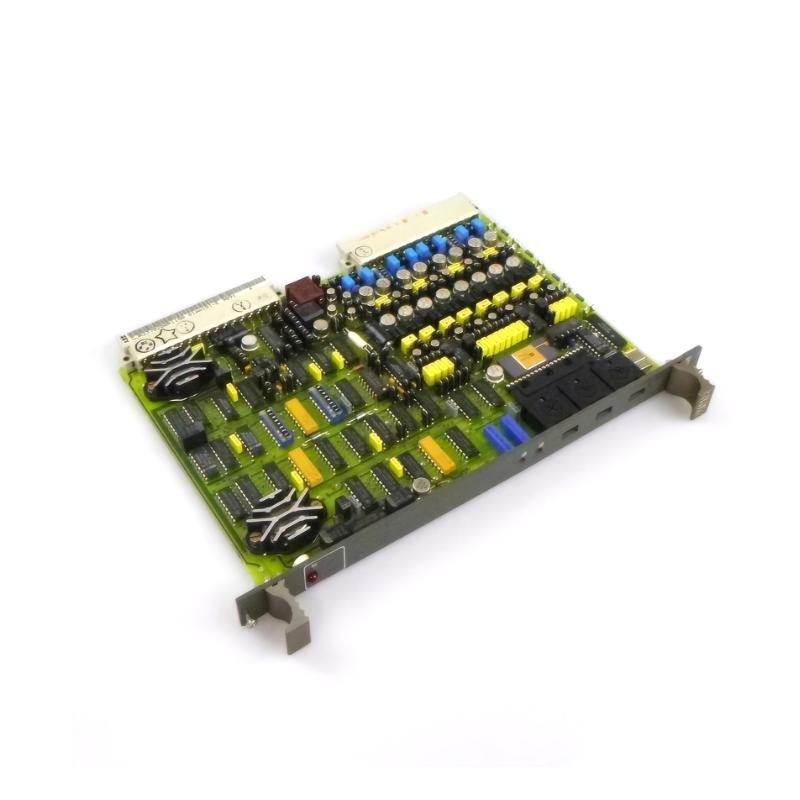

The ABB 81AA10E GJR2370200R1100 is a robust industrial output module developed by ABB for integration in distributed control systems (DCS) and programmable logic controllers (PLC) environments. As a digital output module, it is used to transmit control signals from automation systems to field devices such as relays, solenoids, motors, and indicator lights. Designed for high reliability and ease of use, this module plays an essential role in modern industrial automation setups.
Its solid design ensures long-term operation in harsh industrial environments. The 81AA10E is engineered to provide fast switching times and stable output performance, making it a valuable component in process industries such as oil and gas, power generation, manufacturing, and chemical processing.
Product Specifications:
| Parameter | Specification |
|---|---|
| Model Number | 81AA10E GJR2370200R1100 |
| Module Type | Digital Output Module |
| Output Channels | 8 Channels |
| Output Type | Digital (Relay or Solid-State Depending on Config) |
| Rated Output Voltage | 24 VDC / 48 VDC |
| Maximum Load Current | 0.5 A per channel |
| Isolation | Channel-to-System Optical Isolation |
| Output Delay Time | <1 ms |
| Power Supply Voltage | 24 VDC |
| Mounting Method | DIN Rail |
| Enclosure Type | Industrial-grade housing |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -25°C to +70°C |
| Humidity Tolerance | 5% to 95% (non-condensing) |
| Certifications | CE, UL, RoHS |
| Dimensions (L x W x H) | 198 x 261 x 20 mm |
| Weight | 0.55 kg |
Product Applications:
The ABB 81AA10E is widely applied across a diverse range of industries that rely on accurate digital output signaling for operational control:
-
Manufacturing Automation: Controls actuators, indicator lamps, and switching devices for conveyor systems and robotic cells.
-
Oil & Gas Processing: Manages alarms, valve positioning, and solenoid actuation in upstream and downstream equipment.
-
Power Generation: Supports turbine and generator control systems by providing critical digital signals to field components.
-
Chemical Plants: Interfaces with mixing, heating, and pressure regulation equipment.
-
Water Treatment Facilities: Operates pumps, valve switches, and level indicators to ensure consistent water flow and filtration.
-
HVAC and Building Automation: Used for controlling air-handling units, exhaust fans, and emergency lighting systems.
Product Advantages:
-
High Output Density: Supports 8 independent output channels within a compact housing, maximizing panel space efficiency.
-
Fast Switching Time: Ensures minimal delay in field signal delivery, improving response time in critical operations.
-
Strong Isolation: Optical isolation protects the control system from electrical surges and noise, enhancing system safety and longevity.
-
Flexible Output Compatibility: Supports both 24 VDC and 48 VDC outputs, making it suitable for various device types.
-
Durability and Reliability: Designed for continuous operation under industrial temperature and humidity conditions.
-
Seamless Integration: Compatible with ABB’s Symphony and Advant control systems, as well as other DCS/PLC architectures, allowing for smooth system integration.
Frequently Asked Questions (FAQ):
-
What is the ABB 81AA10E GJR2370200R1100 module used for?
-
It’s used for sending digital control signals from the automation controller to field devices like motors, relays, or alarms.
-
-
How many output channels does it support?
-
The module supports 8 digital output channels.
-
-
What voltage levels are supported by the outputs?
-
Outputs support 24 VDC or 48 VDC depending on configuration.
-
-
Is the module isolated from the control system?
-
Yes, optical isolation is provided between output channels and the system for protection.
-
-
What type of devices can be connected to the outputs?
-
It supports relays, solenoids, indicators, motors, and similar DC-operated field equipment.
-
-
What mounting type is required for the module?
-
It is designed for DIN rail mounting inside control cabinets.
-
-
What is the weight of the ABB 81AA10E module?
-
0.55 kg.
-
-
What kind of environments can it operate in?
-
It operates in industrial conditions with temperatures from -10°C to +60°C and up to 95% humidity.
-
-
Can this module be used with non-ABB systems?
-
Yes, it can be integrated with third-party DCS or PLC systems as long as signal standards match.
-
-
What certifications does the module have?
-
The module complies with CE, UL, and RoHS standards.
Related Models (Same Series or Function Group):
| Model | Type | Channels | Output Voltage | Weight | Dimensions (mm) |
|---|---|---|---|---|---|
| 81AA01E GJR2385100R1010 | Analog Output Module | 4 | 0-10V / 4-20mA | 0.35 kg | 120 x 100 x 60 |
| 81AA02E GJR2385200R1010 | Analog Output Module | 2 | 0-10V / 4-20mA | 0.30 kg | 120 x 100 x 60 |
| 81AA04E GJR2385400R1010 | Analog Output Module | 2 | 0-10V | 0.35 kg | 120 x 100 x 60 |
| 81AA05E GJR2385500R1010 | Analog Output Module | 2 | 0-20mA / 4-20mA | 0.32 kg | 120 x 100 x 60 |
| 81AB03E GJR2373000R0100 | Digital Output Module | 16 | 24 VDC | 0.45 kg | 130 x 110 x 70 |
| 81AB05E GJR2373200R2100 | Digital Output Module | 8 | 48 VDC | 0.40 kg | 120 x 100 x 60 |
Popular ABB Models Across Product Lines:
| Model | Module Type | Application | Channels | Weight | Dimensions (mm) |
|---|---|---|---|---|---|
| 07KT98C GJR5253100R3260 | CPU Module | Control Systems (DCS/PLC) | N/A | 0.5 kg | 130 x 110 x 70 |
| 07AC91 GJR5252300R0101 | Analog Input Module | Process Monitoring | 8 | 0.45 kg | 130 x 110 x 70 |
| 07KT95 GJR5253100R3210 | Communication Processor | Network Communication | N/A | 0.55 kg | 130 x 110 x 75 |
| 07KT97 GJR5253000R3101 | Communication Processor | DCS/PLC Interfaces | N/A | 0.6 kg | 140 x 120 x 80 |
| 07KT94 GJR5252400R3001 | I/O Module | Mixed Signal I/O | 16 | 0.5 kg | 130 x 110 x 70 |
| 81AE01 GJR2372300R0200 | Digital Input Module | Binary Signal Acquisition | 8 | 0.34 kg | 120 x 100 x 60 |
