Product Introduction

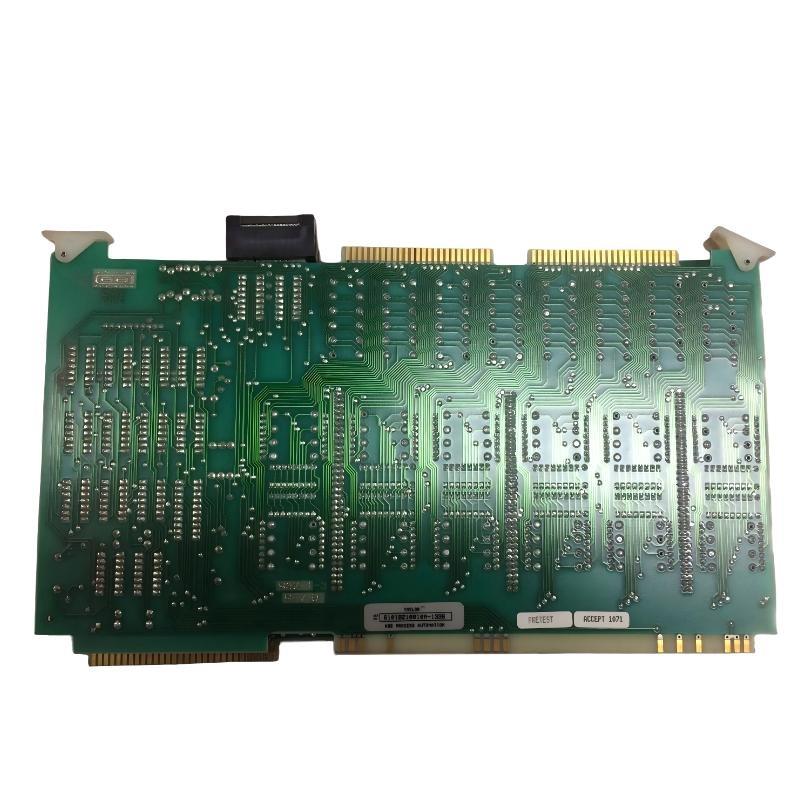

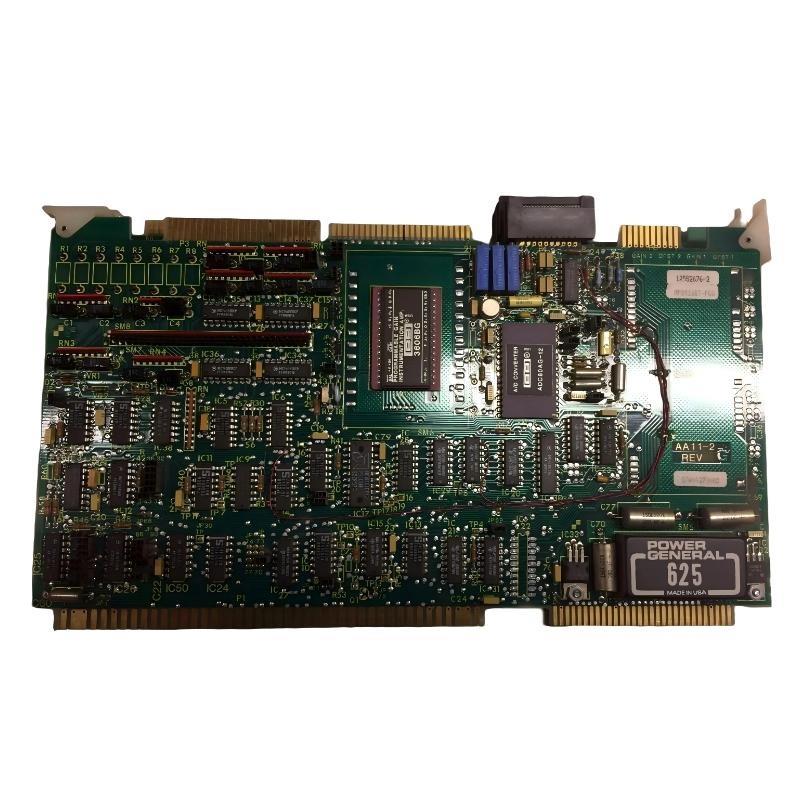

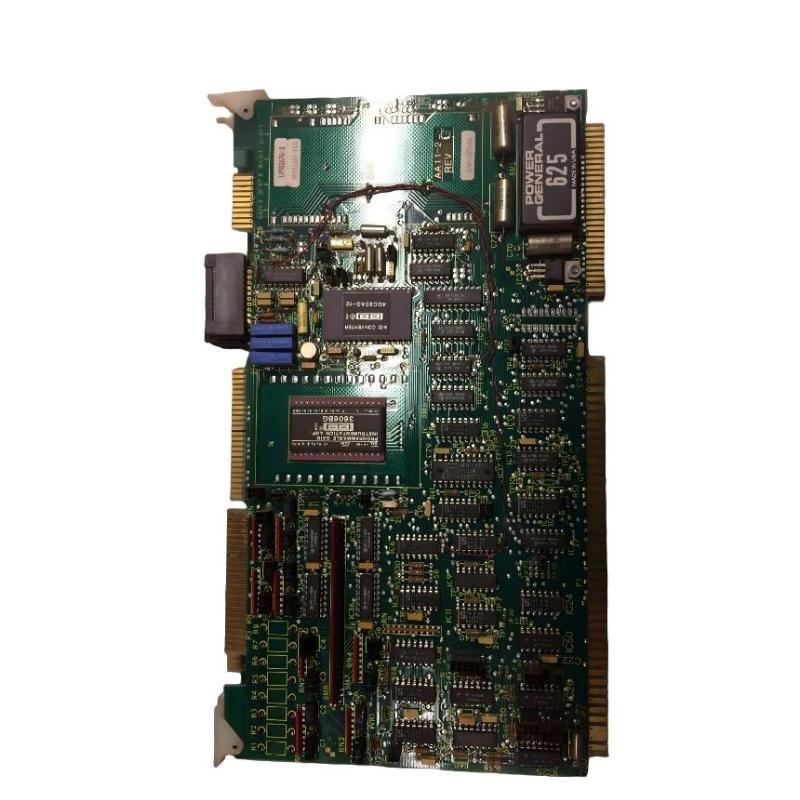

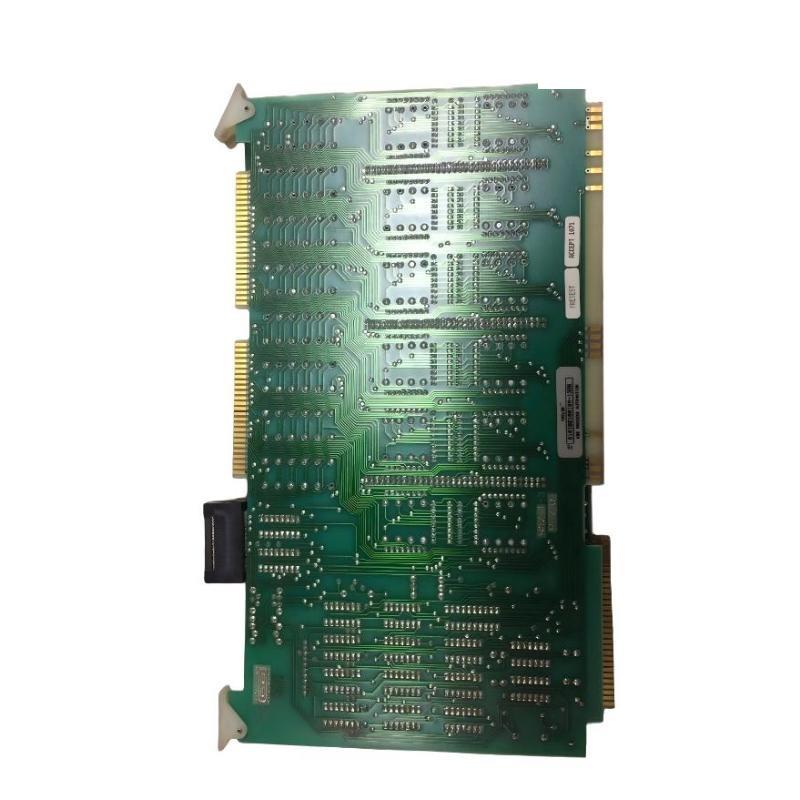

The ABB 6101BZ10010A Analog Input Expansion Board is an industrial-grade module designed to extend the analog input capacity of ABB automation and process control systems. It allows additional sensors and field devices to be connected to ABB controllers, providing reliable and accurate analog signal acquisition.
Engineered for continuous industrial operation, the board maintains signal integrity under harsh conditions, including electrical noise, vibration, and temperature fluctuations. Its compact design allows easy integration into control cabinets or racks, supporting modular system expansion and maintenance.
This module is suitable for applications where precise analog measurement is required for process monitoring, automation control, or industrial diagnostics.
Product Specifications
| Parameter | Description |
|---|---|
| Product Name | Analog Input Expansion Board |
| Model | 6101BZ10010A |
| ABB Order Number | 3BHC10211R0001 |
| Module Type | Analog input expansion module |
| Functional Role | Expands analog input capacity for ABB controllers |
| System Compatibility | ABB automation and control platforms |
| Installation Method | Rack or cabinet-mounted module |
| Input Channels | Configurable analog input channels for voltage/current signals |
| Signal Type | Voltage, current, or sensor-specific analog signals |
| Operating Mode | Continuous industrial operation |
| Environmental Rating | Resistant to vibration, EMI, and industrial temperature ranges |
| Dimensions | 200 × 100 × 35 mm |
| Weight | 0.45 kg |
Product Applications
• Expanding analog input capacity in ABB control systems for additional sensors or field devices.
• Process monitoring and real-time measurement in industrial automation applications.
• Integration into control panels or racks for flexible system expansion.
• Supporting precise analog measurements in manufacturing, energy, or material handling systems.
• Enhancing system diagnostics and operational data acquisition capabilities.
Product Advantages
• Increases the number of analog inputs without redesigning the main controller.
• Provides accurate and reliable signal acquisition under industrial conditions.
• Compact and modular design allows easy installation and replacement.
• Designed to maintain signal integrity in environments with EMI and vibration.
• Supports flexible system expansion and improved process monitoring.
