Product 説明

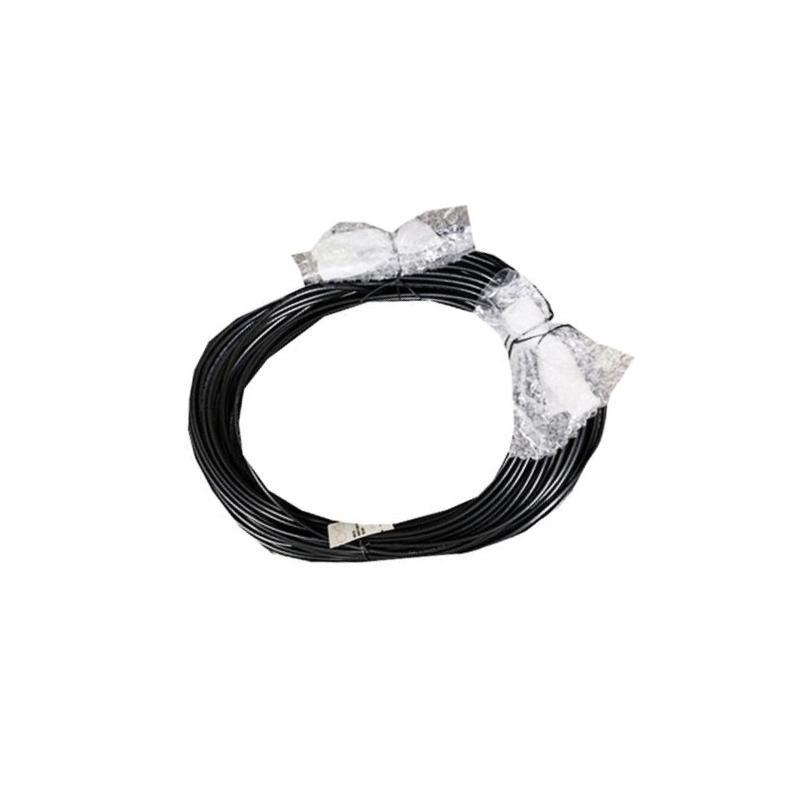

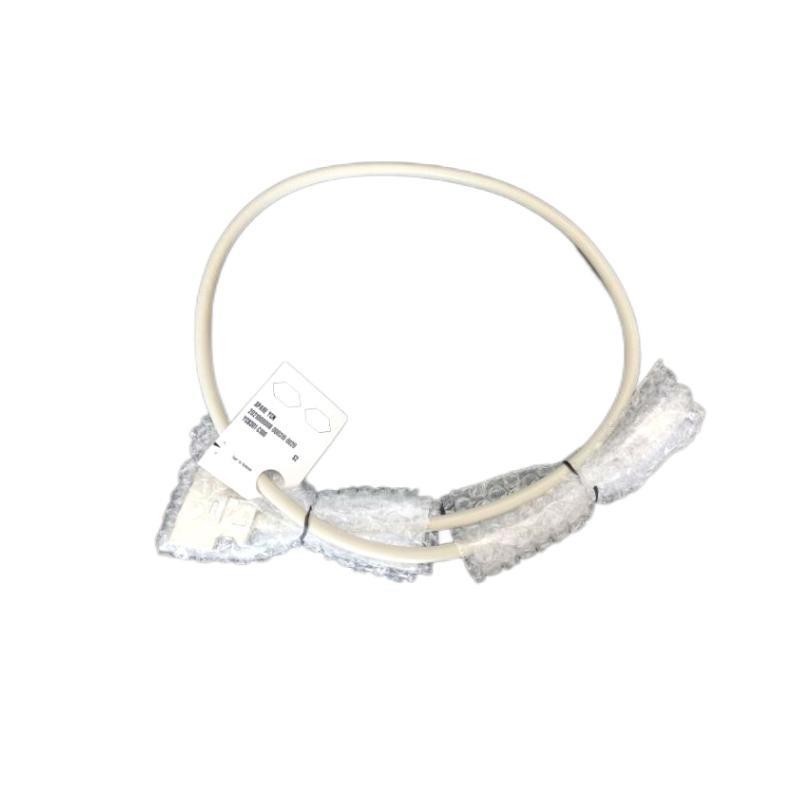

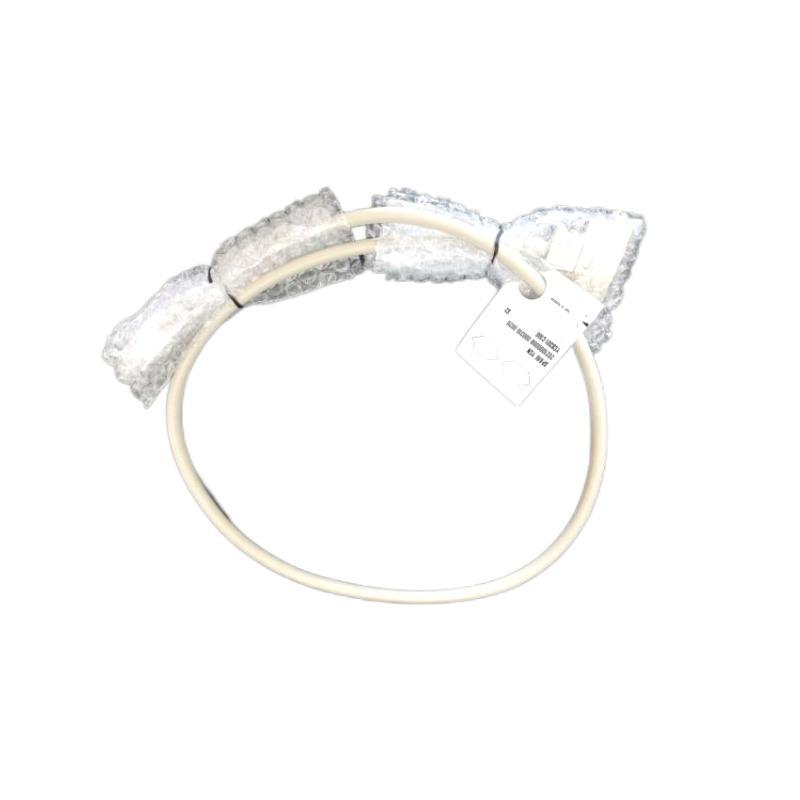

The Yokogawa YCB141-M001 is a high-performance coaxial communication cable designed specifically for V net (10BASE-2) systems used within Yokogawa’s CENTUM control networks. With a standard 1-meter length, this cable provides secure and robust data transmission in industrial automation environments. It is engineered to meet Yokogawa’s stringent quality standards and /fers compatibility with various V net components.
Technical Specifications
| Parameter | Specification |
|---|---|
| モデル | YCB141-M001 |
| Cable Type | 10BASE-2 Coaxial |
| Cable Length | 1 meter |
| Outer Diameter | Approx. Ø5 mm (main cable body) |
| Minimum Bending Radius | 50 mm |
| Operating Temperature | -20 to +70°C |
| Max. Cable Length サポートed | 185 meters (with suffix: -M185) |
| Connector Type | BNC (for T-junction use) |
| 重量 (配送) | Approx. 2 kg |
| Compliance Option | /NL CSA Non-Incendive サポート (optional) |
Applications
-
CENTUM VP, CENTUM CS 3000, and CENTUM CS 1000 control systems
-
Communication backbone for AVR10D V net Routers
-
High-reliability environments requiring dual-redundant or single coaxial communication
-
Industrial plants where robust network cables are essential for uptime
Advantages
-
Yokogawa-specified compatibility ensures seamless performance in CENTUM systems
-
Wide temperature tolerance allows deployment in challenging industrial conditions
-
Small minimum bend radius supports easier cable routing in compact enclosures
-
Various length options available for flexible system layout
-
Industrial-grade coaxial shielding ensures low noise and signal integrity
よくある質問 (FAQ)
Q1: What systems is the YCB141-M001 compatible with?
A1: It is compatible with CENTUM VP, CS 3000, and CS 1000 systems using V net (10BASE-2) communication.
Q2: What is the default length / the YCB141-M001?
A2: The M001 version is 1 meter long.
Q3: What is the minimum bending radius / this cable?
A3: The minimum bending radius is 50 mm.
Q4: Can this cable be used outdoors?
A4: It is suitable for controlled environments between -20°C and +70°C but should be protected from direct environmental exposure.
Q5: What is the difference between 10BASE-2 and Ethernet cables?
A5: Although 10BASE-2 uses coaxial cable similar in name, V net specifications differ from standard Ethernet specs and require Yokogawa-certified cables.
Q6: Is the cable shielded?
A6: Yes, it uses industrial-grade coaxial shielding to prevent electromagnetic interference.
Q7: Are other cable lengths available?
A7: Yes, from 1m to 185m, in 5-meter increments (e.g., -M005, -M010, -M185).
Q8: What is the shipping weight / this cable?
A8: The shipping weight for the M001 variant is approximately 2 kg.
Q9: Does this cable require special tools for installation?
A9: Standard BNC tools are sufficient.
Q10: Can I use a third-party coaxial cable instead?
A10: No, only Yokogawa-specified cables like YCB141 are approved for V net connections to ensure performance and safety.
Related Yokogawa V net モデルs
| モデル | 説明 | Cable Type | Length | 重量 |
|---|---|---|---|---|
| YCB141-M002 | V net Cable (2 m) | 10BASE-2 | 2 m | ~2.1 kg |
| YCB141-M005 | V net Cable (5 m) | 10BASE-2 | 5 m | ~2.4 kg |
| YCB141-M010 | V net Cable (10 m) | 10BASE-2 | 10 m | ~2.7 kg |
| YCB141-M050 | V net Cable (50 m) | 10BASE-2 | 50 m | ~3.5 kg |
| YCB148 | V net Terminator | Terminator | N/A | ~0.2 kg |
| YCB149 | V net Converter Connector | 10BASE-2/5 | N/A | ~0.3 kg |
Popular Yokogawa モデルs
| モデル | 説明 | カテゴリー | 重量 | Dimensions (mm) |
|---|---|---|---|---|
| AVR10D | Duplexed V net Router | Communication Module | 5.8 kg | 482.6 x 150.6 x 132.5 |
| VI451 | V net Interface Module | Interface Module | ~1.2 kg | – |
| ALR121-S00 | Control Network Interface | Control Interface | ~1.0 kg | – |
| PW101 | Power Supply Module | Power Module | ~2.5 kg | – |
| CP401 | Control Processor | CPU Module | ~3.0 kg | – |
| FCN-RTU | Remote Terminal ユニット (STARDOM) | RTU | ~2.8 kg | – |
