Product 説明

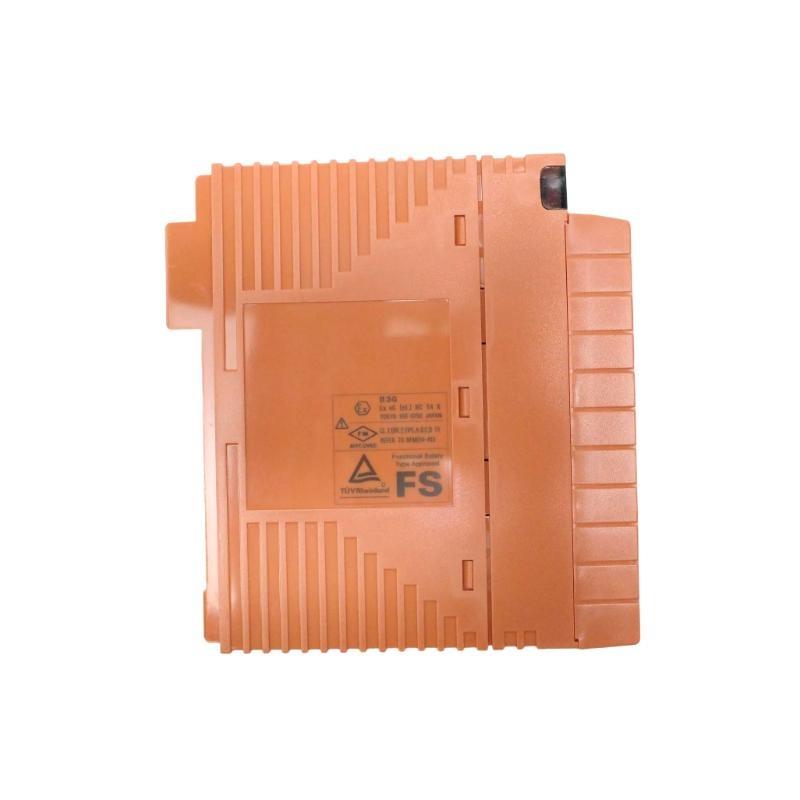

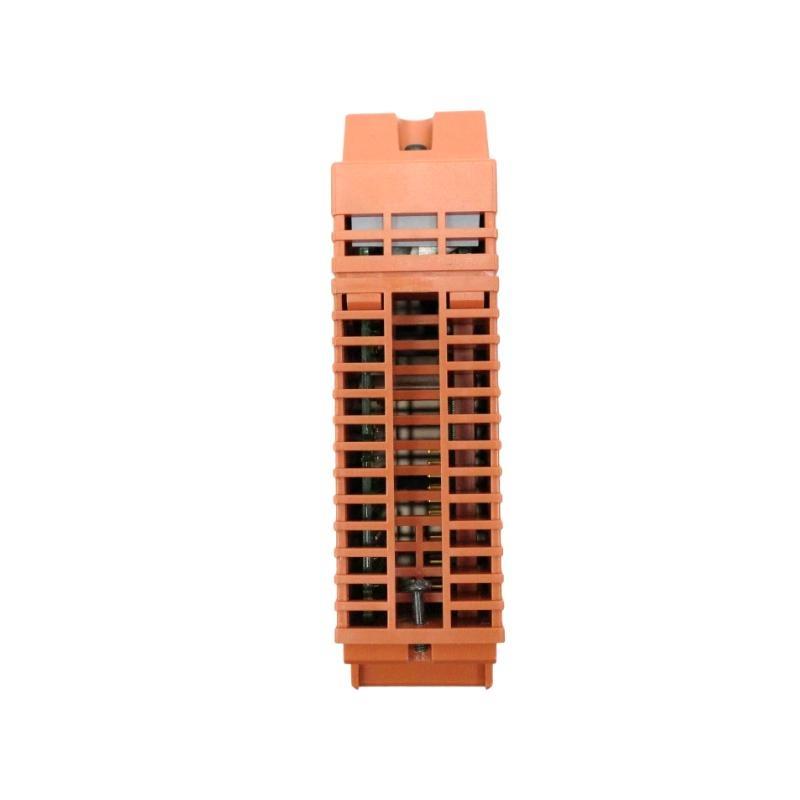

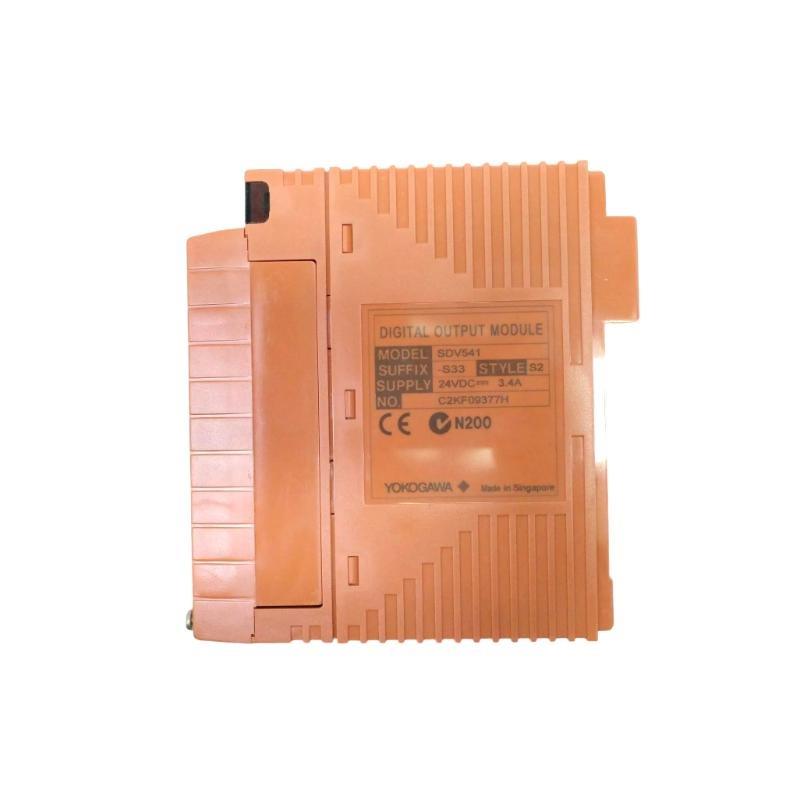

The Yokogawa SDV541-S33 is a high-performance 16-channel Digital Output Module designed for safety instrumented systems within the ProSafe-RS series. It provides isolated 24 V DC current source outputs and is suitable for demanding industrial automation and safety applications. Each channel is independently isolated and /fers fast response times, robust diagnostics, and flexible external connection options.
Technical Specifications
| Parameter | Specification |
|---|---|
| モデル | SDV541-S33 |
| Number / Output Channels | 16 (individually isolated) |
| Output Voltage | 24 V DC |
| Output Voltage Drop | ≤ 1 V |
| External Power Supply Rating | 24 V DC, 3.4 A minimum |
| External Power Supply Tolerance | +20%, -10% |
| Maximum Load Current | 0.2 A per channel (3.2 A total) |
| Minimum Load Current | 35 mA |
| Load Resistance Range | 120 to 685 Ω |
| Output Format | Current Source |
| Max. Leak Current (Output OFF) | 1.6 mA |
| Output Response Time | ≤ 30 ms |
| Withstand Voltage | 2 kV AC (1 min between signal and system) |
| Current Consumption (5 V DC) | Max. 300 mA |
| Current Consumption (24 V DC) | Max. 150 mA |
| External Connections | Pressure clamp, MIL cable, or AKB signal cable |
| Dimensions (W x H x D) | 130 x 107.5 x 32.8 mm |
| 重量 | 0.29 kg |
Applications
-
Emergency Shutdown Systems (ESD)
-
Fire and Gas Systems (F&G)
-
Burner Management Systems (BMS)
-
Distributed Control Systems (DCS) Safety Integration
-
Remote I/O Systems in safety-critical environments
Product Advantages
-
High channel density (16 outputs) reduces panel space
-
サポートs redundant configuration for enhanced system availability
-
Provides fast output response (≤30 ms) for time-critical operations
-
Built-in isolation improves safety and noise imm台y
-
サポートs multiple wiring options for flexible installation
-
Field diagnostics improve maintainability and fault detection
-
Conforms to ISA G3 standards and suitable for harsh environments
FAQs (よくある質問)
Q1: What is the maximum current per channel / the SDV541-S33?
A1: It supports up to 0.2 A per output channel.
Q2: Can the SDV541-S33 be used in redundant safety configurations?
A2: Yes, it supports dual-redundant configurations.
Q3: What type / load can be connected to the output?
A3: It supports resistive loads within 120 to 685 Ω.
Q4: Does the module provide isolation for each output?
A4: Yes, each channel is module-isolated.
Q5: What diagnostic features are supported?
A5: It includes field wiring diagnostic support via system configuration.
Q6: Is the output type sourcing or sinking?
A6: It is a current source (sourcing) output.
Q7: What is the typical output response time?
A7: It responds within 30 milliseconds.
Q8: Can this module be used in explosion-pro/ environments?
A8: Yes, versions with explosion protection are available.
Q9: What connection types are supported?
A9: Pressure clamp terminals, MIL cables, or AKB signal cables.
Q10: What are the dimensions and weight / this module?
A10: It measures 130 x 107.5 x 32.8 mm and weighs approximately 0.29 kg.
Related or Same-Series Yokogawa モデルs
| モデル | Channels | Output Voltage | Max Load/Ch | Dimensions (mm) | 重量 |
|---|---|---|---|---|---|
| SDV531 | 8 | 24 V DC | 0.6 A | 130 x 107.5 x 32.8 | 0.28 kg |
| SDV521 | 4 | 24 V DC | 2 A | 130 x 125.5 x 32.8 | 0.36 kg |
| SDV526 | 4 | 100–120 V AC | 0.5 A | 130 x 159.8 x 32.8 | 0.36 kg |
| SDV53A | 8 | 48 V DC | 0.6 A | 130 x 159.8 x 32.8 | 0.46 kg |
| SDV144 | 16 (Input) | N/A | N/A | 130 x 107.5 x 32.8 | 0.36 kg |
| SDV541 | 16 | 24 V DC | 0.2 A | 130 x 107.5 x 32.8 | 0.29 kg |
Popular Yokogawa モデルs
| モデル | Function | Channels | Voltage | Dimensions (mm) | 重量 |
|---|---|---|---|---|---|
| AAI141 | Analog Input Module | 16 | 4–20 mA | 130 x 100 x 30 | 0.25 kg |
| AAI143 | Analog Input Module | 16 | 1–5 V | 130 x 100 x 30 | 0.25 kg |
| AAI841 | Analog Input (HART) | 8 | 4–20 mA | 130 x 100 x 30 | 0.30 kg |
| AOA241 | Analog Output Module | 8 | 4–20 mA | 130 x 100 x 30 | 0.30 kg |
| ADV151 | Digital Input Module | 16 | 24 V DC | 130 x 100 x 30 | 0.28 kg |
| CP451-10 | Controller Processor | — | — | 130 x 250 x 40 | 0.50 kg |
