Product Overview

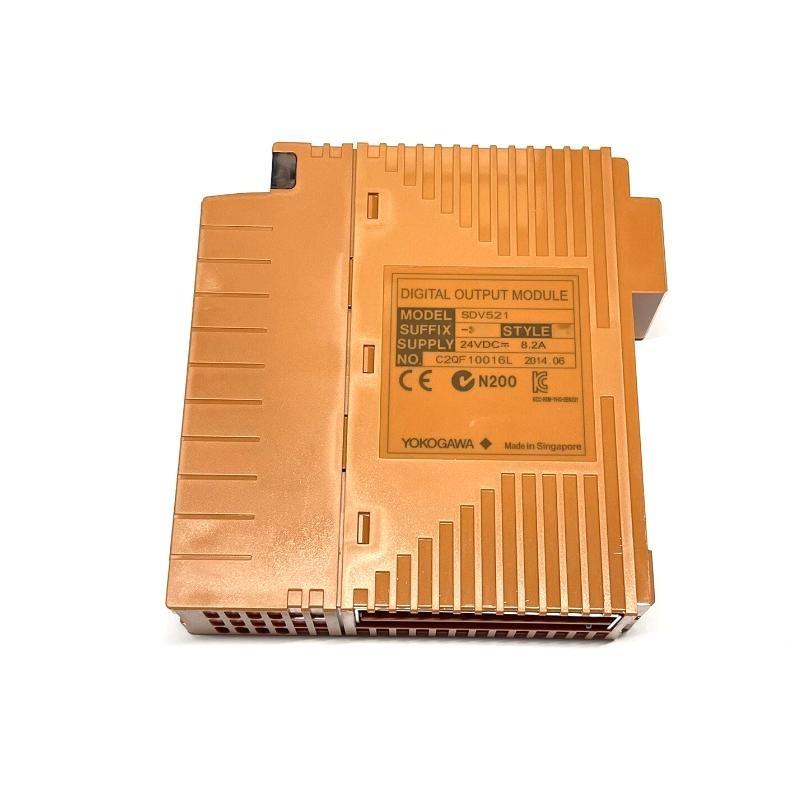

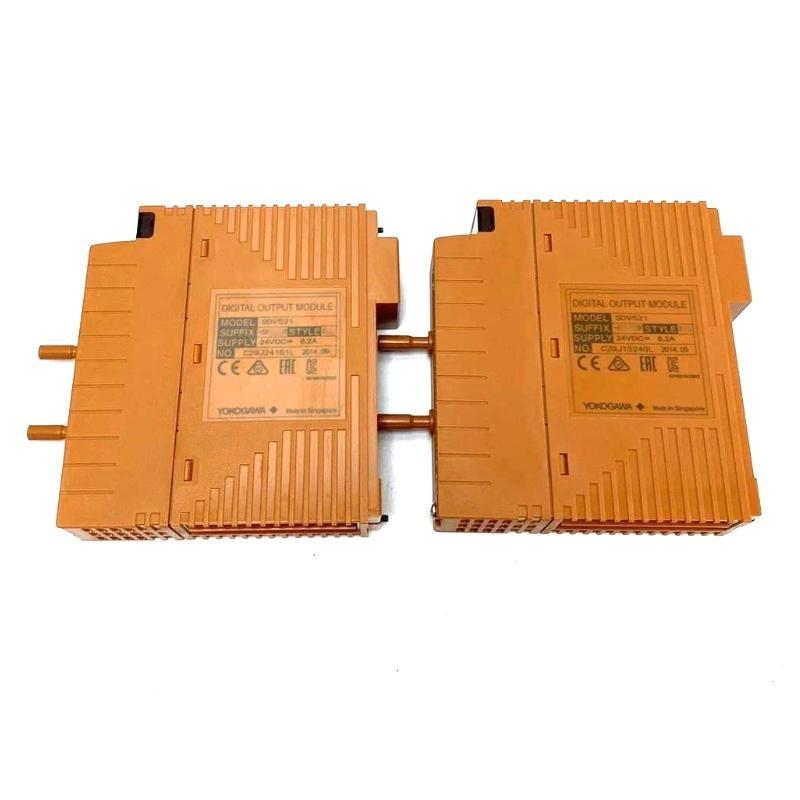

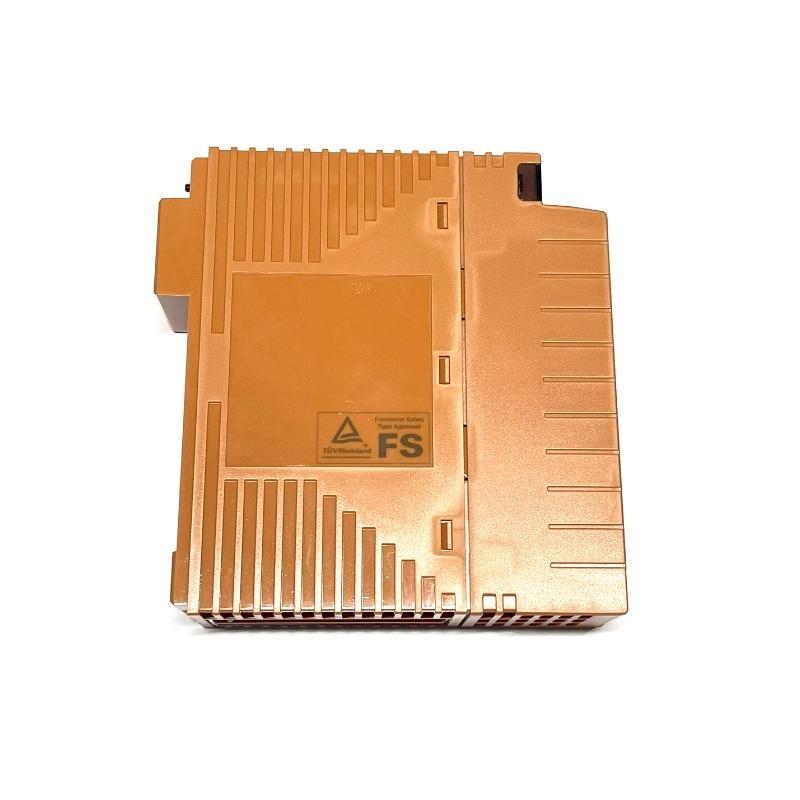

The Yokogawa SDV521-S33 S2 Digital Output Module is a high-performance digital output module designed for industrial automation and safety systems. It /fers isolated digital output channels, ensuring reliable operation in demanding environments. Its compact design and robust protection features make it suitable for integration in critical control systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Output Channels | 16 |
| Output Voltage | 24 V DC (12–30 V DC) |
| Load Capacity | 2 A per channel |
| Module Isolation | Isolated |
| Operating Temperature | -10°C to 55°C |
| Operating Humidity | 5% to 95% (non-condensing) |
| Dimensions | 130 × 32.8 × 125.5 mm |
| 重量 | 0.36 kg |
| Protection Features | Short-circuit, over-voltage, over-temp |
Applications
-
Control / actuators, relays, and field devices in process automation
-
Integration in safety instrumented systems for industrial plants
-
Applications requiring electrically isolated digital outputs to prevent interference
-
Redundant control configurations in critical process systems
Advantages
-
High channel density: 16 output channels in a compact module
-
Robust protection: safeguards against short-circuit, over-voltage, and over-temperature
-
Reliable isolation: prevents electrical noise interference
-
Flexible connectivity: supports dedicated signal cables, terminal boards, and MIL cable connections
-
Compact and lightweight design: easy to integrate into control cabinets
FAQ
1. What is the maximum load per channel?
The maximum load per channel is 2 A.
2. What type / isolation does the module provide?
The module provides full electrical isolation for all output channels.
3. Can the SDV521-S33 S2 operate in high humidity environments?
Yes, it operates reliably in 5% to 95% relative humidity (non-condensing).
4. What is the operating temperature range?
The module operates between -10°C and 55°C.
5. How many output channels are available?
The module has 16 digital output channels.
6. What protection features are included?
It includes protection against short-circuit, over-voltage, and over-temperature conditions.
7. Is this module suitable for safety-critical applications?
Yes, it is designed for integration in safety instrumented systems.
8. Can it be used with redundant configurations?
Yes, it supports both single and dual-redundant system configurations.
9. What is the module’s physical size?
Dimensions are 130 × 32.8 × 125.5 mm, with a weight / 0.36 kg.
10. What types / cables can be used for connection?
It supports dedicated signal cables, pressure clamp terminals, and MIL cables with optional connectors.
Related Yokogawa モデルs
| モデル | Output Channels | Load Capacity | Dimensions (mm) | 重量 (kg) |
|---|---|---|---|---|
| SDV521-S32 S2 | 16 | 2 A | 130 × 32.8 × 125.5 | 0.36 |
| SDV521-S34 S2 | 16 | 2 A | 130 × 32.8 × 125.5 | 0.36 |
| SDV521-S35 S2 | 16 | 2 A | 130 × 32.8 × 125.5 | 0.36 |
| SDV521-S36 S2 | 16 | 2 A | 130 × 32.8 × 125.5 | 0.36 |
| SDV521-S31 S2 | 16 | 2 A | 130 × 32.8 × 125.5 | 0.36 |
| SDV521-S37 S2 | 16 | 2 A | 130 × 32.8 × 125.5 | 0.36 |
Popular Yokogawa モデルs
| モデル | Output Channels | Load Capacity | Dimensions (mm) | 重量 (kg) |
|---|---|---|---|---|
| SDV521-S11 S2 | 8 | 2 A | 130 × 32.8 × 125.5 | 0.36 |
| SDV521-S12 S2 | 8 | 2 A | 130 × 32.8 × 125.5 | 0.36 |
| SDV521-S21 S2 | 16 | 2 A | 130 × 32.8 × 125.5 | 0.36 |
| SDV521-S22 S2 | 16 | 2 A | 130 × 32.8 × 125.5 | 0.36 |
| SDV521-S41 S2 | 16 | 2 A | 130 × 32.8 × 125.5 | 0.36 |
| SDV521-S42 S2 | 16 | 2 A | 130 × 32.8 × 125.5 | 0.36 |
