Product Overview

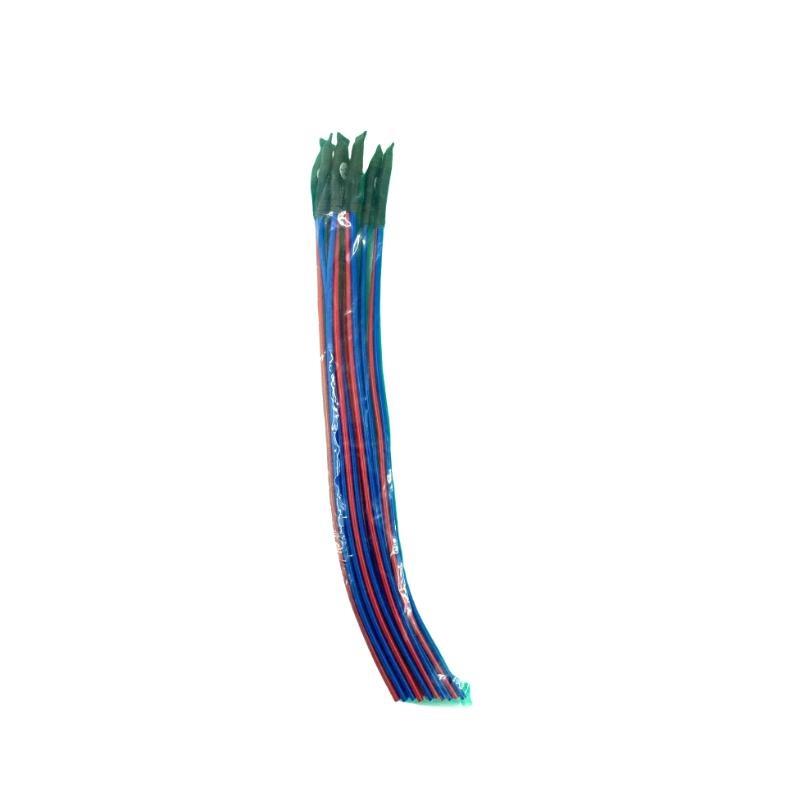

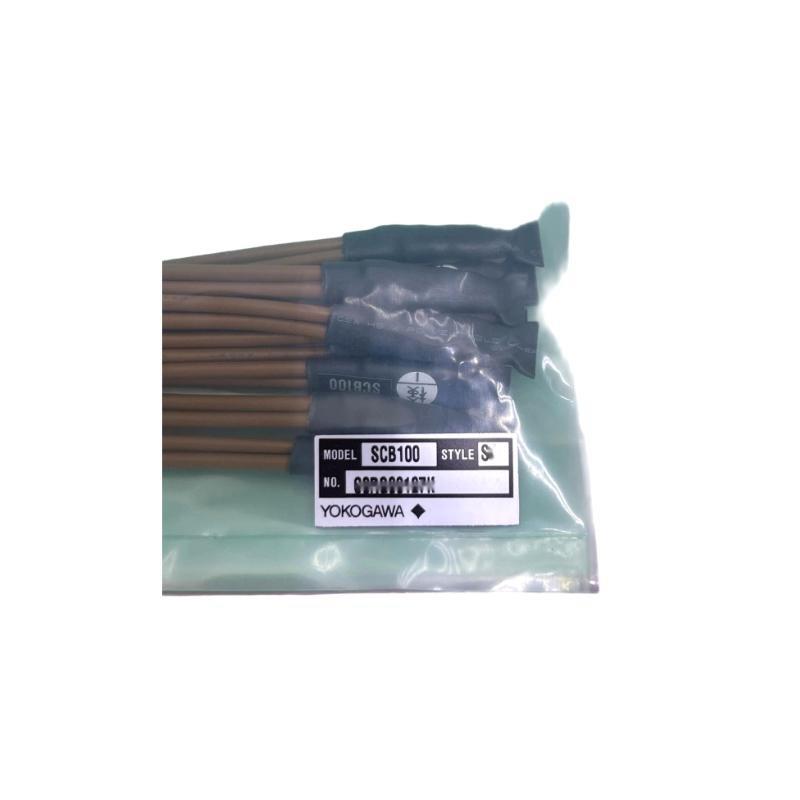

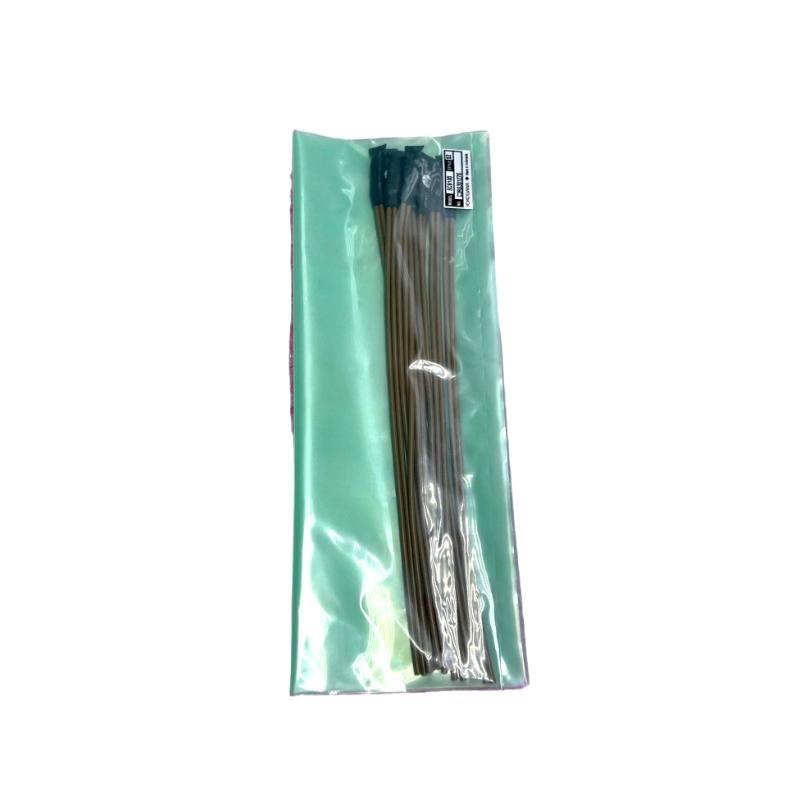

The Yokogawa SCB100-S0 is a wiring diagnosis element used in conjunction with digital input modules like the SDV144. It is designed to detect open-circuit conditions when input signals are normally in the OFF state. Installed in parallel with field contacts, it enhances diagnostic capabilities in safety-critical automation systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| モデル | SCB100-S0 |
| Function | Open circuit detection for digital input |
| Signal Type | No-voltage contact (normally /f) |
| Compatible Module | SDV144 |
| Installation Mode | Parallel with field contact |
| Diagnostic Target | Open-circuit fault detection |
| Standard Compliance | ISA Standard G3 |
| Number / Wires | 8 wires/set |
| Dimensions | 5 x 250 x 10 mm |
| 重量 | 0.3 kg |
Applications
-
Safety Instrumented Systems (SIS)
-
Process automation fault detection
-
Industrial plant diagnostics
-
Field wiring monitoring
-
Safety control loops
Product Advantages
-
Improves detection / wiring faults
-
Easy integration with SDV144 input module
-
Suitable for safety-critical operations
-
Compact and lightweight design
-
Industry-grade reliability (ISA G3 certified)
FAQ
Q1: What is the function / the SCB100-S0?
A1: It detects open-circuit faults in digital input channels where signals are normally /f.
Q2: Is SCB100 used for normally on signals?
A2: No, for normally on signals, use the SCB110 model.
Q3: How is SCB100 connected to the system?
A3: It is installed in parallel with the contact output / the field equipment.
Q4: What module is SCB100 compatible with?
A4: It is compatible with the SDV144 digital input module.
Q5: Can SCB100 be used in redundant setups?
A5: Yes, it is suitable for use in dual-redundant configurations / SDV144.
Q6: What does ISA Standard G3 indicate?
A6: It certifies the product for use in environments with dust, corrosive gases, and humidity.
Q7: Can it detect both short and open circuits?
A7: No, SCB100 detects only open circuits. Combine with SCB110 to detect both.
Q8: Does it include wiring?
A8: Yes, each SCB100 台 includes a set / 8 wires.
Q9: What is the weight / the SCB100?
A9: Approximately 0.3 kg.
Q10: Is external power required for SCB100?
A10: No, it functions passively within the circuit.
