Product Overview

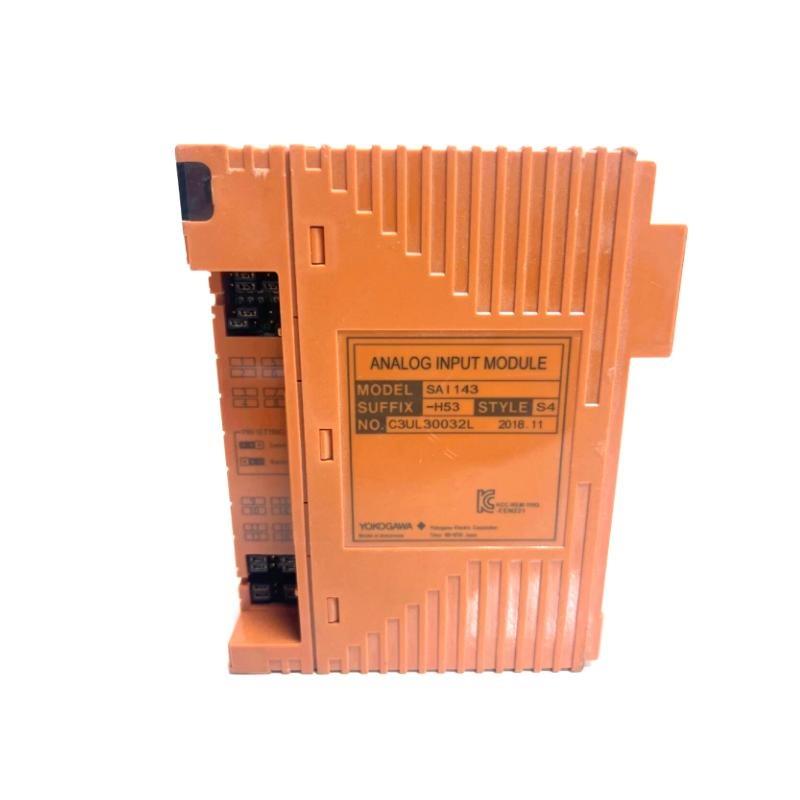

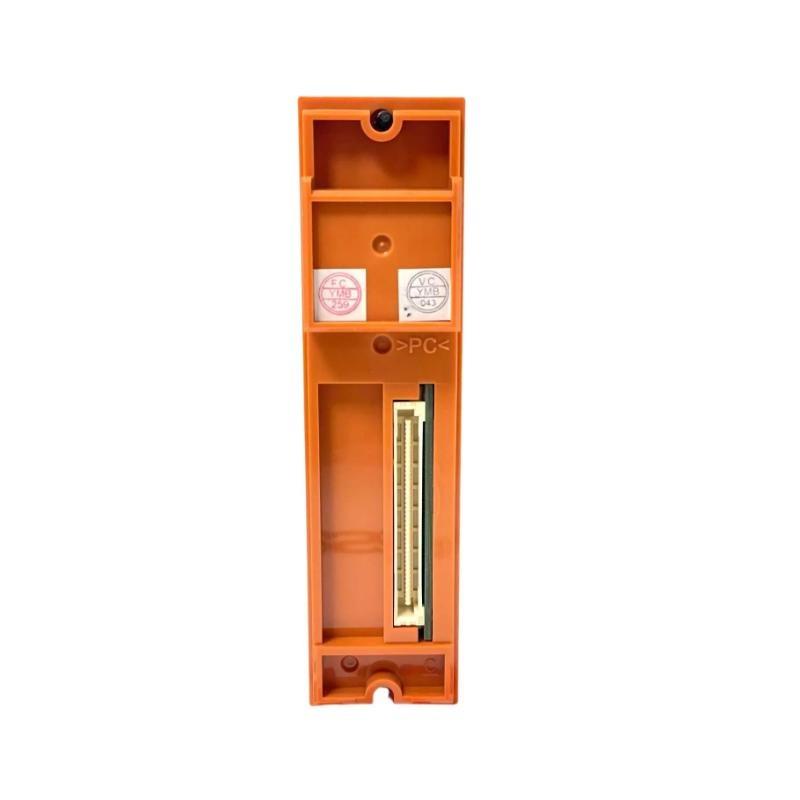

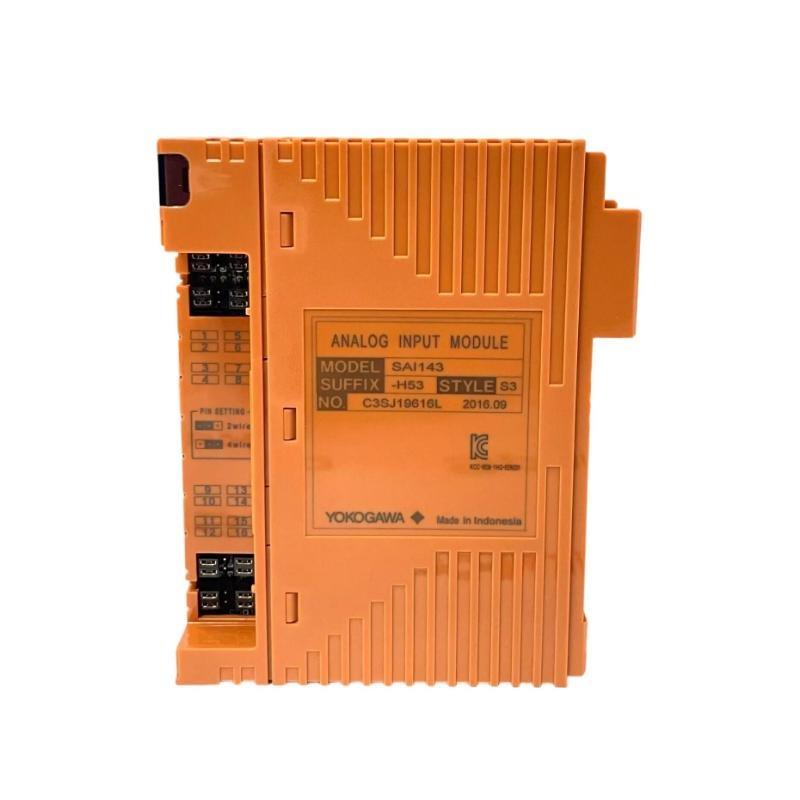

The Yokogawa SAI143-H53 S2 Analog Input Module is designed for precise and reliable analog signal acquisition in industrial automation systems. It ensures high-speed, accurate conversion / process signals into digital data, supporting effective monitoring and control / critical processes.
Technical Specifications
| Parameter | Specification |
|---|---|
| モデル | SAI143-H53 S2 |
| Type | Analog Input Module |
| Input Channels | 4 channels |
| Input Signal | 0–20 mA / 4–20 mA / 0–10 V |
| Accuracy | ±0.1% / full scale |
| Resolution | 16-bit |
| Isolation Voltage | 500 V AC between channels |
| Response Time | 10 ms |
| Operating Temperature | 0–55 °C |
| Storage Temperature | -20–70 °C |
| Dimensions (W × H × D) | 130 × 107.5 × 32.8 mm |
| 重量 | 0.34 kg |
| Communication | Fieldbus / DCS compatible |
Applications
-
Process monitoring in chemical, petrochemical, and pharmaceutical industries
-
Integration into distributed control systems (DCS)
-
Data acquisition for power generation and water treatment plants
-
Critical analog signal monitoring in manufacturing lines
Advantages
-
High accuracy and fast response for real-time process control
-
Compact design reduces panel space requirements
-
Robust isolation ensures signal integrity and operator safety
-
Compatible with a wide range / industrial control systems
-
Reliable operation under varying environmental conditions
FAQs
1. What input signals does the SAI143-H53 S2 support?
It supports 0–20 mA, 4–20 mA, and 0–10 V analog signals.
2. How many input channels are available?
The module has 4 independent analog input channels.
3. What is the accuracy / the module?
The module provides ±0.1% full-scale accuracy.
4. Can this module operate in harsh industrial environments?
Yes, it operates reliably within 0–55 °C and has high electrical isolation.
5. What is the response time for signal conversion?
The typical response time is 10 ms per channel.
6. How is the module integrated with a DCS?
It is compatible with Yokogawa and other major DCS platforms via standard Fieldbus communication.
7. What are the module’s dimensions and weight?
Dimensions are 130 × 107.5 × 32.8 mm, and it weighs 0.34 kg.
8. Is electrical isolation provided between channels?
Yes, 500 V AC isolation is provided between channels.
9. Can it be used in chemical processing plants?
Absolutely, it is designed for safe and accurate monitoring in chemical and petrochemical processes.
10. What maintenance is required for the module?
Regular visual inspection and cleaning are sufficient; no routine calibration is required.
Related or Similar モデルs
| モデル | Type | Channels | Dimensions (mm) | 重量 |
|---|---|---|---|---|
| A2SDV105-S000 | Analog Input Module | 4 | 130 × 107.5 × 32.8 | 0.34 kg |
| A2SDV505-S000 | Analog Input Module | 4 | 130 × 107.5 × 32.8 | 0.34 kg |
| AAB841-S00 | Analog Input Module | 4 | 130 × 107.5 × 32.8 | 0.34 kg |
| AAB841-S00 S2 | Analog Input Module | 4 | 130 × 107.5 × 32.8 | 0.34 kg |
| AAB841-S50 | Analog Input Module | 8 | 130 × 107.5 × 32.8 | 0.36 kg |
| AAB841-S50 S2 | Analog Input Module | 8 | 130 × 107.5 × 32.8 | 0.36 kg |
Popular Yokogawa モデルs
| モデル | Type | Channels | Dimensions (mm) | 重量 |
|---|---|---|---|---|
| AAM50-S1 | Analog Input Module | 4 | 130 × 107.5 × 32.8 | 0.34 kg |
| AAM51-S1 | Analog Input Module | 4 | 130 × 107.5 × 32.8 | 0.34 kg |
| AAM51-S2 | Analog Input Module | 4 | 130 × 107.5 × 32.8 | 0.34 kg |
| AAP135-S00 S2 | Analog Input Module | 4 | 130 × 107.5 × 32.8 | 0.34 kg |
| AAP135-S50 | Analog Input Module | 8 | 130 × 107.5 × 32.8 | 0.36 kg |
| AAR145-S00 | Analog Input Module | 4 | 130 × 107.5 × 32.8 | 0.34 kg |
