Product Overview

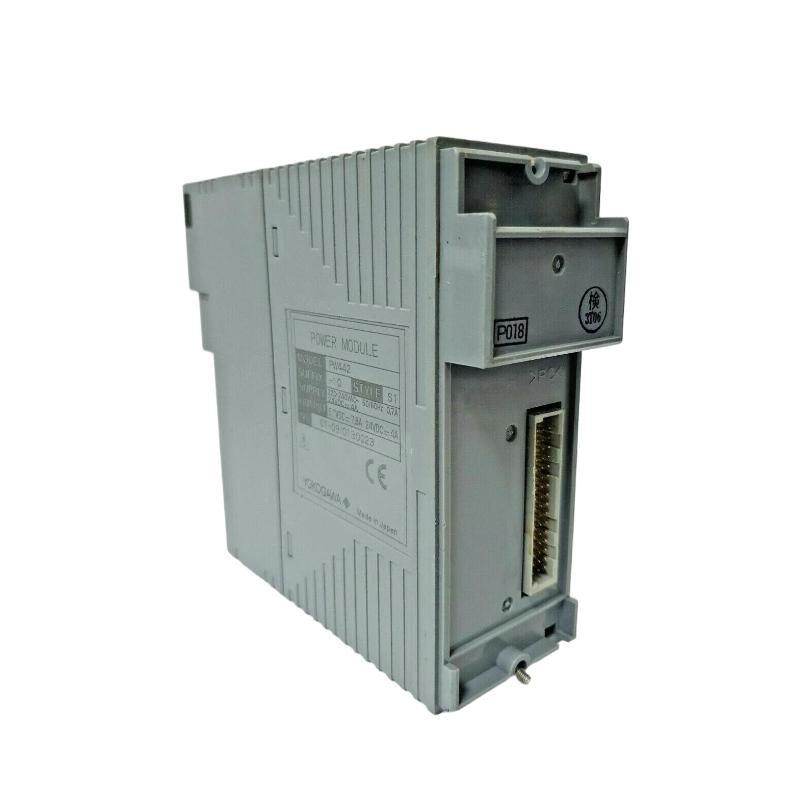

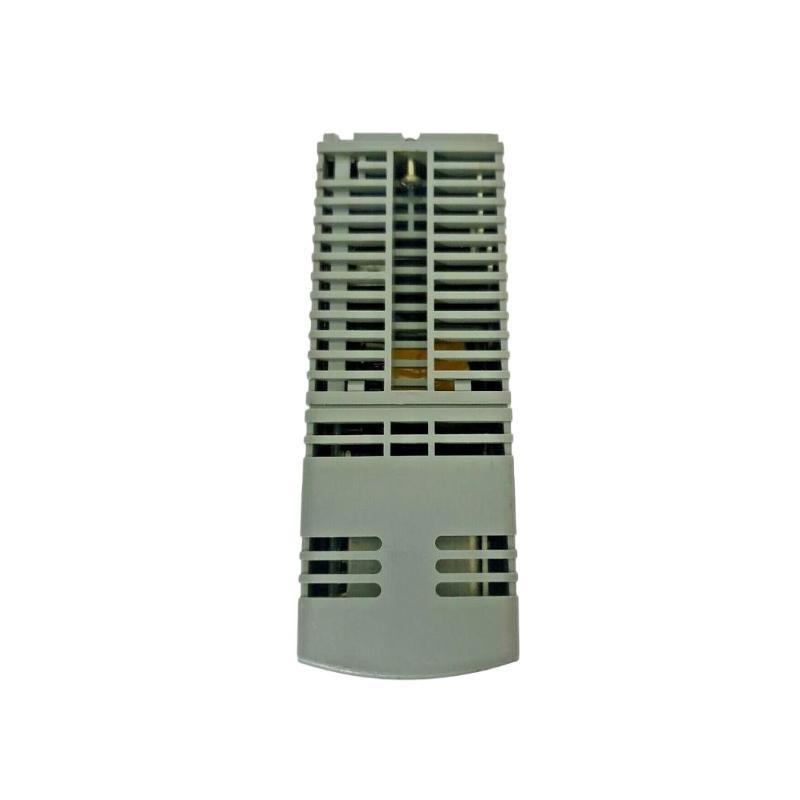

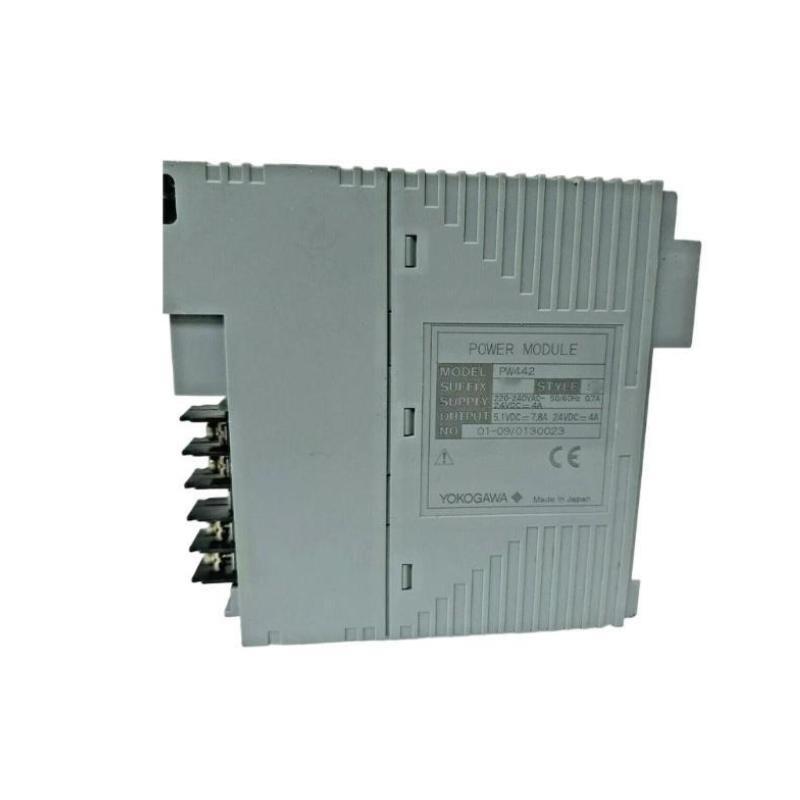

The Yokogawa PW442-10-S2 Power Module is a high-reliability power supply designed for Yokogawa’s distributed control systems (DCS) and automation racks. It provides stable and regulated DC power to digital and analog input/output modules, ensuring uninterrupted operation / critical process control systems.
Key Features
-
Provides stable DC power for Yokogawa DCS and automation modules
-
Compatible with PW series power racks
-
Overvoltage, overload, and short-circuit protection
-
High reliability for continuous industrial operation
-
Compact design for flexible installation
-
Efficient power conversion and low heat generation
-
Easy to install and maintain
-
Long-term operational stability in harsh environments
Technical Specifications
| Item | Specification |
|---|---|
| メーカー | Yokogawa |
| 型番 | PW442-10-S2 |
| Product Type | Power Module |
| Output Voltage | 24 VDC nominal |
| Output Current | 10 A maximum |
| Input Voltage | 100–240 VAC, 50/60 Hz |
| Efficiency | >85% typical |
| Protection | Overvoltage, overload, short-circuit |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | –20 °C to +70 °C |
| Humidity | 5–95% RH, non-condensing |
| Mounting | PW series rack or DIN rail |
| Dimensions | 49.7 x 130 x 146.5 mm |
| 重量 | 0.6 kg |
| Applications | Power supply for distributed control and automation modules |
Industry Applications
-
Process automation in power generation plants
-
Petrochemical and chemical industries
-
Oil and gas processing
-
Water and wastewater treatment
-
Manufacturing and industrial automation
-
Distributed control systems (DCS)
よくある質問 (FAQ)
Q1: What is the main purpose / the PW442-10-S2?
It provides stable DC power for Yokogawa DCS and automation modules.
Q2: What is the output voltage and current?
24 VDC nominal, with a maximum output / 10 A.
Q3: Can it operate in high-temperature environments?
Yes, it is rated for 0 °C to +55 °C operation.
Q4: What protection features does it have?
Overvoltage, overload, and short-circuit protection are built-in.
Q5: What type / input voltage is supported?
It supports 100–240 VAC, 50/60 Hz.
Q6: How is it mounted?
It can be installed in PW series racks or on a DIN rail.
Q7: Is it suitable for continuous industrial operation?
Yes, it is designed for high reliability and long-term stability in harsh environments.
Q8: What are the physical dimensions?
49.7 x 130 x 146.5 mm, weighing 0.6 kg.
