製品紹介

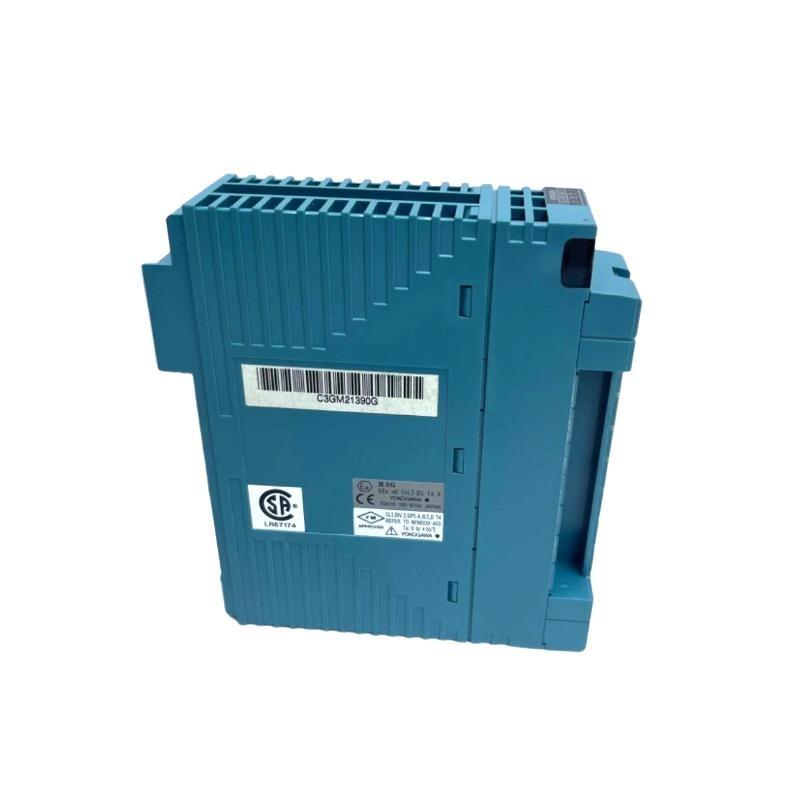

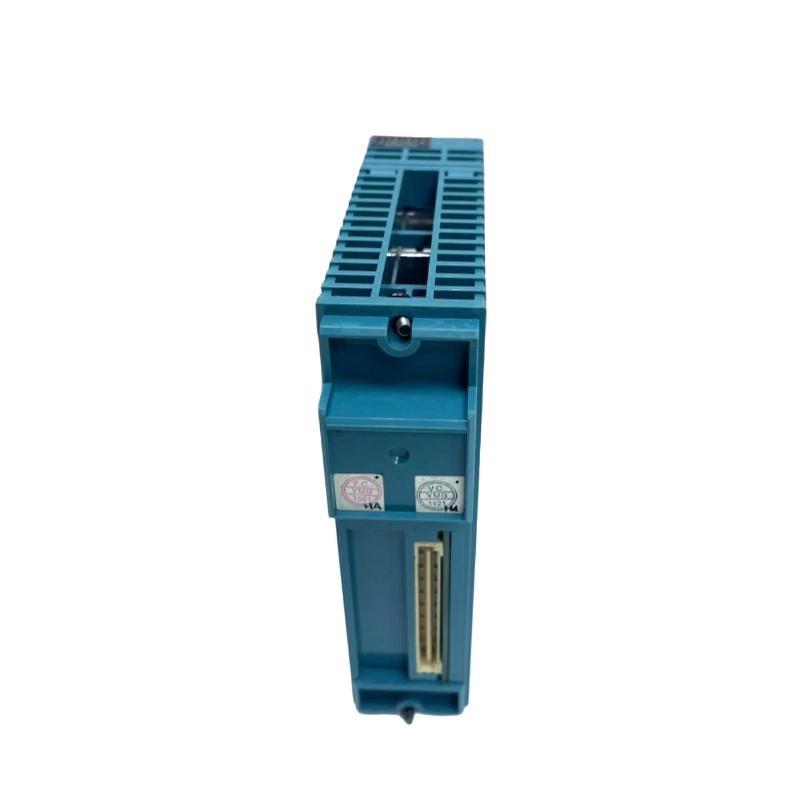

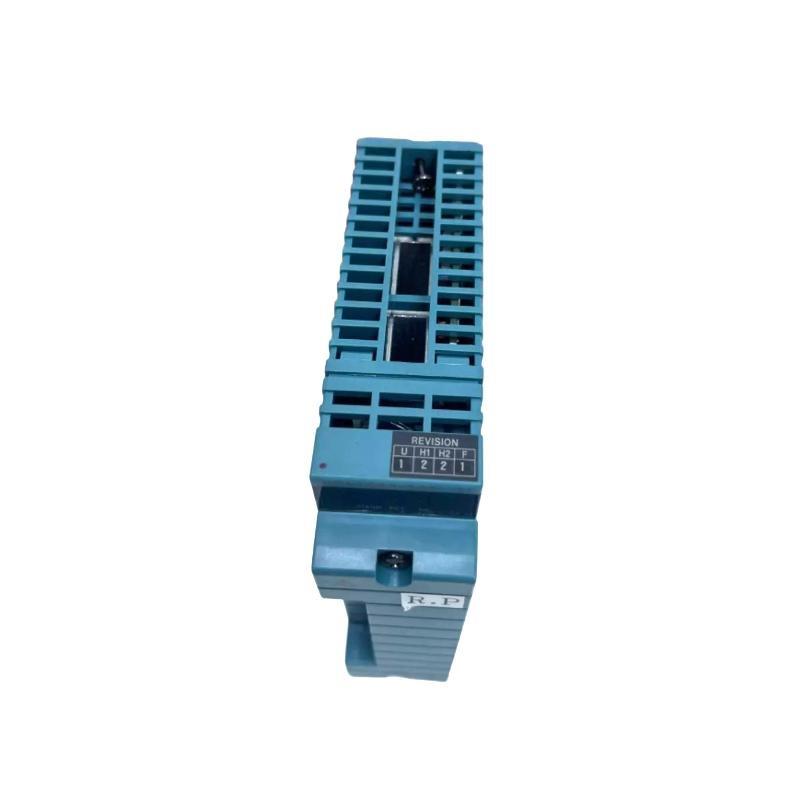

The Yokogawa NFAI543-S00 S1 is a precision analog output module designed for industrial process control and automation applications. It is part / Yokogawa’s FA (Field Automation) series and provides reliable and accurate analog output signals for a wide range / industrial controllers, distributed control systems (DCS), and process instrumentation.
This module converts digital signals from the control system into precise analog outputs, enabling accurate control / actuators, valves, motors, and other field devices. The design emphasizes signal stability, low noise, and high precision, ensuring that process control systems maintain optimal performance even under demanding industrial conditions.
The NFAI543-S00 S1 is widely used in industries that require precise analog signal output for controlling process variables such as flow, pressure, temperature, and level. It is engineered to meet the rigorous requirements / modern process automation systems.
製品仕様
| Parameter | Details |
|---|---|
| モデル Number | NFAI543-S00 S1 |
| Module Type | Analog Output Module |
| Output Channels | 4 channels |
| Output Type | 4–20 mA / 0–20 mA configurable |
| Load Resistance | ≤ 550 Ω |
| Accuracy | ±0.1% / span |
| Resolution | 16-bit |
| Isolation Voltage | 500 VAC between channels and power |
| Response Time | ≤ 10 ms (typical) |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -20°C to +70°C |
| Power Supply | 24 VDC nominal |
| Communication Interface | DCS bus interface compatible |
| Dimensions (W × H × D) | 130 x 107.5 x 32.8 mm |
| 重量 | 0.4 kg |
Product Applications
The NFAI543-S00 S1 Analog Output Module is suitable for precise analog signal control in various industrial environments, including:
-
Chemical Processing Plants: Accurate control / dosing pumps, flow valves, and chemical reactors.
-
Power Generation: Analog control / turbine governors, boiler feedwater systems, and generator excitation.
-
Oil & Gas Refineries: Distributed control / compressors, pumps, and reactors with precise signal outputs.
-
Water and Wastewater Treatment: Control / aeration systems, pumps, and valves for consistent process performance.
-
Food & Beverage Processing: Control / mixing, filling, and dosing systems requiring accurate analog outputs.
-
Pharmaceutical Manufacturing: High-precision control / blending and dosing systems to maintain quality and compliance.
Product Advantages
-
High accuracy output with ±0.1% / span for precise process control.
-
16-bit resolution provides smooth and stable analog signals.
-
Fast response time (≤10 ms) allows real-time adjustments in process loops.
-
Electrical isolation / 500 VAC prevents interference between channels and power supply.
-
Configurable output ranges (4–20 mA or 0–20 mA) provide flexible integration options.
-
Robust industrial design ensures reliable operation in harsh process environments.
-
Seamless integration with Yokogawa DCS and FA systems for streamlined process automation.
FAQ
-
What type / output does the NFAI543-S00 S1 module provide?
The module provides configurable 4–20 mA or 0–20 mA analog outputs, suitable for various industrial actuators and control devices. -
How many analog output channels are available?
The module has 4 independent output channels, allowing simultaneous control / multiple devices. -
What is the maximum load resistance for each channel?
The maximum load resistance is 550 Ω per channel, ensuring stable current output under varying loads. -
What is the output accuracy / this module?
The analog output accuracy is ±0.1% / span, ensuring reliable control performance in process automation. -
What is the typical response time / the module?
The typical response time is ≤10 ms, allowing rapid updates / analog signals in dynamic process loops. -
Does this module provide electrical isolation?
Yes, it provides 500 VAC isolation between channels and power supply to prevent signal interference. -
What is the operating temperature range?
The module operates reliably from 0°C to +55°C, suitable for standard industrial conditions. -
What is the output signal resolution?
The analog output resolution is 16-bit, providing precise and smooth analog signal control. -
Which communication interface does this module use?
It uses a DCS bus interface, making it compatible with Yokogawa FA and distributed control systems. -
Can this module be used for high-speed actuator control?
Yes, the fast response time and stable output allow it to control high-speed actuators in industrial processes.
Related モデルs (Same Series or Similar Functionality)
| モデル | 説明 |
|---|---|
| NFAI543-H50/A4S00 | 4-channel analog output module |
| NFAI543-H50/A2S00 | 2-channel analog output module |
| NFAI543-H50/A8S00 | 8-channel analog output module |
| NFAI543-S00 S2 | 4-channel analog output with enhanced isolation |
| NFAI543-H50/A4T00 | 4-channel analog output with temperature compensation |
| NFAI543-S00 S1R | Redundant 4-channel analog output module |
Popular モデルs from Yokogawa
| モデル | 説明 |
|---|---|
| NFAI543-H50/A1S00 | Single-channel analog output module |
| NFAI543-H50/B2S00 | Dual-channel analog output module |
| NFAI543-H50/A6S00 | 6-channel analog output module |
| NFBP543-H50/A4S00 | Hybrid analog input/output module |
| NFAI543-H50/D4S00 | 4-channel analog output module with diagnostics |
| NFAI543-H50/E4S00 | Enhanced analog output module with faster response |
