製品紹介

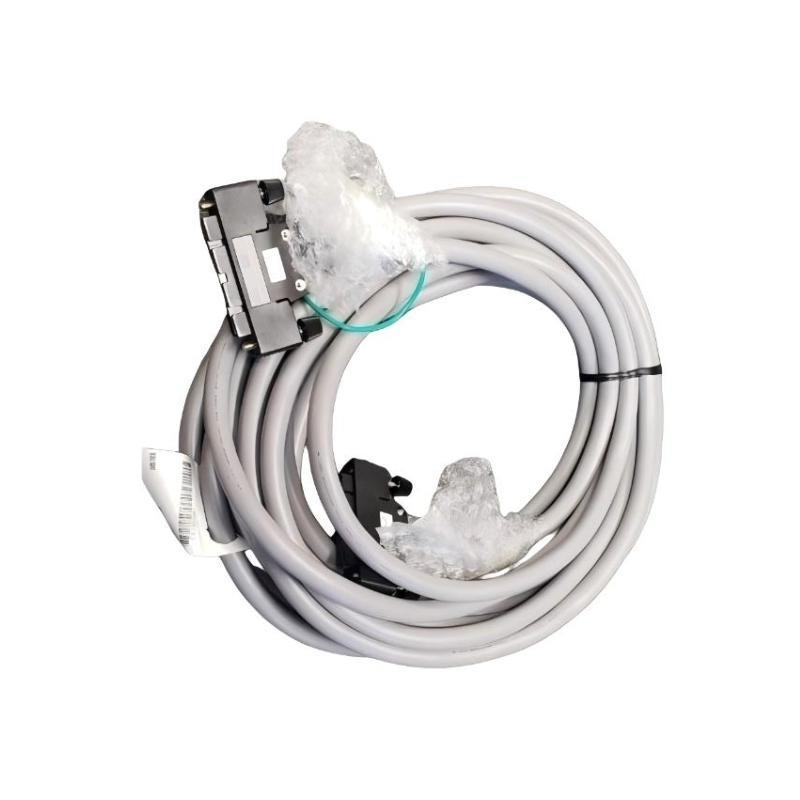

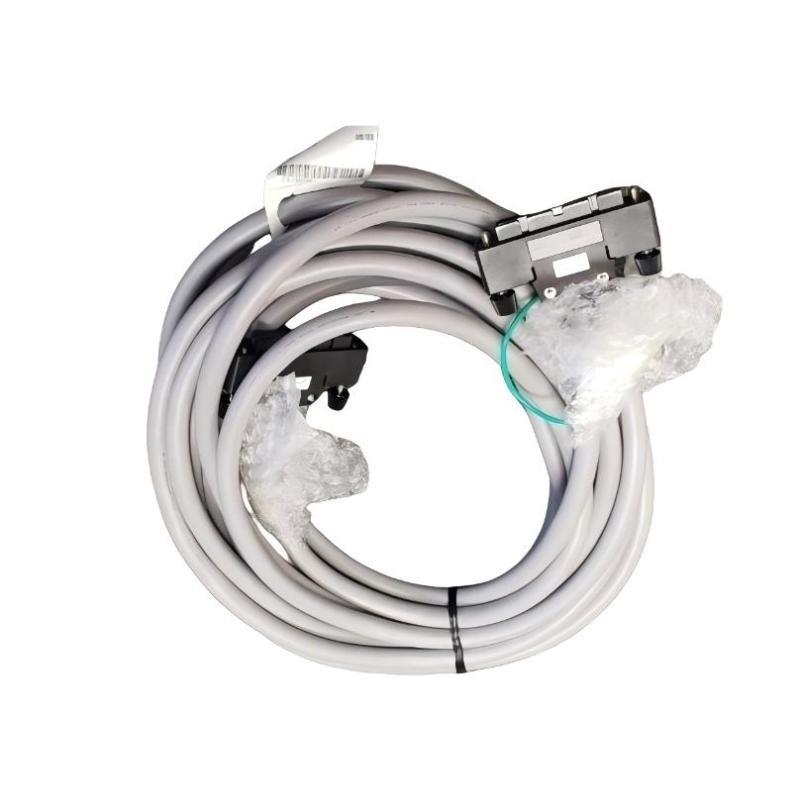

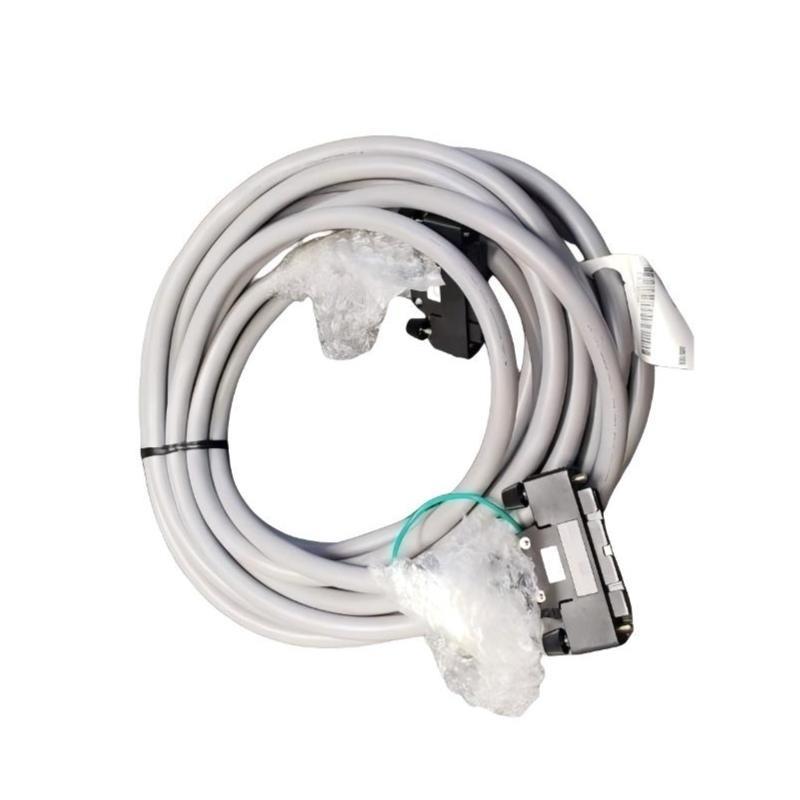

The Yokogawa KS10-15*A Signal Cable is a high-performance industrial-grade connection cable specifically designed for use in automation, process control, and instrumentation systems. This cable ensures the accurate and stable transmission / analog or digital signals between sensors, transmitters, and control modules. With its 15-meter standard length, it is ideal for medium-range signal communication in distributed control systems (DCS) and programmable logic controller (PLC) environments.
Constructed using high-quality copper conductors and low-capacitance insulation materials, the KS10-15*A minimizes signal loss and electromagnetic interference (EMI). Its robust outer sheath provides excellent resistance to abrasion, oil, and chemical exposure, making it suitable for harsh industrial environments.
This cable belongs to Yokogawa’s KS series, known for its superior durability, high signal integrity, and easy installation. It is compatible with various Yokogawa control systems such as CENTUM VP, ProSafe-RS, and STARDOM, ensuring reliable integration and long-term operation stability.
Technical Specifications
| Parameter | 説明 |
|---|---|
| モデル | KS10-15*A |
| Cable Type | Signal transmission cable |
| Cable Length | 15 meters |
| Conductor Material | High-purity tinned copper |
| Conductor Size | 0.5 mm² × 2 pairs (twisted) |
| Insulation Material | Cross-linked polyethylene (XLPE) |
| Shield Type | Aluminum foil + braided copper double shielding |
| Outer Sheath | Flame-retardant PVC or LSZH |
| Rated Voltage | 300 V AC |
| Rated Temperature | -20°C to +80°C |
| Signal Type サポートed | Analog / Digital signal |
| Capacitance | ≤ 120 pF/m |
| Resistance | ≤ 37 Ω/km |
| Dielectric Strength | 2 kV for 1 minute |
| Bending Radius | Minimum 10 × cable diameter |
| Flame Retardant Standard | IEC 60332-1 compliant |
| Oil Resistance | IEC 60811-404 compliant |
| Chemical Resistance | High resistance to acids, alkalis, and solvents |
| Connector Type | Pre-terminated Yokogawa industrial connector (optional) |
| 配送 重量 | 3 kg |
Applications
The KS10-15*A Signal Cable is designed to serve a wide range / industrial and automation applications where reliable signal integrity is essential. It can be used in:
-
Distributed Control Systems (DCS) such as Yokogawa CENTUM VP.
-
Safety Instrumented Systems (SIS) like ProSafe-RS.
-
Remote I/O modules and control cabinets for process plants.
-
Data acquisition and signal communication in chemical, petrochemical, and pharmaceutical industries.
-
Power generation plants and refineries for field device connection.
-
Instrumentation signal wiring between transmitters, control modules, and monitoring systems.
Its excellent noise rejection and shielding design ensure consistent signal quality even in environments with high electrical noise or vibration.
Product Advantages
The Yokogawa KS10-15*A /fers several key advantages that make it an excellent choice for industrial users:
-
High Signal Integrity: Double-shielded design effectively prevents signal interference and crosstalk.
-
Durable Construction: Designed to withstand mechanical stress, oil exposure, and chemical corrosion.
-
Wide Compatibility: Fully compatible with Yokogawa control systems and field instruments.
-
Easy Installation: Flexible structure allows for quick routing through control panels and trays.
-
Long Service Life: High-quality insulation and protective sheath ensure extended operation reliability.
-
Environmental Resistance: Stable performance in wide temperature ranges and harsh industrial conditions.
-
Safety Compliance: Conforms to international standards for electrical and fire safety.
-
Optimized Length: 15-meter configuration minimizes signal attenuation in typical industrial installations.
FAQ
-
What type / signals can the KS10-15*A cable transmit?
It can carry both analog and digital signals used in control and instrumentation systems. -
Is the KS10-15*A shielded against electromagnetic interference?
Yes, it features aluminum foil and braided copper double shielding for superior EMI protection. -
Can the cable be used with Yokogawa CENTUM VP systems?
Yes, the KS10-15*A is fully compatible with CENTUM VP and other Yokogawa control platforms. -
What is the rated voltage / the KS10-15*A signal cable?
The cable is rated for 300 V AC operation. -
Can it be used in outdoor installations?
Yes, provided it is installed in conduit or with weather protection, as the outer sheath is UV-resistant. -
Does the cable comply with international safety standards?
Yes, it meets IEC 60332-1 flame retardant and IEC 60811-404 oil resistance standards. -
What is the cable’s resistance and capacitance specification?
The typical resistance is ≤37 Ω/km and capacitance ≤120 pF/m. -
Is it possible to order custom lengths or connector configurations?
Yes, Yokogawa supports customized lengths and pre-terminated connectors upon request. -
What is the recommended minimum bending radius for installation?
The minimum bending radius is 10 times the cable’s outer diameter. -
Can the KS10-15*A be used in high-vibration environments?
Yes, the cable’s flexible and shielded construction ensures stable performance under vibration.
Related or Similar モデルs
| モデル | 説明 |
|---|---|
| KS10-10*A | 10-meter version / the KS10 series signal cable |
| KS10-20*A | 20-meter version for longer distance installations |
| KS20-15*A | Dual-pair shielded signal cable, 15 meters |
| KS30-15*A | Triple-pair signal cable for multi-channel systems |
| KS50-15*A | High-voltage signal transmission cable |
| KS10-25*A | Extended 25-meter version with identical specifications |
Popular Yokogawa モデルs
| モデル | 説明 |
|---|---|
| SAI143-H33 | Analog input module for field signal acquisition |
| CP451-10 | Processor module for CENTUM VP control system |
| AAI543-H50 | Analog input/output module for DCS applications |
| PW482-10 | Power supply module for Yokogawa control cabinets |
| ALR111-S10 | Relay output module for industrial automation |
| AAR145-S50 | Analog output module supporting high precision control |
