製品紹介

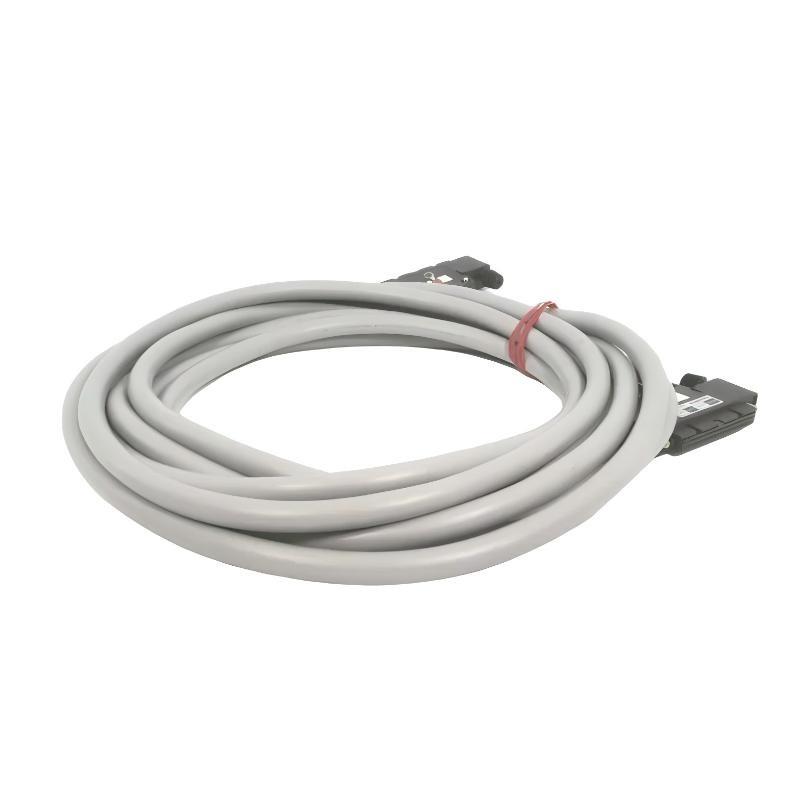

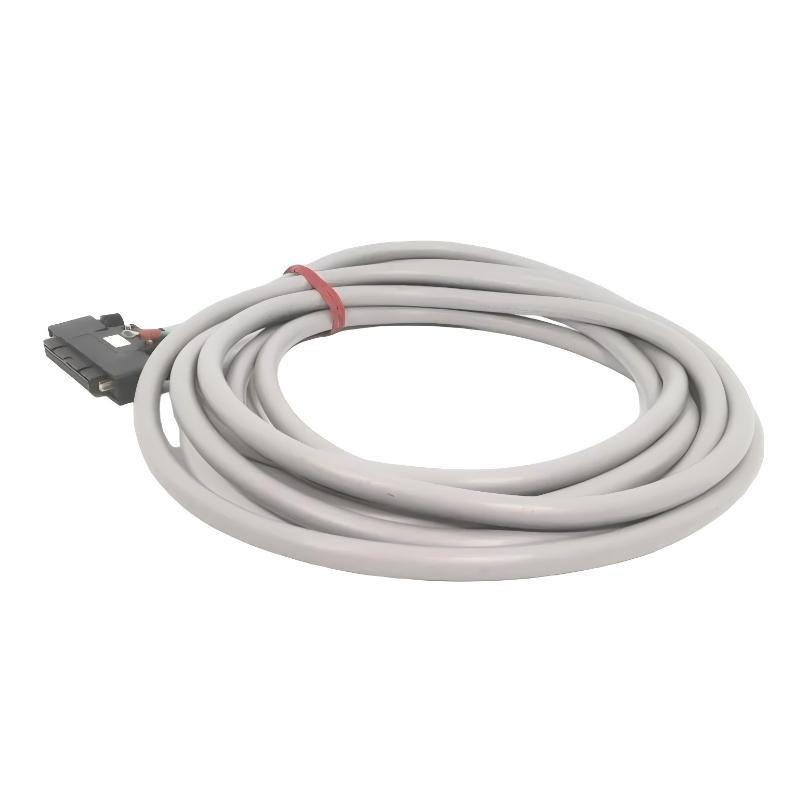

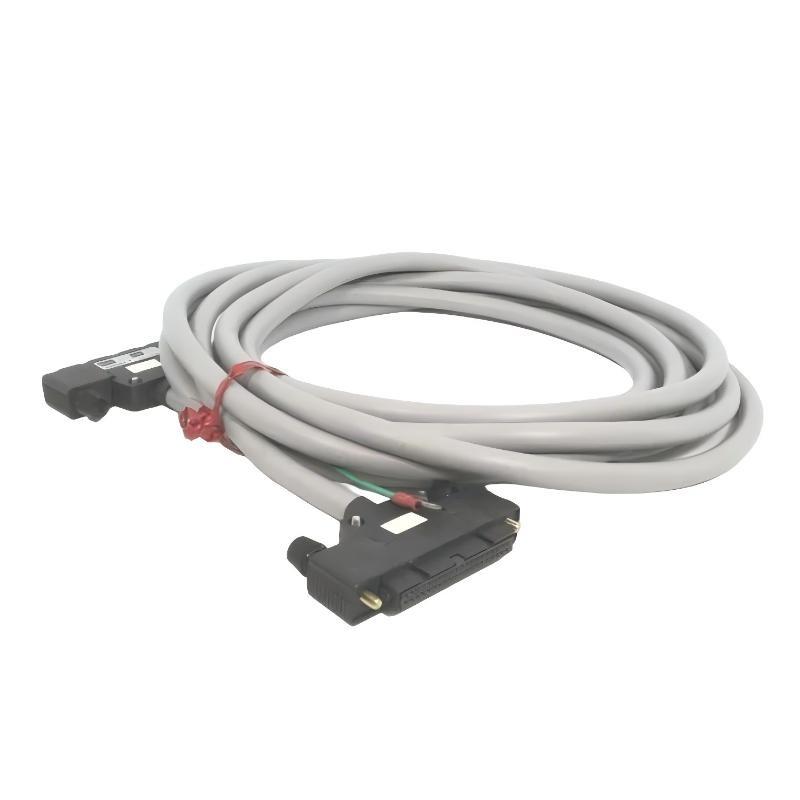

The Yokogawa KS10-05*A Signal Cable is a premium-grade industrial signal transmission cable engineered for precise and reliable data communication in control and instrumentation systems. Designed and manufactured under Yokogawa’s strict quality control standards, this cable ensures stable signal transfer with minimal noise interference and outstanding mechanical durability.
With a standard length / 5 meters, the KS10-05*A is particularly suitable for short-distance connections between field devices and control modules. It serves as a critical communication link in distributed control systems (DCS), programmable logic controllers (PLCs), and safety instrumented systems (SIS). The use / high-conductivity tinned copper conductors and advanced insulation materials ensures minimal attenuation and high signal fidelity.
Belonging to Yokogawa’s KS series, the KS10-05*A upholds the brand’s legacy / reliability, safety, and long-term stability. It is widely used in demanding industrial environments such as petrochemical plants, power generation facilities, and process automation systems, where stable performance and noise imm台y are essential.
Technical Specifications
| Parameter | 説明 |
|---|---|
| モデル | KS10-05*A |
| Cable Type | Signal transmission cable |
| Cable Length | 5 meters |
| Conductor Material | High-purity tinned copper |
| Conductor Size | 0.5 mm² × 2 pairs (twisted) |
| Insulation Material | Cross-linked polyethylene (XLPE) |
| Shield Type | Aluminum foil + braided copper double shielding |
| Outer Sheath | Flame-retardant PVC or LSZH (Low Smoke Zero Halogen) |
| Rated Voltage | 300 V AC |
| Rated Temperature | -20°C to +80°C |
| Signal Type サポートed | Analog / Digital signals |
| Capacitance | ≤ 120 pF/m |
| Resistance | ≤ 37 Ω/km |
| Dielectric Strength | 2 kV for 1 minute |
| Bending Radius | Minimum 10 × cable diameter |
| Flame Retardant Standard | IEC 60332-1 compliant |
| Oil Resistance | IEC 60811-404 compliant |
| Chemical Resistance | High resistance to acids, alkalis, and industrial solvents |
| Connector Type | Yokogawa pre-terminated industrial connector (optional) |
| 配送 重量 | 3 kg |
Applications
The Yokogawa KS10-05*A Signal Cable is widely used across a broad range / industrial and process control environments. It is suitable for installations where high signal integrity and resistance to interference are critical.
Typical applications include:
-
Signal transmission between sensors, transmitters, and DCS input modules.
-
Short-distance interconnections in Yokogawa CENTUM VP and ProSafe-RS systems.
-
Field wiring in control panels, marshalling cabinets, and process skids.
-
Data communication in chemical, petrochemical, power generation, and refining industries.
-
Integration with Yokogawa PLC and remote I/O 台s for automation control.
-
Instrumentation loops requiring low capacitance and stable impedance characteristics.
The KS10-05*A’s short cable length and excellent flexibility make it ideal for compact installations where space is limited and cable management efficiency is important.
Product Advantages
The KS10-05*A embodies Yokogawa’s commitment to precision, reliability, and long-term durability. Its design ensures consistent performance even in harsh operating environments.
Key advantages include:
-
Superior Signal Quality: Double-shielded structure minimizes noise, crosstalk, and electromagnetic interference (EMI).
-
High Durability: Resistant to abrasion, oil, and chemical exposure for extended operational life.
-
Reliable Connectivity: Compatible with Yokogawa’s entire range / DCS, PLC, and SIS systems.
-
Ease / Installation: Flexible and lightweight design allows smooth cable routing and termination.
-
Stable Electrical Properties: Low capacitance and consistent impedance for high-fidelity signal transmission.
-
Enhanced Safety: Flame-retardant and halogen-free materials meet stringent industrial safety standards.
-
Environmentally Robust: Performs reliably across wide temperature variations and mechanical stresses.
-
Maintenance Efficiency: Reduced signal degradation ensures long-term maintenance-free operation.
FAQ
-
What type / signals does the KS10-05*A cable support?
It supports both analog and digital signals for process and control instrumentation. -
Does the KS10-05*A include EMI shielding?
Yes, it has aluminum foil and braided copper double shielding for maximum noise protection. -
Can the KS10-05*A be used with Yokogawa CENTUM VP systems?
Yes, it is fully compatible with CENTUM VP and other Yokogawa automation platforms. -
What is the rated operating voltage for this cable?
The cable operates at a rated voltage / 300 V AC. -
Is the KS10-05*A suitable for use in chemical plants?
Yes, its insulation and sheath materials provide excellent resistance to corrosive chemicals. -
Does the cable comply with fire safety standards?
Yes, it meets IEC 60332-1 flame-retardant standards and LSZH options are available. -
What is the dielectric strength / this cable?
It withstands up to 2 kV for 1 minute without breakdown. -
Can it be customized with pre-terminated connectors?
Yes, Yokogawa provides pre-terminated connectors for faster field installation. -
Is the cable flexible for tight routing in control cabinets?
Yes, the cable is highly flexible and designed for compact panel installations. -
What is the cable’s typical resistance and capacitance?
The resistance is ≤37 Ω/km and the capacitance is ≤120 pF/m, ensuring signal stability.
Related or Similar モデルs
| モデル | 説明 |
|---|---|
| KS10-10*A | 10-meter version / the KS10 signal cable series |
| KS10-15*A | 15-meter version for medium-distance connections |
| KS10-20*A | 20-meter cable /fering extended reach |
| KS20-05*A | Dual-pair shielded cable for multiple signal transmission |
| KS30-05*A | Triple-pair version for complex signal routing |
| KS10-25*A | 25-meter version for large-scale installations |
Popular Yokogawa モデルs
| モデル | 説明 |
|---|---|
| AAI143-H33 | High-precision analog input module for DCS |
| CP451-10 | Advanced processor module for CENTUM VP systems |
| AAR145-S50 | Analog output module with high signal accuracy |
| PW482-10 | Power supply module for Yokogawa automation platforms |
| SAI143-H33 | Signal acquisition module for process monitoring |
| ALR111-S10 | Relay output module for control and safety systems |
