Product Overview

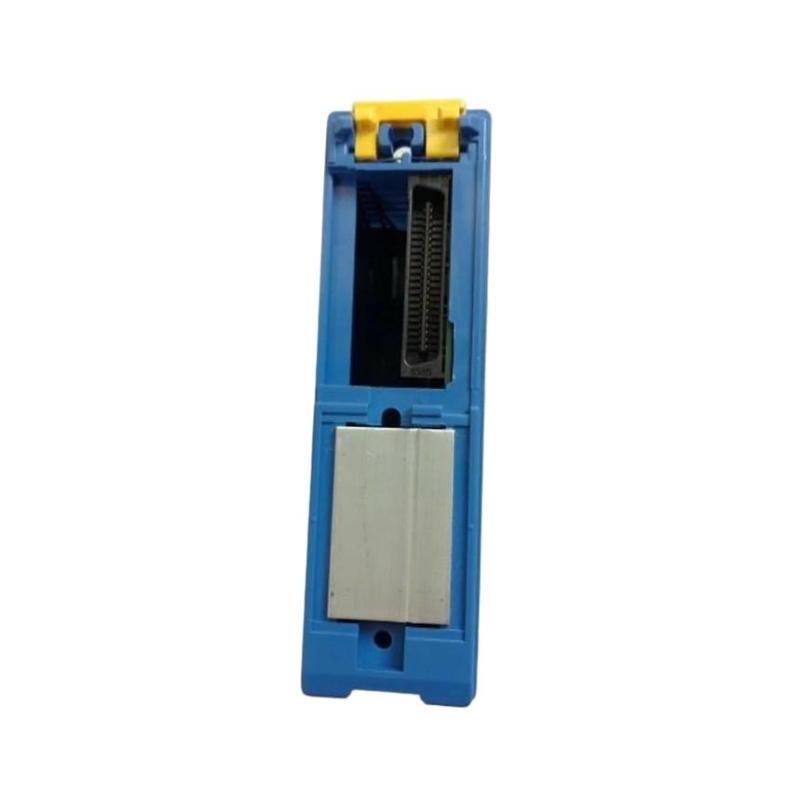

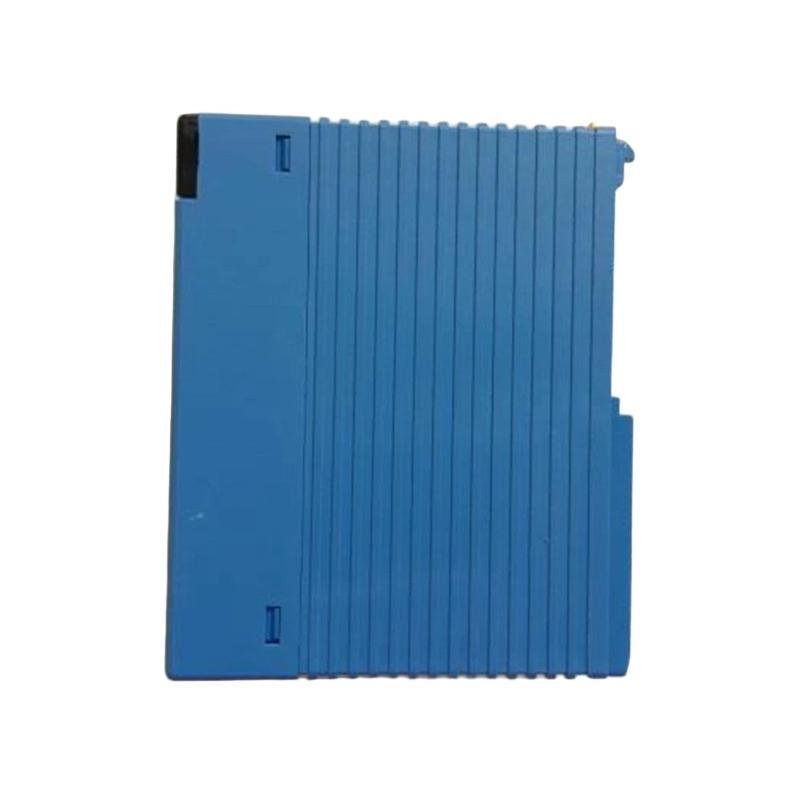

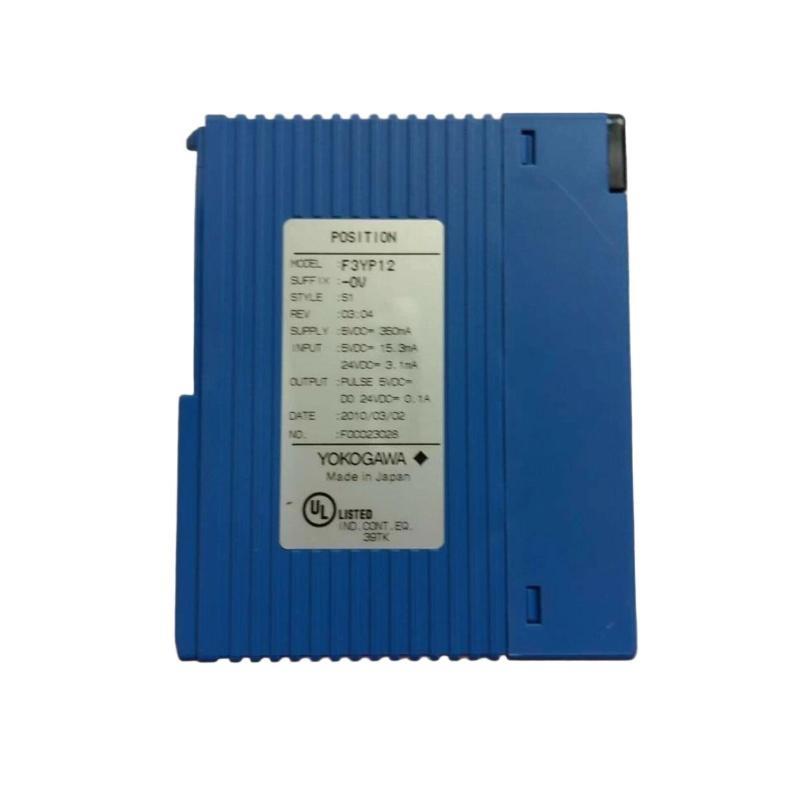

The Yokogawa F3YP12 Dual-axis Control Module is a high-performance module designed for the F3 Series control systems, providing precise dual-axis control for process automation applications. It allows simultaneous management / two independent control loops, enabling accurate positioning, speed, and process variable control in industrial environments.
Key Features
-
Dual-axis control for simultaneous management / two control loops
-
High-speed processing for real-time control
-
Compatible with Yokogawa F3 Series controllers and I/O modules
-
Industrial-grade design for reliable operation in harsh environments
-
サポートs complex automation processes with precision
-
Simplifies system integration and expansion
Technical Specifications
| Item | Specification |
|---|---|
| モデル Number | F3YP12 |
| Module Type | Dual-axis Control Module |
| Compatible System | Yokogawa F3 Series Controllers |
| Control Loops | 2 independent loops |
| Input Type | Analog and digital signals |
| Output Type | Analog and digital outputs |
| Response Time | ≤ 1 ms |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | -20 °C to +70 °C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Power Supply | Supplied via F3 base 台 |
| Mounting | DIN rail or panel mounting via base 台 |
| Dimensions | 28.9 × 100 × 83.2 mm |
| 重量 | 0.12 kg |
Industry Applications
-
Oil & Gas – Control / valves, actuators, and process loops
-
Power Generation – Turbine and generator control loops
-
Chemical & Petrochemical – Precise process automation
-
Water & Wastewater – Pump and flow control systems
-
Manufacturing – Industrial machinery and automation control
Advantages
-
Provides precise dual-axis control for complex automation processes
-
High-speed processing ensures real-time response
-
Industrial-grade design ensures stable and reliable operation
-
Compatible with multiple F3 Series modules for system expansion
-
Simplifies integration and improves overall process efficiency
よくある質問 (FAQ)
Q1: What is the primary function / the F3YP12 module?
It provides dual-axis control for two independent control loops in F3 Series systems.
Q2: What types / inputs and outputs are supported?
Analog and digital inputs and outputs.
Q3: Can it operate in industrial environments?
Yes, it is designed for reliable operation under harsh industrial conditions.
Q4: How many control loops does it manage?
Two independent loops.
Q5: What is the response time?
≤ 1 ms.
Q6: How is the module powered?
Powered via the F3 base 台.
Q7: How is it mounted?
DIN rail or panel mounting via the base 台.
Q8: What are the module dimensions?
28.9 mm × 100 mm × 83.2 mm.
Q9: What is the module weight?
Approx. 0.12 kg.
Q10: Which industries typically use this module?
Oil & Gas, Power Generation, Chemical & Petrochemical, Water & Wastewater, and Manufacturing.
