Product Overview

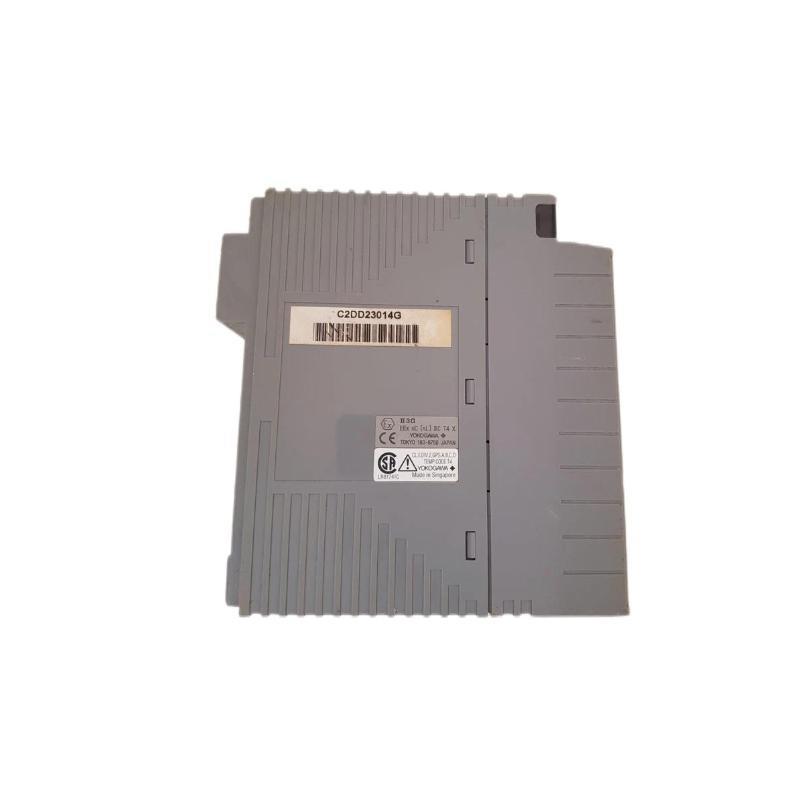

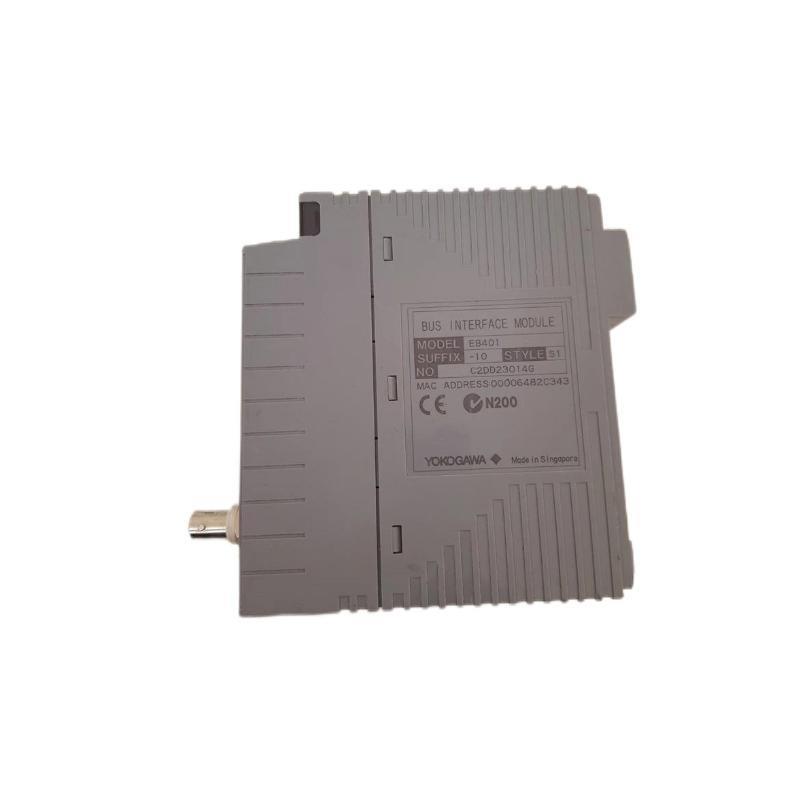

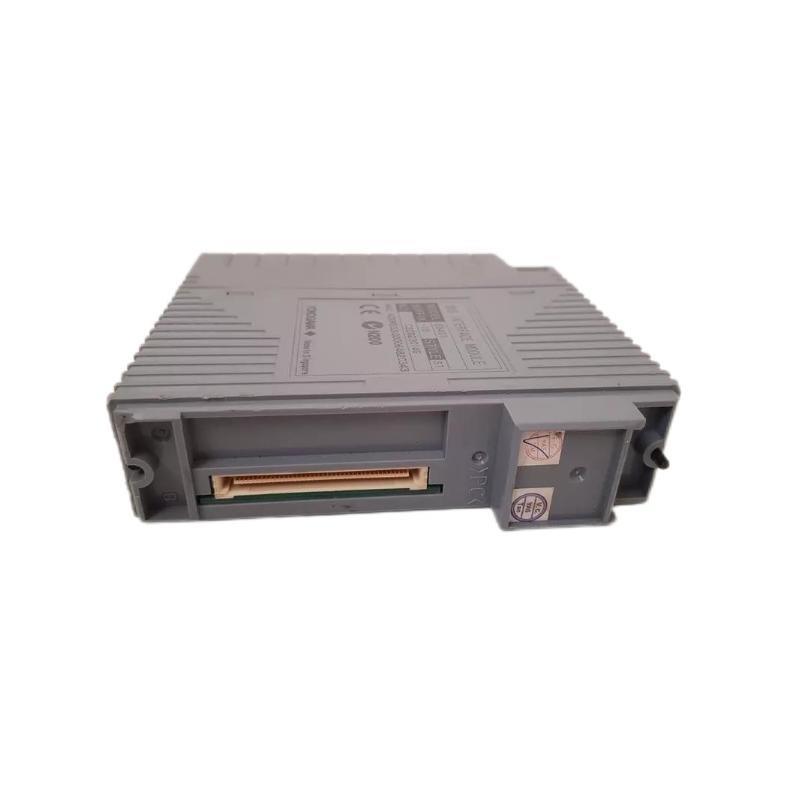

The Yokogawa EB401-10 S1 is an ER Bus Interface Master Module designed specifically for integrating remote ER Bus Node ユニットs with ESB Bus Node ユニットs or Compact Field Control ユニットs (FIO systems). It enables high-speed, reliable communication in distributed control systems (DCS), /fering robustness and flexibility for demanding industrial automation environments. This module supports dual-redundancy configurations, ensuring enhanced system reliability and uptime.
The EB401 module is housed in a compact form factor and employs a 10BASE2 physical layer interface for connectivity. It is particularly well-suited for use with Yokogawa’s flagship CENTUM VP and ProSafe-RS systems, delivering critical communication functions in process industries such as oil & gas, power generation, and petrochemicals.
Technical Specifications
| Parameter | Specification |
|---|---|
| モデル | EB401-10 S1 |
| Function | ER Bus Master Communication Module |
| Bus Interface | ER Bus (for remote I/O communication) |
| Physical Layer | IEEE 802.3 10BASE2 |
| Communication Speed | 10 Mbps |
| Connector Type | BNC |
| Transmission Distance | Up to 185 m (using YCB141 cable) |
| Redundancy サポート | Yes (dual-redundant configuration supported) |
| Current Consumption | 0.7 A |
| Installation Compatibility | ESB Bus Node ユニットs: ANB10S, ANB10D |
| Compact Field Control ユニットs: AFF50S/D, AFV10S/D | |
| Standard Options | G3 ISA Environmental Option |
| Explosion Protection | 対応可能 (-E suffix) |
| Dimensions (W x H x D) | 144.65 x 130 x 32.8 mm |
| 重量 | 0.3 kg |
Applications
-
Distributed control systems (DCS) in process automation
-
Oil and gas processing plants
-
Chemical and petrochemical facilities
-
Power generation and utilities
-
Water treatment systems
-
High-availability field control systems
The EB401 is ideal for projects requiring high-speed and reliable communication between local and remote 台s over long distances. With its support for redundancy and explosion-pro/ variants, it fits both standard and hazardous industrial environments.
Advantages
-
Robust Communication: Utilizes IEEE 802.3 10BASE2 standard with shielded BNC connections, supporting up to 185 meters / transmission.
-
Flexible Deployment: Compatible with multiple Yokogawa node 台s including ESB and Compact Field Control ユニットs.
-
Dual-Redundancy サポート: Ensures system reliability through redundant ER bus configurations.
-
Explosion-Pro/ Variant: Optional model (-E suffix) designed for hazardous area applications.
-
Compact Design: Small footprint saves panel space, making it suitable for space-constrained installations.
-
Environmentally Durable: G3-compliant variant /fers resistance to corrosive gases and harsh environments.
FAQ (よくある質問)
Q1: What does the EB401-10 S1 module do?
A1: It acts as the ER Bus master interface to connect remote ER Bus Node ユニットs to local or compact field 台s in Yokogawa’s DCS systems.
Q2: Can EB401 be used in explosive environments?
A2: Yes, the -E suffix variant / the EB401 is designed for use in explosive or hazardous areas.
Q3: What type / cable and connector does it use?
A3: It uses BNC connectors and supports YCB141 ER bus cable, conforming to IEEE 802.3 10BASE2.
Q4: Is redundancy supported with this module?
A4: Yes, two EB401 modules can be installed for a dual-redundant ER bus configuration.
Q5: What is the maximum communication distance supported?
A5: The maximum distance is 185 meters when using the designated ER bus cable (YCB141).
Q6: Can it be used with both ESB Bus Node and Compact Field Control ユニットs?
A6: Yes, it is compatible with ANB10S/D, AFF50S/D, and AFV10S/D 台s.
Q7: What is the power consumption / this module?
A7: The module consumes approximately 0.7 A.
Q8: Are terminators and connectors included?
A8: Yes, each module is supplied with one T-type connector (YCB146) and two terminators (YCB148).
Q9: What is the physical size / the EB401?
A9: The dimensions are 144.65 mm x 130 mm x 32.8 mm.
Q10: How much does the EB401 weigh?
A10: The module weighs approximately 0.3 kg.
Related or Similar モデルs
| モデル | 説明 | Bus Type | Communication | Redundancy サポート | Dimensions (mm) | 重量 |
|---|---|---|---|---|---|---|
| EB401-10 S1 | ER Bus Interface Master Module | ER Bus | 10BASE2 | Yes | 144.65 x 130 x 32.8 | 0.3 kg |
| EB401-10 S1-E | Explosion-pro/ ER Bus Master Module | ER Bus | 10BASE2 | Yes | 144.65 x 130 x 32.8 | 0.3 kg |
| EB402-10 | ER Bus Interface Slave Module | ER Bus | 10BASE2 | N/A | Similar form factor | ~0.3 kg |
| ANB10S | ESB Bus Node ユニット (Standard) | ESB Bus | Internal Comm | Yes | Chassis mounted | Varies |
| ANB10D | ESB Bus Node ユニット (Dual) | ESB Bus | Internal Comm | Yes | Chassis mounted | Varies |
| YCB141 | ER Bus Cable | N/A | N/A | N/A | Custom lengths | N/A |
Popular Yokogawa モデルs
| モデル | 説明 | Application | Dimensions (mm) | 重量 |
|---|---|---|---|---|
| ADV551-P00 | Digital Output Module | Output signal transmission | 130 x 140 x 30 | 0.2 kg |
| AAI543-H50 | Analog Input Module (HART, 8ch, isolated) | Analog signal acquisition | 130 x 140 x 30 | 0.3 kg |
| PW402-S2 | Power Supply Module | System power supply | 130 x 140 x 35 | 0.5 kg |
| CP451-10 | Processor Module | Control computation | 144.65 x 130 x 32.8 | 0.4 kg |
| AAR181-S50 | Remote I/O Module | Distributed I/O acquisition | 144.65 x 130 x 32.8 | 0.3 kg |
| ATK4A-00 | Terminal Block for FIO | Field wiring connection | Varies | ~0.1 kg |
