製品紹介

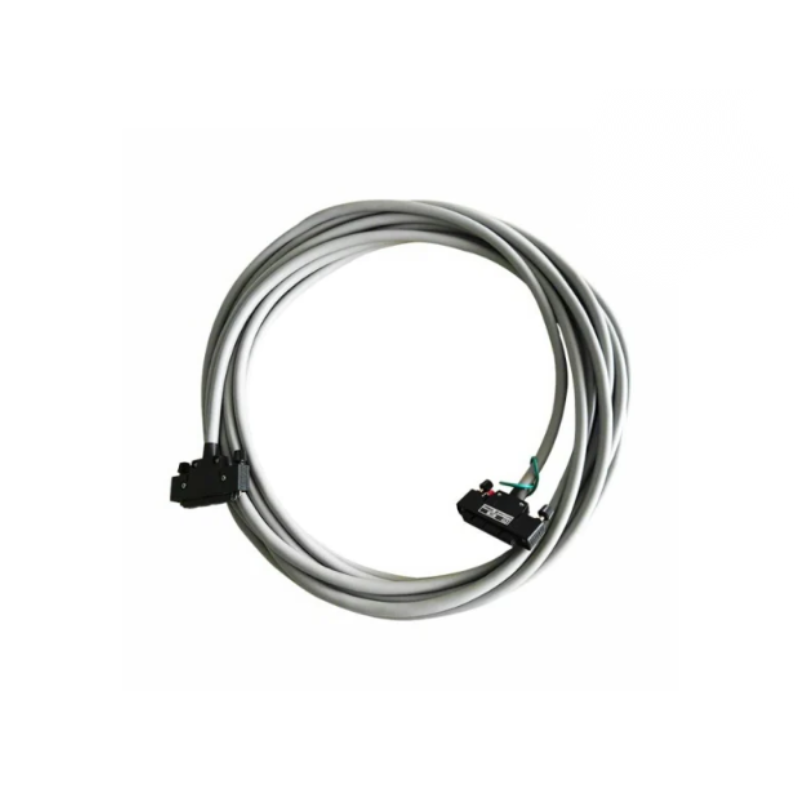

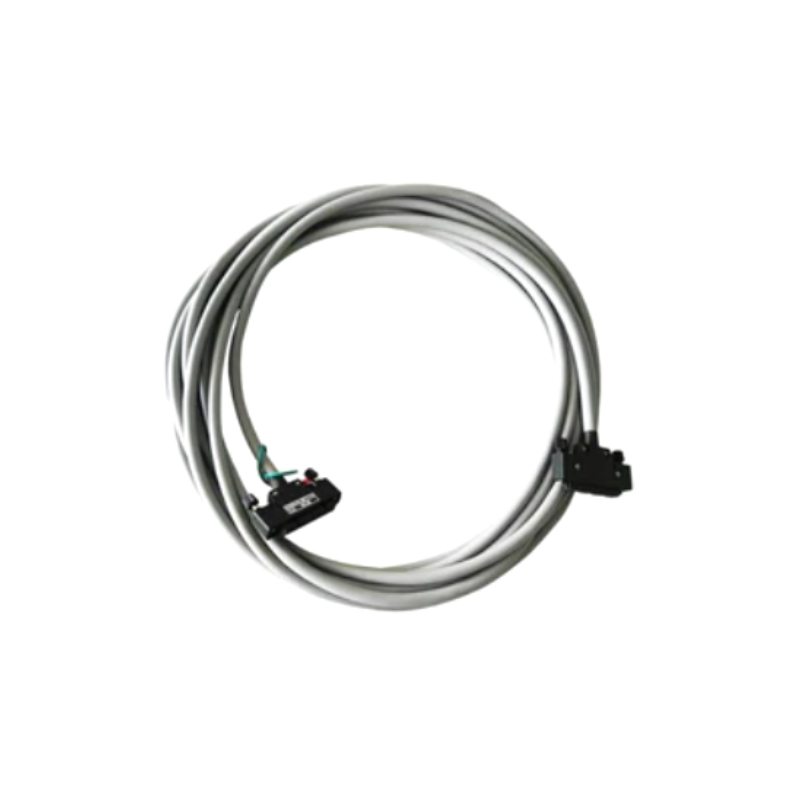

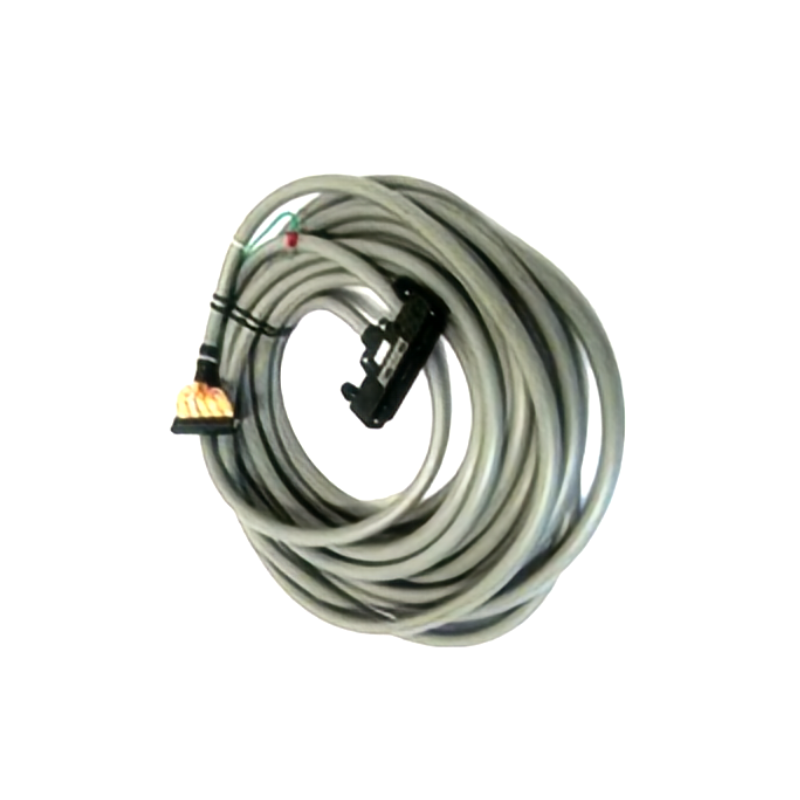

The Yokogawa AKB161 is a high-quality signal cable designed for use in industrial automation and process control systems. Manufactured by 横河電機 Corporation, this cable is engineered to ensure reliable signal transmission between field instruments, I/O modules, and control equipment. It plays a vital role in maintaining data integrity, noise imm台y, and system uptime in harsh operational environments.
The AKB161 is known for its durability, shielding, and compatibility with CENTUM VP, ProSafe-RS, and other Yokogawa systems. Whether used in a refinery, chemical plant, or utility control room, the AKB161 provides a stable and interference-free communication link that is critical for real-time process control.
Technical Specifications
| Parameter | Specification |
|---|---|
| モデル Number | AKB161 |
| Product Type | Signal Cable |
| メーカー | 横河電機 Corporation |
| Cable Type | Shielded multi-core signal cable |
| Core Count | Typically 2, 4, or 8 cores (variant dependent) |
| Shielding | Aluminum/polyester foil with drain wire |
| Conductor Material | Tinned copper |
| Insulation Material | Flame-retardant polyethylene |
| Outer Jacket | PVC or LSZH (Low Smoke Zero Halogen) |
| Nominal Voltage | 300V |
| Operating Temperature | -20°C to +70°C (-4°F to +158°F) |
| Bend Radius | Minimum 5x cable outer diameter |
| Flame Resistance | IEC 60332-1 compliant |
| Compliance | RoHS, CE |
| Length (standard) | Supplied in reels / 50m, 100m, or custom lengths |
Applications
The Yokogawa AKB161 signal cable is used in a variety / industrial environments where secure and accurate signal transmission is essential. Key application areas include:
-
Distributed Control Systems (DCS)
Transmits signals between remote I/O 台s and control processors in CENTUM VP. -
Safety Instrumented Systems (SIS)
Provides reliable signal paths for ProSafe-RS safety-related control loops. -
Field Instrument Communication
Connects transmitters, analyzers, flowmeters, and sensors with controller inputs. -
PLC & SCADA Integration
Serves as a link between PLCs, RTUs, and remote SCADA panels. -
Data Acquisition Systems
Ensures consistent signal quality for analog and digital input modules. -
Hazardous Environment Wiring
Suitable for industrial environments with high EMI, moisture, or temperature fluctuations.
Product Advantages
-
優良 Signal Integrity
Shielded construction protects against electromagnetic interference, ensuring data accuracy. -
Industrial-Grade Durability
Designed to withstand harsh temperatures, bending, and abrasion in field environments. -
Versatile Configuration Options
対応可能 in multiple core counts and lengths, adaptable for various system requirements. -
Flexible and Easy to Install
High flexibility supports routing through tight conduits or cable trays. -
Flame Retardant Jacket
Meets IEC fire safety standards, increasing operational safety. -
Yokogawa System Compatibility
Optimized for seamless integration with Yokogawa’s automation platforms. -
Long Service Life
Built from high-quality materials for long-term reliable performance in mission-critical systems.
よくある質問 (FAQ)
-
What systems is the AKB161 cable compatible with?
The AKB161 is compatible with Yokogawa systems like CENTUM VP, ProSafe-RS, and other field instruments requiring shielded signal transmission. -
Is the AKB161 cable shielded?
Yes, the cable features aluminum foil shielding with a drain wire to ensure excellent protection from electromagnetic interference. -
Can this cable be used outdoors?
While primarily intended for indoor use, the AKB161 can be installed outdoors if housed in a protective conduit. -
What is the maximum temperature range the cable can withstand?
The cable operates reliably in temperatures ranging from -20°C to +70°C, suitable for most industrial environments. -
Is this cable flame retardant?
Yes, the outer jacket complies with IEC 60332-1, /fering flame resistance for increased safety. -
Does Yokogawa /fer custom lengths for this cable?
Yes, the AKB161 is available in standard reels / 50 or 100 meters, but custom lengths can also be ordered. -
Can this cable be used for analog and digital signals?
Absolutely. The AKB161 supports both analog (e.g., 4–20mA) and digital signal transmission. -
What kind / insulation is used in the cable?
The cable uses flame-retardant polyethylene insulation for enhanced electrical safety and durability. -
Is the AKB161 cable RoHS compliant?
Yes, it is fully RoHS and CE certified, making it safe for use in global industrial markets. -
How do I determine the correct cable for my Yokogawa module?
Refer to your Yokogawa I/O module manual or system integration guide to match the core count, shielding, and length requirements.
Related モデルs – Same Series or Function
| モデル Number | 説明 | Cable Type | Typical Use |
|---|---|---|---|
| AKB160 | Signal Cable (multi-core) | Shielded, multi-core | General signal transmission |
| AKB162 | High-temperature Signal Cable | Heat-resistant sheath | Elevated-temperature applications |
| AKB130 | Twisted Pair Signal Cable | Twisted pair, shielded | High-noise environments |
| AKB120 | 2-core Signal Cable | Basic analog signal line | Transmitter to I/O module wiring |
| AKB220 | Armored Signal Cable | Shielded + metal armor | Mechanically protected installations |
| AKB150 | Low-capacitance Signal Cable | Special dielectric | Long-distance signal transmission |
Popular Yokogawa モデルs – その他 Product Lines
| モデル Number | Product Type | Application | System |
|---|---|---|---|
| AAI135-H | Analog Input Module (HART) | Signal acquisition from field devices | CENTUM VP |
| PW482-10 | Power Supply Module | FCS power stabilization | CENTUM VP |
| CP451-10 | Processor ユニット | Main control processor | ProSafe-RS |
| AAI543 | Analog Output Module | 4-channel analog output for actuators | CENTUM VP |
| STARDOM FCN-RTU | Remote Terminal ユニット | Edge control and monitoring | STARDOM series |
| N-IO750 | Universal I/O Module | Flexible signal input/output handling | CENTUM VP / N-IO |
