製品紹介

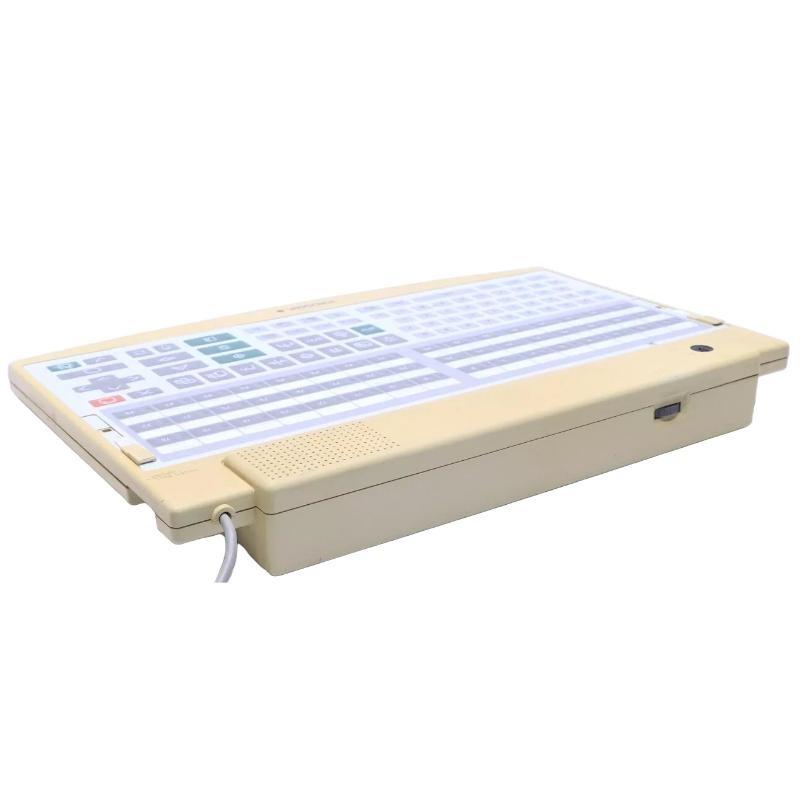

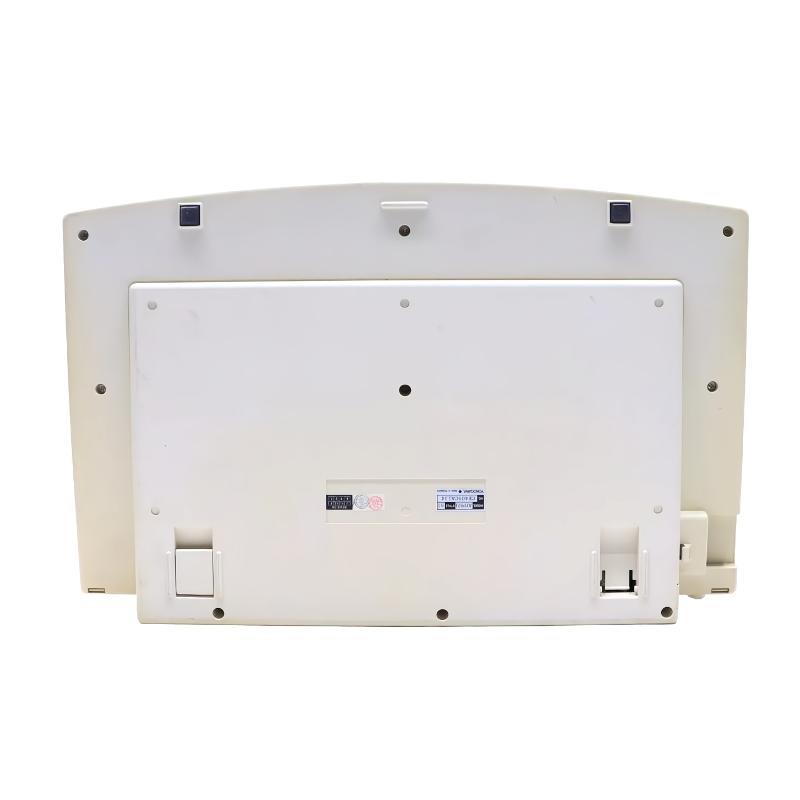

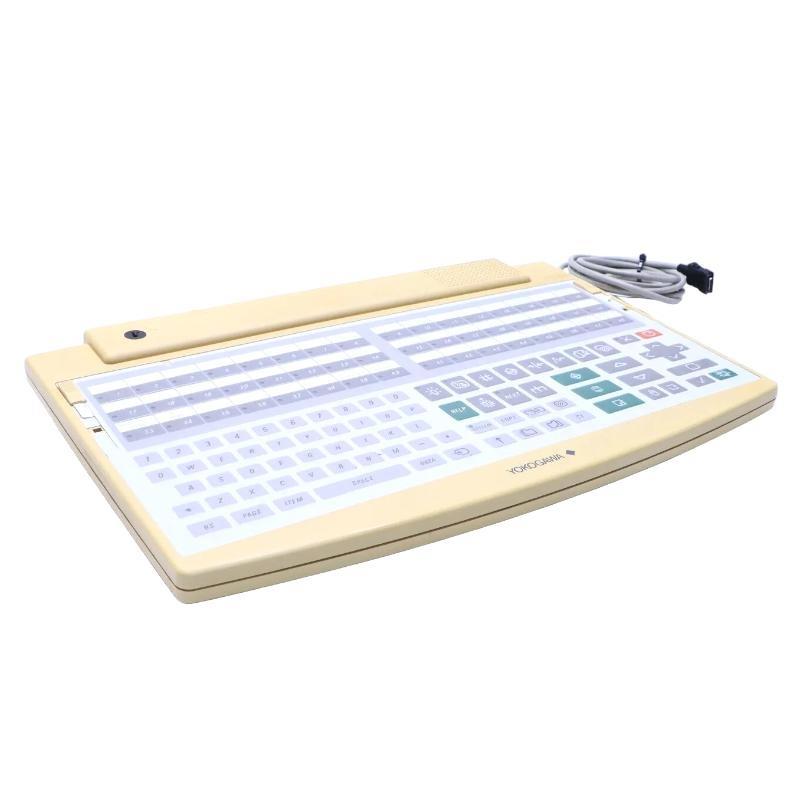

The Yokogawa AIP826-2 S2 Operation Keyboard is an advanced operator interface designed specifically for use with the CENTUM VP and other Yokogawa distributed control systems (DCS). This keyboard serves as a critical human-machine interface (HMI), allowing operators to monitor, control, and manipulate process parameters efficiently.
The S2 version builds upon the previous AIP826-2 model by /fering enhanced ergonomic design, improved key responsiveness, and extended support for advanced programmable functions. It is suitable for continuous industrial operations in harsh environments, including chemical, oil & gas, power generation, and water treatment plants. Its robust electrical isolation and optimized communication with the DCS ensure high reliability and low latency in real-time operations.
The AIP826-2 S2 supports multi-node integration, allowing centralized control while providing flexible operator access points throughout the control room. It is engineered to reduce operational errors, streamline workflow, and enhance operator efficiency in complex industrial processes.
製品仕様
| Parameter | Specification |
|---|---|
| モデル | AIP826-2 S2 Operation Keyboard |
| Device Type | Operator Interface Keyboard |
| Interface | Ethernet / RIO / Serial |
| Key Types | Tactile mechanical keys, programmable function keys, navigation keys |
| LED Indicators | Status indicators, alarm signals |
| Power Supply | 24 V DC ±10% |
| Power Consumption | ≤ 8 W |
| Operating Temperature Range | 0°C to 55°C |
| Storage Temperature Range | -20°C to 70°C |
| Humidity Tolerance | 5% to 95% RH, non-condensing |
| Response Time | ≤ 50 ms |
| Mounting | Desk mount or panel mount |
| Dimensions (H × W × D) | 440 x 284 x 52 mm |
| 重量 | 2.5 kg |
| Certifications | CE, UL, IEC standards |
| Programmable Keys | Fully programmable function keys for operator convenience |
| Connectivity | Multi-node network support for CENTUM VP DCS |
| Advanced Features | Enhanced tactile feedback, LED status indicators, improved firmware support |
Product Applications
The AIP826-2 S2 Operation Keyboard is ideal for a wide range / industrial control applications:
-
Real-time monitoring and control / distributed process 台s in Yokogawa DCS
-
Alarm management, acknowledgment, and operator intervention in critical processes
-
Local or remote operation / pumps, valves, and actuators in chemical and petrochemical plants
-
Continuous process monitoring in power generation, including turbines, generators, and auxiliaries
-
Water and wastewater treatment plant control, including automated dosing and process feedback
-
Centralized operator control in multi-node control rooms
-
サポート for complex control strategies, batch processing, and continuous flow operations
Product Advantages
-
High Reliability: Provides consistent performance under electrical noise, vibration, and temperature fluctuations.
-
Ergonomic Design: Improved key spacing and tactile feedback reduce operator fatigue and improve accuracy.
-
Programmable Functionality: All keys are programmable to streamline repetitive tasks and improve workflow efficiency.
-
Enhanced Visual Feedback: LED indicators and display elements provide clear status and alarm visualization.
-
Flexible Integration: サポートs multi-node CENTUM VP networks for scalable control room solutions.
-
Fast Response: Low latency ensures rapid registration / operator commands.
-
Robust Construction: Built for industrial use with resistance to environmental factors common in process plants.
よくある質問 (FAQ)
-
What types / keys are used in the AIP826-2 S2 keyboard?
Tactile mechanical keys are used for primary inputs, with additional programmable function and navigation keys. -
Can the keyboard operate in a redundant DCS configuration?
Yes, it fully supports redundant CENTUM VP configurations with seamless failover. -
How is the keyboard connected to the DCS network?
Connections can be made via Ethernet, RIO, or serial interfaces, depending on system setup. -
Are the function keys programmable?
Yes, all function keys can be programmed via the CENTUM VP engineering s/tware to execute user-defined operations. -
Does the keyboard provide visual status for alarms?
Yes, LED indicators display real-time alarm conditions and operational status. -
Can multiple operators use the keyboard simultaneously?
Each keyboard supports single-user operation; multi-node network allows independent operation at multiple stations. -
What is the response time from key press to action execution?
The typical response time is ≤ 50 ms under normal conditions. -
Is the keyboard suitable for high-humidity environments?
Yes, it operates reliably in 5% to 95% RH, non-condensing conditions. -
What diagnostic features are included?
LED indicators for power, status, and alarms, along with s/tware diagnostics through the DCS. -
Can the keyboard firmware be upgraded?
Yes, firmware can be updated via the connected CENTUM VP system to support new features or fixes.
Related モデルs / Variants (Same Series or Functionally Similar)
| モデル | 説明 |
|---|---|
| AIP826-2 | Standard Operation Keyboard |
| AIP827 | Advanced Operation Keyboard with extended functions |
| AIP828 | Keyboard with integrated touchpad |
| AIP829 | High-contrast operation keyboard |
| AIP830 | Multi-language Operation Keyboard |
| AIP831 | Operation Keyboard with redundant network support |
Popular モデルs from Yokogawa
| モデル | 説明 |
|---|---|
| AIP825 | Standard Operator Keyboard |
| AIP824 | Desk-mounted Operation Keyboard |
| AIP823 | Panel-mounted Operator Interface |
| AIP832 | Integrated Control Keyboard with LED indicators |
| AIP833 | Multi-function Operation Keyboard |
| AIP834 | Touch-enabled Operator Keyboard |
