製品紹介

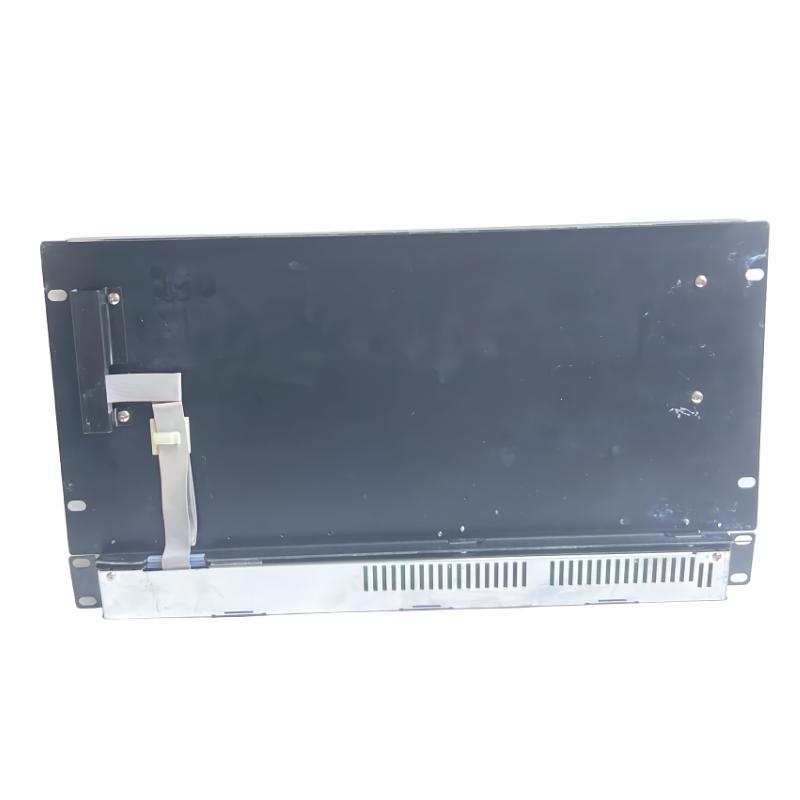

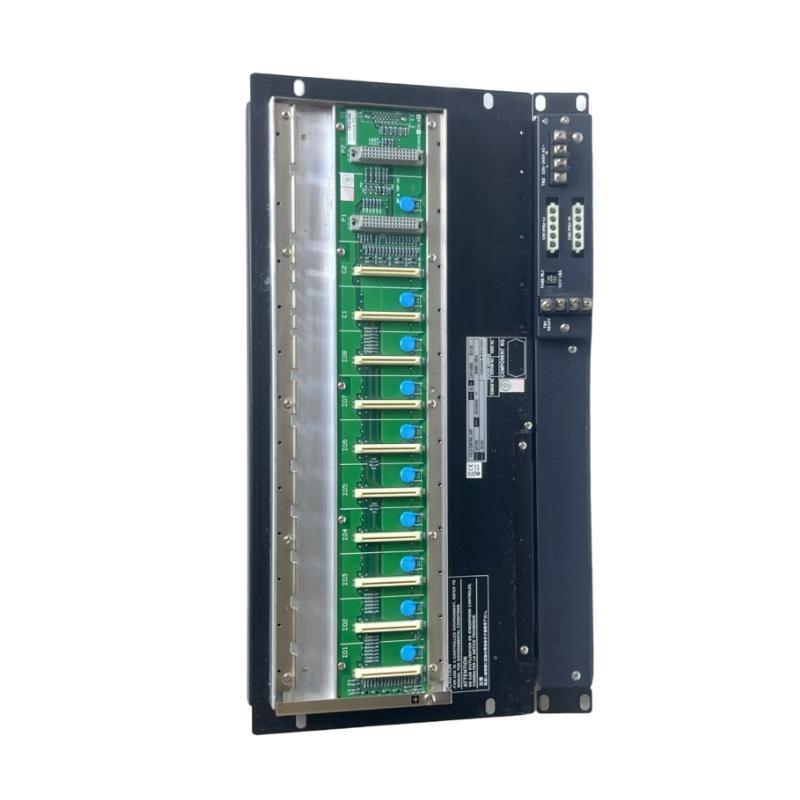

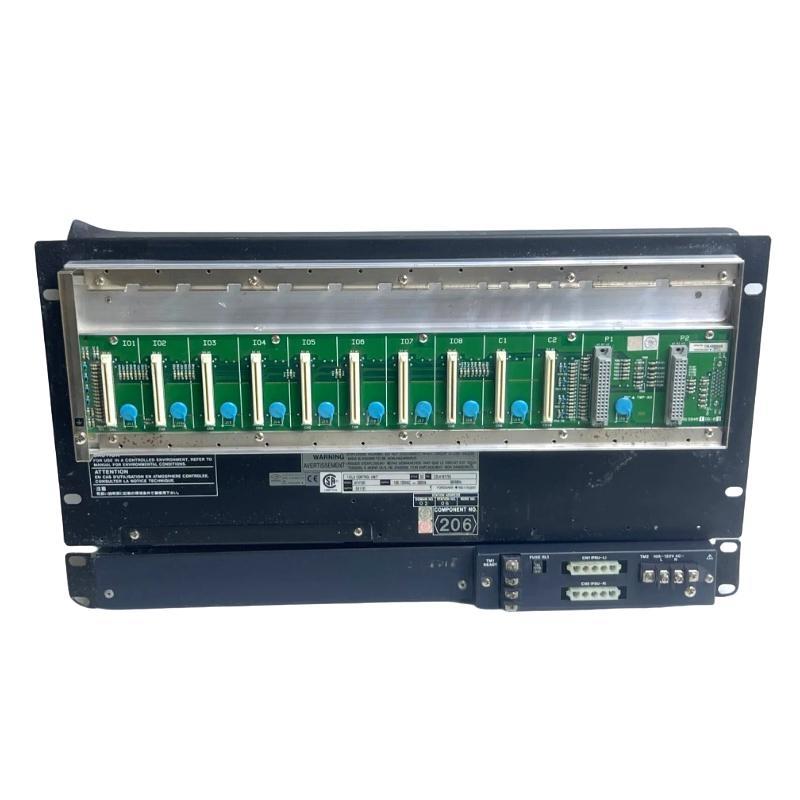

The Yokogawa AFV10D-S41451 Duplexed Field Control ユニット is a highly reliable and advanced control component designed for critical industrial automation systems. As part / Yokogawa’s CENTUM VP distributed control system (DCS) family, this duplexed 台 is engineered for fault-tolerant operation, ensuring continuous plant availability and robust process control even in the event / hardware failures.
The AFV10D-S41451 integrates seamlessly into plant-wide automation environments, supporting duplex (redundant) configurations that provide high availability, operational continuity, and minimized downtime. With a modular architecture, this 台 supports a wide range / control strategies, /fering flexibility, scalability, and long-term stability. It is especially suited for industries requiring stringent reliability standards, such as oil and gas, petrochemicals, power generation, and pharmaceuticals.
製品仕様
| Parameter | 説明 |
|---|---|
| Product モデル | Yokogawa AFV10D-S41451 Duplexed Field Control ユニット |
| System Type | Distributed Control System (DCS) – CENTUM VP family |
| Redundancy Mode | Duplexed (redundant) configuration for fault-tolerant control |
| Processor | High-speed dual CPU architecture |
| Communication Protocols | Vnet/IP, Ethernet, and fieldbus support |
| I/O Module サポート | サポートs both analog and digital I/O modules |
| Power Supply | 24 VDC nominal (with redundancy support) |
| Operating Temperature Range | 0 °C to 55 °C (industrial-grade) |
| Storage Temperature Range | -20 °C to 70 °C |
| Humidity Range | 10% to 90% RH (non-condensing) |
| Mounting | Rack-mounted 台 |
| Dimensions (W x H x D) | 207 × 265.9 x 482.6 mm |
| 重量 | 8 kg |
| Cable Compatibility | Compatible with Yokogawa standard system cabling for duplex operation |
| Certification | CE, UL, CSA, and other relevant international standards |
Product Applications
The AFV10D-S41451 Duplexed Field Control ユニット is widely applied across industries that demand high system availability and precise process control:
-
Oil & Gas: Supervising critical refining and production processes with redundant architecture to prevent unplanned shutdowns.
-
Power Generation: Maintaining continuous and stable control / turbines, boilers, and auxiliary systems.
-
Petrochemicals: Enabling safe and reliable process automation in high-volume and hazardous environments.
-
Pharmaceutical Manufacturing: Ensuring compliance with strict regulatory standards through accurate and uninterrupted control.
-
Water & Wastewater Treatment: Managing continuous operations for pumping stations, filtration systems, and chemical dosing.
-
Metals & Mining: Providing robust automation for heavy-duty process environments where downtime is costly.
Product Advantages
-
High Availability: Duplexed configuration ensures system operation continues seamlessly even during component failures.
-
Scalability: Designed to expand with additional modules and I/O interfaces as plant requirements grow.
-
Seamless Integration: Native compatibility with Yokogawa’s CENTUM VP system and Vnet/IP networking.
-
Advanced Reliability: Built with industrial-grade components to operate under demanding environmental conditions.
-
Efficient Maintenance: Hot-swappable modules and duplexed design simplify maintenance without interrupting operations.
-
Proven Performance: Backed by Yokogawa’s decades / expertise in control system engineering and field experience.
FAQ
-
How does the AFV10D-S41451 ensure redundancy in field control operations?
The AFV10D-S41451 adopts a duplexed CPU design, where two processors run in parallel. If one CPU fails, the second immediately takes over to maintain continuous control without interruption. -
What communication protocols are supported for system integration?
It primarily uses Vnet/IP as its high-speed control network and supports Ethernet connectivity. Through additional I/O modules, it can interface with FOUNDATION™ Fieldbus, HART, and other industrial protocols. -
Can the 台 handle both analog and digital signals simultaneously?
Yes, the controller is designed to process mixed I/O types, managing analog measurements and digital control signals at the same time. -
How does the system perform fault detection?
It continuously runs real-time diagnostics and performs cross-checks between CPUs. Any detected fault in one path will cause an automatic switchover to the healthy CPU without affecting operations. -
What diagnostic functions are available for operators?
Operators can access module health monitoring, redundancy status, error logs, and predictive alerts via the CENTUM VP system, providing proactive fault management. -
Is it backward compatible with previous Yokogawa CENTUM systems?
Yes, the AFV10D-S41451 is compatible with legacy CENTUM CS3000 systems, ensuring smooth system migration. Optimal performance is achieved when integrated with CENTUM VP. -
What are the advantages / using Vnet/IP with this controller?
Vnet/IP provides a real-time deterministic network with speeds up to 1 Gbps. It reduces communication latency and supports redundant networking for higher system availability. -
What type / power redundancy is supported?
It features dual redundant 24 VDC power supply inputs, so if one power source fails, the other maintains uninterrupted operation. -
Can firmware upgrades be performed without halting operations?
Yes, thanks to the duplex configuration, firmware can be updated online. One CPU can be updated while the other continues control, avoiding process downtime. -
How do the dual CPUs maintain synchronization?
The CPUs operate in lockstep mode, exchanging process states via a high-speed internal bus. This ensures both 台s remain fully synchronized and ready for instant switchover.
Recommended Related モデルs (Same Series / Similar ユニットs)
| モデル | 説明 |
|---|---|
| AFV10D-F1 | Duplexed Field Control ユニット with enhanced redundancy features |
| AFV10D-S41101 | Standard Duplexed Field Control ユニット for medium-scale systems |
| AFV10D-S41151 | Advanced Duplexed Field Control ユニット for large-scale operations |
| AFV30D-A41152 | Duplexed FCU with extended modularity and scalability |
| AFV30D-A41251 | High-performance duplex FCU for mission-critical applications |
| AFV30D-A41452 | Duplexed FCU optimized for large process plants |
Popular Yokogawa モデルs (Same ブランド – その他 Categories)
| モデル | カテゴリー | 説明 |
|---|---|---|
| AAI141-S50 | Analog Input Module | High-density analog input for process data acquisition |
| AAI835-H00 | Analog Input Module | Advanced AI module supporting HART communication |
| AAM50 | Digital Output Module | High-speed output for field device control |
| AAP135 | Pulse Input Module | Specialized module for pulse signal processing |
| PW482 | Power Supply Module | Reliable power module for CENTUM VP and ProSafe systems |
| CP451-10 | Processor Module | High-performance CPU module for field control systems |
