製品紹介

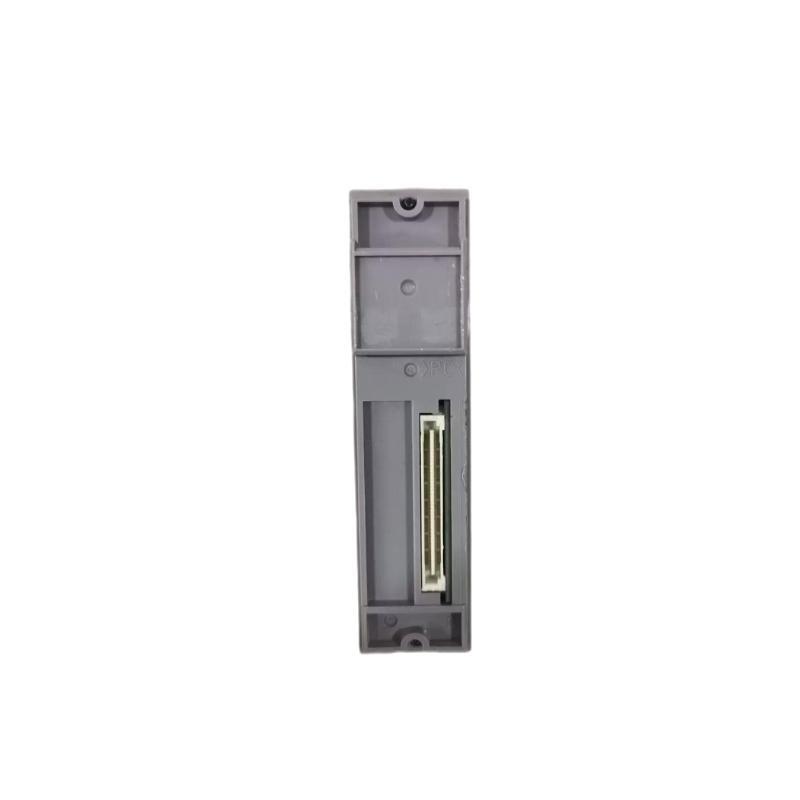

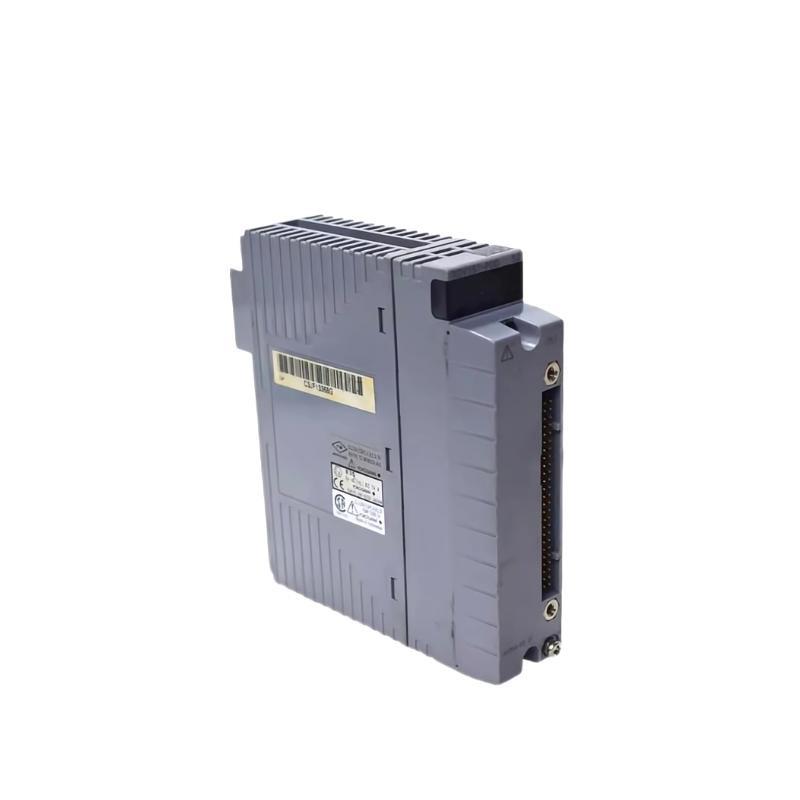

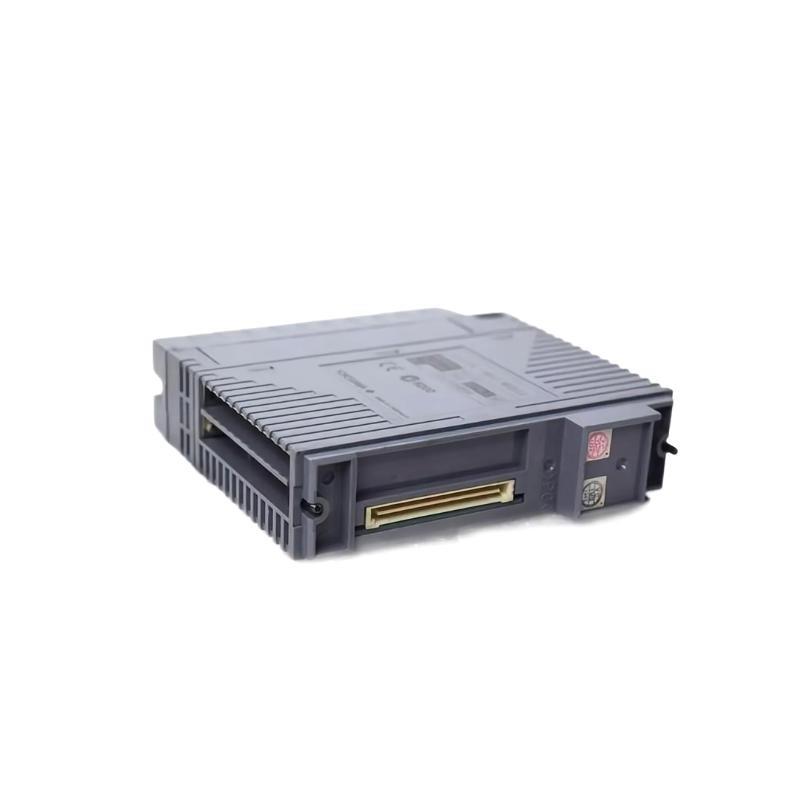

The Yokogawa ADV151-P00 is a high-performance Digital Input Module engineered for use with Yokogawa’s CENTUM VP and ProSafe-RS control systems. Specifically designed to handle high-reliability and safety-critical industrial applications, this module plays a crucial role in acquiring binary signals from field instruments and transferring them securely to the control system. The ADV151-P00 /fers 16 isolated digital input channels and is capable / detecting discrete ON/OFF states, such as those from push buttons, limit switches, or proximity sensors.
This module complies with rigorous industrial standards and has a robust design suited for both general process automation and safety instrumented system (SIS) environments. It provides galvanic isolation, precise signal detection, and long-term operational reliability—essential for continuous process control and critical infrastructure.
製品仕様
| Parameter | Details |
|---|---|
| モデル Number | ADV151-P00 |
| Product Type | Digital Input Module |
| Number / Channels | 16 isolated digital input channels |
| Input Type | Voltage type (dry contact/wet contact compatibility) |
| Input Voltage Range | 24 VDC (typical), 19.2 to 30 VDC operating range |
| Input Current | Approx. 6 mA/channel @ 24 VDC |
| Isolation Method | Optical isolation between field and system |
| Input Delay Time | Approx. 5 ms |
| Fail-safe Detection | Yes (can detect open wire/failure state) |
| Internal Diagnostics | Yes (self-diagnostics and channel health monitoring) |
| Interface | Mounted on N-IO base with FIO interface |
| Installation Type | Mounted in Yokogawa Vnet/IP or FIO node racks |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -20°C to +70°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Certifications | CE, CSA, FM, ATEX (when installed in certified systems) |
| Dimensions (W x H x D) | 107.5 × 130 × 32.8 mm |
| 重量 | 0.3 kg |
Product Applications
-
Petrochemical Plants: Monitoring pump statuses, emergency stop pushbuttons, valve position signals.
-
Power Generation: Input signals from generator protective relays and turbine status monitoring.
-
Oil & Gas Refineries: Critical field input detection in explosion-prone environments.
-
Pharmaceutical Manufacturing: Monitoring / cleanroom interlocks, door status, and equipment controls.
-
Water & Wastewater Management: Monitoring limit switches on gates, pumps, and motor starters.
-
Discrete Manufacturing: Capturing feedback from limit switches, sensor triggers, and interlock mechanisms.
Product Advantages
-
High Channel Density: Offers 16 channels in a compact form factor, saving valuable panel space.
-
Fail-safe Monitoring: Built-in diagnostics allow for immediate detection / input failures or wiring issues.
-
Industrial-grade Reliability: Suitable for use in harsh environments with robust isolation and EMI protection.
-
Wide Voltage Tolerance: Compatible with various field devices operating at different nominal voltages.
-
System Integration: Seamless integration with Yokogawa’s CENTUM VP and ProSafe-RS control platforms.
-
Long Lifecycle サポート: Yokogawa’s commitment to long-term product support ensures lifecycle cost reduction.
-
Easy Maintenance: Hot-swappable module allows replacement without shutting down the entire system.
よくある質問 (FAQ)
-
Q: What is the main function / the ADV151-P00?
A: It is a digital input module designed to receive and process 16 individual ON/OFF signals from field devices. -
Q: Is the ADV151-P00 compatible with safety systems like ProSafe-RS?
A: Yes, it is compatible with both process control and safety control systems in Yokogawa architectures. -
Q: Can I use this module in hazardous environments?
A: Yes, when installed as part / a certified system, it complies with ATEX, FM, and other safety certifications. -
Q: Does it support dry and wet contact inputs?
A: Yes, it supports both types / digital signals. -
Q: What kind / isolation is provided?
A: Optical isolation between field circuits and internal circuitry for enhanced safety. -
Q: What is the input delay for signal detection?
A: Approximately 5 milliseconds per channel. -
Q: How do I mount the module?
A: It is installed on a base 台 within a Yokogawa system rack or N-IO node. -
Q: Can I replace the module during operation?
A: Yes, the module supports hot-swapping, allowing for live replacement. -
Q: How is channel failure detected?
A: The module includes self-diagnostics and can flag channel malfunction or wiring issues. -
Q: What is the typical lifespan or durability / the ADV151-P00?
A: With proper environmental conditions and standard usage, it can last over 10 years with high MTBF.
Recommended Related モデルs (Same Series/Family)
| モデル | 説明 | Channels | Function |
|---|---|---|---|
| ADV151-P00 | Digital Input Module (Standard) | 16 | Digital input |
| ADV151-P50 | Digital Input Module (Isolated) | 16 | Isolated input |
| ADV161-P00 | Digital Input Module (High-speed) | 32 | Fast digital input |
| ADV551-P00 | Digital Output Module | 16 | Digital output |
| ADV561-P00 | Digital Output Module (Relay type) | 16 | Relay output |
| ADV169-P03 | Digital Input/Output Combined Module | 32 | Mixed I/O |
Recommended Popular モデルs from Yokogawa (Same ブランド)
| モデル | 説明 | カテゴリー | Key Feature |
|---|---|---|---|
| ADV151-P00 | Digital Input Module | I/O Module | 16 DI channels |
| AAI543-H00 | Analog Input Module | I/O Module | 8 AI, HART compatible |
| AAR181-S50 | Redundant Analog Output Module | I/O Module | 4 AO channels, redundancy support |
| CP451-10 | Processor Module for CENTUM VP | CPU Module | Real-time control processor |
| PW482-10 | Power Supply Module for N-IO Base | Power Module | Provides 5V system power |
| ATD5A-00 | Thermocouple Input Module | I/O Module | 8 TC input channels |
