製品紹介

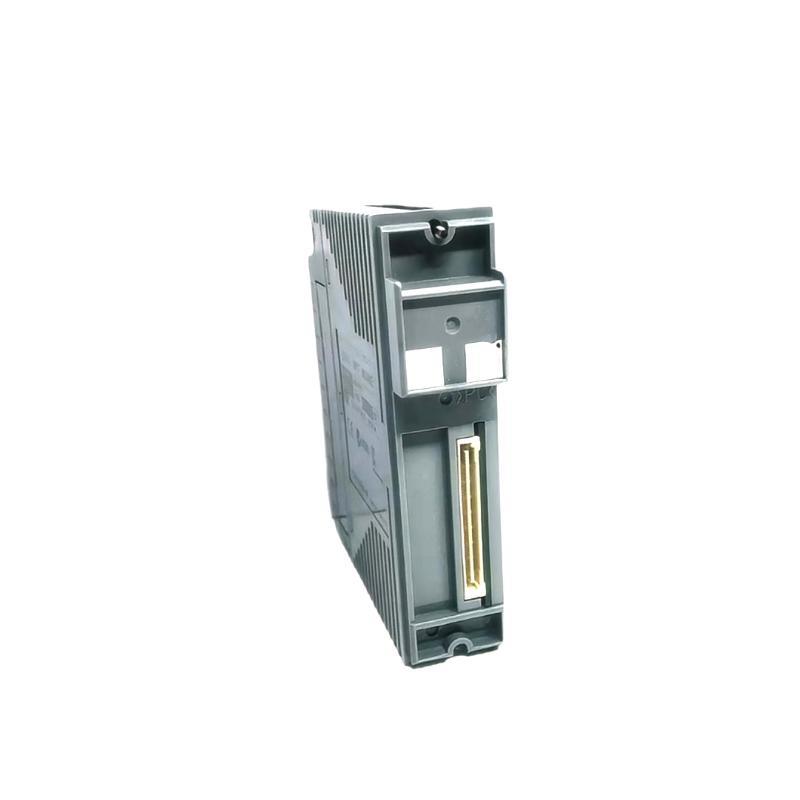

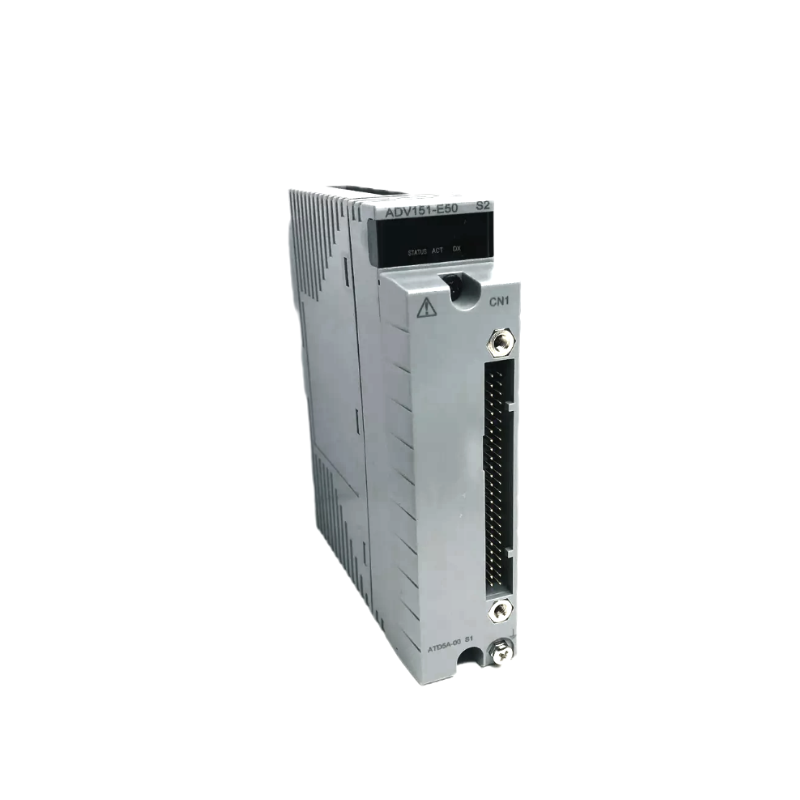

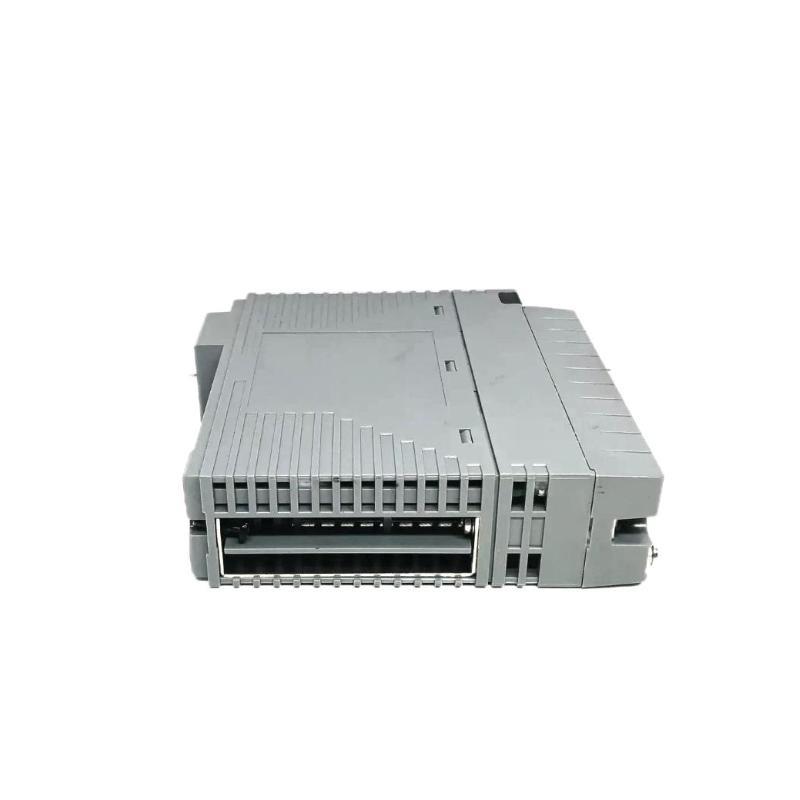

The Yokogawa ADV151-E50 is a high-performance 16-channel digital input module designed for integration with CENTUM VP and ProSafe-RS systems, providing reliable acquisition / discrete field signals in critical industrial applications. Specifically engineered for enhanced diagnostic capabilities and system reliability, the ADV151-E50 serves as a dependable interface for binary input signals from pushbuttons, relays, proximity switches, and other contact devices.
This module is highly valued in industries that demand rigorous safety standards, rapid response, and continuous monitoring—including petrochemical plants, power facilities, marine systems, and critical manufacturing environments. The ADV151-E50 /fers superior isolation, fast response time, and robust communication with the control processor, making it a dependable cornerstone / any safety or process automation architecture.
製品仕様
| Specification | Details |
|---|---|
| モデル | ADV151-E50 |
| メーカー | 横河電機 Corporation |
| Product カテゴリー | Digital Input Module |
| System Compatibility | CENTUM VP, ProSafe-RS |
| Number / Channels | 16 |
| Input Signal Type | Dry contact / Open collector |
| Rated Input Voltage | 24 V DC (range: 18 V to 32 V DC) |
| Input Impedance | Approx. 4.7 kΩ |
| ON Voltage Level | ≥ 15 V DC |
| OFF Voltage Level | ≤ 5 V DC |
| Input Filter Time | 1 ms / 10 ms (selectable) |
| Channel Isolation | Opto-isolated individually |
| Redundancy サポート | Yes (when configured) |
| Hot Swapping | サポートed |
| Diagnostic Functions | Loop test, channel status, open circuit detection |
| Fail-Safe 州 | Configurable per channel |
| Module Status Indication | LED per channel + system LED |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Vibration Resistance | 10 to 60 Hz, 0.7 mm, continuous |
| Shock Resistance | 10 m/s² |
| Mounting Method | Installed on base terminal 台s |
| Dimensions (H x W x D) | 107.5 × 130 × 32.8 mm |
| 重量 | 0.3 kg |
| Certifications | CE, KC, ATEX, SIL2/SIL3 (when used with safety system) |
Product Applications
-
Refineries and Petrochemical Plants: Interfaces with emergency shutdown (ESD) switches, valve positioners, and safety sensors.
-
Power Plants: Used for monitoring binary status / relays, breaker feedbacks, and turbine condition signals.
-
Offshore and Marine Systems: Offers stable operation under vibration and corrosive atmospheres with isolated inputs.
-
Manufacturing Plants: Integrates with industrial machinery for discrete input monitoring such as conveyor belt status and door interlocks.
-
Water Treatment Facilities: Captures binary feedback from pump starters, valve actuators, and level switch contacts.
-
Pharmaceutical Production: Helps maintain safe control conditions in batch control processes with critical signal detection.
Product Advantages
-
Enhanced Safety Compliance: Designed to comply with SIL2/SIL3 safety levels when used with ProSafe-RS systems, suitable for safety-critical processes.
-
High-Speed Response: Rapid signal detection and reliable input processing help avoid delays in process execution.
-
Fault Detection Functions: Advanced diagnostics detect open circuits and miswiring before failure impacts the process.
-
Redundant Operation Ready: サポートs redundancy for input signal reliability, minimizing downtime risks.
-
Compact Footprint: Space-efficient module size allows high-density installation without compromising accessibility.
-
Long Life and Stability: Built with robust materials and circuit protection for stable long-term field performance.
-
LED Indicators Per Channel: Visual feedback simplifies troubleshooting and real-time signal verification.
-
Ease / Maintenance: Hot-swappable design reduces the time needed for system maintenance or module replacement.
-
Noise Imm台y: Optical isolation per channel enhances imm台y from industrial electromagnetic interference.
-
Flexible Deployment: Suitable for both standard and hazardous area applications thanks to global certification standards.
よくある質問 (FAQ)
-
What is the primary function / the ADV151-E50 module?
It serves as a 16-channel digital input interface for receiving binary signals from field devices. -
Can the module detect open circuit conditions?
Yes, the module features open circuit detection and other diagnostic capabilities. -
Is the ADV151-E50 suitable for SIL-rated applications?
Absolutely. When integrated with ProSafe-RS, it meets SIL2/SIL3 requirements. -
Does the module support redundancy?
Yes, it supports channel-level redundancy when configured with redundant systems. -
What type / signals does it accept?
It accepts dry contact or open collector signals, typically 24 V DC. -
Can I change the module without powering down the system?
Yes, the ADV151-E50 supports hot swapping for quick replacement. -
Are individual channels optically isolated?
Yes, all 16 input channels are isolated from each other using optical isolation. -
How are input states indicated?
Each channel has a dedicated LED to show input ON/OFF status. -
What’s the minimum voltage required to register an ON signal?
The module detects ON at 15 V DC or higher. -
Is the ADV151-E50 compatible with CENTUM VP?
Yes, it’s fully compatible with both CENTUM VP and ProSafe-RS platforms.
Related モデルs (Same Series / Functionally Similar)
| モデル Number | 説明 | Channels | Diagnostic Features |
|---|---|---|---|
| ADV151-E00 | Standard 16-channel Digital Input Module | 16 | Basic |
| ADV151-E00 S2 | Enhanced version with channel test capabilities | 16 | Channel-level diagnostics |
| ADV151-E00 S3 | SIL3 compliant module | 16 | Advanced safety diagnostics |
| ADV551-E03 | High-speed digital input module | 16 | Quick response inputs |
| ADV101-E00 | Compact digital input module with 8 channels | 8 | Basic |
| ADV161-E00 | Dual-channel redundant input module | 16 | Redundancy supported |
Popular Yokogawa モデルs (Cross-Product Highlights)
| モデル Number | Product カテゴリー | 説明 | Certifications |
|---|---|---|---|
| AAI543-H50 | Analog Input Module | HART-enabled, 16-channel, for analog field signals | CE, KC, HART |
| AAI141-S00 | Analog Input Module | 8-channel, isolated, for precise analog readings | CE, ATEX |
| AMM12C | Multipoint Input Module | 12-point universal input for temperature, voltage | CE, FM |
| CP451-10 | CPU Module | Core processor for CENTUM VP system | CE, KC, ATEX |
| ANB10D | Node Interface Module | Communication bridge for remote I/O connections | CE, RoHS |
| PW482-10 | Power Supply Module | Dual-redundant 120/240V AC to 24V DC | CE, UL |
