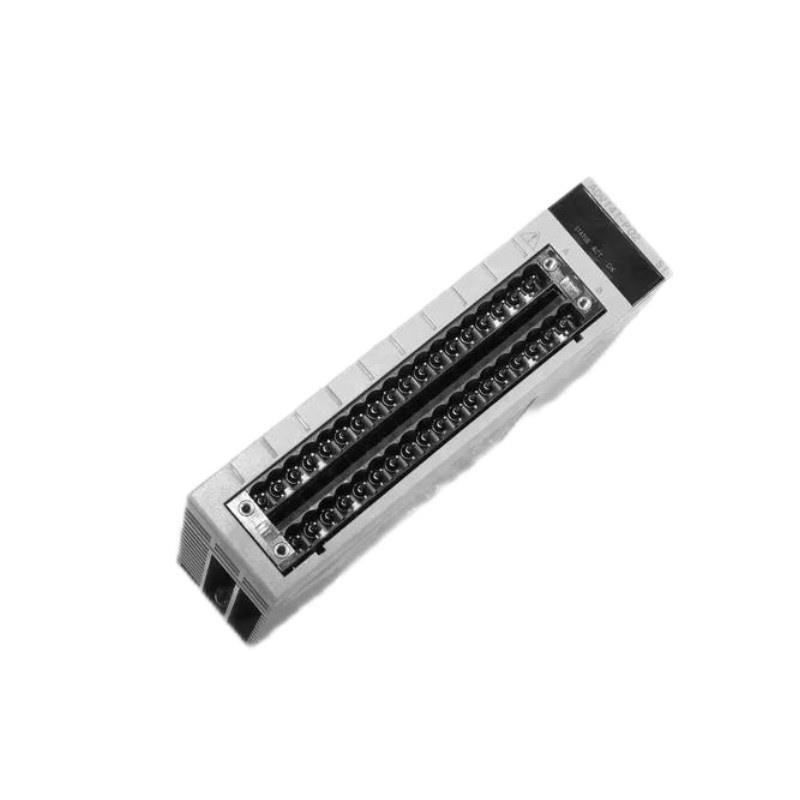

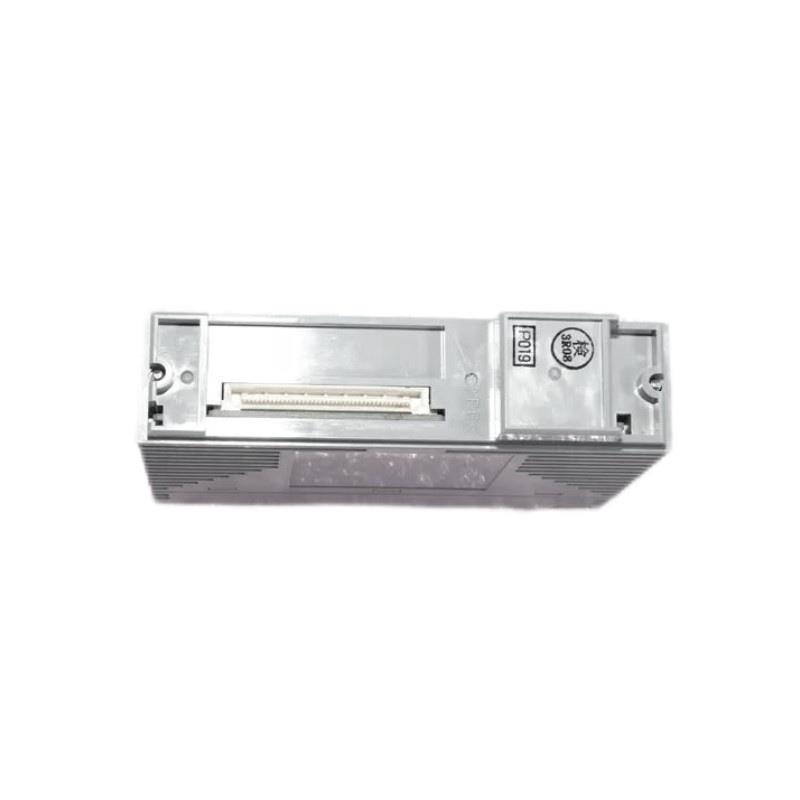

The Yokogawa ADV141 is a high-performance analog input module used within the CENTUM CS 3000 and CENTUM VP distributed control systems. Designed to ensure precise analog signal acquisition, the ADV141 enables seamless integration / analog instrumentation into complex industrial automation environments. This module is particularly well-suited for applications that demand high accuracy and stable performance, such as chemical plants, oil and gas processing, power generation, and water treatment facilities.
The ADV141 supports multiple input ranges and provides 16 channels / analog input, capable / handling differential or single-ended signals. With advanced noise rejection, temperature compensation, and self-diagnostic features, it maintains system integrity and operational safety even in challenging environments.
Product Advantages
-
High Channel Density
-
16 analog input channels in a single module save cabinet space and reduce wiring complexity.
-
-
Versatile Input Range
-
Accepts various input signals, including 1–5V, 0–10V, and 4–20mA, enhancing application flexibility.
-
-
Superior Signal Accuracy
-
Equipped with A/D converters /fering high-resolution digitization and noise suppression capabilities.
-
-
Built-in Diagnostics
-
Continuous internal diagnostics detect wire breakage, module failure, and overvoltage, ensuring system safety.
-
-
Stable Performance
-
Industrial-grade components with high resistance to temperature fluctuations and electromagnetic interference.
-
-
Hot Swappable
-
The module can be replaced without shutting down the system, reducing maintenance downtime.
-
-
Integration with CENTUM VP Systems
-
Seamlessly integrates with Yokogawa’s DCS for centralized data acquisition and process control.
-
Technical Specifications
| Parameter | Value |
|---|---|
| モデル | ADV141 |
| メーカー | 横河電機 Corporation |
| Channels | 16 analog inputs |
| Input Type | Voltage / Current |
| Input Signal Range | 1–5 V, 0–10 V, 4–20 mA |
| Resolution | 16-bit A/D conversion |
| Input Impedance | ≥1 MΩ (voltage input), 250 Ω (current input) |
| Isolation | Channel-to-channel and channel-to-ground |
| Response Time | ≤100 ms |
| Diagnostic Functions | Wire break, overvoltage, module error |
| Power Supply | Supplied via backplane |
| Operating Temperature | 0 to 60°C |
| Storage Temperature | -20 to 70°C |
| Relative Humidity | 5–95% RH (non-condensing) |
| Mounting | Rack-mounted (Yokogawa V net modules) |
| Dimensions | 107.5 × 130 × 32.8 mm |
| 重量 | 0.3 kg |
| Certifications | CE, CSA, RoHS |
| Compatibility | CENTUM CS 3000, CENTUM VP |
Product Applications
-
Oil & Gas Industry: Continuous monitoring / pressure, temperature, and flow in pipelines and refining systems.
-
Chemical Plants: Accurate analog signal acquisition for temperature and pH control.
-
Power Generation: Monitoring turbine sensors and boiler instrumentation.
-
Water & Wastewater Treatment: Signal collection from flow meters, chlorine analyzers, and tank levels.
-
Pharmaceutical Industry: Precise process control in clean environments requiring regulatory compliance.
-
Pulp & Paper Industry: Control and monitoring / process variables such as pulp consistency and drying temperatures.
Installation Guidelines
-
Ensure system power is /f before inserting or removing the ADV141 module.
-
Mount the module securely into a designated slot within the V net I/O rack.
-
Connect each channel using shielded cables, paying close attention to polarity and signal type.
-
Use grounding as per Yokogawa’s wiring standard to minimize noise.
-
Confirm module recognition via the CENTUM configuration interface.
-
Perform a loop check for each input channel before system commissioning.
10 よくある質問 (FAQs)
Q1: What kind / signals does the ADV141 support?
A1: The ADV141 accepts analog signals such as 1–5V, 0–10V, and 4–20mA.
Q2: Is the ADV141 compatible with the CENTUM VP system?
A2: Yes, the module is fully compatible with both CENTUM CS 3000 and CENTUM VP systems.
Q3: Can the ADV141 detect wire breaks?
A3: Yes, it has built-in diagnostics to detect wire breakage, overvoltage, and internal faults.
Q4: How many channels does the module provide?
A4: It provides 16 analog input channels.
Q5: Is the module hot-swappable?
A5: Yes, the ADV141 can be removed or installed without shutting down the system.
Q6: What kind / isolation does the module /fer?
A6: It /fers isolation between each channel and between channels and the ground.
Q7: How is the ADV141 powered?
A7: It draws power from the system backplane and requires no external power supply.
Q8: What is the recommended operating temperature?
A8: The module operates reliably within 0°C to 60°C.
Q9: Does it support current input directly?
A9: Yes, the module supports direct 4–20 mA input and uses internal 250Ω resistors.
Q10: Can this module be configured remotely?
A10: Configuration and diagnostics are accessible via the Yokogawa DCS interface.
Recommended Related モデルs (Same Series or Similar Functionality)
-
ADV151 – Analog Input Module, enhanced with HART protocol support
-
ADV161 – Isolated analog input module for critical signal isolation
-
ADV121 – 8-channel analog input module with high-speed conversion
-
ADV171 – Analog input module with redundant channel features
-
ADV561 – Multifunction analog input module supporting custom calibration
-
ADV141-P – A variant / ADV141 with additional protective coating for harsh environments
Popular Yokogawa Modules (Same ブランド)
| モデル | 説明 | Channels | Size (mm) | 重量 |
|---|---|---|---|---|
| AAI141 | Analog Input Module | 16 | 27.5×130×177 | 0.4 kg |
| AAI543-H50 | HART Analog Input Module | 8 | 27.5×130×177 | 0.4 kg |
| AAI841-H00 | 8ch Analog Input (HART) | 8 | 27.5×130×177 | 0.5 kg |
| ADV551 | Analog Voltage Input Module | 16 | 27.5×130×177 | 0.45 kg |
| SAI143-H63 | Safety Analog Input Module | 16 | 27.5×130×177 | 0.42 kg |
| AAI135 | High-speed Analog Input | 16 | 27.5×130×177 | 0.43 kg |
| AAP135 | Analog Output Module | 16 | 27.5×130×177 | 0.4 kg |
| AAM50 | Multiplexer Module for Analog Inputs | 32 | 60×140×180 | 0.7 kg |
