製品紹介

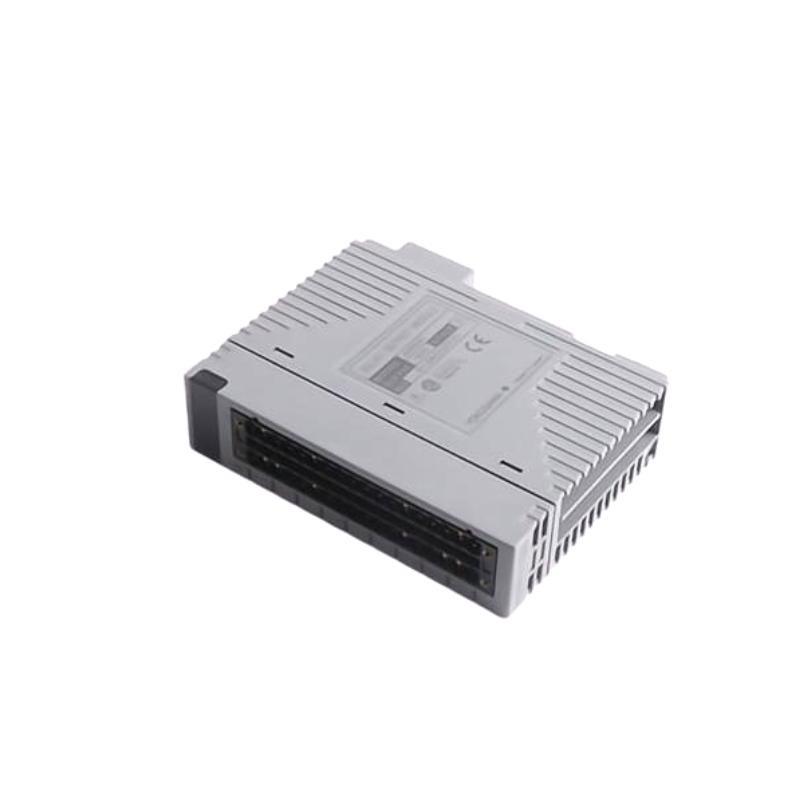

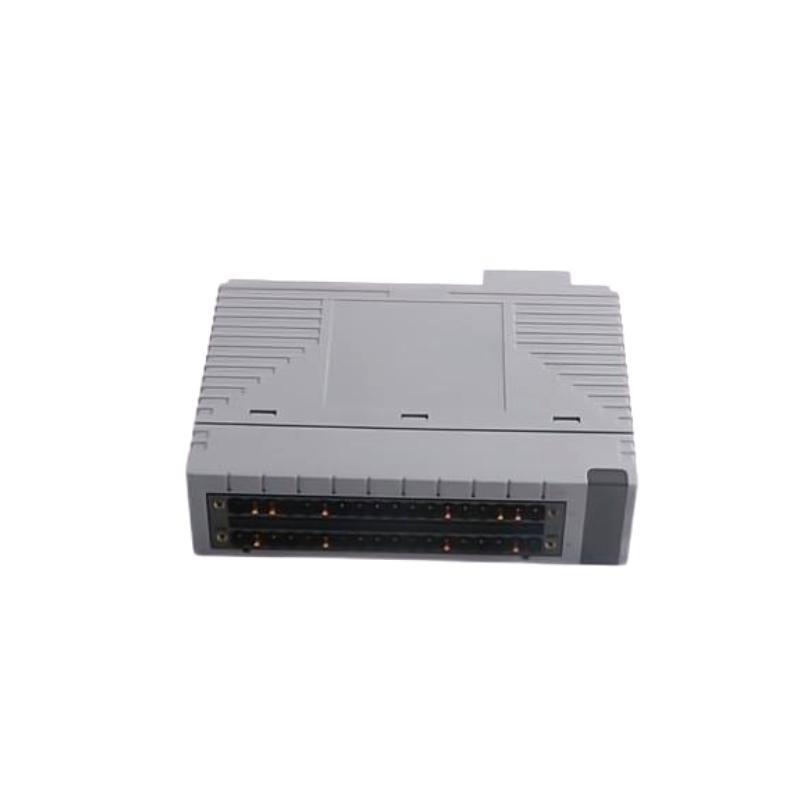

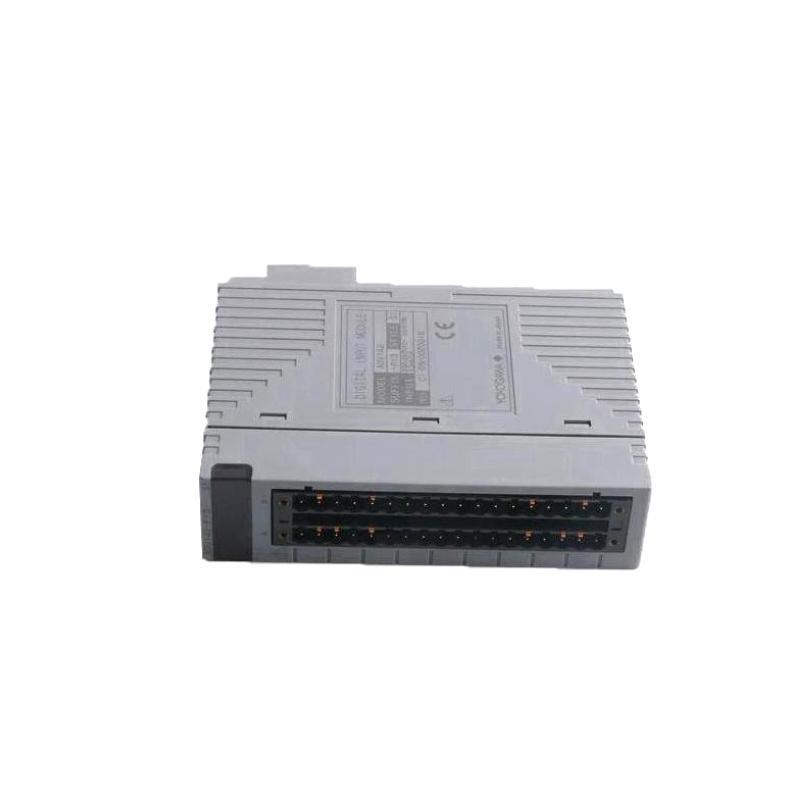

The Yokogawa ADR541-P10 is a high-performance Relay Output Module designed for industrial automation systems. As part / Yokogawa’s renowned FA-M3 family, the ADR541-P10 integrates seamlessly into Distributed Control Systems (DCS), Programmable Logic Controllers (PLCs), and other process control environments. Engineered with reliability and robustness in mind, this module facilitates secure and isolated control / field devices through relay-based outputs.
The ADR541-P10 supports multiple output points, each configured for independent control. It /fers galvanic isolation, safeguarding control logic from field-level electrical noise and surges. Built to meet the demands / mission-critical environments, this relay module is commonly used in sectors such as petrochemical, power generation, water treatment, and manufacturing automation.
製品仕様
| Parameter | Details |
|---|---|
| Product Name | ADR541-P10 Relay Output Module |
| メーカー | 横河電機 Corporation |
| Series | FA-M3 Series |
| Type | Relay Output Module |
| Output Type | Relay (お問い合わせ) |
| Number / Outputs | 8 Channels (independent) |
| お問い合わせ Type | SPST-NO (Form A) |
| Rated Load | 2 A at 250 V AC / 2 A at 30 V DC |
| お問い合わせ Resistance | ≤ 50 mΩ |
| Isolation Method | Photo-coupler and mechanical relay isolation |
| Response Time | ≤ 10 ms |
| Mounting Method | Base 台 mounting |
| Power Supply | Supplied from FA-M3 base |
| Operating Temperature | 0 to 55°C |
| Storage Temperature | -20 to 75°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Dimensions (W × H × D) | 130 x 32.8 x 107.5 mm |
| 重量 | 0.3 kg |
| Standards Compliance | CE, RoHS, UL |
| Connector Type | Removable terminal block |
| Protective Features | Surge protection, Output indication LEDs |
Product Applications
-
Industrial Automation Systems – Used to actuate solenoids, relays, and contactors.
-
Power Plants – Ideal for controlling breaker circuits and turbine valve logic.
-
Chemical and Petrochemical Plants – Drives alarms, valve control, and interlocks.
-
Water Treatment Facilities – Controls pumps, valves, and filter operations.
-
Building Management Systems (BMS) – Interfaces with HVAC, fire alarms, and lighting systems.
-
Manufacturing Lines – Controls conveyor motors, robotic arms, and output stations.
Product Advantages
-
Reliable Mechanical Isolation – Ensures secure operation in high-voltage and noisy environments.
-
Modular Integration – Easily installs within FA-M3 base 台s without rewiring system logic.
-
Compact Form Factor – 保存s space in panel installations while supporting dense I/O configurations.
-
Long Lifecycle Design – Relay contacts rated for extended switching operations.
-
Ease / Maintenance – Detachable terminal blocks simplify wiring and replacement.
-
LED Status Indicators – Provides clear channel activity and fault visualization.
-
Broad Temperature Tolerance – Designed to operate in extreme industrial conditions.
よくある質問 (FAQ)
-
What type / output does the ADR541-P10 provide?
It provides relay (dry contact) outputs with SPST-NO contact type. -
How many output channels are available?
The module supports 8 independently controlled relay outputs. -
Is the ADR541-P10 hot-swappable?
No, the module should only be inserted or removed when the system is powered down. -
Can it be used in safety-critical systems?
While reliable, it is not safety-rated (SIL); consult Yokogawa’s safety modules for such use. -
What type / loads can be connected?
Loads up to 2 A at 250 VAC or 30 VDC can be switched directly by each relay. -
Does it provide short-circuit protection?
No direct short-circuit protection. External fusing is recommended. -
How do I wire the relay outputs?
Use the removable terminal block; refer to the wiring diagram in the user manual. -
Are output channels individually isolated?
Yes, all channels are isolated from logic and from each other through relays. -
Can the module operate in high humidity?
Yes, up to 95% RH, non-condensing. -
What is the replacement cycle or life expectancy?
Typically over 100,000 mechanical operations, depending on load and usage frequency.
Related モデルs (Same Series or Function)
| モデル Number | 説明 | Output Type | Channels | Dimensions (mm) | 重量 |
|---|---|---|---|---|---|
| ADR541-P00 | Relay Output Module (Basic モデル) | Relay | 8 | 27.9 × 100 × 90 | 180 g |
| ARD541 | Relay Output Module (High Load) | Relay | 4 | 27.9 × 100 × 90 | 190 g |
| ADV551-P03 | Digital Output Module | Transistor | 16 | 27.9 × 100 × 90 | 170 g |
| ADV151 | Digital Input Module | Dry お問い合わせ | 16 | 27.9 × 100 × 90 | 165 g |
| AAI141-H50 | Analog Input Module | Current Input | 8 | 27.9 × 100 × 90 | 180 g |
| AAI543 | Analog Output Module | Voltage Output | 4 | 27.9 × 100 × 90 | 180 g |
Popular Yokogawa Modules (その他 Series)
| モデル Number | 説明 | Type | Series | Dimensions (mm) | 重量 |
|---|---|---|---|---|---|
| AAI141 | Analog Input Module (4–20 mA) | Analog Input | CENTUM VP | 27.9 × 100 × 90 | 180 g |
| AAI543-H50 | High-Performance Analog Output Module | Analog Output | ProSafe-RS | 27.9 × 100 × 90 | 185 g |
| ADV151 | Digital Input Module | Digital Input | FA-M3 | 27.9 × 100 × 90 | 165 g |
| AMN11 | CPU Control Module | Control Processor | STARDOM | 50 × 150 × 120 | 400 g |
| SAI533 | Safety Analog Input Module | Safety Analog Input | ProSafe-RS | 27.9 × 100 × 90 | 180 g |
| CP345 | Communication Processor | Network Interface | CENTUM VP | 50 × 120 × 110 | 420 g |
