Product Overview

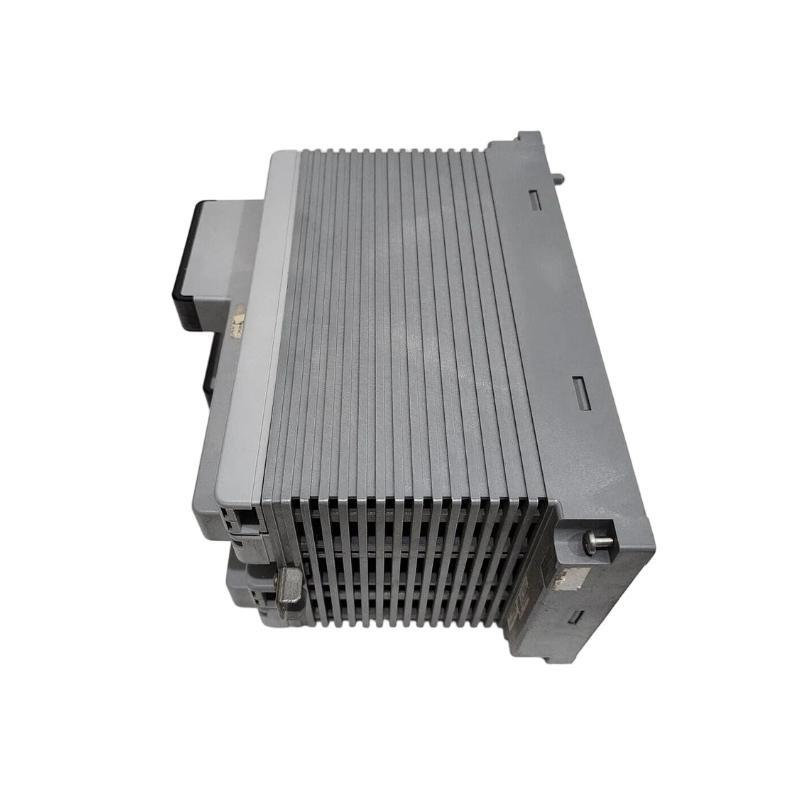

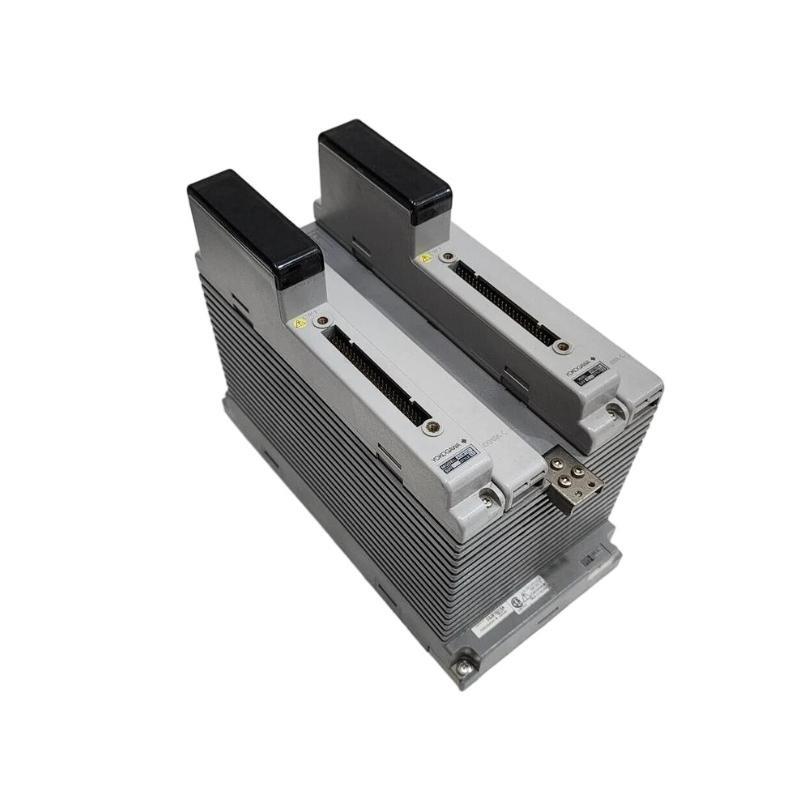

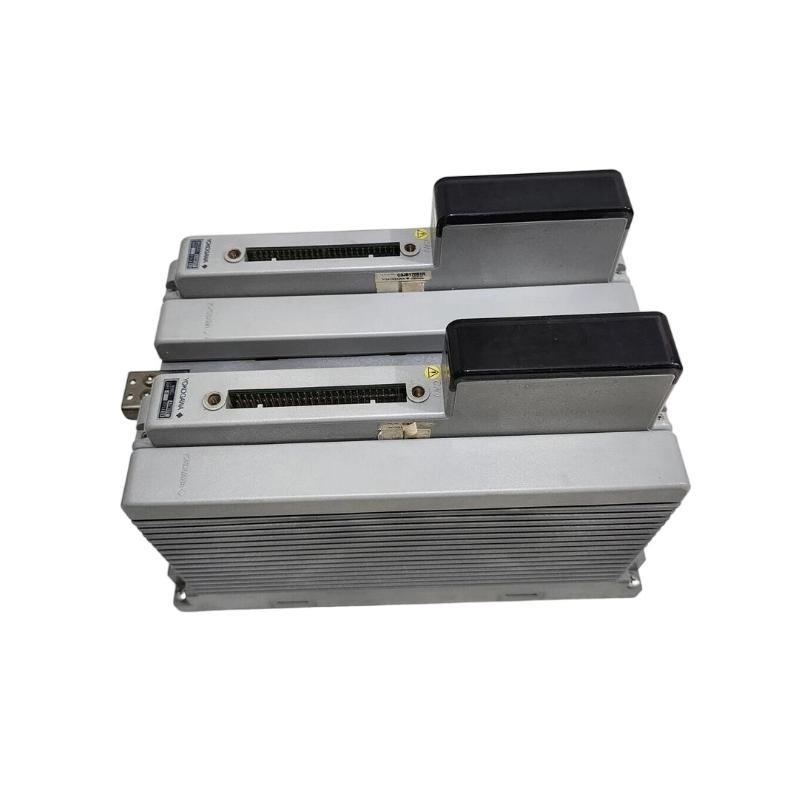

The Yokogawa ADM12C S3 お問い合わせ Input Module is designed for reliable digital signal acquisition from contact devices in process automation systems. It provides precise and fast detection / on//f signals from switches, relays, and other contact-based field devices. Compatible with Yokogawa CENTUM and other DCS platforms, this module ensures dependable operation for critical monitoring and control applications.
Key Features
-
High-speed digital input for rapid signal detection
-
サポートs multiple contact types including dry and wet contacts
-
Diagnostic and status reporting for system reliability
-
Compact design for modular DCS integration
-
Wide operating temperature and humidity range
-
Seamless integration with Yokogawa control systems
Technical Specifications
| Item | Specification |
|---|---|
| Module Type | お問い合わせ Input Module |
| モデル Number | ADM12C S3 |
| Input Type | Dry and wet contact signals |
| Number / Channels | 12 |
| Response Time | ≤ 10 ms |
| Signal Voltage | 24 VDC nominal |
| Power Supply | Supplied via DCS rack |
| Mounting | Module rack |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -20°C to 70°C |
| Humidity | 5% to 95%, non-condensing |
| Dimensions | 200 x 130 x 30 mm |
| 重量 | 1.0 kg |
Industry Applications
-
Monitoring and control / industrial switches and relays
-
Process automation in chemical, petrochemical, and power plants
-
Digital input acquisition for machinery and safety systems
-
Integration with distributed control systems (DCS)
-
Industrial environments requiring reliable contact signal monitoring
よくある質問 (FAQ)
Q1: How many input channels does the ADM12C S3 support?
It supports 12 independent contact input channels.
Q2: What types / contacts are supported?
Both dry and wet contacts are supported.
Q3: Is it compatible with Yokogawa DCS systems?
Yes, designed for CENTUM and compatible DCS systems.
Q4: What is the response time / the module?
≤ 10 ms.
Q5: What is the operating temperature range?
0°C to 60°C.
Q6: Can it operate in humid environments?
Yes, 5% to 95% non-condensing.
Q7: How is it mounted?
It mounts in the DCS module rack.
Q8: What is the signal voltage for inputs?
Nominal 24 VDC.
Q9: Does it provide diagnostics?
Yes, it includes status reporting and diagnostics for reliability.
Q10: What is the weight / the module?
Approximately 1.0 kg.
Related モデルs
| モデル | 説明 |
|---|---|
| ADM12C S1 | お問い合わせ Input Module (lower channel count) |
| ADM12C S2 | お問い合わせ Input Module (similar specification) |
| ADM12C S4 | お問い合わせ Input Module (higher channel count) |
| ADM12C S5 | お問い合わせ Input Module (enhanced diagnostics) |
| ADM12C S6 | お問い合わせ Input Module (extended temperature range) |
| ADM12C S7 | お問い合わせ Input Module (redundant channel support) |
