製品紹介

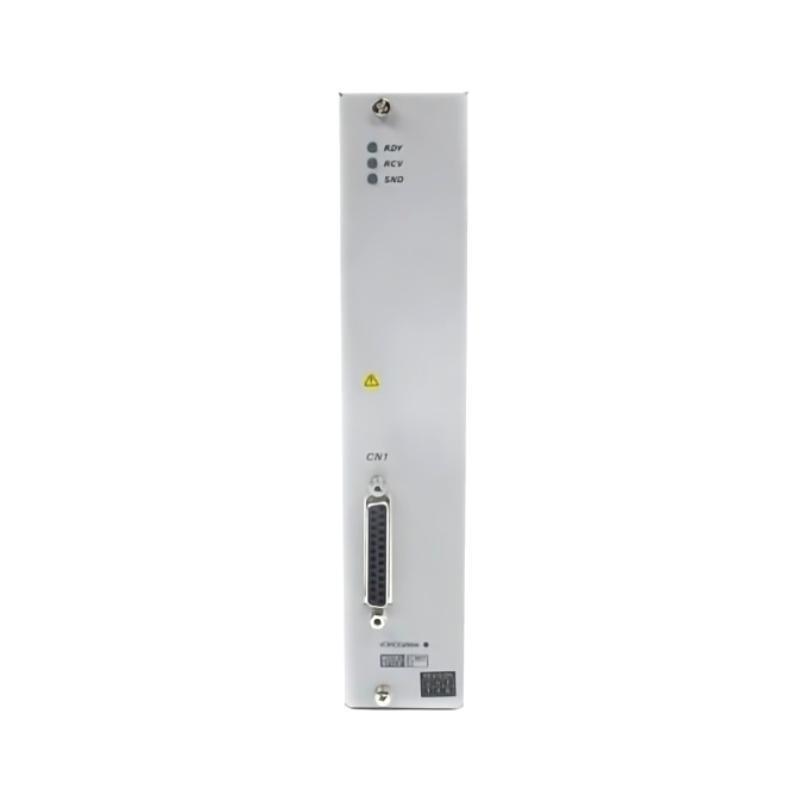

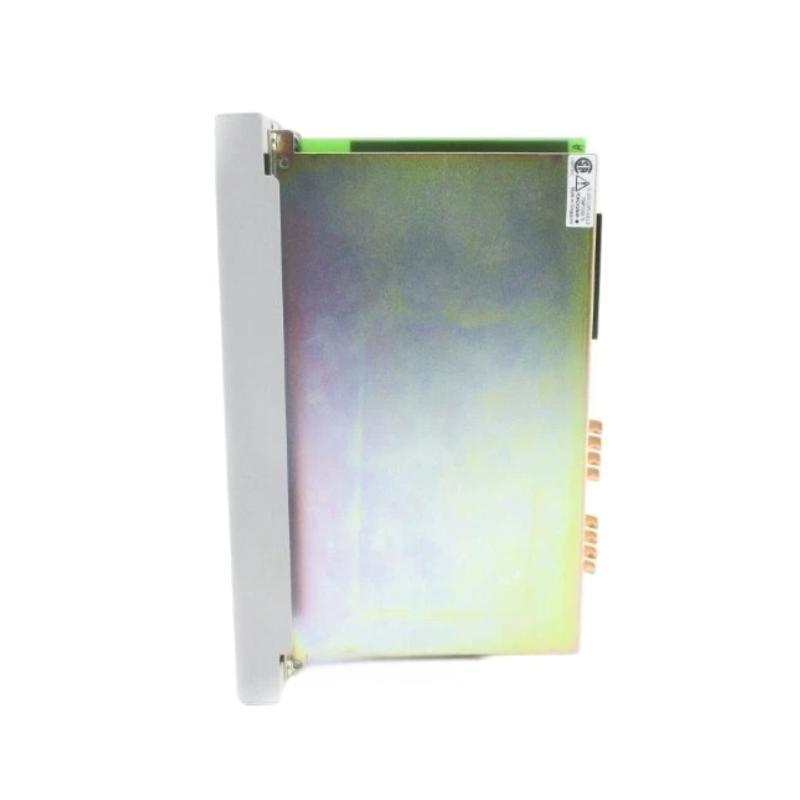

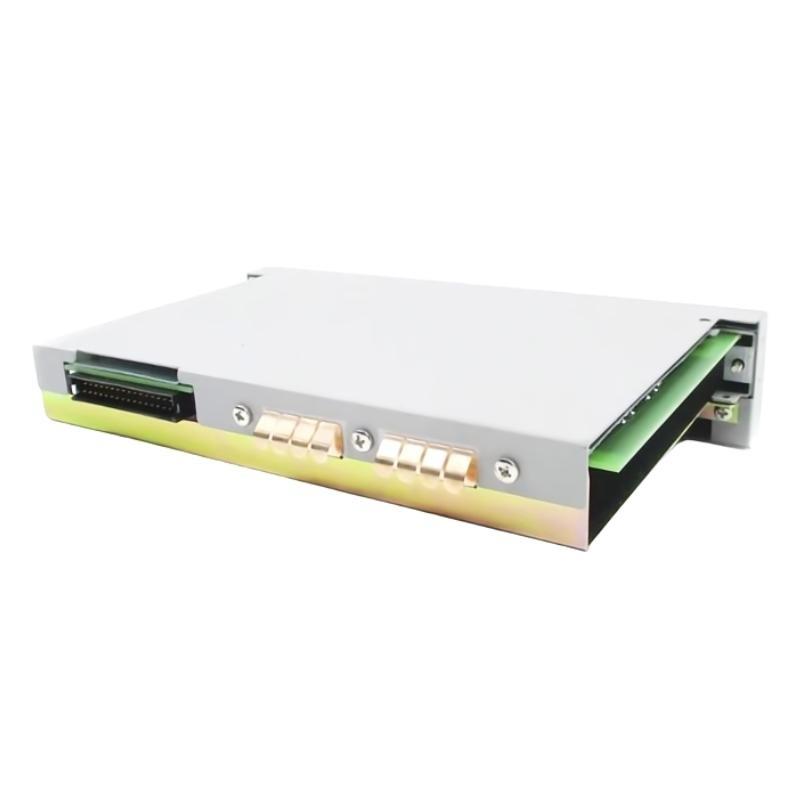

The Yokogawa ACM11 Communication Module is a high-performance interface module designed to enable efficient communication between Yokogawa control systems and various field devices. It provides reliable data transmission, protocol conversion, and network management capabilities within the CENTUM or ProSafe-RS automation environment.
The ACM11 module ensures seamless integration / field instrumentation and controllers, enabling robust monitoring, diagnostics, and control. By supporting multiple communication protocols, the module simplifies system configuration and enhances operational flexibility. It is widely used in process industries, including oil & gas, petrochemical, power generation, and water treatment, where high-reliability communication is critical for safe and efficient plant operation.
製品仕様
| Parameter | 説明 |
|---|---|
| モデル Number | ACM11 |
| Series | Yokogawa Communication Module |
| Function | Data communication and protocol conversion between field devices and control system |
| サポートed Protocols | FOUNDATION Fieldbus, HART, Modbus, DeviceNet (depending on configuration) |
| Number / Ports | 2 to 4 communication ports (model dependent) |
| Data Transmission Rate | Up to 31.25 kbps (FOUNDATION Fieldbus), up to 115.2 kbps (other protocols) |
| Redundancy サポート | Yes, supports redundant communication paths for high availability |
| Diagnostic Functions | Communication error detection, device status monitoring, network diagnostics |
| Operating Temperature | 0°C to +55°C |
| Power Supply | 24 VDC via system backplane |
| Communication Interface | RS-485, Ethernet, and fieldbus compatible |
| Dimensions | 125 × 248 × 130 mm |
| 重量 | 2 kg |
| Mounting | DIN rail or system backplane installation |
| Certifications | CE, UL, CSA, ATEX (depending on configuration) |
Product Applications
The ACM11 Communication Module is used in process control and automation systems for:
-
Process Plants – Integrating field devices into the control system.
-
Oil & Gas Facilities – Real-time monitoring and data acquisition from distributed sensors.
-
Power Generation – Ensuring reliable communication between controllers and field devices.
-
Water & Wastewater Treatment – Data aggregation and protocol conversion for monitoring equipment.
-
Chemical & Petrochemical Plants – Centralized diagnostics and control / hazardous processes.
-
Refineries – Enabling multi-protocol communication for legacy and modern field instruments.
Product Advantages
-
Multi-Protocol サポート – Simplifies integration / various field devices.
-
High Reliability – Redundant communication paths ensure continuous operation.
-
Real-Time Diagnostics – Detects communication errors and device failures promptly.
-
Flexible Installation – サポートs DIN rail or backplane mounting.
-
Enhanced Control – Provides seamless connectivity to Yokogawa control systems for efficient process management.
-
Compact and Lightweight Design – Easy to install and integrate into existing control racks.
FAQ
-
Which communication protocols does the ACM11 support?
It supports FOUNDATION Fieldbus, HART, Modbus, and DeviceNet depending on the configuration. -
How many communication ports are available?
The module /fers 2 to 4 ports depending on the specific model. -
Does ACM11 support redundant communication paths?
Yes, it supports redundant paths for high availability and reliability. -
What is the maximum data transmission rate?
Up to 31.25 kbps for FOUNDATION Fieldbus and up to 115.2 kbps for other protocols. -
Can it provide real-time diagnostics?
Yes, it can detect communication errors, device failures, and monitor network status. -
What is the operating temperature range / the ACM11?
0°C to +55°C. -
How is the ACM11 powered?
It is powered by 24 VDC via the system backplane. -
What mounting options are available?
The module supports DIN rail or system backplane mounting. -
Can ACM11 integrate with legacy field devices?
Yes, multi-protocol support allows it to connect legacy and modern field instruments. -
Which certifications does the module hold?
CE, UL, CSA, and ATEX (depending on configuration).
Related モデルs (Same Series or Compatible)
| モデル | 説明 |
|---|---|
| ACM10 | Basic communication module with single protocol support. |
| ACM12 | High-speed multi-protocol module for FOUNDATION Fieldbus and HART. |
| ACM13 | Redundant communication module for critical process systems. |
| ACM14 | Ethernet-based communication module for integrated control systems. |
| ACM15 | Modbus and DeviceNet integration module. |
| ACM16 | Advanced multi-port fieldbus communication module. |
Popular Yokogawa モデルs
| モデル | 説明 |
|---|---|
| CENTUM VP R6 | Distributed control system for large-scale plants. |
| ProSafe-RS | Safety instrumented system for critical processes. |
| DCS100 | Legacy DCS controller module for industrial plants. |
| YS100 | Field instrumentation gateway and converter. |
| FCS3000 | Control system module for process automation. |
| SAM10 | System alarm management and monitoring module. |
