製品紹介

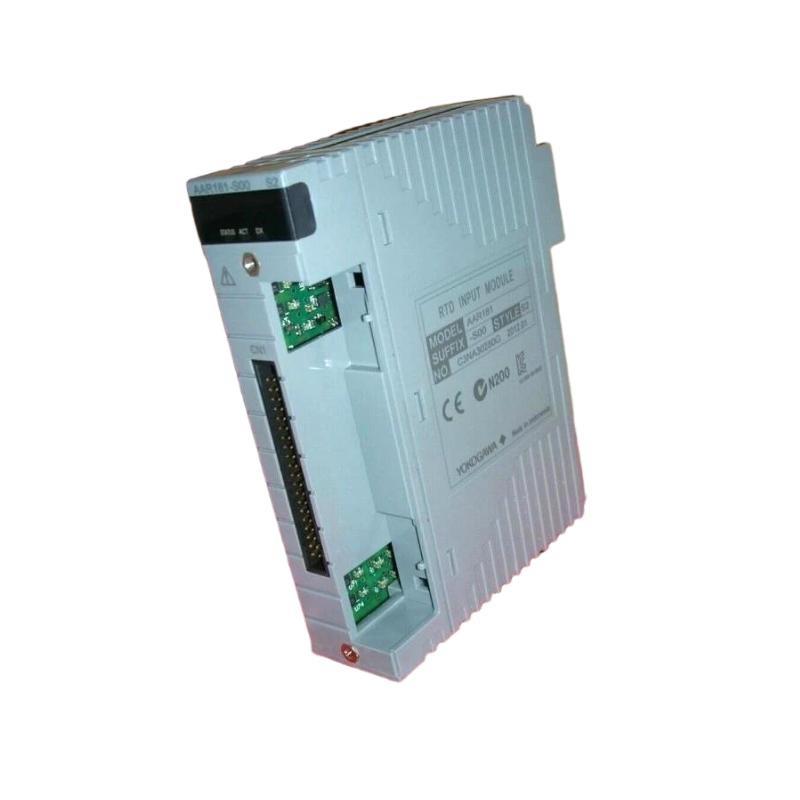

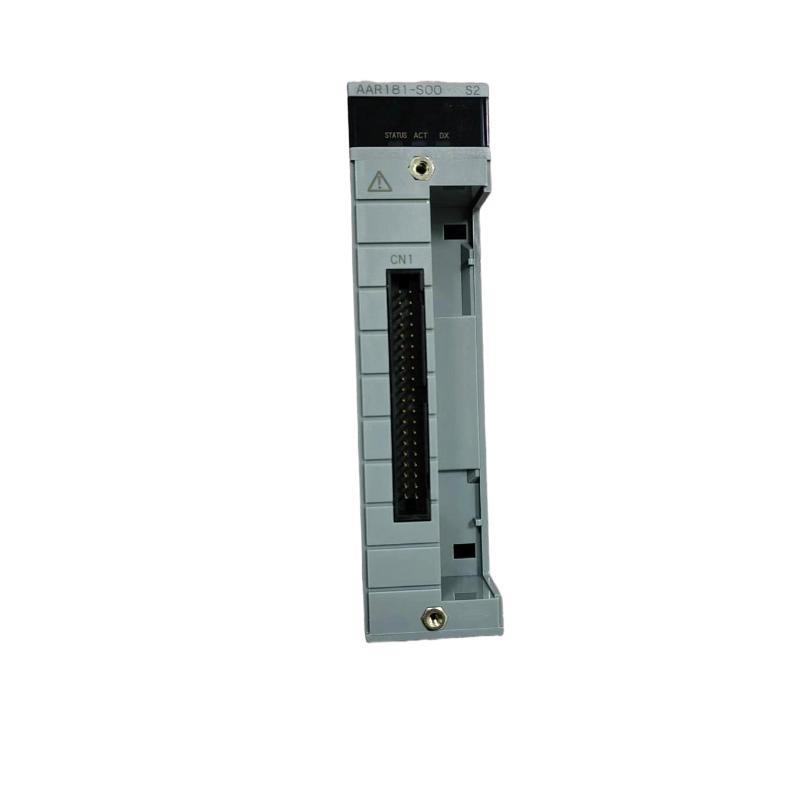

The Yokogawa AAR181-H00/K4A00 is a high-performance RTD input module designed for precise temperature measurement and control in industrial systems. This module features high accuracy and supports multiple RTD sensors, making it an ideal solution for temperature monitoring applications across a wide range / industries, including chemical processing, automated manufacturing, and HVAC systems.
This isolated RTD input module provides excellent signal processing and ensures that the temperature measurements are accurate, even in harsh and noisy environments. By supporting a variety / RTD sensors, the AAR181-H00/K4A00 ensures flexibility in integrating into different process control systems and environments. The compact design / the module allows for easy integration into existing systems, making it a valuable tool for both new installations and upgrades.
製品仕様
| Specification | Details |
|---|---|
| Dimensions (L x W x H) | 107.5 x 130 x 32.8 mm |
| 重量 | 0.2 kg |
| Number / Channels | 4 Channels (per module) |
| Input Type | RTD (Resistor Temperature Detector) |
| Input Resistance Range | 0 Ω to 100 Ω |
| Input Range | -200°C to 850°C |
| Resolution | 16-bit |
| Isolation | Isolated Inputs |
| Power Supply | 24V DC ±10% |
| Operating Temperature Range | -10°C to +60°C |
| Mounting | DIN Rail Mountable |
| Environmental Protection | IP20 |
Product Applications
The Yokogawa AAR181-H00/K4A00 RTD Input Module is designed for applications where precise temperature measurements are required. Its flexibility and accuracy make it ideal for a variety / industrial and automation applications, such as:
-
Industrial Temperature Control
The module is commonly used in industrial temperature control systems to monitor the temperature / machinery, reactors, and heating equipment. It ensures that temperatures are maintained within optimal ranges for safe and efficient operations. -
Automated Manufacturing Systems
In automated manufacturing, accurate temperature readings are essential for ensuring that machinery and equipment operate within their designated temperature thresholds. The AAR181-H00/K4A00 is ideal for applications such as temperature sensing in furnaces, ovens, and production lines. -
HVAC Systems
The AAR181-H00/K4A00 is used extensively in HVAC (Heating, Ventilation, and Air 状態ing) systems for monitoring and controlling the temperature / air or fluids in complex building management systems. -
Chemical and Pharmaceutical Processing
In chemical and pharmaceutical industries, where temperature is a critical process variable, the module provides accurate and reliable temperature measurements in reactors, mixers, and distillation columns to ensure process stability and safety. -
Power Generation and Utilities
The module is used in power plants and utilities for temperature measurement in boilers, turbines, and heat exchangers. Accurate monitoring / temperature helps optimize energy production and reduces maintenance costs. -
Food and Beverage Manufacturing
The AAR181-H00/K4A00 can be employed in food and beverage production lines to monitor the temperature / ingredients, cooking processes, and refrigeration systems, ensuring that production standards and food safety regulations are met.
Product Advantages
-
High Precision
The AAR181-H00/K4A00 /fers 16-bit resolution, ensuring high accuracy in temperature measurements. This precision is crucial for maintaining the quality and safety / processes that depend on accurate temperature control. -
Isolated Inputs
The module provides isolated inputs, which protect against electrical interference and ground loops. This is especially beneficial in industrial environments where noise can affect measurement accuracy and cause operational issues. -
Wide Temperature Range
The AAR181-H00/K4A00 module supports an input range / -200°C to 850°C, making it suitable for a variety / industrial applications requiring a wide temperature measurement span. -
Compact Design
With dimensions / 107.5 x 130 x 32.8 mm, the AAR181-H00/K4A00 is designed to be compact, making it ideal for installation in systems with limited space. -
Reliable Performance
Built by Yokogawa, the module is designed to provide long-term reliability and stability, ensuring continuous operation in critical systems, reducing downtime, and improving system efficiency. -
Versatility in Applications
The AAR181-H00/K4A00 is compatible with a wide range / RTD sensors, /fering flexibility to meet the demands / different industries and applications. -
Easy Integration
The module is DIN rail mountable, making installation easy and convenient. Its standard size and configuration allow it to fit into existing control systems with minimal effort. -
Energy-Efficient
Operating on a 24V DC ±10% power supply, the module is designed to be energy-efficient, making it a cost-effective choice for long-term operations. -
Durable and Robust
With an IP20 protection rating, the module is designed to perform well in most industrial environments, where it may be exposed to dust or other environmental factors. -
Ideal for Harsh Environments
Its wide operating temperature range / -10°C to +60°C makes the module suitable for use in both cold and hot environments, making it adaptable to a variety / industrial settings.
FAQ
Q1: How many channels does the AAR181-H00/K4A00 module support?
A1: The AAR181-H00/K4A00 supports 4 channels for RTD inputs.
Q2: What is the input range / the module?
A2: The module supports an input range / -200°C to 850°C for RTD sensors.
Q3: What is the resolution / the input channels?
A3: The module provides 16-bit resolution for accurate temperature measurements.
Q4: What is the power supply requirement for the module?
A4: The AAR181-H00/K4A00 requires a 24V DC ±10% power supply.
Q5: What is the protection rating / the module?
A5: The AAR181-H00/K4A00 has an IP20 protection rating, which means it is protected from dust but not from water.
Q6: Can this module handle multiple types / RTD sensors?
A6: Yes, the module is designed to be compatible with a variety / RTD sensors for versatile applications.
Q7: What is the operating temperature range for this module?
A7: The module operates within the temperature range / -10°C to +60°C.
Q8: How is the module mounted?
A8: The AAR181-H00/K4A00 is designed for DIN rail mounting for easy installation.
Q9: What industries use the AAR181-H00/K4A00 module?
A9: It is commonly used in industries such as chemical processing, automated manufacturing, HVAC systems, food and beverage production, and energy generation.
Q10: Is the module suitable for use in harsh industrial environments?
A10: Yes, the module is built to provide reliable performance even in harsh industrial environments and is designed with an IP20 protection rating.
