製品紹介

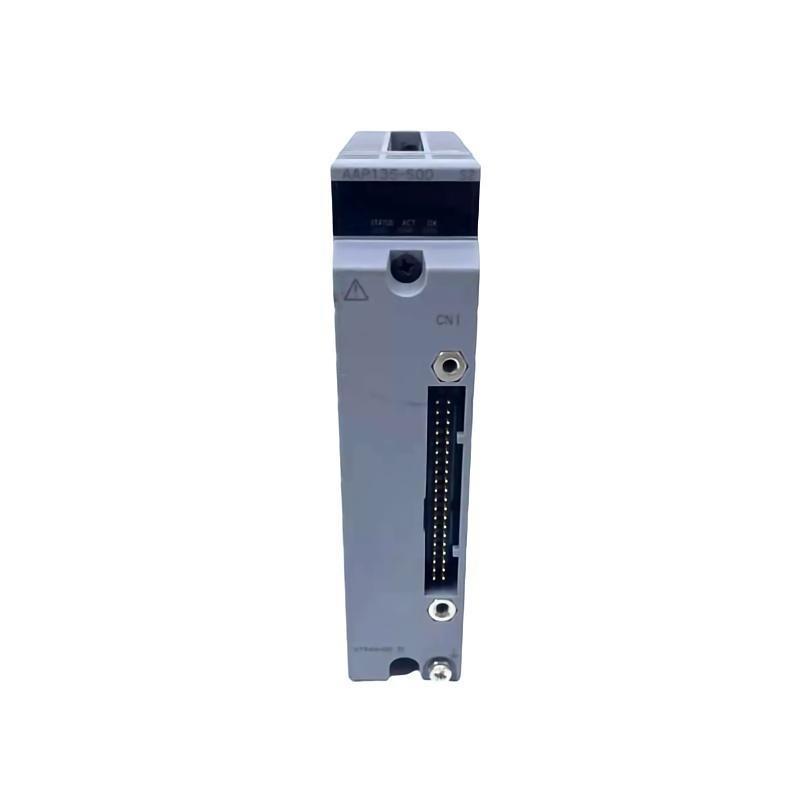

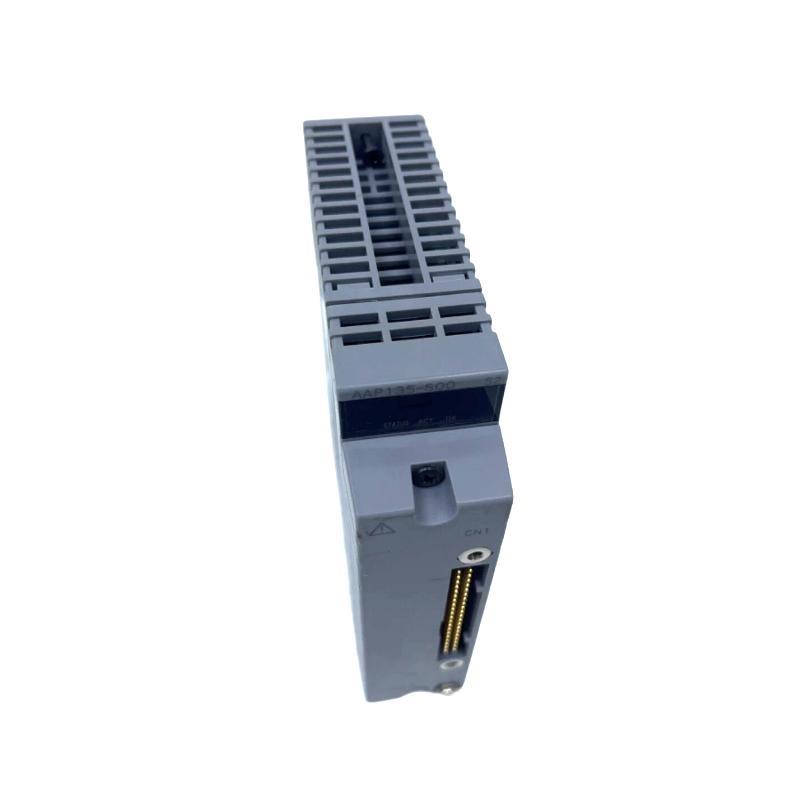

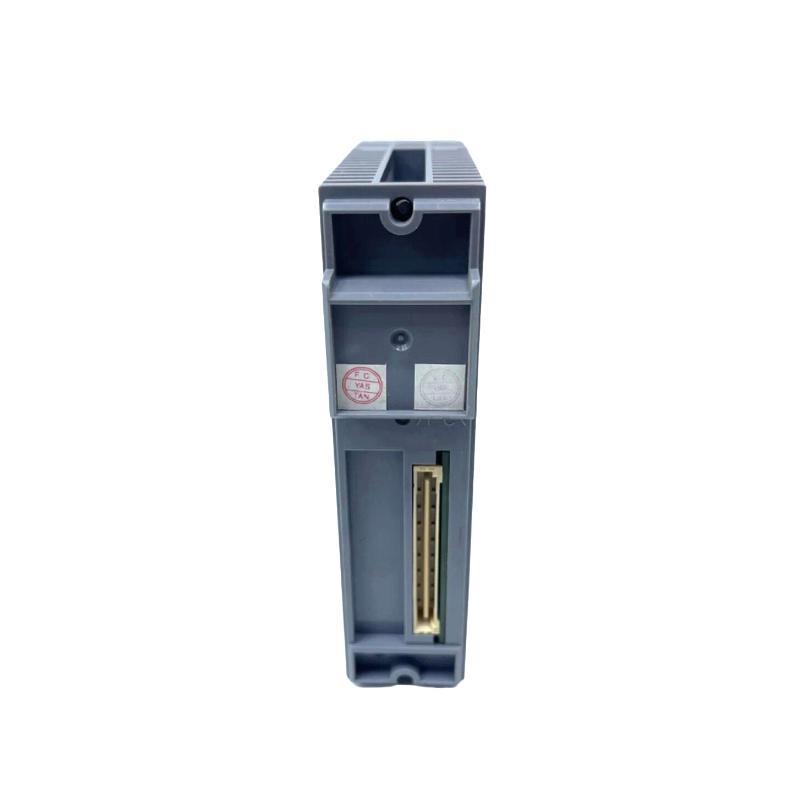

The Yokogawa AAP135-S00/13S00 Analog I/O Module is a high-performance module designed for precise analog input and output within Yokogawa’s Distributed Control System (DCS) environment. It provides accurate data acquisition and control capabilities for complex industrial processes.
This module is engineered to handle multiple analog signals with high resolution, fast response times, and excellent linearity. It ensures reliable operation even in demanding industrial environments, such as petrochemical plants, power generation, and advanced manufacturing systems.
The AAP135-S00/13S00 supports various voltage and current ranges, with robust isolation between channels and from the system backplane to minimize interference. Its modular plug-in design allows straightforward integration into standard Yokogawa racks, and LED indicators provide real-time feedback on module status, simplifying monitoring and troubleshooting.
製品仕様
| Parameter | Specification |
|---|---|
| モデル Number | AAP135-S00/13S00 |
| Module Type | Analog Input/Output Module |
| Input Channels | 12 Analog Inputs |
| Output Channels | 6 Analog Outputs |
| Input Signal Range | 0–20 mA, 4–20 mA, 0–10 V, ±10 V |
| Output Signal Range | 0–20 mA, 4–20 mA, 0–10 V, ±10 V |
| Resolution | 16-bit A/D and D/A |
| Accuracy | ±0.05% / full scale |
| Isolation | 1500 Vrms between channels and from backplane |
| Conversion Time | 1 ms per channel |
| Response Time | < 2 ms typical |
| Status Indication | LEDs for power, error, and module status |
| Rack Compatibility | Yokogawa DCS Standard Rack |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Humidity | 5% – 95% non-condensing |
| Mounting | Rack-mounted |
| Dimensions (H×W×D) | 107.5 × 32.8 × 130 mm |
| 重量 | 0.3 kg |
| Certifications | CE, UL, CSA |
Applications
-
Process Control: Provides precise real-time analog measurements for critical industrial processes.
-
Industrial Automation: Interfaces with sensors and actuators for automated process management.
-
Data Acquisition Systems: Collects high-speed analog data for analysis, predictive maintenance, and system logging.
-
Distributed Control Systems: Integrates seamlessly with Yokogawa DCS for real-time monitoring and control.
-
Signal Conversion: Converts field analog signals to digital signals for processing, and outputs processed signals back to field devices.
-
Redundant System Operation: サポートs redundant configurations for fail-safe industrial applications.
Advantages
-
High Precision: 16-bit resolution ensures accurate signal measurement and control.
-
Multi-Range Compatibility: サポートs a variety / voltage and current input/output ranges.
-
Fast Response: Response time under 2 ms allows real-time process monitoring and control.
-
Robust Isolation: Channel-to-channel and backplane isolation reduces interference and ensures reliability.
-
Diagnostic Indicators: LED lights provide clear status for power, operation, and errors.
-
Modular Design: Simplifies installation, replacement, and maintenance in Yokogawa racks.
-
Industrial Reliability: Operates effectively in wide temperature and humidity ranges suitable for harsh environments.
FAQ
-
What types / analog signals does the AAP135-S00/13S00 support?
It supports 0–20 mA, 4–20 mA current signals, and 0–10 V, ±10 V voltage signals. -
What is the resolution / A/D and D/A conversion?
The module provides 16-bit resolution for both input and output channels. -
How is channel-to-channel isolation achieved?
Each input and output channel is galvanically isolated up to 1500 Vrms from other channels and from the backplane. -
What is the typical response time / the module?
Under normal conditions, the response time is less than 2 milliseconds. -
Can it handle single-ended and differential inputs?
Yes, the module supports both single-ended and differential input configurations. -
How does the module indicate faults or errors?
LED indicators display module power, operational status, and error conditions. -
Is the module hot-swappable?
No, it should be powered down before insertion or removal to prevent signal disturbances. -
What are the maximum safe input voltages and currents?
Maximum input is ±10 V for voltage signals and 0–20 mA for current signals. -
Can the analog outputs interface with PLC systems?
Yes, the outputs are compatible with PLCs and other control systems requiring standard analog signals. -
Does the module support high-speed real-time data acquisition?
Yes, with 1 ms per channel conversion time, it is suitable for real-time process monitoring and control.
Related or Series モデルs
| モデル Number | Channels | Type | Notes |
|---|---|---|---|
| AAP135-S01 | 8 I/O | Analog I/O Module | Standard version |
| AAP135-S02 | 12 I/O | Analog I/O Module | 前の series version |
| AAP135-S03 | 16 I/O | Analog I/O Module | High-density version |
| AAP135-R01 | 8 I/O | Redundant Module | Redundant configuration |
| AAP135-R02 | 12 I/O | Redundant Module | Redundant configuration |
| AAP135-R03 | 16 I/O | Redundant Module | High-density redundant |
Popular モデルs from Yokogawa
| モデル Number | Function | Notes |
|---|---|---|
| AAI841 | Analog Input Module | Single-purpose input module |
| AAD841 | Analog Output Module | Single-purpose output module |
| F3H | Process Control System | High-speed DCS |
| DCS100 | Distributed Control System | Core Yokogawa DCS platform |
| SAM940 | Smart Sensor Module | Intelligent sensor interface |
| AQ225 | Temperature Input Module | Multi-channel thermocouple input |
