Product Overview

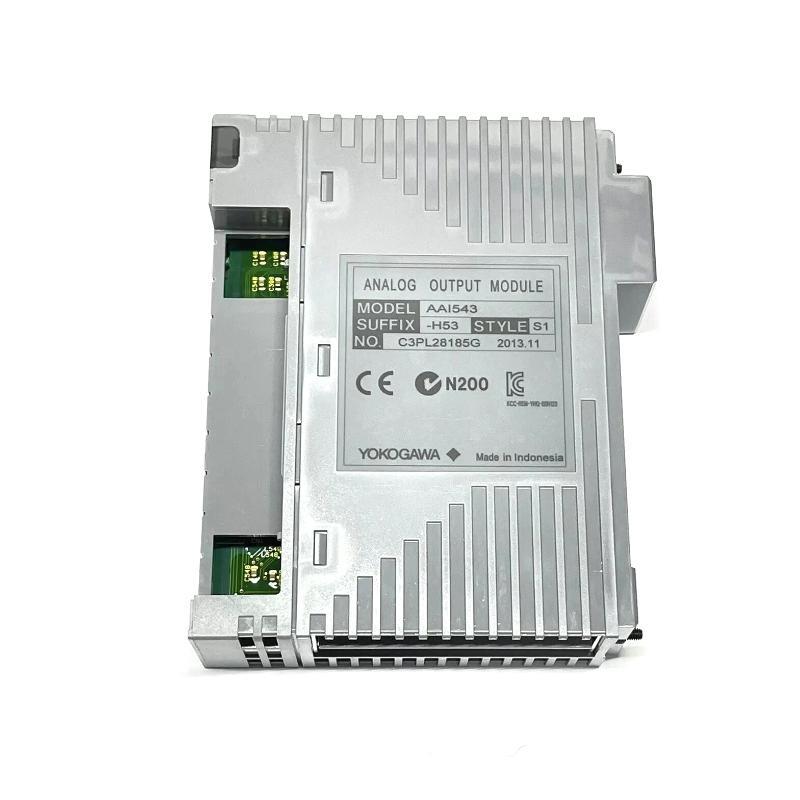

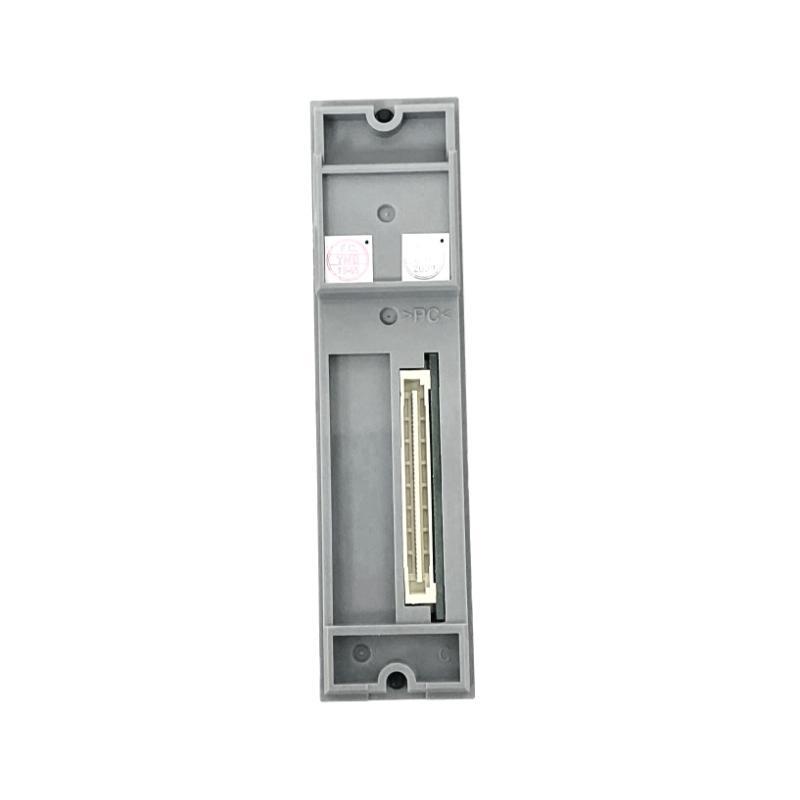

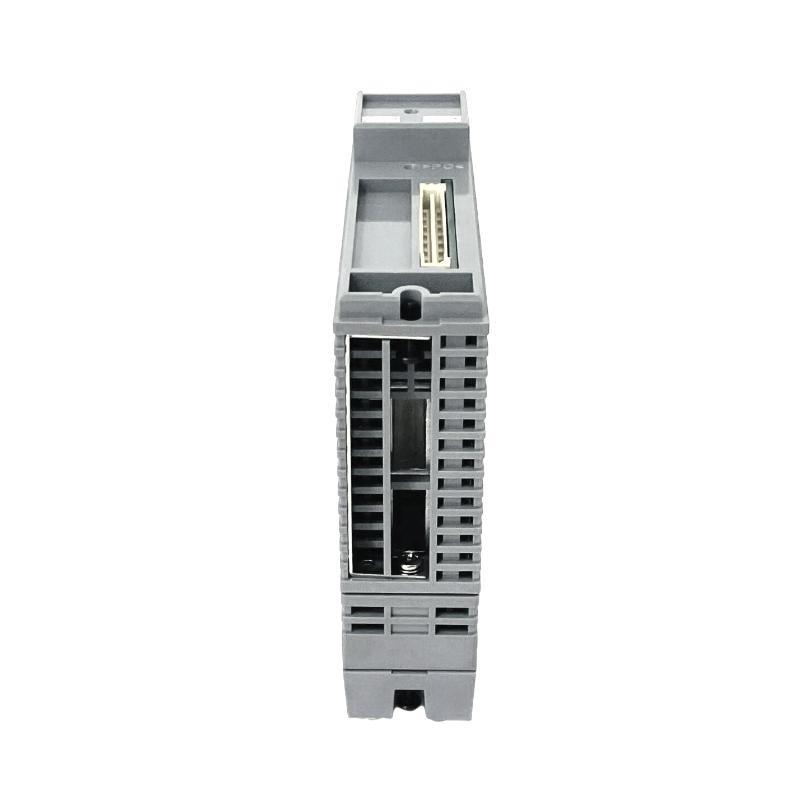

The Yokogawa AAI543-S50/A4S10 is a 16-channel isolated analog output module designed for precise 4–20 mA current signal transmission in industrial control systems. It supports standard switch-over in redundant configurations, ensuring continuous operation and minimal process disturbance during module switchover. Equipped with HART communication capability, it allows both analog signal output and digital parameter exchange with smart field devices. Its high isolation rating between output and system ensures safety and signal integrity in demanding environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| モデル | AAI543-S50/A4S10 |
| Output Channels | 16, isolated |
| Output Signal | 4 to 20 mA |
| Redundancy | Standard switch-over response |
| Withstanding Voltage | 1500 V AC (output to system, 1 min) |
| Allowable Load Resistance | 0 to 750 Ω |
| Circuit-Open Detection | Less than 0.65 mA |
| Accuracy | ±48 µA |
| Data Update Period | 10 ms |
| Temperature Drift | ±16 µA/10 °C |
| Max. Current Consumption | 230 mA (5 V DC), 540 mA (24 V DC) |
| HART Communication | 対応可能 |
| External Connection | Pressure clamp terminal, MIL connector, KS1 cable |
| Dimensions | 107.5 × 32.8 × 130 mm |
| 重量 | 0.4 kg |
Applications
-
Distributed control systems (DCS) for process industries
-
Precise control / actuators, valves, and dampers
-
Industrial automation systems requiring redundant operation
-
Integration with HART-compatible field devices
-
Power plants, petrochemical, and manufacturing facilities
Advantages
-
High Reliability – Dual-redundant capability with smooth switch-over minimizes downtime.
-
Signal Integrity – High isolation ensures stable, interference-free operation.
-
Fast Response – 10 ms data update supports real-time process control.
-
HART サポート – Allows simultaneous analog output and digital communication.
-
Flexible Installation – Multiple terminal block and connector options.
-
Compact Size – 保存s space in control cabinets while maintaining high channel density.
FAQ
Q1: How many channels does the AAI543-S50/A4S10 provide?
A1: It /fers 16 isolated analog output channels.
Q2: What is the output signal range?
A2: The output range is 4 to 20 mA.
Q3: Is it suitable for redundant operation?
A3: Yes, it supports standard switch-over redundancy.
Q4: Can this module communicate with HART devices?
A4: Yes, it supports HART communication.
Q5: What is the allowable load resistance?
A5: The allowable load resistance is between 0 and 750 Ω.
Q6: What is the module’s accuracy?
A6: ±48 µA.
Q7: What is the isolation specification?
A7: 1500 V AC between output and system for 1 minute.
Q8: What is the physical size / the module?
A8: 107.5 × 32.8 × 130 mm.
Q9: How much does the module weigh?
A9: 0.4 kg.
Q10: In which environments is this module commonly used?
A10: In process control systems across industries such as oil & gas, chemical, and power generation.
Related モデルs (Same Series or Similar)
| モデル | Output Type | Channels | Isolation | HART サポート |
|---|---|---|---|---|
| AAI543-H50/A4S10 | 4–20 mA | 16 | Isolated | Yes |
| AAI543-E50/A4S10 | 4–20 mA | 16 | Isolated | No |
| AAI543-F50/A4S10 | 4–20 mA | 16 | Isolated | No |
| AAV544-S50/A4S10 | -10 to 10 V | 16 | Isolated | No |
| AAI835-H50 | 4–20 mA | 4 in / 4 out | Isolated Channels | Yes |
| AAB842-H50 | 1–5 V / 4–20 mA | 8 in / 8 out | Non-Isolated | Yes |
Popular Yokogawa モデルs
| モデル | Function | Channels | Isolation | Dimensions (mm) | 重量 |
|---|---|---|---|---|---|
| AAI141-H50 | Analog Input (4–20 mA) | 16 | Non-Isolated | 107.5 × 32.8 × 130 | 0.2 kg |
| AAV144-S50 | Voltage Input (-10 to 10 V) | 16 | Isolated | 107.5 × 32.8 × 130 | 0.2 kg |
| AAI143-H50 | Analog Input (4–20 mA) | 16 | Isolated | 107.5 × 32.8 × 130 | 0.3 kg |
| AAI835-H50 | Analog I/O (4–20 mA) | 4 in / 4 out | Isolated Channels | 107.5 × 32.8 × 130 | 0.3 kg |
| AAV542-S50 | Voltage Output (-10 to 10 V) | 16 | Non-Isolated | 107.5 × 32.8 × 130 | 0.2 kg |
| AAI135-H50 | Analog Input (4–20 mA) | 8 | Isolated Channels | 107.5 × 32.8 × 130 | 0.3 kg |
