製品紹介

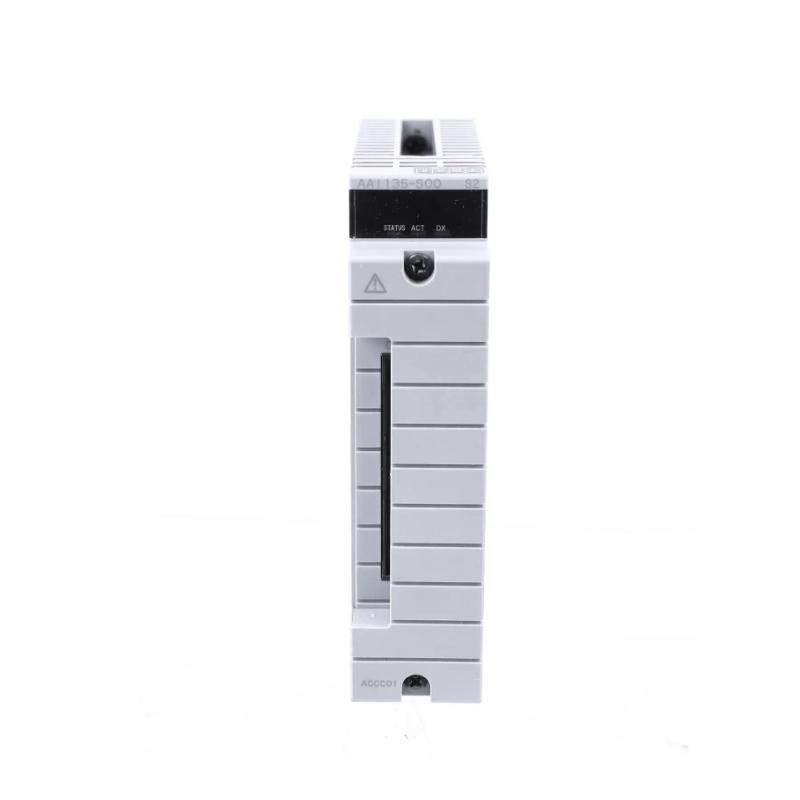

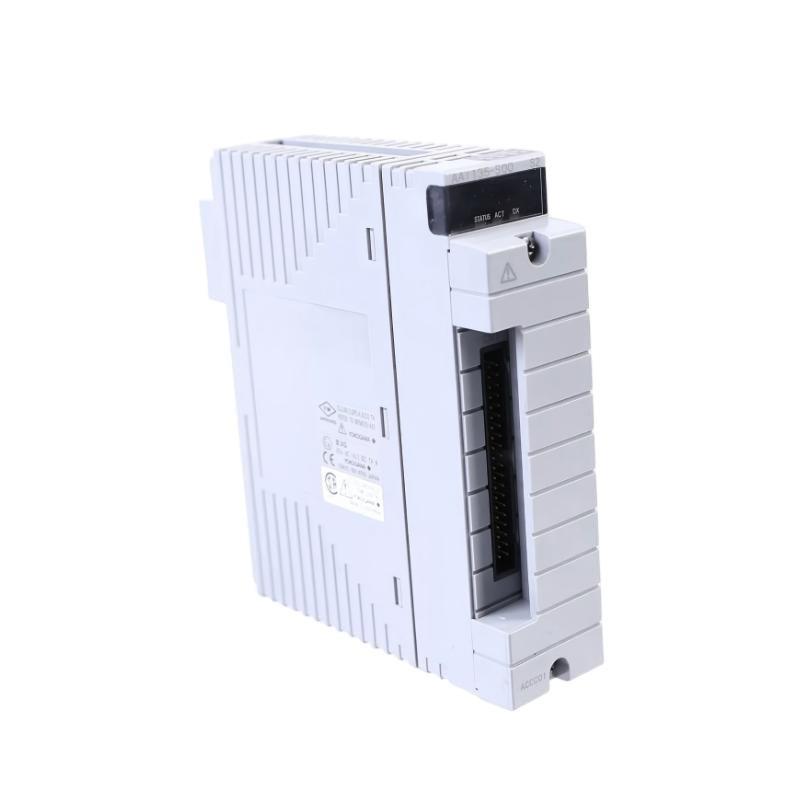

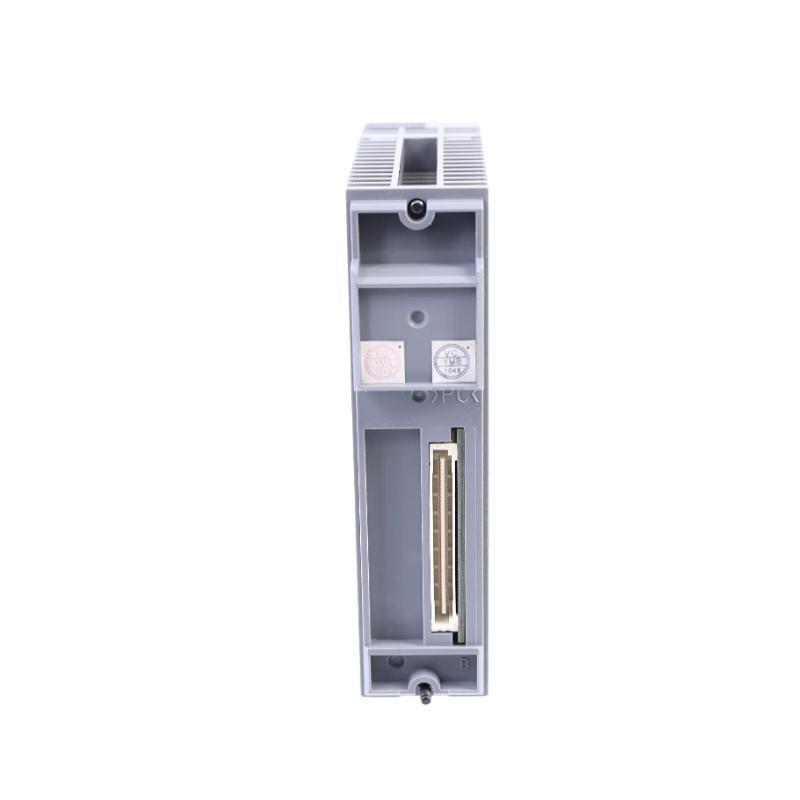

The Yokogawa AAI135-H53 Analog Input Module is a high-performance, 16-channel analog input module designed for use in CENTUM VP and ProSafe-RS systems. This module is part / Yokogawa’s highly reliable input/output family, developed to meet the requirements / safety and critical process control environments.
The AAI135-H53 supports 4–20 mA current input signals and is equipped with HART communication capability, allowing for bidirectional digital communication alongside analog signal transmission. It is suitable for applications demanding high signal accuracy, galvanic isolation, and functional safety compliance. As a safety-instrumented system (SIS) compatible module, it is designed for SIL2/SIL3-rated applications, making it a dependable choice for industries where safety is paramount.
製品仕様
| Parameter | 説明 |
|---|---|
| モデル | AAI135-H53 |
| Type | Analog Input Module |
| Number / Channels | 16 |
| Input Signal Type | 4–20 mA DC with HART communication |
| Input Resistance | 250 Ω |
| Resolution | 16-bit A/D conversion |
| Accuracy | ±0.1% / full scale |
| Channel Isolation | Channel-to-channel and channel-to-ground isolation |
| Sampling Time | Approx. 100 ms per channel |
| Diagnostics Functions | Open wire, over-range, short circuit detection |
| HART Protocol サポート | Yes (all channels) |
| Operating Temperature Range | -20°C to +70°C |
| Storage Temperature Range | -40°C to +85°C |
| Humidity | 5–95% RH (non-condensing) |
| Power Supply | Supplied via I/O baseplate |
| Mounting Method | Mounted on baseplate for I/O modules |
| System Compatibility | CENTUM VP / ProSafe-RS |
| Safety Compliance | SIL2/SIL3 (IEC 61508 certified) |
| Certifications | CE, ATEX, CSA, FM |
| Dimensions (H × W × D) | 107.5 × 32.8 × 130 mm |
| 重量 | 0.3 kg |
Product Applications
The AAI135-H53 is designed for demanding industrial applications where precision, diagnostics, and safety are essential. It is typically deployed in:
-
Oil & Gas: Wellhead pressure monitoring, pipeline flow measurement, /fshore platform automation.
-
Chemical & Petrochemical: Acquisition / critical process variables such as pH, temperature, and tank levels.
-
Power Generation: Input interface for steam turbines, boilers, and distributed control / auxiliary systems.
-
Pharmaceuticals: Input collection for GMP and FDA-compliant production environments.
-
Water Treatment: Accurate monitoring / flow, chemical dosing, and filtration parameters.
-
Pulp and Paper: Process control / digesters, bleach plants, and chemical recovery systems.
Product Advantages
-
SIL2/SIL3 Certified: Approved for use in high-integrity safety systems under IEC 61508.
-
Full HART Communication サポート: Enables enhanced field device management, diagnostics, and configuration.
-
High-Density Channel Count: 16 input channels minimize footprint and reduce installation cost.
-
Channel Isolation: Prevents crosstalk and improves system robustness in electrically noisy conditions.
-
Comprehensive Diagnostic Features: Immediate detection / open wires, over-range inputs, and loop faults.
-
Precision Measurement: 16-bit resolution ensures reliable, stable input under all load conditions.
-
Temperature and Humidity Resilience: Designed to function in extreme industrial environments.
-
Seamless System Integration: Natively supported by Yokogawa CENTUM VP and ProSafe-RS DCS platforms.
FAQ
-
Does the AAI135-H53 support configuration through Yokogawa’s PRM (Plant Resource Manager)?
Yes, the module supports configuration and diagnostics via PRM, enabling access to HART device parameters. -
Can each channel support simultaneous analog and digital communication?
Yes, HART enables simultaneous analog signal transmission and digital diagnostics per channel. -
Is there redundancy support in this model?
Yes, when installed in a redundant I/O configuration, this module supports redundant signal processing. -
What is the input loop impedance, and why does it matter?
The input impedance is 250 Ω, critical for proper current loop operation and HART communication. -
How are faults communicated to the control system?
The module uses status flags, system alarms, and error codes visible in the engineering workstation. -
Does this module allow live hot-swap during operation?
No, it must be removed or installed with the system powered down to avoid potential disruptions. -
Can HART communication be disabled per channel?
Yes, HART can be enabled or disabled per channel depending on configuration requirements. -
Is there a built-in self-test mechanism?
Yes, the module performs continuous diagnostics and loop health monitoring. -
Can this module operate in environments with explosive gases?
Yes, with appropriate system certifications (ATEX, CSA), it can be used in Zone 2 environments. -
Is external signal conditioning required for other input types?
Yes, only 4–20 mA signals are accepted; voltage or thermocouple signals require conditioning.
Related モデルs (Same Series or Functional Equivalents)
| モデル | 説明 |
|---|---|
| AAI135-H00/K4A00 | Standard 16-channel analog input module with HART support |
| AAI135-H50/K4A00 | SIL-rated analog input module for ProSafe-RS |
| AAI135-S00/K4A00 | Safety-grade AI module with diagnostics and HART |
| AAI141-H00/K4A00 | 8-channel analog input with HART communication |
| AAI835-H00 | High-speed, high-resolution analog input module |
| AAI543-H50 | Isolated 8-channel analog input module |
Popular Yokogawa モデルs (Same ブランド)
| モデル | Function |
|---|---|
| CP451-10 | Main processor for CENTUM VP |
| PW482-10 | I/O baseplate power supply module |
| AAR181-S00 | Remote I/O network interface |
| ADV151-P03 | 32-point digital output module |
| ATD5A-00 | Terminal block for analog signal wiring |
| ALR121-S00 | Analog loop resistance converter module |
