製品紹介

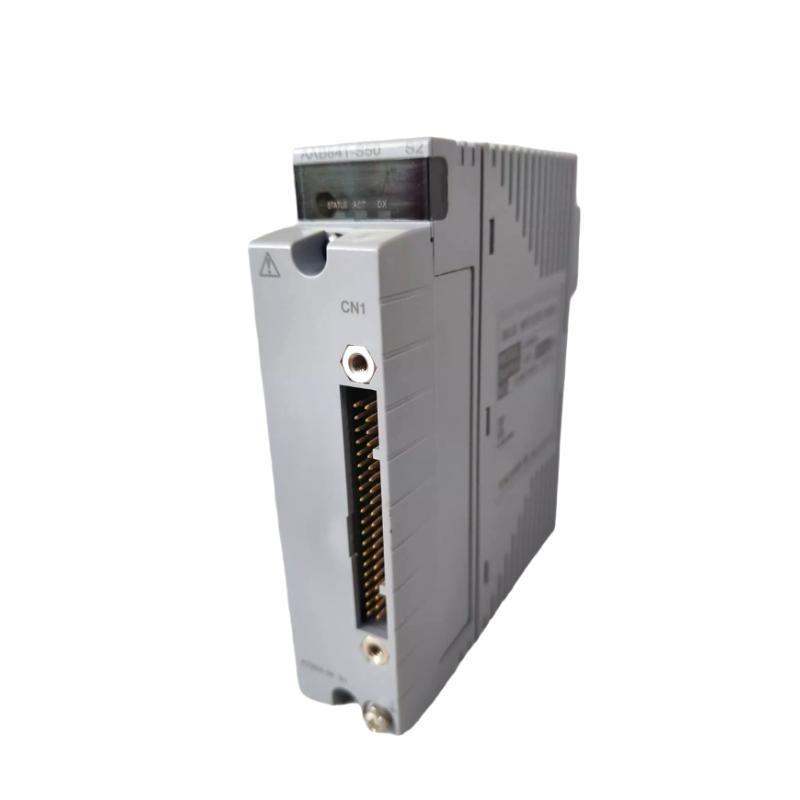

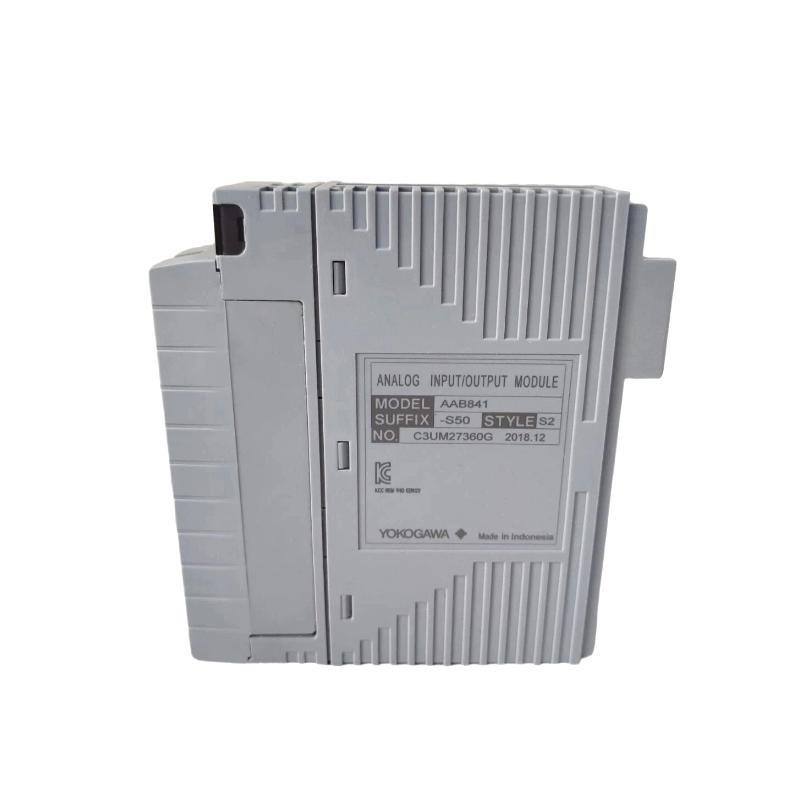

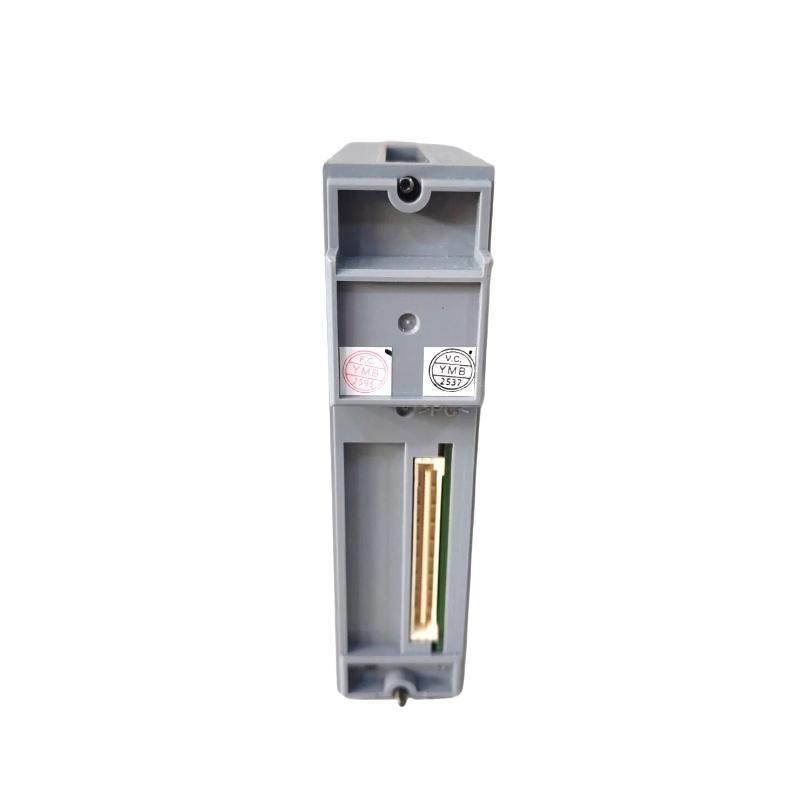

The Yokogawa AAB841-S03/M4A00 Analog I/O Module is a high-precision, industrial-grade module designed for use in Yokogawa’s DCS (Distributed Control System) environments. It provides reliable analog input and output functions, supporting process control, monitoring, and automation applications.
This module is engineered to handle multiple analog signals simultaneously with excellent linearity and low noise, ensuring accurate data acquisition and control in critical industrial processes. Its modular design allows straightforward integration into existing Yokogawa control racks, providing flexibility for expansion and maintenance.
The AAB841-S03/M4A00 supports both voltage and current signal types and is optimized for high-speed, real-time data processing. Built for harsh industrial conditions, it /fers robust electrical isolation between channels and from the system backplane, minimizing interference and ensuring operational reliability.
製品仕様
| Parameter | Specification |
|---|---|
| モデル Number | AAB841-S03/M4A00 |
| Module Type | Analog Input/Output Module |
| Input Channels | 8 Analog Inputs |
| Output Channels | 4 Analog Outputs |
| Input Signal Range | 0–20 mA, 4–20 mA, 0–10 V, ±10 V |
| Output Signal Range | 0–20 mA, 4–20 mA, 0–10 V, ±10 V |
| Resolution | 16-bit A/D and D/A |
| Accuracy | ±0.05% / full scale |
| Isolation | 1500 Vrms between channels and from backplane |
| Conversion Time | 1 ms per channel |
| Response Time | < 2 ms typical |
| Status Indication | LEDs for power, error, and module status |
| Rack Compatibility | Yokogawa DCS Standard Rack |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Humidity | 5% – 95% non-condensing |
| Mounting | Rack-mounted |
| Dimensions (H×W×D) | 107.5 × 32.8 × 130 mm |
| 重量 | 0.3 kg |
| Certifications | CE, UL, CSA |
Applications
-
Process Control: Provides accurate analog signal monitoring and control for chemical, petrochemical, and energy processes.
-
Industrial Automation: Interfaces with sensors and actuators for automated process management.
-
Data Acquisition Systems: Collects real-time analog measurements for analysis, logging, or predictive maintenance.
-
Distributed Control Systems: Works within Yokogawa DCS networks for high-speed and precise process control.
-
Signal Conversion: Converts field analog signals into digital signals suitable for processing and vice versa.
Advantages
-
High Precision: 16-bit resolution ensures accurate signal processing and control.
-
Flexible Signal Handling: サポートs multiple analog ranges for voltage and current signals.
-
Fast Response: Typical response time / under 2 ms enables real-time process control.
-
Robust Isolation: Channel-to-channel and backplane isolation ensures minimal interference.
-
Diagnostic Feedback: LED indicators provide real-time status for easier maintenance.
-
Modular Design: Easy installation and replacement in standard Yokogawa racks.
-
Industrial Reliability: Operates in wide temperature and humidity ranges for harsh environments.
FAQ
-
What types / analog signals does the AAB841-S03/M4A00 support?
It supports current signals (0–20 mA, 4–20 mA) and voltage signals (0–10 V, ±10 V). -
What is the resolution / the module’s A/D and D/A conversion?
The module provides 16-bit resolution for both analog input and output. -
How is channel-to-channel isolation implemented?
Each input and output channel is galvanically isolated up to 1500 Vrms from other channels and the backplane. -
What is the typical response time / the module?
Under normal operating conditions, the response time is less than 2 milliseconds. -
Can the module handle both single-ended and differential inputs?
Yes, it can accommodate both single-ended and differential analog input configurations. -
How are faults or errors indicated?
LED indicators display module power, operational status, and error conditions. -
Is the module hot-swappable in the rack?
No, it should be powered down before insertion or removal to prevent signal disturbances. -
What is the maximum input voltage or current the module can safely handle?
Up to ±10 V for voltage inputs and 0–20 mA for current inputs. -
Can this module integrate with PLC systems?
Yes, the analog outputs can interface with PLCs or other control systems requiring standard analog signals. -
Does the module support high-speed data acquisition?
Yes, with 1 ms per channel conversion time and fast A/D conversion, it is suitable for real-time process monitoring.
Related or Series モデルs
| モデル Number | Channels | Type | Notes |
|---|---|---|---|
| AAB841-S02 | 8 I/O | Analog I/O Module | 前の series version |
| AAB841-S04 | 12 I/O | Analog I/O Module | Extended channel version |
| AAB841-S05 | 16 I/O | Analog I/O Module | High-density version |
| AAB841-R03 | 8 I/O | Redundant Module | Redundant configuration |
| AAB841-R04 | 12 I/O | Redundant Module | Redundant configuration |
| AAB841-R05 | 16 I/O | Redundant Module | High-density redundant |
Popular モデルs from Yokogawa
| モデル Number | Function | Notes |
|---|---|---|
| AAI841 | Analog Input Module | Single-purpose input module |
| AAD841 | Analog Output Module | Single-purpose output module |
| F3H | Process Control System | High-speed DCS |
| DCS100 | Distributed Control System | Core Yokogawa DCS platform |
| SAM940 | Smart Sensor Module | Intelligent sensor interface |
| AQ225 | Temperature Input Module | Multi-channel thermocouple input |
