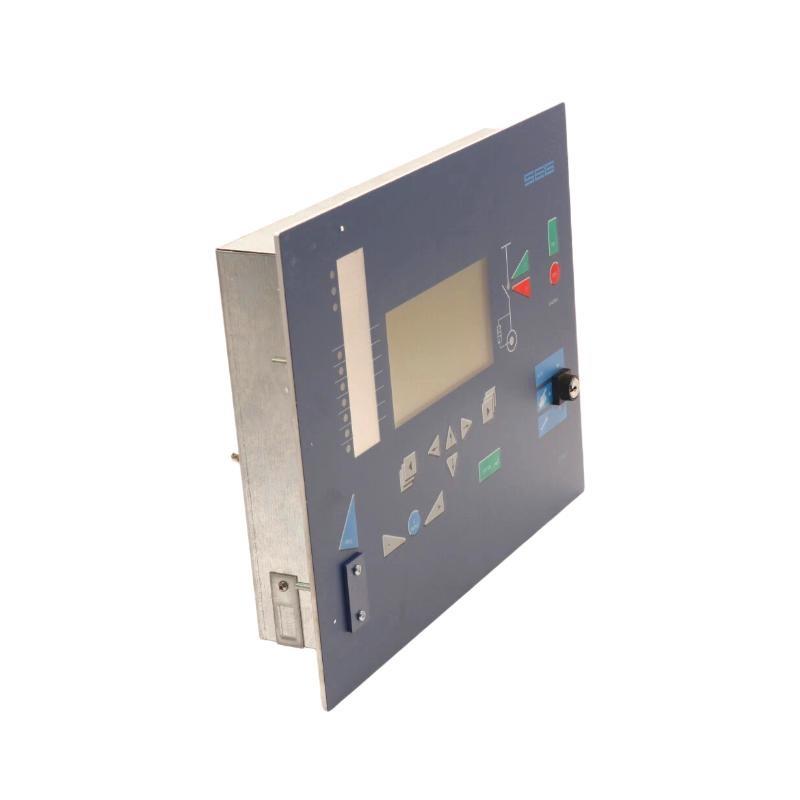

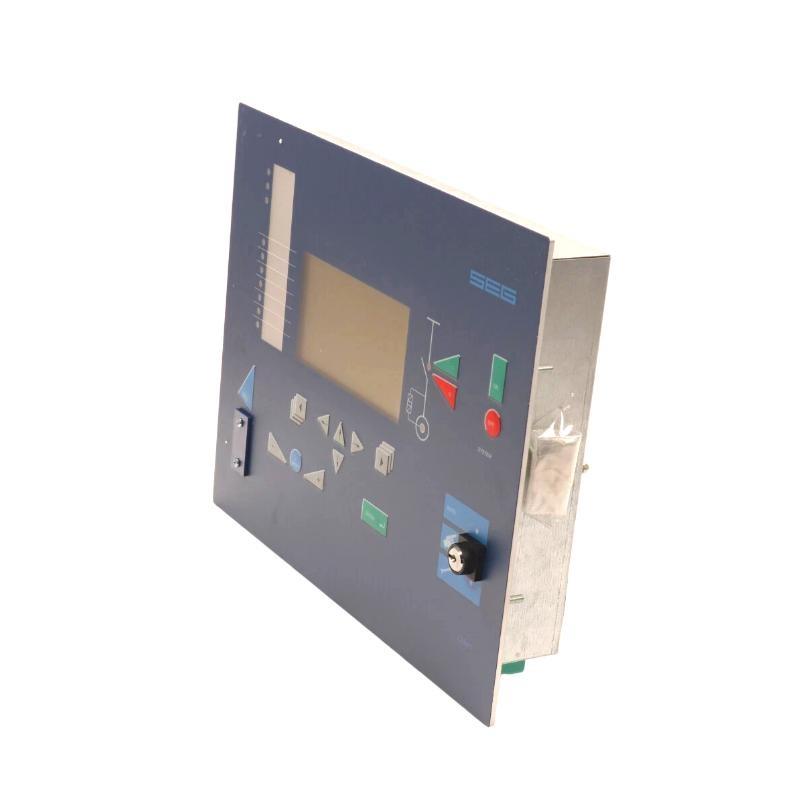

The Woodward CSC3GM1 Control Panel is a high-reliability control and monitoring interface designed for critical engine and generator applications. Engineered to integrate seamlessly with Woodward governors, actuators, and protection systems, the CSC3GM1 delivers precise control / engine speed, generator synchronization, and safety interlocks. Its ruggedized design supports harsh industrial environments while providing operators with clear visual feedback, intuitive push-button navigation, and quick-response adjustments for complex power generation processes.
Technical Specifications
| Parameter | Details |
|---|---|
| モデル Number | CSC3GM1 |
| メーカー | Woodward |
| Function | Engine and generator control interface panel |
| Power Supply | 18–32 VDC (nominal 24 VDC) |
| Control Outputs | Discrete relay outputs, analog control signals |
| Communication Protocols | RS-485 Modbus RTU, CANbus |
| Operating Temperature | –20 °C to +70 °C |
| Storage Temperature | –40 °C to +85 °C |
| Display | Multi-line LED/LCD hybrid for status and parameter display |
| Alarm お問い合わせs | Form C relays, 5 A at 250 VAC or 30 VDC |
| Protection Rating | IP54 front panel, IP20 rear terminals |
| Mounting | Panel-mount or flush-mount with gasket sealing |
| Dimensions (W × H × D) | 260 × 180 × 80 mm |
| 重量 | 1.2 kg |
| Compliance | CE, UL/cUL, RoHS |
Applications
-
Generator Set Control: Provides start/stop control, voltage regulation interface, and alarm management for standby or prime-power generator sets.
-
Industrial Engine Management: Monitors and controls large industrial diesel or gas engines used in pumping, compression, and mechanical drives.
-
Marine Power Systems: Interfaces with shipboard engines and auxiliary generators to ensure stable power supply and safe operation.
-
Cogeneration Plants: Coordinates combined heat and power (CHP) systems for efficient energy utilization.
-
Data Centers & Hospitals: Enables rapid genset startup and load transfer for critical backup power applications.
Advantages
-
Robust Design: Built to withstand vibration, temperature extremes, and electrical noise typical in heavy industrial environments.
-
Intuitive Operation: Clear multi-line display and logical push-button interface reduce operator training time and simplify field adjustments.
-
Flexible Communication: RS-485 Modbus RTU and CANbus support allow easy integration with SCADA and other digital supervisory systems.
-
Advanced Alarm Handling: Multiple programmable relay contacts provide fast and reliable alerting for abnormal conditions.
-
High Electrical Isolation: Input/output channels are isolated to prevent ground loops and protect sensitive electronics.
-
Scalable Configuration: Modular design supports custom control strategies and expansion as system requirements grow.
FAQ
-
What communication protocols are supported for integration with plant SCADA systems?
The CSC3GM1 supports RS-485 Modbus RTU and CANbus protocols, enabling seamless communication with modern supervisory and data acquisition systems. -
How many discrete relay outputs are available for engine or generator control functions?
The panel includes eight programmable Form C relay outputs rated at 5 A, allowing flexible control / start/stop, breaker commands, and alarm signaling. -
Does the control panel provide galvanic isolation for its I/O channels?
Yes, all analog and digital channels feature 1500 V RMS isolation to protect connected equipment from transient voltages and electrical noise. -
Can firmware upgrades be performed without removing the panel from service?
Yes, firmware updates can be completed through the RS-485 service port while the panel remains installed, minimizing downtime. -
What display technology is used for real-time monitoring?
A hybrid LED/LCD multi-line display provides bright, high-contrast visibility in both low-light and high-glare environments. -
How does the panel handle redundant power supplies?
It includes dual DC input terminals, enabling connection / primary and backup power sources to ensure continuous operation. -
Is there built-in protection against reverse polarity or overvoltage?
The CSC3GM1 integrates reverse-polarity and surge-suppression circuits to safeguard internal electronics. -
How are alarms prioritized and reported to external systems?
Alarms can be configured with priority levels and are transmitted via relay outputs and Modbus/CAN messages for immediate SCADA recognition. -
Can the panel control both diesel and gas engines?
Yes, it is engine-type agnostic and configurable for a wide range / diesel or natural gas engines with appropriate governors and sensors. -
What is the recommended maintenance schedule for optimal reliability?
Only periodic visual inspection and terminal tightening are required; a full functional test during regular engine maintenance is recommended.
Recommended Related モデルs
| モデル Number | 説明 |
|---|---|
| CSC3GM2 | 次へ-generation control panel with expanded I/O |
| CSC4GM1 | High-density control panel for multi-engine applications |
| CSC3GS1 | Compact generator start/stop interface panel |
| CSC3GM1-R | Ruggedized variant for extreme vibration environments |
| CSC3GA1 | Advanced panel with integrated load-sharing controls |
| CSC3GN1 | Network-ready control module with enhanced diagnostics |
Popular Woodward モデルs
| モデル Number | 説明 |
|---|---|
| 9905-001K | SPM-A automatic synchronizer for generator paralleling |
| 2301E | Digital load-sharing and speed control module |
| 5417-040 | Industrial control cable for Woodward governors |
| 5501-471 | Power management controller |
| 5466-353 | Overspeed protection module for turbines |
| 8440-1949 | EasyGen series genset controller |
