製品紹介

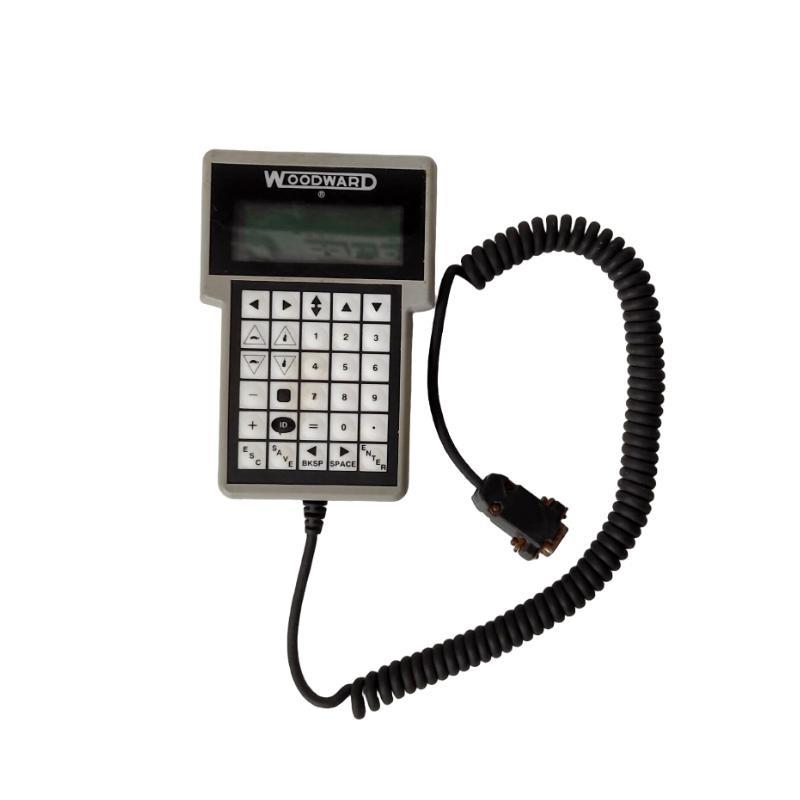

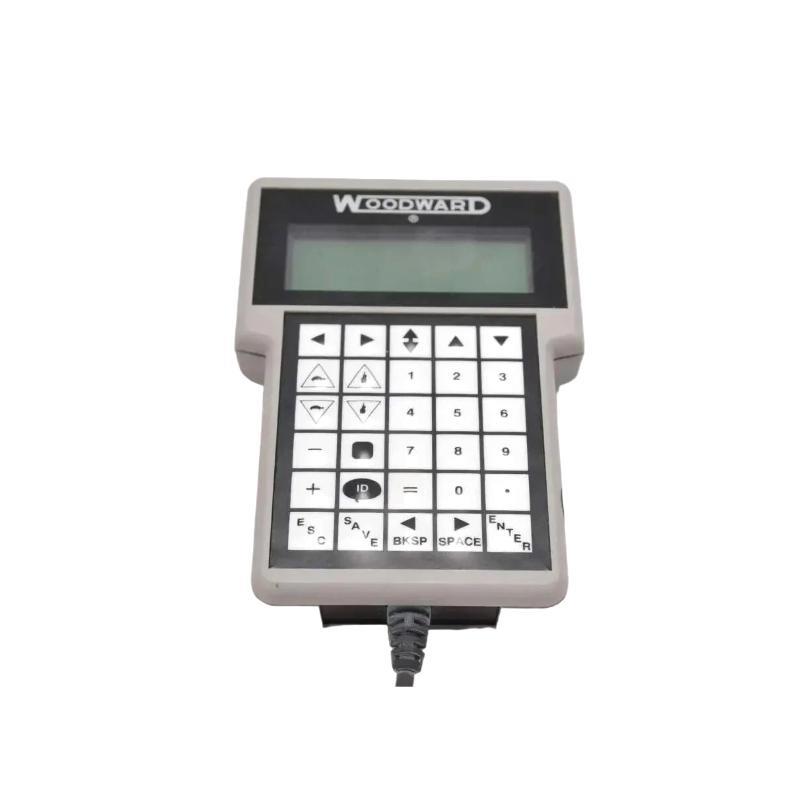

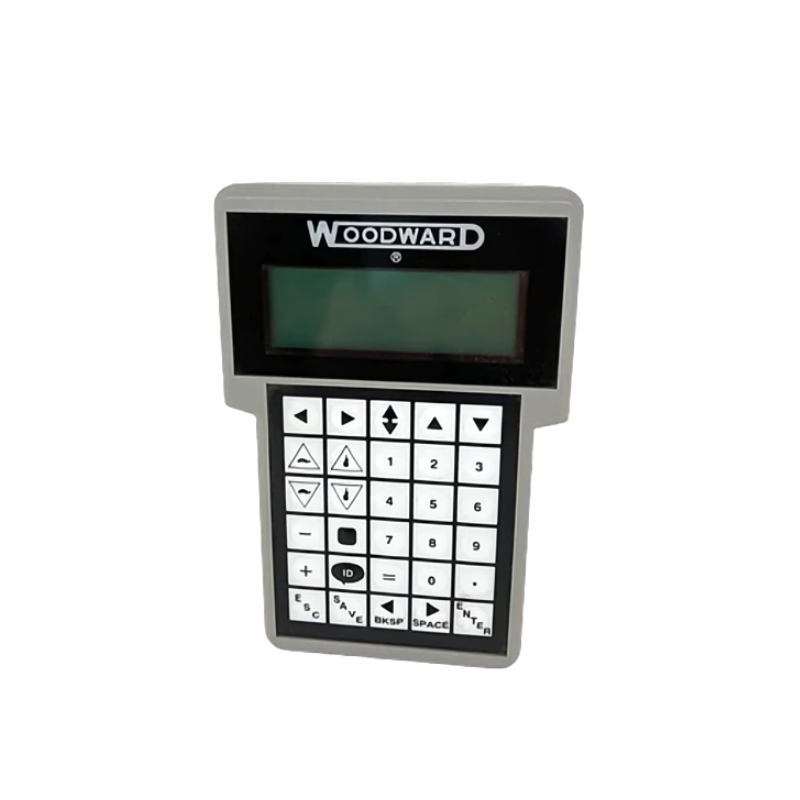

The Woodward 9907-205 Hand Held Programmer is a compact, durable interface device designed for configuration, monitoring, and tuning / Woodward analog engine and generator control modules. Specifically engineered to be used in field environments, this portable programmer allows technicians and engineers to interact directly with supported control 台s for diagnostics, setup, and real-time adjustments.
This programmer features a rugged keypad and a clear display for navigating through control parameters, fault logs, and system configurations. It eliminates the need for bulky PC-based tools or s/tware and is ideal for remote, mobile, or maintenance-heavy operations. The 9907-205 is widely used with Woodward’s 2301A, 2301D, and other analog controllers.
Its lightweight design, field programmability, and direct communication capabilities make it an essential tool for service personnel in the power generation, oil & gas, marine, and industrial sectors.
Technical Specifications
| Parameter | Details |
|---|---|
| Product Name | Hand Held Programmer |
| モデル Number | 9907-205 |
| メーカー | Woodward, Inc. |
| Function | Configuration and tuning / compatible Woodward controllers |
| Display | LCD screen with backlight |
| Keypad Type | Tactile membrane keypad |
| Interface | Serial communication (proprietary cable required) |
| Power Supply | Supplied by the controller (no internal battery) |
| Usage Mode | Handheld, portable |
| Compatible Controllers | 2301A, 2301D, 723, Load Sharing Modules (analog) |
| Operating Temperature | –20 °C to +70 °C |
| Enclosure Rating | IP50 (dust-resistant) |
| Material | Industrial-grade plastic casing |
| Dimensions (W × H × D) | 100 × 180 × 45 mm |
| 重量 | 1.9 kg |
| Certifications | CE compliant |
Product Applications
The Woodward 9907-205 is used in diverse industrial settings where reliable field-level controller access is required:
-
Power Generation Facilities
Enables real-time tuning and status monitoring / generator control modules. -
Oil & Gas Installations
Used for on-site calibration and diagnostics / engine/generator controllers in remote environments. -
Marine Propulsion Systems
サポートs configuration / analog control 台s for onboard generator and engine synchronization. -
Field Maintenance & Service
Portable and robust tool for field engineers and service technicians. -
Backup Power Systems
Used in critical facilities like hospitals and data centers for on-demand adjustments during maintenance. -
Industrial Process Plants
Assists in setup and fine-tuning / controller behavior in process-driven engine systems.
Product Advantages
-
Rugged and Portable
Built for field use, the compact and durable design makes it ideal for harsh environments. -
Direct Controller Access
Eliminates the need for laptops or s/tware—plug and play with supported Woodward 台s. -
No External Power Required
Draws minimal power directly from the controller for ease / use and reliability. -
User-Friendly Interface
Clear LCD display and tactile keypad make navigation and parameter entry fast and intuitive. -
Multi-Controller サポート
Compatible with several widely used Woodward analog and digital controllers. -
Field-Tested Reliability
Proven in global industrial sectors for consistent performance in diverse conditions.
よくある質問 (FAQ)
-
Q: What is the main purpose / the 9907-205 Hand Held Programmer?
A: It is used to program, configure, and monitor Woodward control modules directly in the field. -
Q: Does this programmer need batteries or external power?
A: No, it draws power directly from the controller it connects to. -
Q: Which controllers are compatible with the 9907-205?
A: It is compatible with controllers like the 2301A, 2301D, and several analog load sharing modules. -
Q: Is any s/tware installation required to use the programmer?
A: No, it is a standalone device and does not require a computer or s/tware. -
Q: Can I use this programmer to upload or back up controller configurations?
A: It allows viewing and modifying configurations but does not store or transfer data externally. -
Q: Is this device waterpro/?
A: It is dust-resistant (IP50), but not waterpro/; it should be protected from direct exposure to liquids. -
Q: How is it connected to the controller?
A: Via a proprietary serial cable designed by Woodward for specific controller models. -
Q: Can this programmer update firmware?
A: No, it is only for parameter adjustments, not firmware updates. -
Q: What should I do if the screen doesn’t turn on?
A: Ensure the controller is powered and the cable is securely connected—the programmer powers through the controller. -
Q: Is training required to use the programmer?
A: Basic familiarity with the controller and menu navigation is helpful, but it is designed to be user-friendly.
Related or Compatible モデルs (Same Series or Function)
| モデル Number | 説明 | Function | Compatibility |
|---|---|---|---|
| 9907-167 | Load Sharing Module | Load balancing | Often used with 9907-205 for tuning |
| 2301A | Analog Speed & Load Control | Engine/Genset control | Fully configurable via 9907-205 |
| 723 Digital Control | Digital Engine Control | Comprehensive control | Parameter viewing via HHP |
| 9907-175 | Load Sharing Controller | Analog control | サポートs tuning via 9907-205 |
| 9907-250 | Advanced Hand Held Programmer | Extended functions | 次へ-gen handheld interface |
| 505 Controller | Steam/Gas Turbine Control | Turbine automation | Programmer useful during setup |
Popular Woodward モデルs (Same ブランド – Widely Used)
| モデル Number | 説明 | カテゴリー | Typical Use |
|---|---|---|---|
| EASYGEN-3500XT | Generator Set Controller | Generator Control | Paralleling, protection, automation |
| 2301D Digital | Speed & Load Controller | Engine Governor | Digital replacement / 2301A |
| 505XT | Turbine Controller | Turbine Control | Steam/Gas turbine systems |
| SPM-D2 | Synchronizer Module | Gen-Set Synchronization | Bus-to-bus or gen-to-bus applications |
| Atlas-II | Advanced Engine Control Platform | Engine Control | Large gas/diesel engine automation |
| ProAct Actuator | Integrated Electric Actuator with Governor | Actuation and Control | High-speed throttle/fuel valve actuation |
