Product Overview

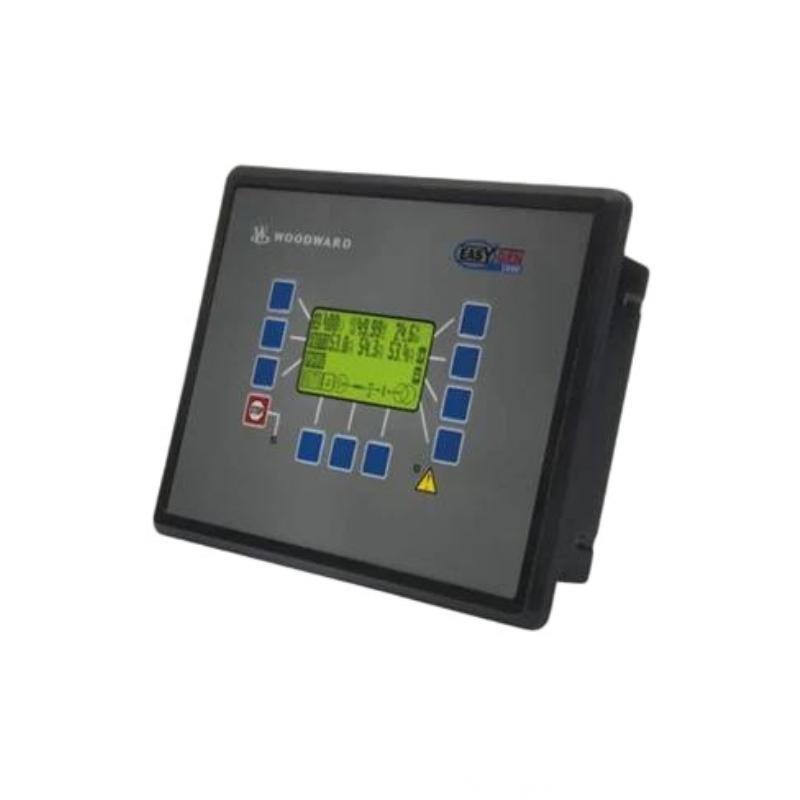

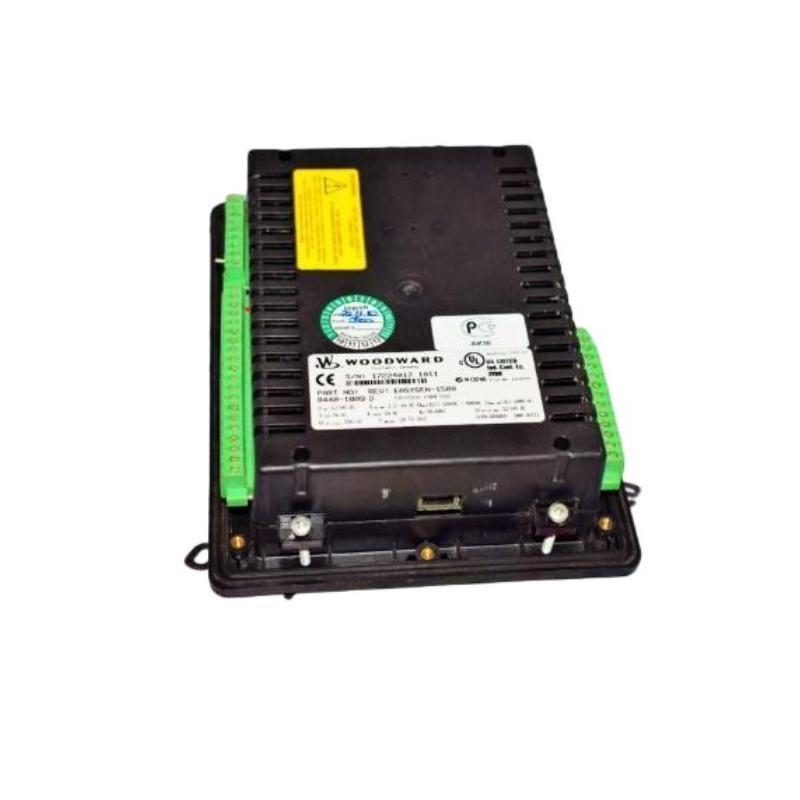

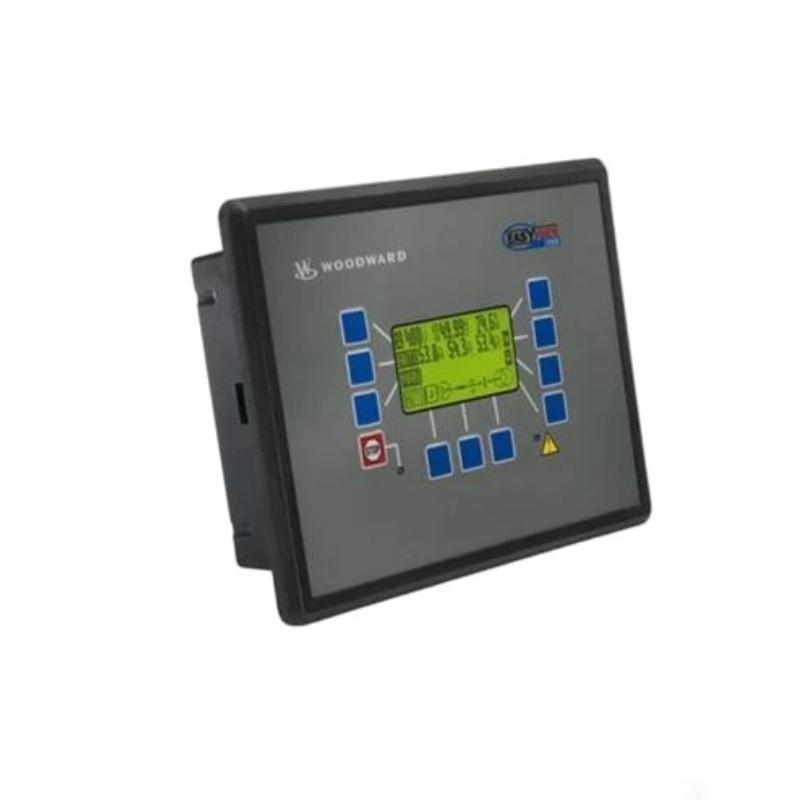

The Woodward 8440-1750 Turbine Control Module is a compact, high-performance controller designed to manage and protect turbine and generator systems in power generation, industrial, and marine environments. Part / Woodward’s renowned easYgen series, this module integrates essential functions such as synchronization, load sharing, engine protection, and system monitoring into a single, rugged 台.
With advanced communication capabilities, flexible I/O configuration, and robust environmental protection, the 8440-1750 provides reliable control for both standalone and grid-connected generator and turbine systems. Its intuitive interface and powerful s/tware make installation, configuration, and operation straightforward for engineers and operators alike.
Key Features and Advantages
-
Integrated Turbine and Generator Control: Combines synchronization, load sharing, protection, and monitoring functions in one module.
-
Wide Voltage and Frequency Range: サポートs sensing / generator voltages from 50 to 650,000 VAC and frequencies between 40 to 70 Hz.
-
Flexible Input/Output Configuration: Offers configurable digital and analog I/O to adapt to various system requirements.
-
Advanced Event Recording: Records up to 300 events with real-time clock and battery backup for traceability and diagnostics.
-
Rugged Industrial Design: Compact, durable housing with IP54 protection, suitable for harsh environments.
-
Global Certification: UL/cUL listed and marine-certified by GL (Germanischer Lloyd) and LR (Lloyd’s Register).
-
Wide Power Supply Range: Operates reliably on DC voltages from 6.5 to 40 VDC.
-
User-Friendly Interface: Equipped with graphical display and intuitive menu navigation for easy setup and operation.
-
Compact and Space-Saving: Optimized dimensions make it suitable for control panels with limited space.
-
Seamless Integration: Compatible with Woodward control systems and third-party automation platforms.
Technical Specifications
| Parameter | Specification |
|---|---|
| モデル Number | 8440-1750 (easYgen-1500-55B) |
| Function | Turbine and Generator Control Module |
| Dimensions | 300 x 200 x 60 mm |
| 重量 | 1.2 kg |
| Power Supply Voltage | 6.5 to 40 VDC |
| Voltage Sensing Range | 50 to 650,000 VAC |
| Frequency Sensing Range | 40 to 70 Hz |
| Digital Inputs/Outputs | Multiple configurable I/O channels |
| Analog Inputs/Outputs | 4-20 mA, 0-10 V configurable |
| Event Recording Capacity | 300 events with real-time clock |
| Protection Rating | IP54 |
| Certifications | UL, cUL, GL, LR |
| Operating Temperature Range | -20°C to +70°C |
| Country / Manufacture | USA |
Applications
-
Power generation turbine and generator control
-
Marine generator sets and propulsion system management
-
Industrial backup power and prime power control systems
-
Synchronization and load sharing in multi-generator installations
-
Grid-tied generator operation with utility interface functions
-
Remote and microgrid power system management
-
Process industry standby and emergency power solutions
よくある質問 (FAQ)
-
What is the primary use / the Woodward 8440-1750?
It is designed to control, monitor, and protect turbine and generator systems in both standalone and grid-connected applications. -
What voltage and frequency ranges does it support?
It supports generator voltages from 50 to 650,000 VAC and frequencies from 40 to 70 Hz. -
How many events can it record?
The module can record up to 300 events with real-time stamps, backed by an internal battery. -
What types / input and output signals are supported?
It features configurable digital and analog inputs/outputs, including 4-20 mA and 0-10 V options. -
Is the module suitable for marine applications?
Yes, it is certified by GL (Germanischer Lloyd) and LR (Lloyd’s Register) for marine use. -
What is the power supply requirement?
The module operates on DC power between 6.5 V and 40 V. -
Can it synchronize multiple generators?
Yes, it provides synchronization and load-sharing functions for multi-generator systems. -
Is it resistant to environmental conditions?
Yes, it /fers IP54 protection against dust and moisture, making it suitable for harsh environments. -
Does the module provide user-friendly operation?
It features a graphical display and intuitive controls for easy setup and monitoring. -
Where is the 8440-1750 manufactured?
It is manufactured in the USA, adhering to high-quality industrial standards.
