Product Overview

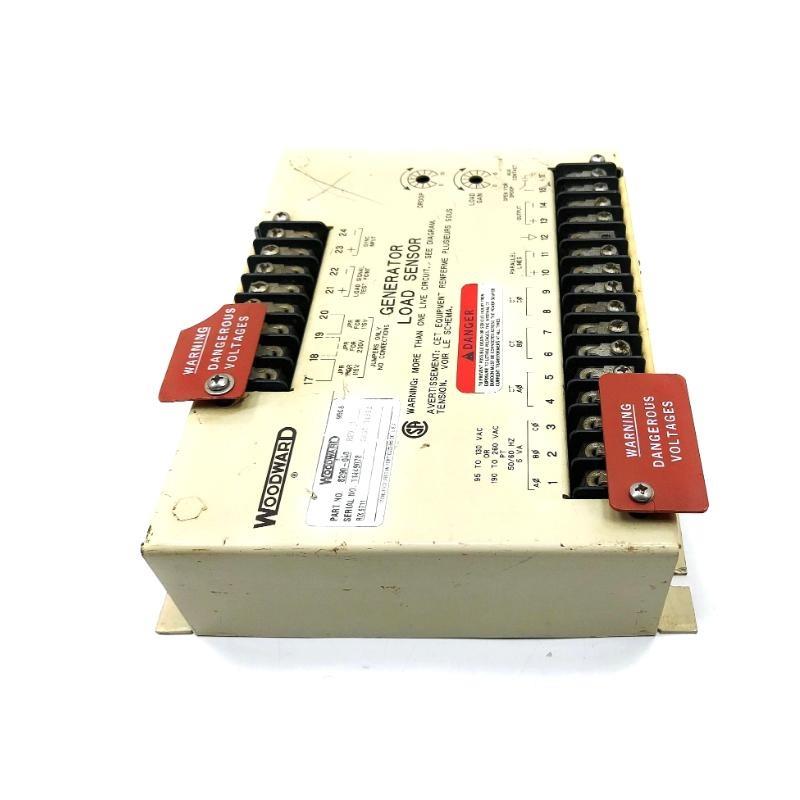

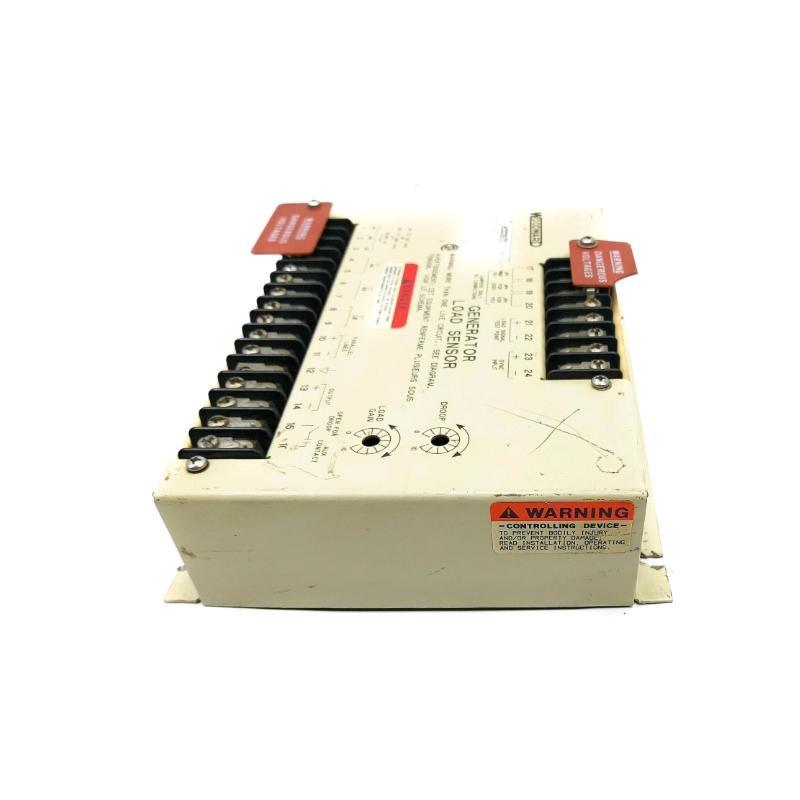

The Woodward 8290-048 Generator Load Sensor is a precision device designed for monitoring generator load conditions. It plays a critical role in load sharing and control in generator systems by detecting the amount / electrical load being delivered. It is engineered for high accuracy and stability in industrial and power generation environments.
Technical Specifications
| Parameter | Value |
|---|---|
| モデル | 8290-048 |
| Function | Generator Load Sensor |
| Voltage Range | 90–150 VAC |
| Frequency Range | 50–60 Hz |
| Accuracy | ±1% / Full Scale |
| Output Signal | Analog DC signal |
| Mounting | Panel Mount |
| Operating Temperature | –40°C to +85°C |
| Storage Temperature | –55°C to +105°C |
| Dimensions (W × H × D) | 135 × 120 × 55 mm |
| 重量 | 0.88 kg |
| Housing Material | Metal |
| Response Time | < 50 ms |
Applications
-
Load sharing in generator control systems
-
Power management systems
-
Industrial backup power systems
-
Marine and /fshore power control
-
Utility generator synchronization
Advantages
-
High accuracy and fast response
-
Robust metal housing for harsh environments
-
Easy integration into control panels
-
Wide operating temperature range
-
Stable and reliable signal output
-
Compatible with Woodward control systems
FAQ
Q1: What is the main function / the 8290-048 sensor?
A1: It measures the electrical load on a generator to assist in load sharing and control.
Q2: Is the sensor suitable for outdoor installation?
A2: It is designed for industrial environments but should be housed in a weather-protected enclosure if used outdoors.
Q3: Can it work with non-Woodward control systems?
A3: Yes, it provides a standard analog output that can interface with various systems.
Q4: What is the accuracy / the 8290-048?
A4: It /fers an accuracy / ±1% / the full-scale reading.
Q5: Does it support both 50 Hz and 60 Hz systems?
A5: Yes, it is compatible with both frequencies.
Q6: How is the sensor mounted?
A6: It is typically panel-mounted using the provided mounting brackets.
Q7: Is calibration required during installation?
A7: Minimal calibration is required; most 台s come pre-calibrated from the factory.
Q8: What type / output does the sensor deliver?
A8: It provides a DC analog output signal proportional to the measured load.
Q9: What protection does the housing /fer?
A9: The metal housing provides mechanical protection; electrical protection depends on installation.
Q10: What is the response time / this sensor?
A10: Less than 50 milliseconds, ensuring fast reaction in load control systems.
Related or Similar モデルs
| モデル | Voltage Range | Output Type | Frequency | Dimensions (mm) | 重量 |
|---|---|---|---|---|---|
| 8290-050 | 90–150 VAC | Analog DC | 50–60 Hz | 135×120×55 | 0.88 kg |
| 8290-054 | 90–150 VAC | 4–20 mA | 50–60 Hz | 135×120×55 | 0.88 kg |
| 2301A Load | 90–132 VAC | Analog DC | 50–60 Hz | 155×130×60 | 1.05 kg |
| DSLC-2 | 90–132 VAC | Digital (RS-485) | 50–60 Hz | 160×125×60 | 1.10 kg |
| MSLC-2 | 90–132 VAC | Digital (Modbus) | 50–60 Hz | 160×125×60 | 1.12 kg |
| 8440-2072 | 90–150 VAC | Analog DC | 50–60 Hz | 135×120×55 | 0.88 kg |
Popular Woodward モデルs
| モデル | Type | Application | Dimensions (mm) | 重量 |
|---|---|---|---|---|
| 2301D Digital | Load Sharing Controller | Generator Load Sharing | 155×130×60 | 1.10 kg |
| 9905-940 | Speed Control | Generator/Engine Control | 140×120×50 | 0.95 kg |
| EasyGen-3200XT | Genset Controller | Synchronizing, Load Control | 186×142×60 | 1.20 kg |
| 505XT | Steam Turbine Controller | Steam Turbine Automation | 240×160×70 | 1.80 kg |
| 8440-2081 | Genset Load Sensor | Power Systems Monitoring | 135×120×55 | 0.88 kg |
| 5009-751 | Actuator Driver Module | Engine Speed Control | 130×115×50 | 0.92 kg |
