Product Overview

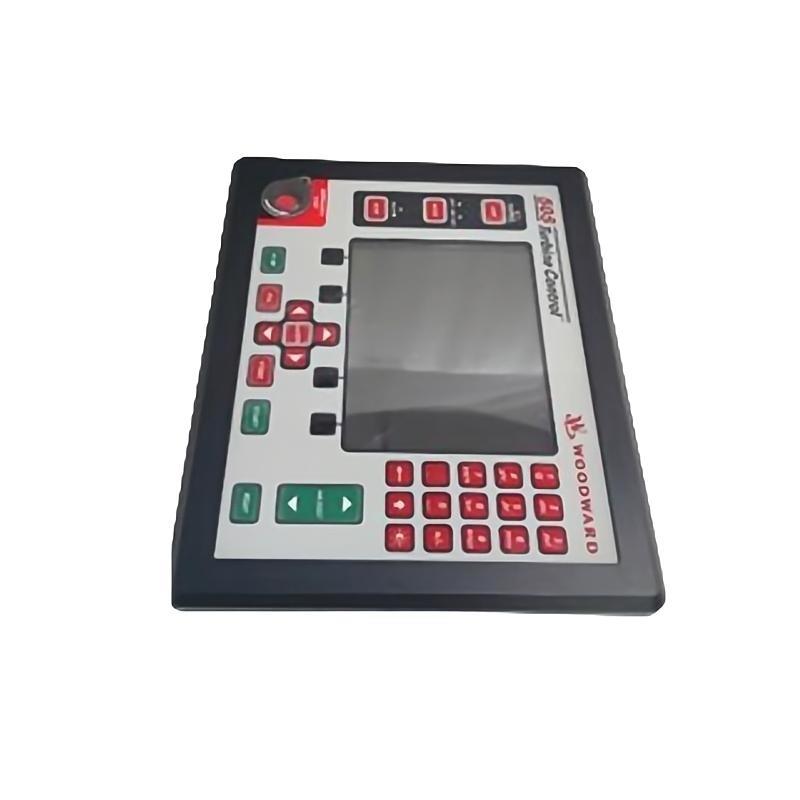

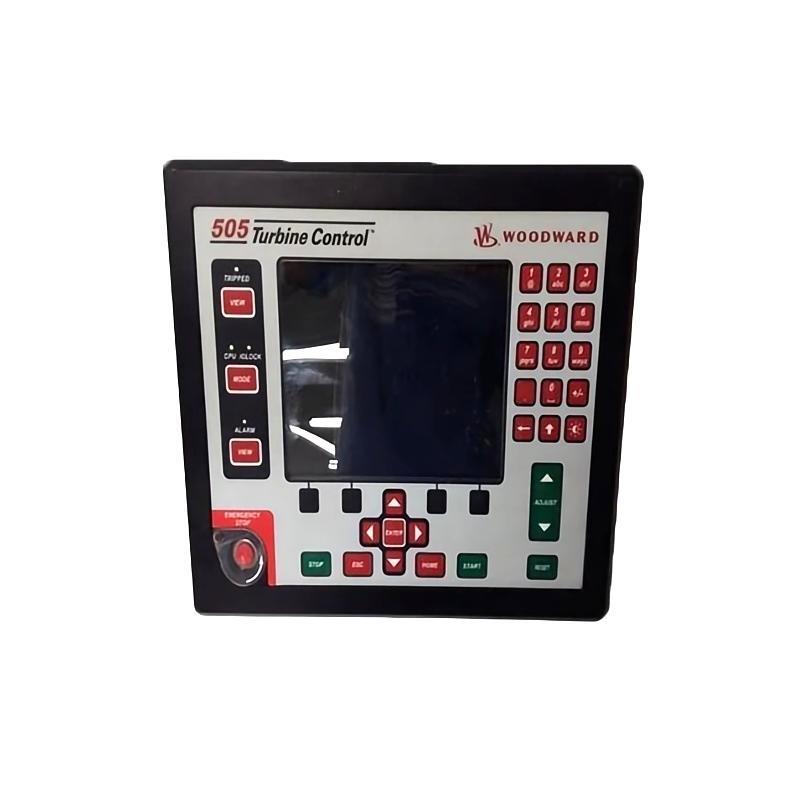

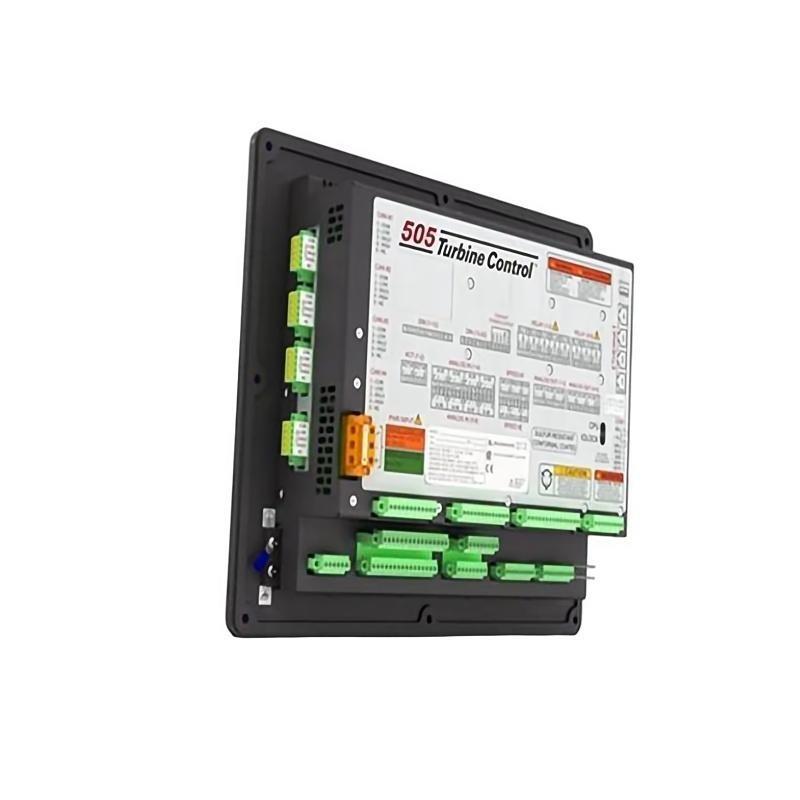

The Woodward 8200-1312 is a high-performance Digital Governor Turbine Control system specifically engineered for demanding turbine control applications. It integrates advanced control algorithms, precise speed and load management, and robust diagnostics, making it a reliable solution for industrial turbines in power generation, mechanical drive, and marine propulsion sectors.
With a focus on accuracy, real-time responsiveness, and flexible configuration, the 8200-1312 is widely used to improve operational efficiency and safety. Designed by Woodward, a global leader in energy control systems, this digital governor /fers unparalleled control functionality for steam, gas, and hydro turbine applications.
Technical Specifications
| Parameter | Details |
|---|---|
| モデル | Woodward 8200-1312 |
| Control Type | Digital Governor Turbine Control |
| Processor | High-speed microprocessor with redundancy support |
| Input Voltage | 18 to 32 VDC |
| Power Consumption | < 35 W typical |
| Operating Temperature Range | –40 °C to +70 °C |
| Humidity Range | 5% to 95% non-condensing |
| Analog Inputs | 4–20 mA, ±10 V |
| Digital Inputs | Discrete (dry contact or TTL level) |
| Communication Interfaces | CAN, RS-232, RS-485, Ethernet |
| Mounting Type | Panel-mounted |
| Dimensions (W x H x D) | 350 × 200 × 100 mm |
| 重量 | 2.5 kg |
| Protection Class | IP20 (standard), optional conformal coating |
| Certifications | CE, UL, CSA, ATEX (depending on config) |
Applications
The Woodward 8200-1312 is versatile and suitable for a wide range / industrial and commercial turbine control applications, including:
-
Steam Turbines in power plants, refineries, and paper mills
-
Gas Turbines used in mechanical drive and power generation
-
Hydro Turbines in water-based renewable energy facilities
-
Marine Propulsion Systems where precise control is critical
-
Compressor Control Systems in oil and gas facilities
-
Industrial Engines in combined heat and power (CHP) setups
Key Advantages
-
High-Speed Processing: Allows real-time control and ultra-fast response to transient conditions.
-
Flexible Configuration: Easily integrates with different turbine types through customizable I/O and logic functions.
-
Rugged Design: Operates reliably in harsh industrial environments with high vibration and temperature fluctuations.
-
Advanced Diagnostics: サポートs proactive maintenance via internal event logging and fault detection.
-
Secure Communication: Multiple protocols ensure secure and redundant communication with DCS/SCADA systems.
-
Modular Architecture: Scalable platform for adding features like fuel scheduling, overspeed protection, and load sharing.
-
Global Standards Compliance: Meets strict international safety and performance certifications, allowing global deployment.
よくある質問 (FAQ)
-
What types / turbines are compatible with the 8200-1312?
It supports steam, gas, and hydro turbines with both mechanical and electronic actuation systems. -
Is remote monitoring supported?
Yes, it /fers Ethernet, CAN, and serial communication ports for remote monitoring and diagnostics. -
Can this controller be integrated with SCADA systems?
Absolutely. It supports Modbus and other protocols for seamless SCADA or DCS integration. -
Does the system support redundant configuration?
Yes, dual-redundant configurations can be set up to enhance reliability in critical operations. -
What is the average MTBF (Mean Time Between Failures)?
The 8200-1312 has a high MTBF exceeding 100,000 hours, depending on the application environment. -
How is the s/tware configured?
Configuration is done using Woodward’s engineering tools like GAP or ToolKit s/tware. -
Are firmware updates available?
Yes, firmware updates are released periodically and can be installed via secured channels. -
Does it support automatic load sharing?
Yes, it includes built-in features for isochronous and droop load sharing between multiple 台s. -
Can it be used in explosive environments?
With the proper ATEX-certified configuration and enclosures, it can be used in hazardous areas. -
What is the expected service life / the controller?
With regular maintenance, the expected service life is over 15 years.
Related モデルs (Same Series or Function)
| モデル Number | 説明 | Key Feature |
|---|---|---|
| 8200-1301 | Digital Governor for gas turbines | High-speed CAN bus support |
| 8200-1315 | Steam turbine controller with advanced feedback | Redundant I/O options |
| 8200-1320 | Compact digital governor for hydro turbines | Conformal-coated version |
| 2301D-EC | Load sharing & speed control for engines | Ethernet and CAN communication |
| 505E | Steam turbine controller with HMI interface | Touchscreen-ready |
| 723PLUS | Industrial engine governor with PID tuning | Enhanced fuel control capability |
Popular Woodward モデルs
| モデル Number | 説明 | Application |
|---|---|---|
| 505XT | Steam turbine controller | Power generation |
| easYgen-3500XT | Generator control 台 | Parallel operation |
| 2301E | Speed control for mechanical engines | Industrial engines |
| Atlas II | High-end turbine and compressor controller | Oil & Gas, Power |
| ProAct™ Digital Plus | Electronic actuator with built-in governor | Engine control |
| Flex500 | Real-time automation controller | Turbine & engine automation |
