製品紹介

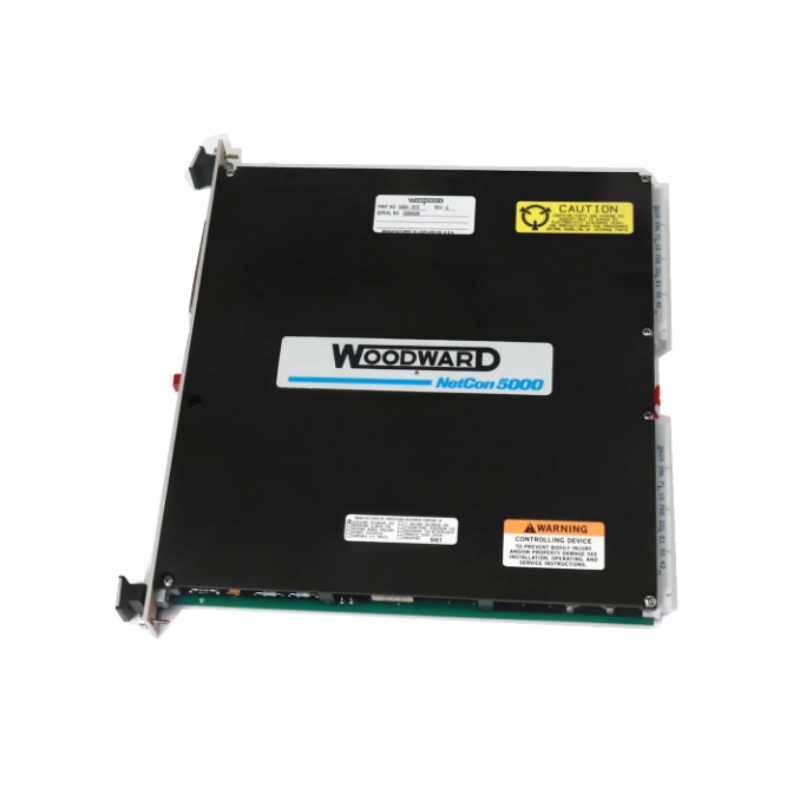

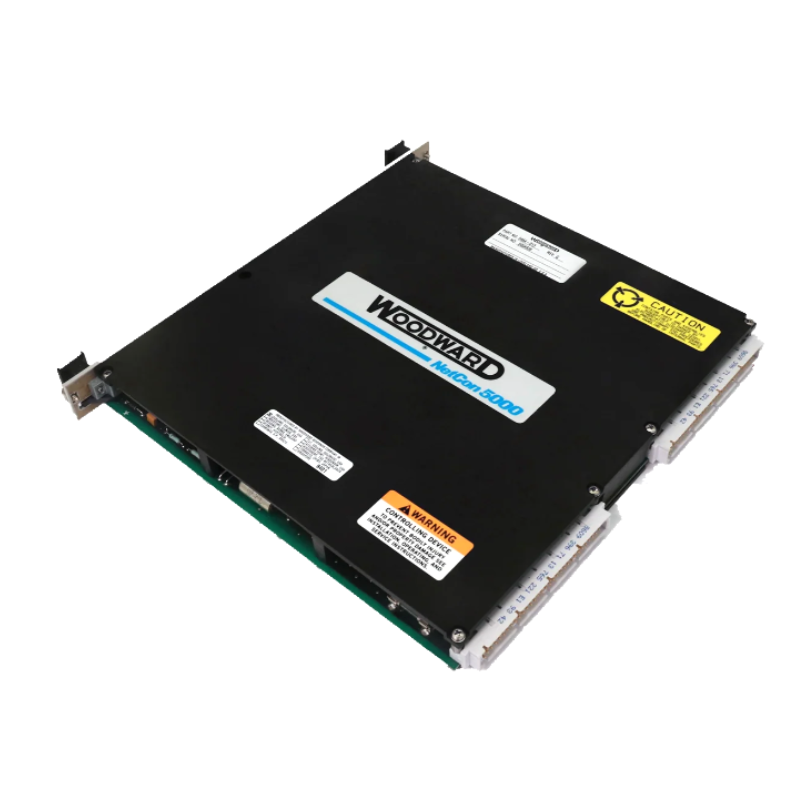

The Woodward 5466-352 Netcon CPU-040 Module is a powerful central processing 台 designed for the Netcon control system platform, providing reliable and efficient control processing for industrial automation applications. As the heart / the Netcon control network, the CPU-040 module executes control logic, manages communication between field devices and higher-level systems, and coordinates system-wide operations.
Built with robust industrial-grade components, the 5466-352 CPU module ensures high-speed data processing, low latency, and strong fault tolerance. It supports complex control algorithms and real-time system monitoring, making it suitable for demanding applications such as turbine control, power generation, and process automation.
With its compact form factor and modular design, the CPU-040 integrates seamlessly into Woodward’s Netcon racks, delivering high reliability and maintainability in harsh industrial environments.
製品仕様
| Parameter | Specification |
|---|---|
| モデル Number | 5466-352 |
| Product Type | Central Processing ユニット (CPU) Module |
| ブランド | Woodward |
| Control System | Netcon |
| Processor Type | High-performance industrial CPU |
| Memory | RAM and non-volatile memory for program and data storage |
| Communication Interfaces | Serial ports, Ethernet, and proprietary fieldbus |
| Operating Voltage | 24 V DC nominal |
| Power Consumption | Approx. 15 W |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Mounting Type | Rack-mounted in Netcon control chassis |
| Status Indicators | Multiple LEDs for power, communication, and fault status |
| Certifications | CE, UL, CSA |
| Dimensions (H × W × D) | 152 x 51 x 203 mm |
| 重量 | 0.907 kg |
Product Applications
The Woodward 5466-352 Netcon CPU-040 Module is widely used in critical control and automation environments, including:
-
Gas and Steam Turbine Controls: Governs turbine operation, load control, and safety interlocks.
-
Power Generation Plants: Coordinates generator synchronization, load sharing, and system monitoring.
-
Oil & Gas Industry: Manages process control and safety systems in refining and /fshore platforms.
-
Industrial Automation: Controls complex machinery, assembly lines, and process flows.
-
Water and Wastewater Treatment: Oversees pump stations, chemical dosing, and treatment processes.
-
Renewable Energy Systems: サポートs wind turbine controls and solar power plant management.
Product Advantages
-
High Reliability: Designed for continuous operation in demanding industrial conditions.
-
Real-Time Processing: Handles complex control algorithms with low latency.
-
Flexible Communication: サポートs multiple interfaces for integration with various devices and systems.
-
Compact and Modular: Easily integrates into Netcon control racks, facilitating system expansion.
-
Robust Diagnostics: Built-in LED indicators simplify troubleshooting and preventive maintenance.
-
Wide Environmental Tolerance: Operates effectively across a broad temperature and humidity range.
-
Global Compliance: Meets international safety and electromagnetic compatibility standards.
よくある質問 (FAQ)
-
What is the primary function / the 5466-352 CPU-040 Module?
It serves as the main processing 台 in the Netcon system, executing control logic and managing communications. -
What types / communication interfaces does it support?
The module supports serial ports, Ethernet, and proprietary Woodward fieldbus protocols. -
Is this CPU compatible with all Netcon modules?
Yes, it is designed to work seamlessly within the Netcon control platform. -
Can the module handle real-time control tasks?
Absolutely, it is optimized for real-time processing with low latency. -
What are the environmental limits for operating this module?
It operates safely between -20°C to +70°C and within 5% to 95% non-condensing humidity. -
Is the module user-serviceable?
Routine maintenance is minimal, but replacement or repair should be performed by qualified personnel. -
Does the CPU support firmware updates?
Yes, firmware updates can be performed via supported communication interfaces. -
How does the module indicate system faults?
Status and fault LEDs on the front panel provide immediate visual feedback. -
What is the power consumption / this module?
It consumes approximately 15 watts under normal operating conditions. -
Can this CPU be used in redundant control systems?
Yes, it can be configured as part / redundant or fail-safe control architectures.
Related モデルs (Same Series or Function)
| モデル Number | 説明 | Function/Series |
|---|---|---|
| 5466-353 | Netcon CPU-041 Module | 次へ-generation CPU for Netcon systems |
| 5466-318 | MicroNet TMR Kernel PS Module | Power supply module for TMR systems |
| 5466-258 | TMR Voter Module | Voting logic module for TMR systems |
| 5466-440 | TMR I/O Interface Module | Field I/O interface for TMR systems |
| 5466-644 | TMR Relay Output Module | Isolated relay outputs for safety |
| 5466-104 | TMR CPU Communication Module | CPU communication interface |
Popular モデルs from Woodward (Same ブランド)
| モデル Number | 説明 | Primary Application |
|---|---|---|
| 505E | Steam Turbine Digital Controller | Steam turbine control |
| 2301E | Load Sharing and Speed Control Module | Generator synchronization |
| 9905-940 | Digital Governor Controller | Turbine and engine control |
| 5464-648 | 8-Channel Analog Output Module | Analog signal output |
| 9907-164 | ProAct Digital Actuator | Electronic actuator for engines |
| 5417-040 | MicroNet CPU Processor Module | Central processing for MicroNet systems |
