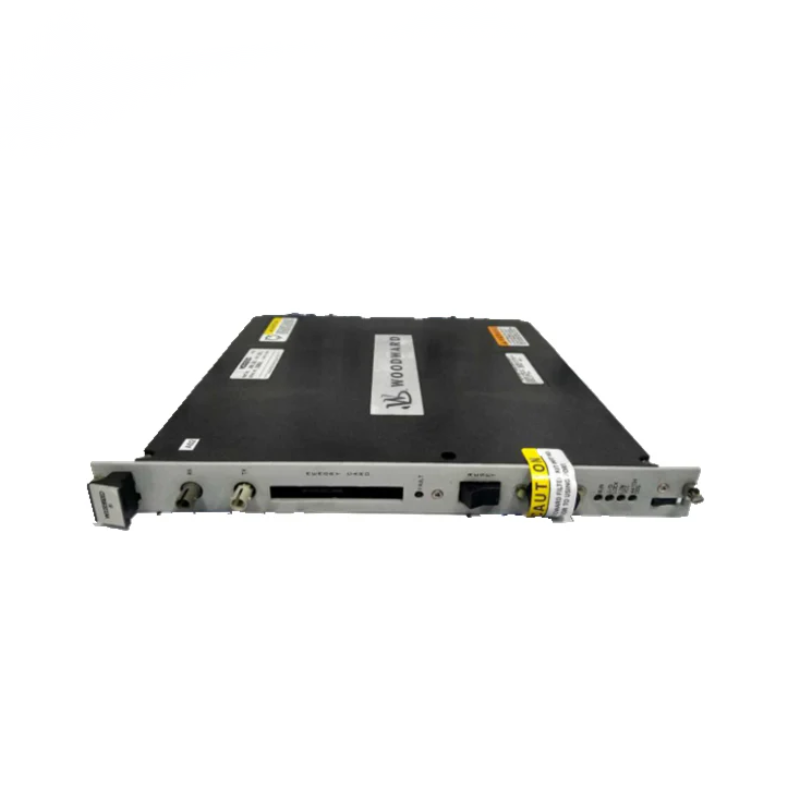

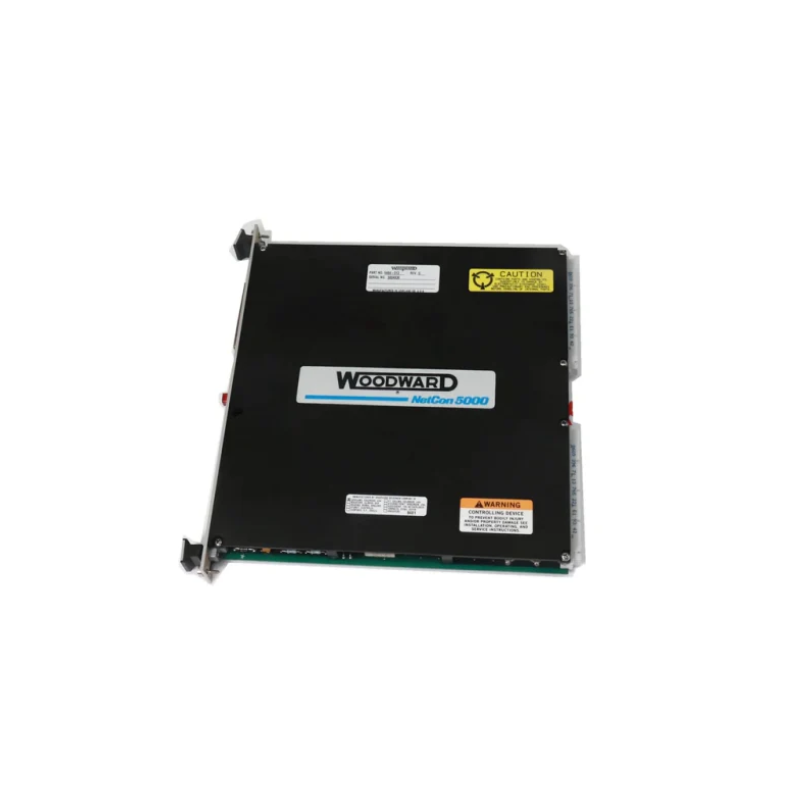

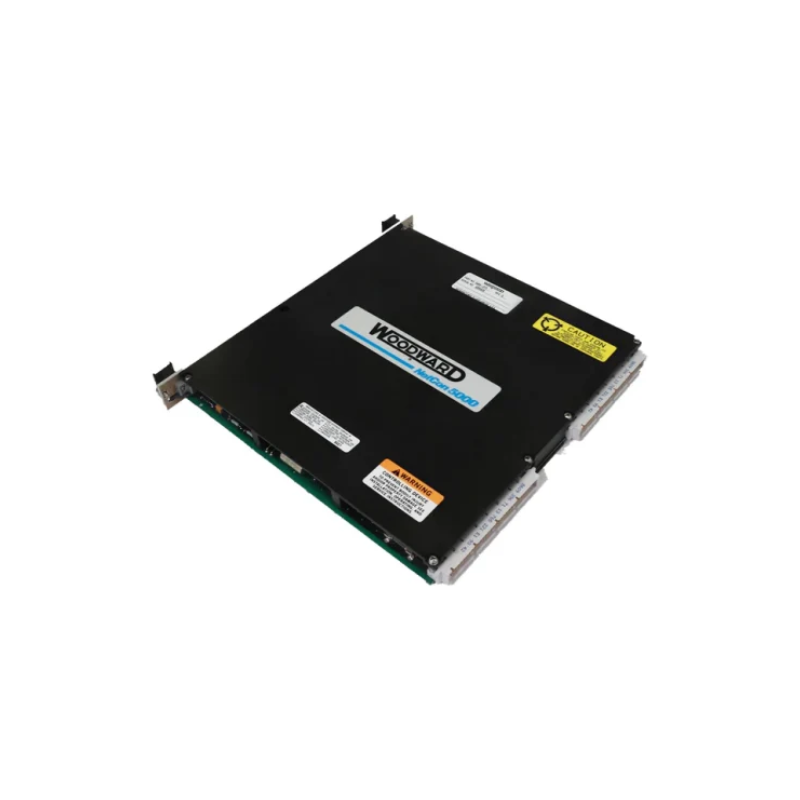

製品紹介: Woodward 5466-1049
The Woodward 5466-1049 is a high-performance industrial control module designed for precision monitoring and regulation in critical applications. It is part / Woodward’s renowned product line, known for reliability and advanced engineering. This module is widely used in power generation, marine, and industrial automation systems, /fering robust performance in harsh environments. Its compact design, coupled with advanced diagnostics, ensures seamless integration and long-term durability.
製品仕様
| Parameter | Value |
|---|---|
| モデル Number | 5466-1049 |
| Input Voltage | 24V DC (±10%) |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -50°C to +100°C |
| Dimensions (L x W x H) | 150mm x 100mm x 50mm |
| 重量 | 0.5 kg |
| Communication Protocol | CAN, RS-485 |
| Protection Rating | IP67 |
| Output Channels | 4 Analog, 8 Digital |
| Certifications | CE, UL, RoHS |
Product Applications
The Woodward 5466-1049 is versatile and suited for:
-
Power Generation: Governing and load sharing in turbines and generators.
-
Marine Systems: Engine control and monitoring for propulsion and auxiliary systems.
-
Industrial Automation: Process control and safety monitoring in manufacturing plants.
-
Oil & Gas: Regulation / compressors and pumps in upstream and midstream operations.
-
Transportation: Control systems for rail and heavy-duty vehicles.
Product Advantages
-
High Reliability: Engineered for 24/7 operation in extreme conditions.
-
Advanced Diagnostics: Real-time fault detection and reporting.
-
Easy Integration: サポートs multiple communication protocols for seamless connectivity.
-
Compact Design: 保存s space without compromising functionality.
-
Robust Construction: IP67 rating ensures resistance to dust and moisture.
-
Wide Temperature Range: Operates reliably in both Arctic and desert environments.
よくある質問 (FAQ)
-
What is the warranty period for the 5466-1049?
The standard warranty is 12 months from the date / purchase. -
Can this module be used in explosive environments?
No, it is not ATEX-certified. For hazardous areas, consider the 5466-1050 model. -
What s/tware is required for configuration?
Woodward’s proprietary Toolkit s/tware is used for setup and diagnostics. -
Is the module compatible with legacy systems?
Yes, it supports backward compatibility with RS-232 via adapters. -
How /ten should firmware be updated?
Updates are recommended every 12-18 months or as per Woodward’s service bulletins. -
What is the MTBF (Mean Time Between Failures)?
Approximately 100,000 hours under normal operating conditions. -
Can the digital outputs handle inductive loads?
Yes, but external suppressors are recommended for high-inductance devices. -
What is the maximum cable length for RS-485 communication?
Up to 1200 meters at 115.2 kbps. -
Does the module support redundant power inputs?
No, but dual-power variants like the 5466-1049R are available. -
How to troubleshoot a communication failure?
Check grounding, baud rate settings, and cable integrity. Use Toolkit for error logs.
Recommended Related モデルs
| モデル Number | 説明 | Key Feature |
|---|---|---|
| 5466-1050 | Hazardous Area Version | ATEX Certification |
| 5466-1032 | 8-Channel Analog Module | Higher Analog Resolution |
| 5466-1075 | Dual-Power Control Module | Redundant Power Inputs |
| 5466-1100 | High-Temperature Variant | Operates up to 125°C |
| 5466-1021 | Basic I/O Module | Cost-Effective Solution |
| 5466-1088 | Enhanced Communication Module | Ethernet/IP サポート |
Popular Woodward モデルs in Same ブランド
| モデル Number | 説明 | Application |
|---|---|---|
| 2301A | Speed Control System | Turbines, Compressors |
| 505XT | Digital Governor | Power Generation |
| EGCP-3 | Engine Generator Control | Standby Power Systems |
| ProAct II | Multi-Loop Controller | Industrial Automation |
| SPM-A | Synchronizer & Load シェアr | Parallel Generators |
| PCL1 | Programmable Logic Controller | Marine & Mobile Equipment |
