Product Overview

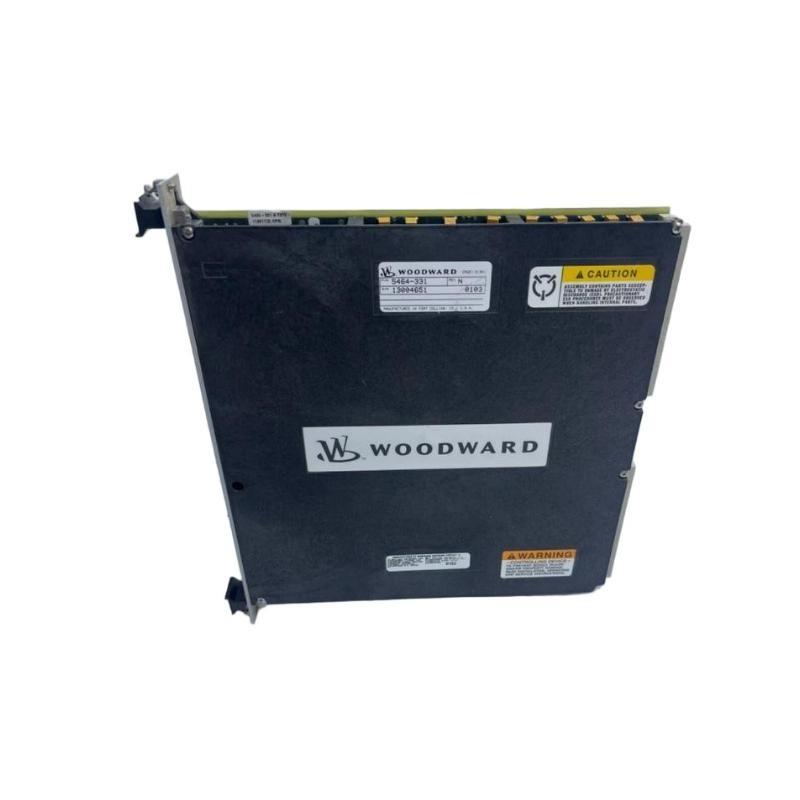

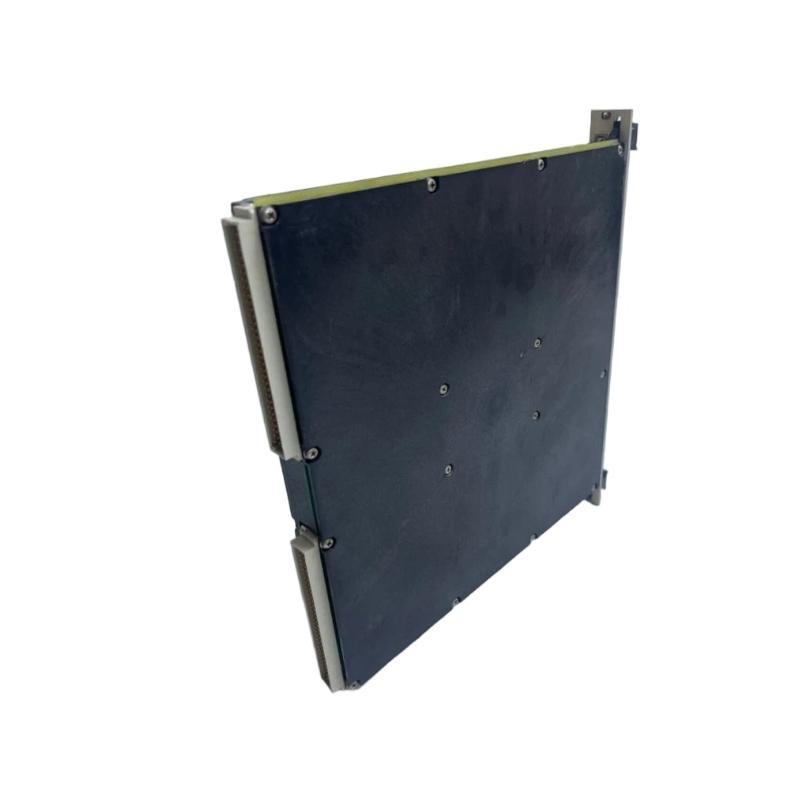

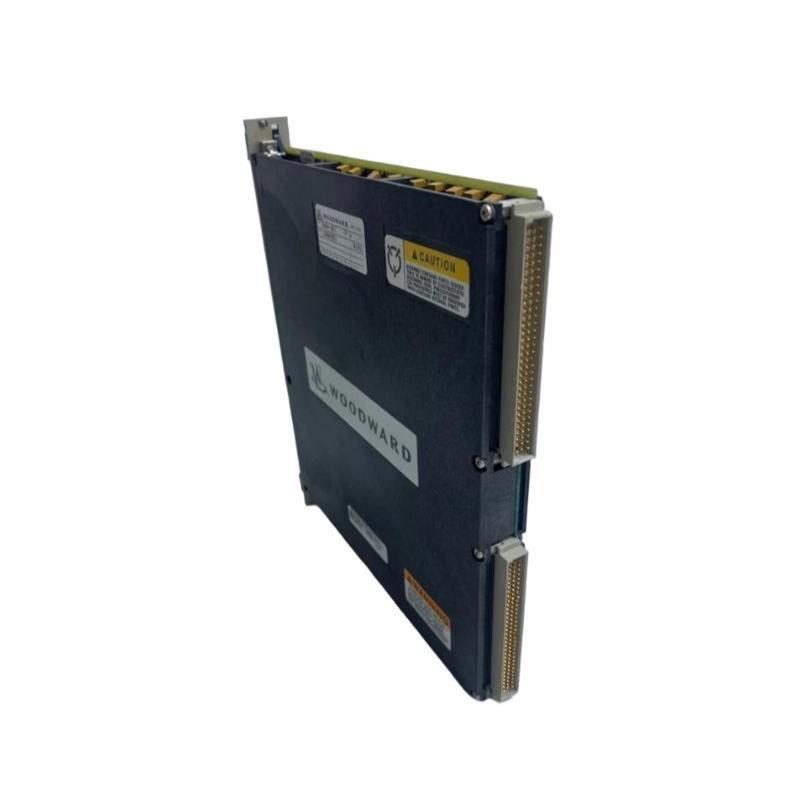

The Woodward 5464‑331 Power Module is a vital component designed to supply stable and regulated power to the control system within Woodward MicroNet and NetCon platforms. This module ensures reliable power distribution to all I/O modules and controllers installed in the chassis. Engineered for high performance and durability, the 5464‑331 maintains system integrity during power fluctuations and supports redundant configurations for critical control environments.
Key Features
-
Regulated power supply for MicroNet and NetCon systems
-
サポートs redundant power configurations
-
Designed for harsh industrial environments
-
Compact form factor for seamless chassis integration
-
LED indicators for power status and diagnostics
-
Over-voltage and over-current protection
-
Long service life with high MTBF rating
Technical Specifications
| Parameter | Specification |
|---|---|
| モデル Number | 5464‑331 |
| Module Type | Power Supply Module |
| Input Voltage Range | 18–32 VDC |
| Output Voltage | 5 VDC regulated |
| Output Current | Up to 15 A |
| Redundancy サポート | Yes (dual module configurations) |
| Protection Features | Over-voltage, over-current, thermal shutdown |
| Indicators | Power OK, fault status LEDs |
| Dimensions | 245 × 25 × 261 mm |
| 重量 | 1.1 kg |
| Mounting | Fits into MicroNet / NetCon backplane |
| Operating Temperature | –40 °C to +70 °C |
| Country / Manufacture | ユニットed 州s / America |
Industry Applications
-
Industrial gas turbine and steam turbine control
-
Generator and engine control systems
-
Process automation requiring redundant power
-
Safety-critical control panels
-
Power management systems in utility plants
よくある質問 (FAQ)
-
What does the 5464‑331 module do?
It provides regulated power to MicroNet or NetCon system components. -
What is the input voltage range for this module?
It operates within 18–32 VDC. -
Does it support redundancy?
Yes, it supports redundant installation for uninterrupted power delivery. -
What kind / protection does it /fer?
Over-voltage, over-current, and thermal protection are built-in. -
What systems is it compatible with?
It is designed for Woodward MicroNet and NetCon control systems. -
Can it be hot-swapped?
No, power must be /f during insertion or removal. -
What is the maximum output current?
It supports up to 15 A / regulated 5 VDC output. -
Does the module provide diagnostic feedback?
Yes, it includes LEDs for power status and fault indication. -
What is the operating temperature range?
–40 °C to +70 °C. -
Is this a stand-alone power supply?
No, it must be used within the system chassis as part / a Woodward control system.
Related Modules
| モデル Number | 説明 |
|---|---|
| 5466‑315 | Analog Input Module |
| 5466‑316 | Analog Combination Module (I/O) |
| 5466‑355 | Remote Chassis Transceiver |
| 5466‑356 | Main Chassis Transceiver |
| 5466‑409 | Digital Input Module |
| 5466‑417 | Digital Output Module |
